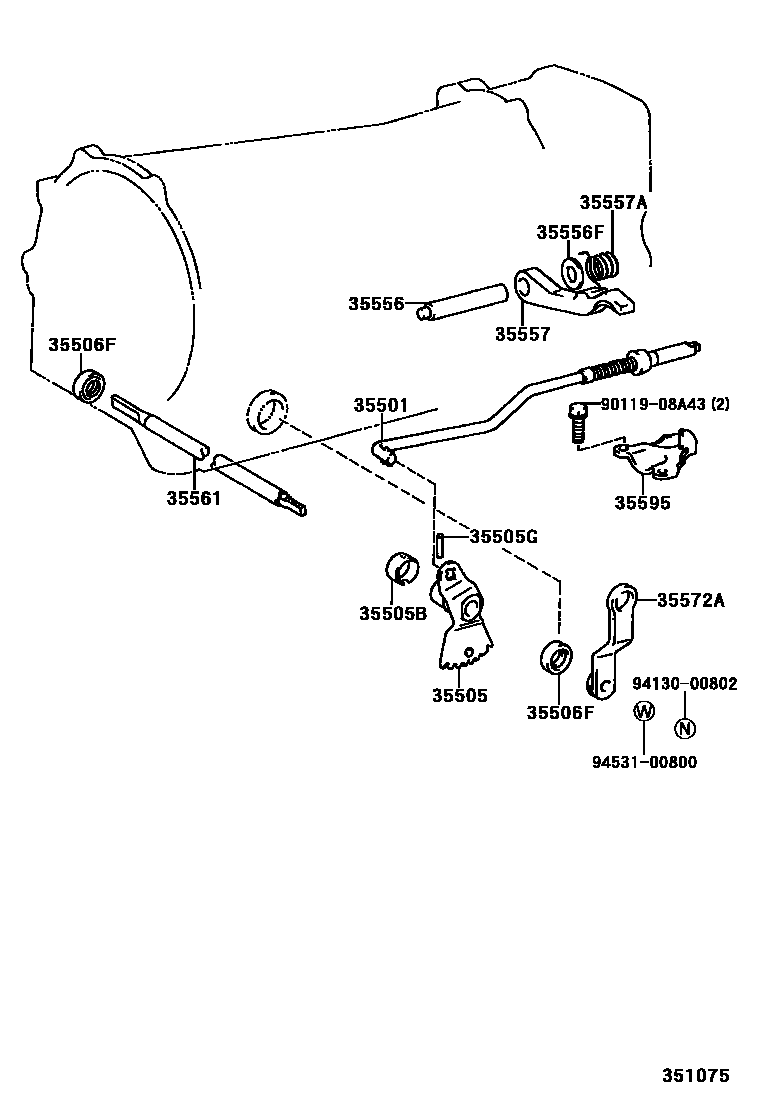

THROTTLE LINK & VALVE LEVER (ATM)

0001 1A442F 0002 1A750F

35501ROD SUB-ASSY, PARKING LOCK

main35501-36010iUZJ100199801-200208

main35501-60020iUZJ100200208-200505

35505LEVER SUB-ASSY, MANUAL VALVE

main35505-60020iUZJ100199801-200208

main35505-60050iUZJ100200208-200505

35505BSPACER (FOR MANUAL VALVE LEVER)

main90560-20008iUZJ100199801-200208

35505GPIN, SLOTTED SPRING (FOR MANUAL VALVE LEVER)

main90254-04012iUZJ100199801-200208

35506FSEAL, OIL (FOR MANUAL VALVE LEVER SHAFT)

main90311-12002×2iUZJ100199801-200208

35556SHAFT, PARKING LOCK PAWL

main35556-36010iUZJ100199801-200208

main35556-60020iUZJ100200208-200505

35556FWASHER, PLATE (FOR PARKING LOCK PAWL SHAFT)

main90201-16012iUZJ100199801-200208

35557PAWL, PARKING LOCK

main35557-60030iUZJ100199801-200208

main35557-60040iUZJ100200208-200505

35557ASPRING, TORSION (FOR PARKING LOCK PAWL)

main90508-30010iUZJ100199801-200208

main90949-03123iUZJ100200208-200505

35561SHAFT, MANUAL VALVE LEVER

main35561-60020iUZJ100199801-200208

main35561-60030iUZJ100200208-200505

35572ALEVER, TRANSMISSION CONTROL SHAFT

main35572-60050iUZJ100199801-200208

35595BRACKET, PARKING LOCK PAWL

main35595-60020iUZJ100199801-200208

main35595-60030iUZJ100200208-200505

9011908A43

main90119-08A43

9413000802

main94130-00802

9453100800

main94531-00800

15 parts on this diagram · 2 diagrams in section
