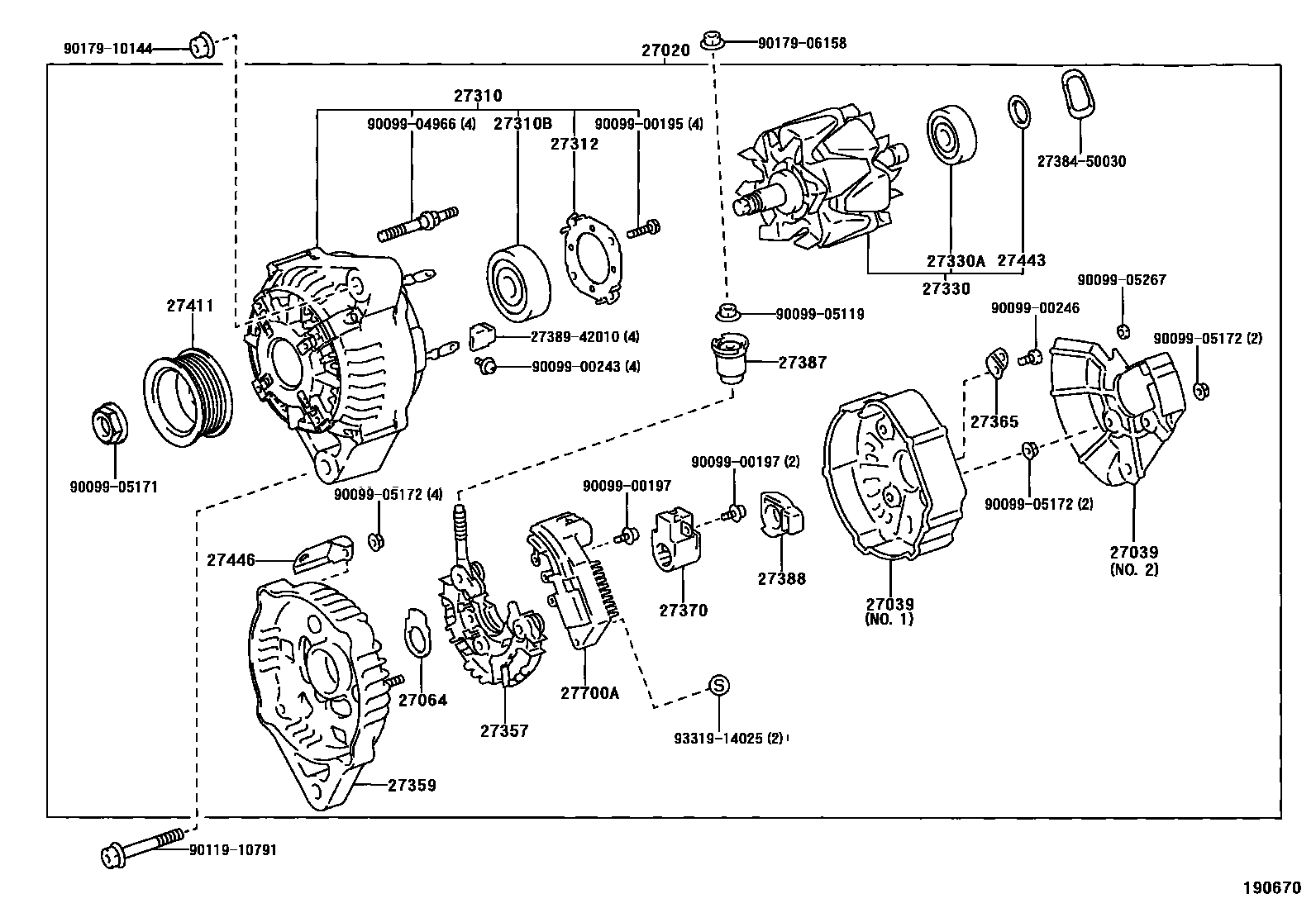

ALTERNATOR

0001 112V 80A,100A 0002 112V 80A,100A 0004 112V 100A

27020ALTERNATOR ASSY

main27060-50250i2UZFE..UZJ100..LHD199801-200407

12V 80A

main27060-50260i2UZFE..UZJ100..RHD199801-200407

12V 100A

main27060-50300i2UZFE..UZJ100..LHD200407-200505

12V 80A

main27060-50350i2UZFE..UZJ100..RHD200407-200505

12V 100A

27039COVER, ALTERNATOR REAR END

main27039-30080i2UZFE..UZJ100..RHD200407-200505

main27039-46230i2UZFE..UZJ100..LHD199806-200208

NO.1

sub27039-70470

main27039-50090i2UZFE..UZJ100..RHD199801-199806

NO.1

sub27039-17230

main27039-50250i2UZFE..UZJ100..RHD199806-200104

NO.1

sub27039-17230

main27039-50280i2UZFE..UZJ100..RHD200104-200208

NO.1

main27039-50370i2UZFE..UZJ100..RHD200505-200707

main27039-50430i2UZFE..UZJ100..RHD200708

main27039-55080i2UZFE..UZJ100..LHD199801-199806

NO.1

sub27039-70470

main27039-58330i2UZFE..UZJ100199801-200208

NO.2

27064SEAL, ALTERNATOR PLATE

main27064-42010i2UZFE..UZJ100199801-200208

27310FRAME ASSY, DRIVE END, ALTERNATOR

main27310-50060i2UZFE..UZJ100..RHD199801-200208

main27310-50190i2UZFE..UZJ100..LHD199801-200208

main27310-50310i2UZFE..UZJ100..RHD200407-200505

27310BBEARING(FOR ALTERNATOR DRIVE END FRAME)

main90099-10142i2UZFE..UZJ100..RHD200407-200611

sub90099-10223

main90099-10192i2UZFE..UZJ100199801-200208

main90099-10223i2UZFE..UZJ100..RHD200612

27312PLATE, RETAINER

main27312-42010i2UZFE..UZJ100199801-200208

main27312-72100i2UZFE..UZJ100..RHD200407-200505

27330ROTOR ASSY, ALTERNATOR

main27330-20130i2UZFE..UZJ100..RHD200407-200505

sub27330-33090

main27330-30070i2UZFE..UZJ100..RHD200505

main27330-46290i2UZFE..UZJ100..LHD199801-200407

sub27330-74550

main27330-50070i2UZFE..UZJ100..RHD199801-200007

sub27330-20070

main27330-62180i2UZFE..UZJ100..RHD200007-200407

main27330-62220i2UZFE..UZJ100..LHD200407-200505

sub27330-30130

27330ABEARING(FOR ALTERNATOR ROTOR)

main90099-10140i2UZFE..UZJ100..RHD200505-200708

main90099-10194i2UZFE..UZJ100199801-200208

main90099-10216i2UZFE..UZJ100..RHD200407-200505

27357HOLDER, ALTERNATOR, W/RECTIFIER

main27357-20060i2UZFE..UZJ100..RHD199801-200407

main27357-22200i2UZFE..UZJ100..LHD200407-200505

main27357-55080i2UZFE..UZJ100..LHD199801-200407

27359FRAME, ALTERNATOR RECTIFIER END

main27359-50260i2UZFE..UZJ100..LHD199801-200208

main27359-50270i2UZFE..UZJ100..RHD199801-200208

27365PLATE, TERMINAL

main27365-55080i2UZFE..UZJ100199801-200208

27370HOLDER ASSY, ALTERNATOR BRUSH

main27370-20130i2UZFE..UZJ100..RHD200407-200505

main27370-58460i2UZFE..UZJ100..RHD200505

main27370-75060i2UZFE..UZJ100..LHD199801-200505

27387INSULATOR, TERMINAL

main27387-20130i2UZFE..UZJ100..RHD200407-200505

main27387-42021i2UZFE..UZJ100199801-200208

27388COVER, ALTERNATOR BRUSH

main27388-46220i2UZFE..UZJ100199801-200208

27411PULLEY, ALTERNATOR

main27411-46080i2UZFE..UZJ100..RHD199801-200505

main27411-50190i2UZFE..UZJ100..LHD199801-200407

main27411-50290i2UZFE..UZJ100..LHD200407-200505

27443COVER, ALTERNATOR BEARING

main27443-63020i2UZFE..UZJ100..RHD199801-200708

27446CLIP, ALTERNATOR CORD

main27446-50260i2UZFE..UZJ100199801-200208

27700AREGULATOR ASSY, GENERATOR

main27700-50030i2UZFE..UZJ100199807-200407

main27700-50040i2UZFE..UZJ100..LHD200407-200505

main27700-50050i2UZFE..UZJ100199801-199807

sub27700-75020

2738450030WASHER

main27384-50030

2738942010INSULATOR, TERMINAL

main27389-42010

9009900195

main90099-00195

9009900197

main90099-00197

9009900243

main90099-00243

9009900246

main90099-00246

9009904966

main90099-04966

9009905119

main90099-05119

9009905171

main90099-05171

9009905172

main90099-05172

9009905267

main90099-05267

9011910791

main90119-10791

9017906158

main90179-06158

9017910144

main90179-10144

9331914025

main93319-14025

33 parts on this diagram · 3 diagrams in section
