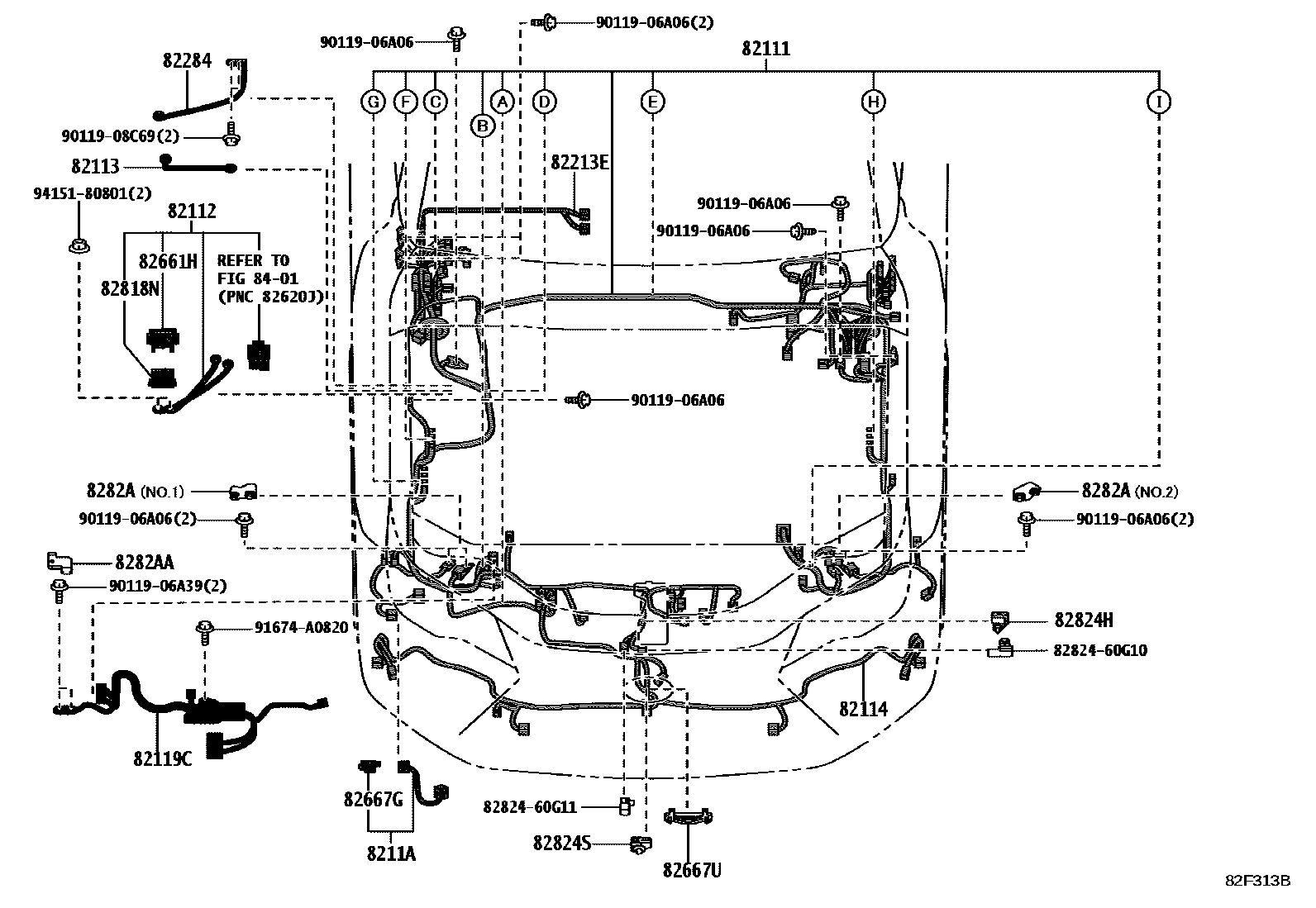

WIRING & CLAMP
82111WIRE, ENGINE ROOM MAIN
MONGOLIA SPEC&ACTIVE SAFETY PACKAGE-WITHOUT&WINDSHIELD DEICER-WITHOUT
UAE SPEC&"EXECUTIVE"&EXHAUST EMISSION CONTROL-EURO 5, WITH(ON BOARD DIAGNOSIS)&AUDIO(FOR OVERSEAS MARKET)-EMV & 25SPEAKER(*MAR)
MEXICO SPEC&WINDSHIELD DEICER-WITHOUT
VIETNAM SPEC&WINDSHIELD DEICER-WITHOUT
VIETNAM SPEC&WINDSHIELD DEICER-WITHOUT
MONGOLIA SPEC&WINDSHIELD DEICER-WITHOUT
CHILE SPEC&WITHOUT(COLD AREA SPEC)
CHILE SPEC&WITHOUT(COLD AREA SPEC)&EXHAUST EMISSION CONTROL-EURO 6, WITH(ON BOARDDIAGNOSIS & EGR)
CHILE SPEC&WITHOUT(COLD AREA SPEC)&EXH.EMISSION CONTROL-EURO6C,WITHOUT(OBD),WITH(EGR)
82112WIRE, ENGINE ROOM, NO.2
WITHOUT(COLD AREA SPEC)
82113WIRE, ENGINE ROOM, NO.3
WITHOUT(COLD AREA SPEC)
82114WIRE, ENGINE ROOM, NO.4
VIETNAM SPEC&WITHOUT(COLD AREA SPEC)
MONGOLIA SPEC
WITHOUT(COLD AREA SPEC)
82119CWIRE, ENGINE ROOM, NO.5
8211AWIRE, ENGINE ROOM, NO.6
82213EWIRE, HEATER BLOWER
HEATER-*673(2LAYER BLOWER)
WITHOUT(COLD AREA SPEC)
82284WIRE, EARTH
WITHOUT(COLD AREA SPEC)
82661HCOVER, RELAY BLOCK
82667GHOLDER, CONNECTOR, NO.22
82667UHOLDER, CONNECTOR, NO.32
82818PROTECTOR, WIRING HARNESS, NO.2
82818NPROTECTOR, WIRING HARNESS, NO.14
82824HCONNECTOR, WIRING HARNESS
82824SCONNECTOR, WIRING HARNESS
8282ACAP, EARTH BOLT, NO.1
NO.1
NO.2
8282AACAP, EARTH BOLT, NO.2
8401SWITCH & RELAY & COMPUTER
8282460G10CONNECTOR, WIRING HARNESS
main82824-60G10
8282460G11CONNECTOR, WIRING HARNESS
main82824-60G11
9011906A06
main90119-06A06
9011906A39
main90119-06A39
9011908C69
main90119-08C69
91674A0820
main91674-A0820
9415180801
main94151-80801
25 parts on this diagram · 34 diagrams in section
