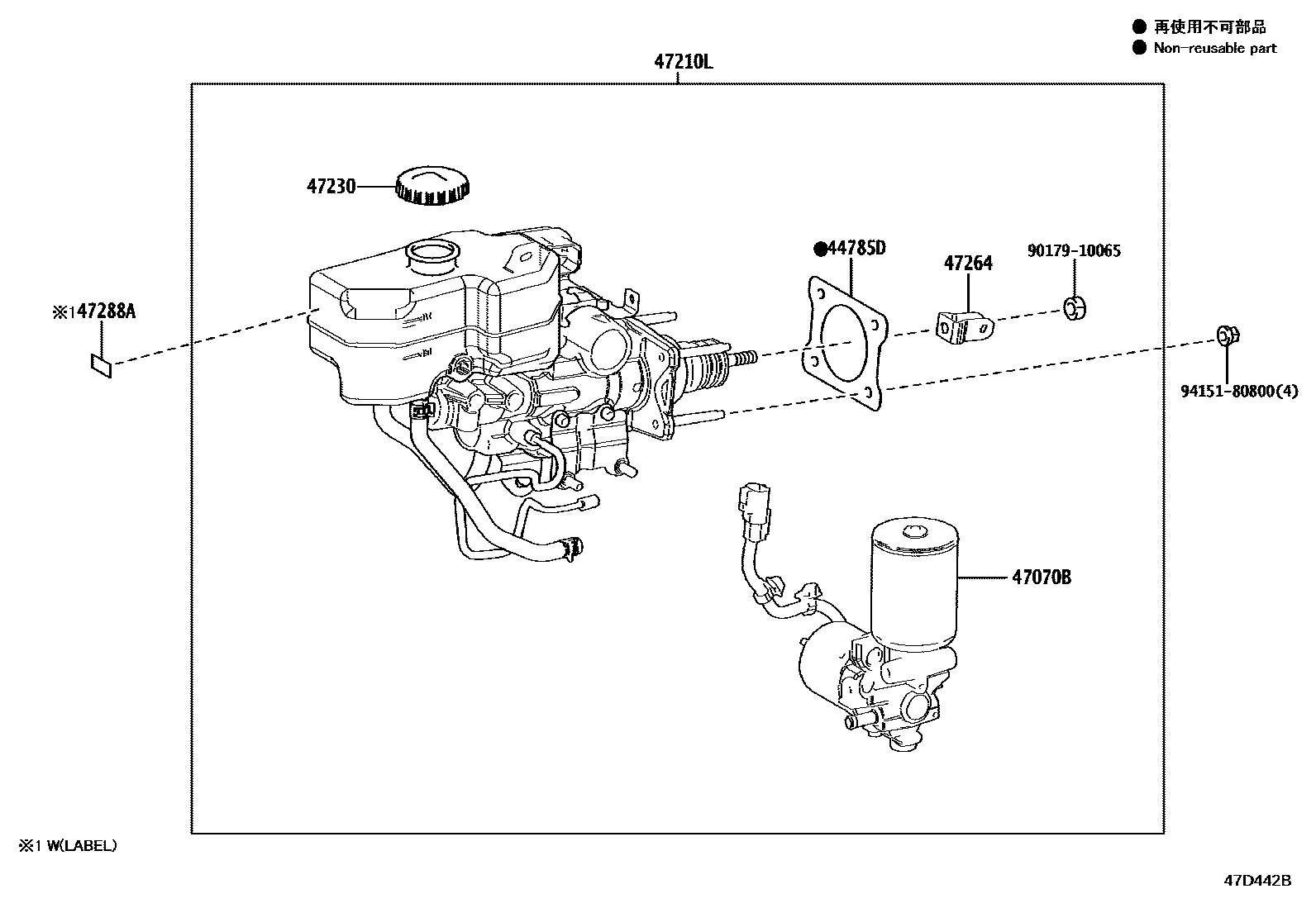

BRAKE MASTER CYLINDER

44785DGASKET, BRAKE MASTER CYLINDER

main44785-12040i202112-202411

47070BPUMP ASSY, BRAKE BOOSTER W/ACCUMULATOR

main47070-48100i202112-202310

47210LBRAKE BOOSTER ASSY, W/MASTER CYLINDER

main47050-60B40i202112-202310

*614

main47050-60B50i202112-202310

*614

main47050-60C20i202310-202411

*614

main47050-60C30i202310-202411

*614

47230CAP ASSY, BRAKE MASTER CYLINDER RESERVOIR FILLER

main47230-47090i202112-202411

47264CLEVIS, MASTER CYLINDER PUSH ROD

main47264-63020i202112-202411

47288ALABEL, BRAKE FLUID NOTICE

main47288-30010i202112-202411

AZER, GEORGIA SPEC; CHILE SPEC; MEXICO SPEC; MOLDOVA SPEC; MONGOLIA SPEC; UKRAINE SPEC; VIETNAM SPEC

BAHRAIN SPEC; IRAQ SPEC; JORDAN SPEC; KUWAIT SPEC; LEBANON SPEC; OMAN SPEC; QATAR SPEC; SAUDI ARABIA SPEC; UAE SPEC; YEMEN SPEC

9017910065

9415180800

8 parts on this diagram · 2 diagrams in section
