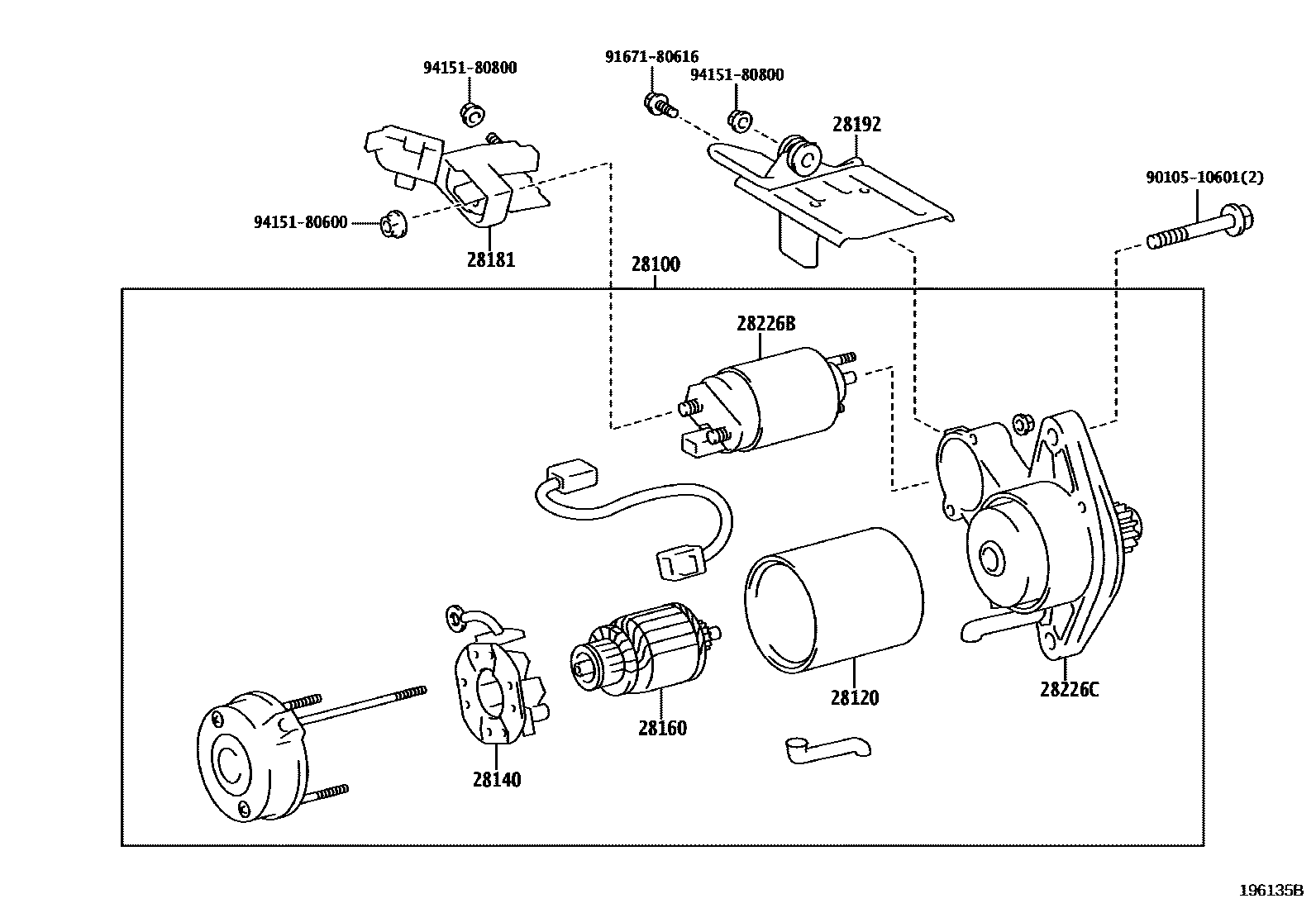

STARTER
28100STARTER ASSY
12V 2.0KW; 12V 2.0KW,CHILE SPEC&WITHOUT(COLD AREA SPEC)
12V 1.7KW
12V 1.9KW,SAUDI ARABIA SPEC&STOP & START SYSTEM-WITH
12V 1.6KW,SAUDI ARABIA SPEC&STOP & START SYSTEM-WITH
28120YOKE ASSY, STARTER
SAUDI ARABIA SPEC&LOW FUEL CONSUMPTION PKG.-WITH&EXH.EMISSION CONTROL-EURO5,WITH(ON BOARD DIAGNOSIS),*680
28140HOLDER ASSY, STARTER BRUSH
SAUDI ARABIA SPEC&LOW FUEL CONSUMPTION PKG.-WITH&EXH.EMISSION CONTROL-EURO5,WITH(ON BOARD DIAGNOSIS),*680
28160ARMATURE ASSY, STARTER
SAUDI ARABIA SPEC&LOW FUEL CONSUMPTION PKG.-WITH&EXH.EMISSION CONTROL-EURO5,WITH(ON BOARD DIAGNOSIS),*680
28181TERMINAL, STARTER
28192COVER, STARTER
28226BSTARTER KIT, REPAIR SERVICE
SAUDI ARABIA SPEC&LOW FUEL CONSUMPTION PKG.-WITH&EXH.EMISSION CONTROL-EURO5,WITH(ON BOARD DIAGNOSIS),*680
28226CSTARTER KIT, REPAIR SERVICE, NO.2
SAUDI ARABIA SPEC&LOW FUEL CONSUMPTION PKG.-WITH&EXH.EMISSION CONTROL-EURO5,WITH(ON BOARD DIAGNOSIS),*680
9010510601
main90105-10601
9167180616
main91671-80616
9415180600
main94151-80600
9415180800
main94151-80800
12 parts on this diagram · 5 diagrams in section
