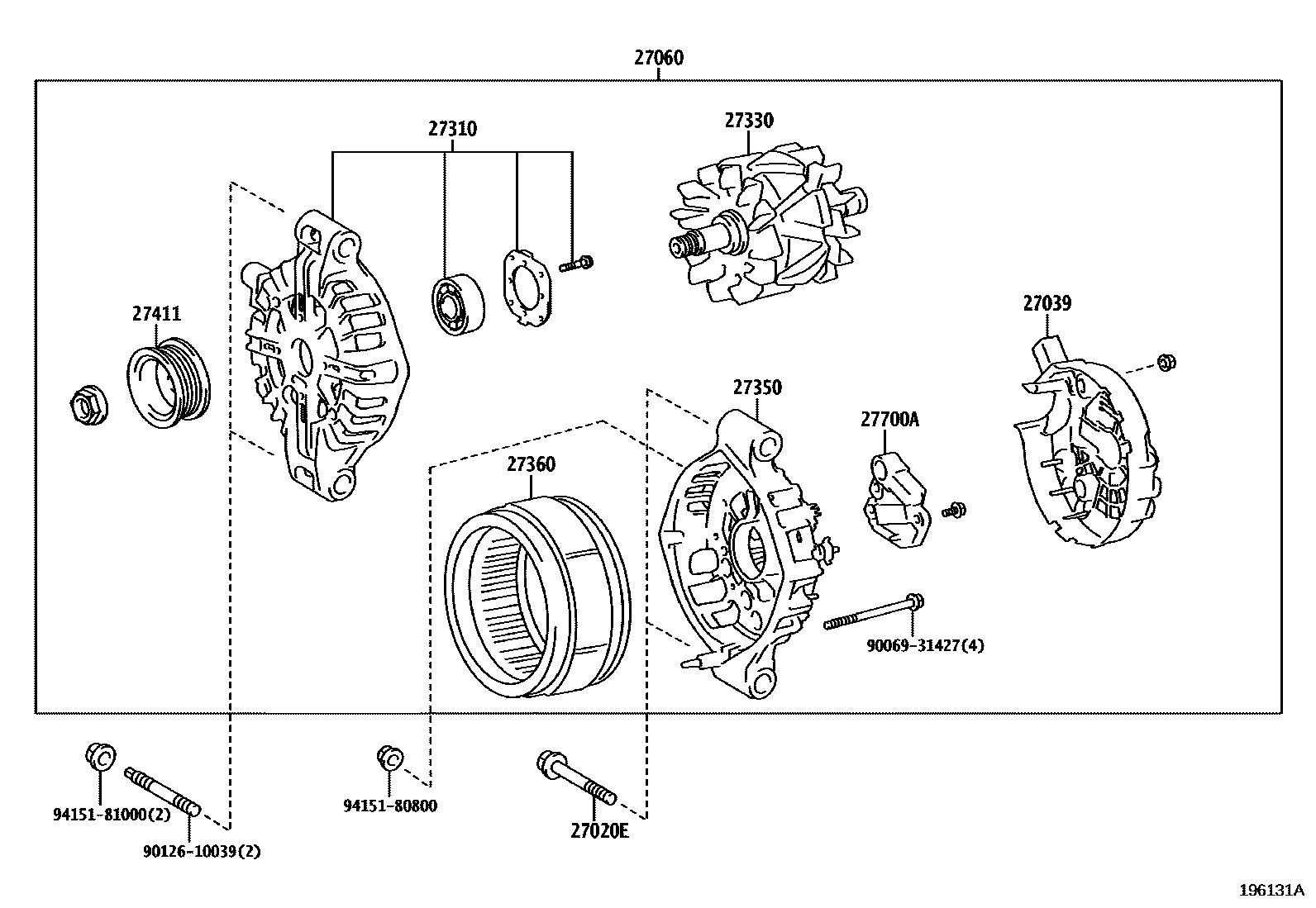

ALTERNATOR

0001 112V 180A 0002 112V 180A 0003 112V 240A 0004 112V 240A

27020EBOLT(FOR ALTERNATOR)

main91552-81070iF33AFTV,V35AFTS..FJA310,VJA310202112-202411

27039COVER, ALTERNATOR REAR END

main27039-0W030iF33AFTV..FJA310..EUR202411

CHILE SPEC&WITHOUT(COLD AREA SPEC)

main27039-0W030iF33AFTV,V35AFTS..FJA310,VJA310..ARL,GCC202112-202411

WINDSHIELD DEICER-WITHOUT

main27039-38140iF33AFTV,V35AFTS..FJA310,VJA310..EUR202112-202411

"EXECUTIVE"&WINDSHIELD DEICER-WITHOUT

main27039-38140iF33AFTV..FJA310..GCC;V35AFTS..VJA310..ARL,GCC202112-202411

"EXECUTIVE"

27060ALTERNATOR ASSY, W/REGULATOR

main27060-0W030iF33AFTV..FJA310..ARL,GCC202112-202411

12V 180A

main27060-0W030iF33AFTV..FJA310..ARL,GCC202411

12V 180A,CHILE SPEC&WITHOUT(COLD AREA SPEC)

main27060-0W040iV35AFTS..VJA310,VJH310..ARL,CHI,GCC202112-202411

12V 180A,WINDSHIELD DEICER-WITHOUT

main27060-0W040iV35AFTS..VJA310..EUR202112-202411

12V 180A

main27060-52040iF33AFTV..FJA310..EUR202112-202411

12V 240A,"EXECUTIVE"

main27060-52040iF33AFTV..FJA310..EUR202112-202411

12V 240A

main27060-70550iV35AFTS..VJA310..ARL,GCC202112-202411

12V 240A,"EXECUTIVE"&WINDSHIELD DEICER-WITHOUT

main27060-70550iV35AFTS..VJA310..EUR202112-202411

12V 240A

main27060-70550iV35AFTS..VJA310..EUR202112-202411

12V 240A,"EXECUTIVE"

27310FRAME ASSY, DRIVE END, ALTERNATOR

main27310-0W030iF33AFTV,V35AFTS..FJA310,VJA310..ARL,GCC202112-202411

WINDSHIELD DEICER-WITHOUT

main27310-0W030iF33AFTV..FJA310..EUR202411

CHILE SPEC&WITHOUT(COLD AREA SPEC)

main27310-70510iF33AFTV..FJA310..GCC;V35AFTS..VJA310..ARL,GCC202112-202411

"EXECUTIVE"

main27310-70510iF33AFTV..FJA310..GCC;V35AFTS..VJA310..ARL,GCC202112-202411

"EXECUTIVE"&WINDSHIELD DEICER-WITHOUT

27330ROTOR ASSY, ALTERNATOR

main27330-0W030iF33AFTV..FJA310..ARL,GCC202411

CHILE SPEC&WITHOUT(COLD AREA SPEC)

main27330-0W030iF33AFTV..FJA310..ARL,GCC202112-202411

main27330-0W040iV35AFTS..VJA310,VJH310..ARL,CHI,GCC202112-202411

WINDSHIELD DEICER-WITHOUT

main27330-70510iV35AFTS..VJA310..EUR202112-202411

"EXECUTIVE"

main27330-70510iV35AFTS..VJA310..EUR202112-202411

"EXECUTIVE"&WINDSHIELD DEICER-WITHOUT

27350FRAME ASSY, RECTIFIER END

main27350-0W030iF33AFTV,V35AFTS..FJA310,VJA310,VJH310..ARL,CHI,GCC202411

CHILE SPEC&WITHOUT(COLD AREA SPEC)

main27350-0W030iF33AFTV,V35AFTS..FJA310,VJA310,VJH310..ARL,CHI,GCC202112-202411

WINDSHIELD DEICER-WITHOUT

27360COIL ASSY, ALTERNATOR

main27360-70510iF33AFTV,V35AFTS..FJA310,VJA310..EUR202112-202411

"EXECUTIVE"

main27360-70510iF33AFTV,V35AFTS..FJA310,VJA310..EUR202112-202411

"EXECUTIVE"&WINDSHIELD DEICER-WITHOUT

main27410-0W020iF33AFTV,V35AFTS..FJA310,VJA310..ARL,GCC202112-202411

WINDSHIELD DEICER-WITHOUT

main27410-0W020iF33AFTV,V35AFTS..FJA310,VJA310,VJH310..ARL,CHI,GCC202411

CHILE SPEC&WITHOUT(COLD AREA SPEC)

27411PULLEY, ALTERNATOR

main27411-0W030iF33AFTV..FJA310..EUR202411

CHILE SPEC&WITHOUT(COLD AREA SPEC)

main27411-0W030iF33AFTV..FJA310..ARL,GCC202112-202411

main27411-0W040iV35AFTS..VJA310..EUR202112-202411

WINDSHIELD DEICER-WITHOUT

main27411-50190iV35AFTS..VJA310..EUR202112-202411

"EXECUTIVE"&WINDSHIELD DEICER-WITHOUT

main27411-50190iV35AFTS..VJA310..EUR202112-202411

"EXECUTIVE"

main27411-51030iF33AFTV..FJA310..EUR202112-202411

"EXECUTIVE"

27700AREGULATOR ASSY, GENERATOR

main27700-0W030iF33AFTV..FJA310..EUR202411

CHILE SPEC&WITHOUT(COLD AREA SPEC)

main27700-0W030iF33AFTV..FJA310..EUR202112-202411

WINDSHIELD DEICER-WITHOUT

9006931427

main90069-31427

9012610039

main90126-10039

9415180800

main94151-80800

9415181000

main94151-81000

13 parts on this diagram · 4 diagrams in section
