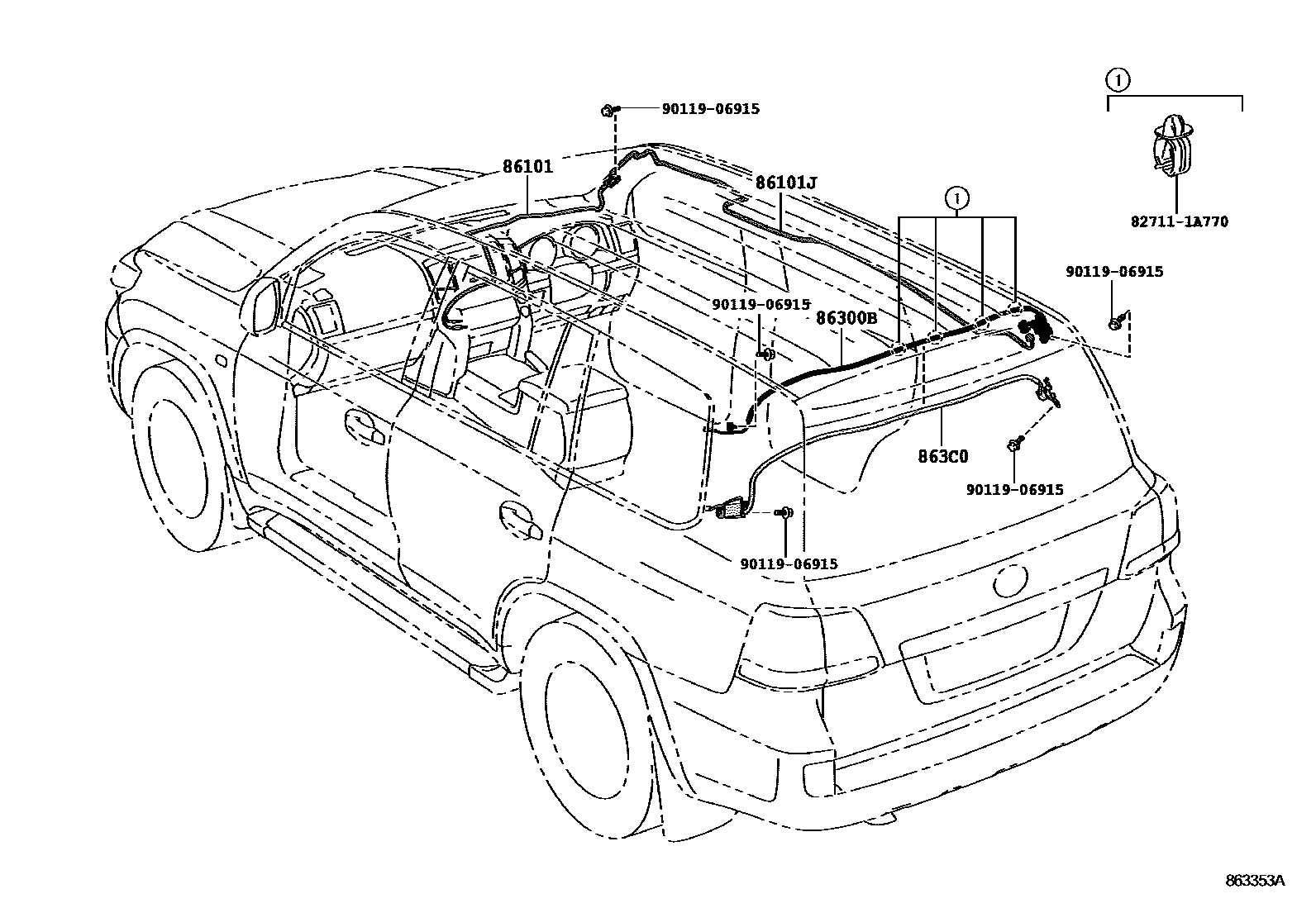

ANTENNA
86101CORD SUB-ASSY, ANTENNA
main86101-60680iVDJ200..LHD..09S..GEN..G;VDJ200..LHD..(05S,08S)..G;GRJ200,URJ200,UZJ200..LHD..G200709-201201
main86101-60M00iGRJ200,URJ200..ATM;GRJ200..LHD..09S..SOB;VDJ200..LHD..6FC..GEN;URJ202..(GXR,VXR)..GCC;VDJ200..(08S,09S)..(GX,GXR)..GCC..LUB;GRJ200,URJ202..(05S,08S)..(GX,VX)..GEN201508-202104
AUDIO(FOR OVERSEAS MARKET)-EMV+DVD CHANGER+AM/FM 9SPEAKER
AUDIO(FOR OVERSEAS MARKET)-EMV+DVD CHANGER+AM/FM/SW 9SPEAKER
AUDIO(FOR OVERSEAS MARKET)-EMV+DVD CHANGER+AM/FM 9SPEAKER&EMV & NAVIGATION SYSTEM-WITH(DVD VOICE BLUETOOTH); AUDIO(FOR OVERSEAS MARKET)-EMV+DVD CHANGER+AM/FM JBL 14SPEAKER
AUDIO(FOR OVERSEAS MARKET)-EMV+DVD CHANGER+AM/FM JBL 14SPEAKER
AUDIO(FOR OVERSEAS MARKET)-EMV + DVD + AM/FM 9SPEAKER&EMV & NAVIGATION SYSTEM-WITH(HDD GPS VOICE BLUETOOTH)
AUDIO(FOR OVERSEAS MARKET)-EMV + DVD + AM/FM JBL 14SPEAKER
AUDIO(FOR OVERSEAS MARKET)-EMV + DVD + AM/FM 9SPEAKER&EMV & NAVIGATION SYSTEM-WITH(HDD GPS VOICE BLUETOOTH)
AUDIO(FOR OVERSEAS MARKET)-EMV & DVD & 9SPEAKER; AUDIO(FOR OVERSEAS MARKET)-EMV & DVD & JBL & 14SPEAKER
AUDIO(FOR OVERSEAS MARKET)-EMV & DVD & JBL & 14SPEAKER
AUDIO(FOR OVERSEAS MARKET)-EMV & DVD & 9SPEAKER
86101JCORD SUB-ASSY, ANTENNA, NO.2
AUDIO(FOR OVERSEAS MARKET)-CD CHANGER+CASETTE+AM/FM 6SPEAKER; AUDIO(FOR OVERSEAS MARKET)-CD CHANGER+CASSETTE/AM/FM 6SPEAKER; AUDIO(FOR OVERSEAS MARKET)-RADIO LESS & 2SPEAKER; AUDIO(FOR OVERSEAS MARKET)-RADIO LESS & BRACKET LESS & 2SPEAKER
main86101-60E30iGRJ200,VDJ200..GEN..SOB; VDJ200..5F..GEN..LUB;VDJ200..6FC..(ARL,GEN);GRJ200,URJ202..(ARL,GEN)..LUB201201-201508
AUDIO(FOR OVERSEAS MARKET)-CD + AM/FM 6SPEAKER; AUDIO(FOR OVERSEAS MARKET)-RADIO LESS & 2SPEAKER; AUDIO(FOR OVERSEAS MARKET)-RADIO LESS & BRACKET LESS & 2SPEAKER
main86101-60K30iGRJ200..09S..SOB;VDJ200..ARL..LUB;GRJ200,URJ200..ATM;VDJ200..LHD..6FC..GEN;URJ202..VXR..(ARL,GCC);VDJ200..RHD..(05S,08S)..GEN;GRJ200,URJ202..(05S,08S)..(GX,VX)..GEN;URJ202,VDJ200..(08S,09S)..(GX,GXR)..GCC..LUB201508-202104
AUDIO(FOR OVERSEAS MARKET)-EMV+DVD CHANGER+AM/FM JBL 14SPEAKER
AUDIO(FOR OVERSEAS MARKET)-EMV + DVD + AM/FM JBL 14SPEAKER
AUDIO(FOR OVERSEAS MARKET)-EMV + DVD + AM/FM JBL 14SPEAKER
AUDIO(FOR OVERSEAS MARKET)-EMV + DVD + AM/FM 9SPEAKER
main86101-60K40iURJ202..VX..ARL; URJ202..VX..GCC;URJ202..VXR..GEN;VDJ200..(VX,VXR)..GCC201508-202103
AUDIO(FOR OVERSEAS MARKET)-EMV & DVD & JBL & 14SPEAKER; PAKISTAN SPEC&AUDIO(FOR OVERSEAS MARKET)-EMV & DVD & 9SPEAKER
AUDIO(FOR OVERSEAS MARKET)-EMV & DVD & 9SPEAKER
86300BANTENNA ASSY, AMPLIFIER, NO.1
main86300-60480iGRJ200..LHD..05S..G;VDJ200..(ARL,GEN)..G;GRJ200,UZJ200..(08S,09S)..(ARL,GEN)..G200709-201201
main86300-60760iGRJ200,VDJ200..GEN..SOB; VDJ200..5F..GEN..LUB;VDJ200..6FC..(ARL,GEN);GRJ200,URJ202..(ARL,GEN)..LUB201201-201508
AUDIO(FOR OVERSEAS MARKET)-CD + AM/FM 6SPEAKER; AUDIO(FOR OVERSEAS MARKET)-RADIO LESS & 2SPEAKER; AUDIO(FOR OVERSEAS MARKET)-RADIO LESS & BRACKET LESS & 2SPEAKER
main86300-60870iURJ202..VX..GCC;VDJ200..09S..SOB;URJ202..(GXR,VX)..ARL;VDJ200..(VX,VXR)..GCC;VDJ200..05S..(ARL,GCC);VDJ200..LHD..5F..GEN..LUB;GRJ200..(05S,08S)..5F..GCC;GRJ200,URJ202..(GXR,VXR)..GEN201508-202103
AUDIO(FOR OVERSEAS MARKET)-EMV+DVD CHANGER+AM/FM 9SPEAKER
AUDIO(FOR OVERSEAS MARKET)-EMV+DVD CHANGER+AM/FM JBL 14SPEAKER
AUDIO(FOR OVERSEAS MARKET)-EMV + DVD + AM/FM JBL 14SPEAKER
AUDIO(FOR OVERSEAS MARKET)-EMV + DVD + AM/FM 9SPEAKER
main86300-60880iURJ202..VX..ARL; URJ202..VX..GCC;URJ202..VXR..GEN;VDJ200..(VX,VXR)..GCC201508-202103
AUDIO(FOR OVERSEAS MARKET)-EMV & DVD & 9SPEAKER; AUDIO(FOR OVERSEAS MARKET)-EMV & DVD & JBL & 14SPEAKER
863C0ANTENNA ASSY, DIGITAL AUDIO BROADCASTING
AUDIO(FOR OVERSEAS MARKET)-EMV + DVD + AM/FM 9SPEAKER&EMV & NAVIGATION SYSTEM-WITH(HDD GPS VOICE BLUETOOTH)
827111A770WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)
main82711-1A770
9011906915
main90119-06915
6 parts on this diagram · 3 diagrams in section
