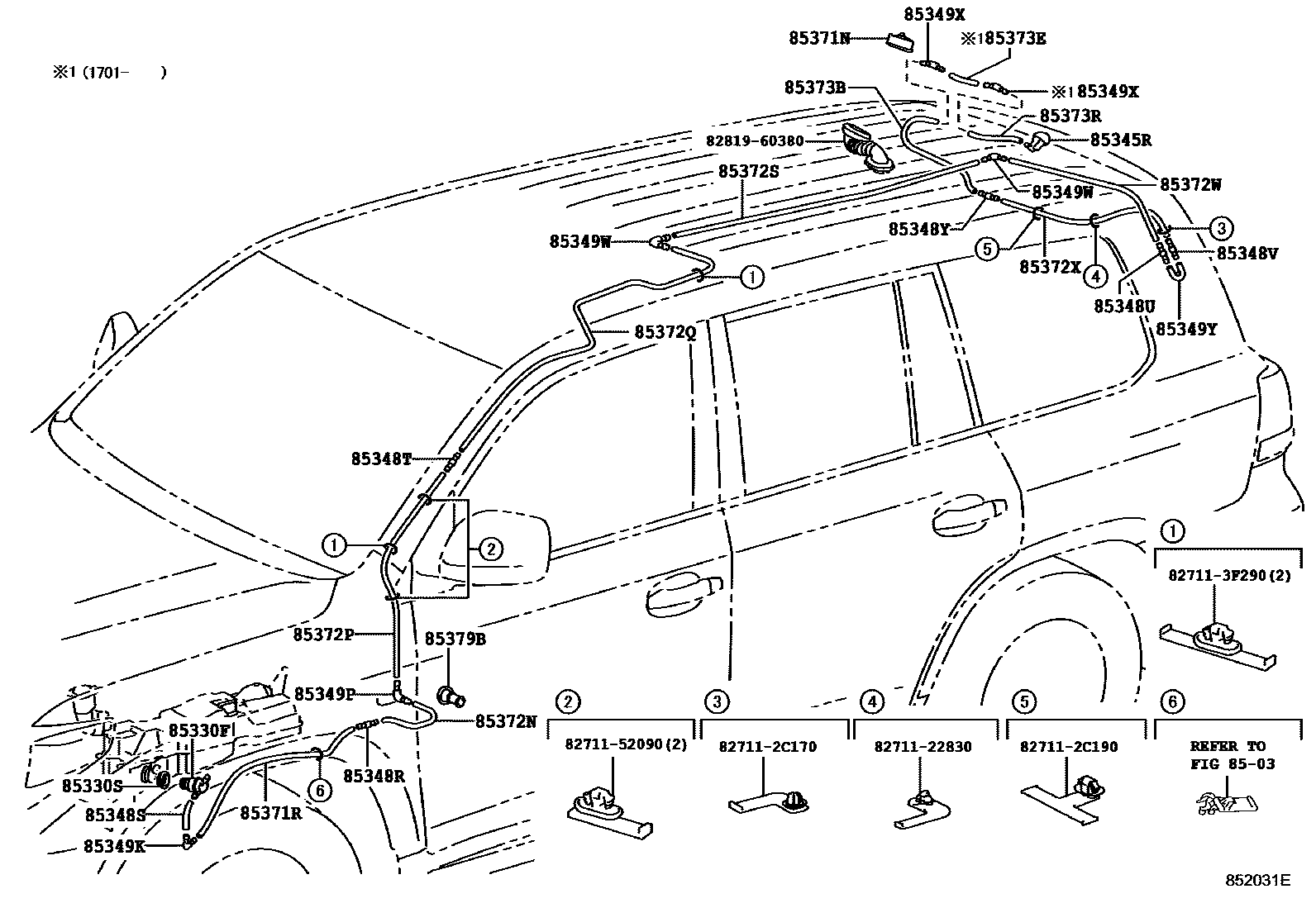

REAR WASHER
8503WINDSHIELD WASHER
85330FMOTOR & PUMP ASSY, RR WASHER
85330SBUSH, REAR WASHER JAR
main85336-60300iVDJ200..GXR..GCC;VDJ200..LHD..6FC..GXR..GEN;GRJ200,URJ202..6FC..(GX,GXR)..GCC201908-202104
85345RNOZZLE, REAR WASHER
main85391-60120iGRJ200..LHD..05S..G;VDJ200..GX..(GCC,GEN)..G;GRJ200,UZJ200..(08S,09S)..GX..(GCC,GEN)..G; GRJ200..LHD..08S..GEN;GRJ200,UZJ200..GX..GCC..G; VDJ200..VX;UZJ200..ARL,GEN;VDJ200..GX..ARL;URJ200,UZJ200..VX..GCC200709-201201
MOON ROOF-WITH&REAR WINDOW WIPER-WITH(INTERMITTENT); REAR WINDOW WIPER-WITH(INTERMITTENT)
85348RJOINT, REAR WASHER HOSE, NO.1
main85349-89122iGRJ200,UZJ200,VDJ200..08S..GX..GCC; GRJ200..LHD..05S..G;VDJ200..GX..(GCC,GEN)..G;GRJ200,UZJ200..(08S,09S)..GX..(GCC,GEN)..G; VDJ200..VX;UZJ200..ARL,GEN;VDJ200..GX..ARL;URJ200,UZJ200..VX..GCC200709-201201
REAR WINDOW WIPER-WITH(INTERMITTENT); REAR WINDOW WIPER-WITH(INTERMITTENT)&HEADLAMP CLEANER-WITH
85348SJOINT, REAR WASHER ELBOW, NO.1
main85355-20200iGRJ200,UZJ200,VDJ200..08S..GX..GCC; GRJ200..LHD..05S..G;VDJ200..GX..(GCC,GEN)..G;GRJ200,UZJ200..(08S,09S)..GX..(GCC,GEN)..G; VDJ200..VX;UZJ200..ARL,GEN;VDJ200..GX..ARL;URJ200,UZJ200..VX..GCC200709-201201
REAR WINDOW WIPER-WITH(INTERMITTENT); REAR WINDOW WIPER-WITH(INTERMITTENT)&HEADLAMP CLEANER-WITH
85348TJOINT, REAR WASHER HOSE, NO.2
main85349-89122iGRJ200..LHD..05S..G;VDJ200..GX..(GCC,GEN)..G;GRJ200,UZJ200..(08S,09S)..GX..(GCC,GEN)..G; GRJ200..LHD..08S..GEN;GRJ200,UZJ200..GX..GCC..G; VDJ200..VX;UZJ200..ARL,GEN;VDJ200..GX..ARL;URJ200,UZJ200..VX..GCC200709-201201
MOON ROOF-WITH&REAR WINDOW WIPER-WITH(INTERMITTENT); REAR WINDOW WIPER-WITH(INTERMITTENT)
85348UJOINT, REAR WASHER HOSE, NO.3
main85349-89122iGRJ200..LHD..05S..G;VDJ200..GX..(GCC,GEN)..G;GRJ200,UZJ200..(08S,09S)..GX..(GCC,GEN)..G; GRJ200..LHD..08S..GEN;GRJ200,UZJ200..GX..GCC..G; VDJ200..VX;UZJ200..ARL,GEN;VDJ200..GX..ARL;URJ200,UZJ200..VX..GCC200709-201201
MOON ROOF-WITH&REAR WINDOW WIPER-WITH(INTERMITTENT); REAR WINDOW WIPER-WITH(INTERMITTENT)
85348VJOINT, REAR WASHER HOSE, NO.4
main85349-89122iGRJ200..LHD..05S..G;VDJ200..GX..(GCC,GEN)..G;GRJ200,UZJ200..(08S,09S)..GX..(GCC,GEN)..G; GRJ200..LHD..08S..GEN;GRJ200,UZJ200..GX..GCC..G; VDJ200..VX;UZJ200..ARL,GEN;VDJ200..GX..ARL;URJ200,UZJ200..VX..GCC200709-201201
MOON ROOF-WITH&REAR WINDOW WIPER-WITH(INTERMITTENT); REAR WINDOW WIPER-WITH(INTERMITTENT)
85348YJOINT, REAR WASHER HOSE, NO.5
main85349-89122iGRJ200..LHD..05S..G;VDJ200..GX..(GCC,GEN)..G;GRJ200,UZJ200..(08S,09S)..GX..(GCC,GEN)..G; GRJ200..LHD..08S..GEN;GRJ200,UZJ200..GX..GCC..G; VDJ200..VX;UZJ200..ARL,GEN;VDJ200..GX..ARL;URJ200,UZJ200..VX..GCC200709-201201
MOON ROOF-WITH&REAR WINDOW WIPER-WITH(INTERMITTENT); REAR WINDOW WIPER-WITH(INTERMITTENT)
85349KJOINT, REAR WASHER ELBOW, NO.2
main85355-14481iGRJ200,UZJ200,VDJ200..08S..GX..GCC; GRJ200..LHD..05S..G;VDJ200..GX..(GCC,GEN)..G;GRJ200,UZJ200..(08S,09S)..GX..(GCC,GEN)..G; VDJ200..VX;UZJ200..ARL,GEN;VDJ200..GX..ARL;URJ200,UZJ200..VX..GCC200709-201201
REAR WINDOW WIPER-WITH(INTERMITTENT); REAR WINDOW WIPER-WITH(INTERMITTENT)&HEADLAMP CLEANER-WITH
85349PJOINT, REAR WASHER ELBOW, NO.3
main85355-20200iGRJ200..LHD..05S..G;VDJ200..GX..(GCC,GEN)..G;GRJ200,UZJ200..(08S,09S)..GX..(GCC,GEN)..G; GRJ200..LHD..08S..GEN;GRJ200,UZJ200..GX..GCC..G; VDJ200..VX;UZJ200..ARL,GEN;VDJ200..GX..ARL;URJ200,UZJ200..VX..GCC200709-201201
MOON ROOF-WITH&REAR WINDOW WIPER-WITH(INTERMITTENT); REAR WINDOW WIPER-WITH(INTERMITTENT)
85349WJOINT, REAR WASHER ELBOW, NO.4
main85355-20200×2iGRJ200..LHD..05S..G;VDJ200..GX..(GCC,GEN)..G;GRJ200,UZJ200..(08S,09S)..GX..(GCC,GEN)..G; GRJ200..LHD..08S..GEN;GRJ200,UZJ200..GX..GCC..G; URJ200,UZJ200,VDJ200..VX; UZJ200..GX..ARL; VDJ200..VX;UZJ200..ARL,GEN;VDJ200..GX..ARL;URJ200,UZJ200..VX..GCC200709-201201
MOON ROOF-WITH; MOON ROOF-WITH&REAR WINDOW WIPER-WITH(INTERMITTENT); MOON ROOF-WITH(REMOTE CONTROL); REAR WINDOW WIPER-WITH(INTERMITTENT)
85349XJOINT, REAR WASHER ELBOW, NO.6
main85355-20200iGRJ200..LHD..05S..G;VDJ200..GX..(GCC,GEN)..G;GRJ200,UZJ200..(08S,09S)..GX..(GCC,GEN)..G; GRJ200..LHD..08S..GEN;GRJ200,UZJ200..GX..GCC..G; VDJ200..VX;UZJ200..ARL,GEN;VDJ200..GX..ARL;URJ200,UZJ200..VX..GCC200709-201201
MOON ROOF-WITH&REAR WINDOW WIPER-WITH(INTERMITTENT); REAR WINDOW WIPER-WITH(INTERMITTENT)
85349YJOINT, REAR WASHER ELBOW, NO.5
85371NCLAMP, REAR WASHER HOSE
main85371-60030iURJ202..VX..GCC;URJ202..VXR..GEN;URJ202..(GXR,VX)..ARL;VDJ200..(VX,VXR)..GCC201508-202103
85371RHOSE, REAR WASHER (FROM MOTOR TO JOINT)
main90099-33080iGRJ200,UZJ200,VDJ200..08S..GX..GCC; GRJ200..LHD..05S..G;VDJ200..GX..(GCC,GEN)..G;GRJ200,UZJ200..(08S,09S)..GX..(GCC,GEN)..G; UZJ200..VX..ARL;URJ200,VDJ200..VX..(ARL,GCC); VDJ200..VX;UZJ200..ARL,GEN;VDJ200..GX..ARL;URJ200,UZJ200..VX..GCC200709-201201
L=1450(*H,L=610); L=1450(*H,L=610),HEADLAMP CLEANER-WITH; L=1450(*H,L=610),REAR WINDOW WIPER-WITH(INTERMITTENT); L=1450(*H,L=610),REAR WINDOW WIPER-WITH(INTERMITTENT)&HEADLAMP CLEANER-WITH
85372NHOSE, REAR WASHER (FROM JOINT TO JOINT), NO.1
main90099-33080iGRJ200..LHD..05S..G;VDJ200..GX..(GCC,GEN)..G;GRJ200,UZJ200..(08S,09S)..GX..(GCC,GEN)..G; GRJ200..LHD..08S..GEN;GRJ200,UZJ200..GX..GCC..G; URJ200,UZJ200,VDJ200..VX; UZJ200..GX..ARL; VDJ200..VX;UZJ200..ARL,GEN;VDJ200..GX..ARL;URJ200,UZJ200..VX..GCC200709-201201
L=1450(*H,L=220); L=1450(*H,L=220),MOON ROOF-WITH; L=1450(*H,L=220),MOON ROOF-WITH&REAR WINDOW WIPER-WITH(INTERMITTENT); L=1450(*H,L=220),MOON ROOF-WITH(REMOTE CONTROL); L=1450(*H,L=220),REAR WINDOW WIPER-WITH(INTERMITTENT)
85372PHOSE, REAR WASHER (FROM JOINT TO JOINT), NO.2
main90099-33080iURJ20#,VDJ200..VX; URJ202..GX..ARL; VDJ200..VX;URJ202..ARL,GEN;URJ20#..VX..GCC;VDJ200..GX..ARL201201-201508
L=1450(*H,L=700); L=1450(*H,L=700),MOON ROOF-WITH; L=1450(*H,L=700),MOON ROOF-WITH(REMOTE CONTROL)
85372QHOSE, REAR WASHER (FROM JOINT TO JOINT), NO.3
main90099-33080iGRJ200..LHD..05S..G;VDJ200..GX..(GCC,GEN)..G;GRJ200,UZJ200..(08S,09S)..GX..(GCC,GEN)..G; GRJ200..LHD..08S..GEN;GRJ200,UZJ200..GX..GCC..G; URJ200,UZJ200,VDJ200..VX; UZJ200..GX..ARL; VDJ200..VX;UZJ200..ARL,GEN;VDJ200..GX..ARL;URJ200,UZJ200..VX..GCC200709-201201
L=1450(*H,L=1270),MOON ROOF-WITH; L=1450(*H,L=1270),MOON ROOF-WITH&REAR WINDOW WIPER-WITH(INTERMITTENT); L=1450(*H,L=1270),MOON ROOF-WITH(REMOTE CONTROL); L=1450(*H,L=1340); L=1450(*H,L=1340),REAR WINDOW WIPER-WITH(INTERMITTENT)
85372SHOSE, REAR WASHER (FROM JOINT TO JOINT), NO.4
L=1450(*H,L=1360)
main90099-33803iGRJ200..LHD..05S..G;VDJ200..GX..(GCC,GEN)..G;GRJ200,UZJ200..(08S,09S)..GX..(GCC,GEN)..G; VDJ200..VX;UZJ200..ARL,GEN;VDJ200..GX..ARL;URJ200,UZJ200..VX..GCC200709-201201
L=1640; L=1640,REAR WINDOW WIPER-WITH(INTERMITTENT)
85372WHOSE, REAR WASHER (FROM JOINT TO JOINT), NO.5
main90099-33080iGRJ200..LHD..05S..G;VDJ200..GX..(GCC,GEN)..G;GRJ200,UZJ200..(08S,09S)..GX..(GCC,GEN)..G; VDJ200..VX;UZJ200..ARL,GEN;VDJ200..GX..ARL;URJ200,UZJ200..VX..GCC200709-201201
L=1450(*H,L=340); L=1450(*H,L=340),REAR WINDOW WIPER-WITH(INTERMITTENT)
L=1800(*H,L=640)
main90099-33803iGRJ200..LHD..08S..GEN;GRJ200,UZJ200..GX..GCC..G; URJ200,UZJ200,VDJ200..VX; UZJ200..GX..ARL200709-201201
L=1550,MOON ROOF-WITH; L=1550,MOON ROOF-WITH&REAR WINDOW WIPER-WITH(INTERMITTENT); L=1550,MOON ROOF-WITH(REMOTE CONTROL)
85372XHOSE, REAR WASHER (FROM JOINT TO JOINT), NO.6
main90099-33080iGRJ200..LHD..05S..G;VDJ200..GX..(GCC,GEN)..G;GRJ200,UZJ200..(08S,09S)..GX..(GCC,GEN)..G; GRJ200..LHD..08S..GEN;GRJ200,UZJ200..GX..GCC..G; URJ200,UZJ200,VDJ200..VX; UZJ200..GX..ARL; VDJ200..VX;UZJ200..ARL,GEN;VDJ200..GX..ARL;URJ200,UZJ200..VX..GCC200709-201201
L=1450(*H,L=340),MOON ROOF-WITH; L=1450(*H,L=340),MOON ROOF-WITH&REAR WINDOW WIPER-WITH(INTERMITTENT); L=1450(*H,L=340),MOON ROOF-WITH(REMOTE CONTROL); L=1450(*H,L=490); L=1450(*H,L=490),REAR WINDOW WIPER-WITH(INTERMITTENT)
85373BHOSE, REAR WASHER(FROM JOINT TO JOINT), NO.7
main90099-33080iGRJ200..LHD..05S..G;VDJ200..GX..(GCC,GEN)..G;GRJ200,UZJ200..(08S,09S)..GX..(GCC,GEN)..G; GRJ200..LHD..08S..GEN;GRJ200,UZJ200..GX..GCC..G; URJ200,UZJ200,VDJ200..VX; UZJ200..GX..ARL; VDJ200..VX;UZJ200..ARL,GEN;VDJ200..GX..ARL;URJ200,UZJ200..VX..GCC200709-201201
L=1450(*H,L=420); L=1450(*H,L=420),REAR WINDOW WIPER-WITH(INTERMITTENT); L=1450(*H,L=490),MOON ROOF-WITH; L=1450(*H,L=490),MOON ROOF-WITH&REAR WINDOW WIPER-WITH(INTERMITTENT); L=1450(*H,L=490),MOON ROOF-WITH(REMOTE CONTROL)
85373ETUBE, REAR WASHER RUBBER
main90099-33080iURJ202..GXR..ARL; URJ202..VX..GCC;URJ202..VXR..GEN;URJ202..(GXR,VX)..ARL;VDJ200..(VX,VXR)..GCC; URJ202..VXR..GEN;URJ202..VX..(ARL,GCC);VDJ200..(VX,VXR)..GCC201701-202103
L=1450(*H,L=40); L=1450(*H,L=40),MOON ROOF-WITH; L=1450(*H,L=40),MOON ROOF-WITH(REMOTE CONTROL)
85373RHOSE, REAR WASHER (FROM JOINT TO NOZZLE)
main90099-33080iGRJ200..LHD..05S..G;VDJ200..GX..(GCC,GEN)..G;GRJ200,UZJ200..(08S,09S)..GX..(GCC,GEN)..G; GRJ200..LHD..08S..GEN;GRJ200,UZJ200..GX..GCC..G; URJ200,UZJ200,VDJ200..VX; UZJ200..GX..ARL; VDJ200..VX;UZJ200..ARL,GEN;VDJ200..GX..ARL;URJ200,UZJ200..VX..GCC200709-201201
L=1450(*H,L=130); L=1450(*H,L=130),MOON ROOF-WITH; L=1450(*H,L=130),MOON ROOF-WITH&REAR WINDOW WIPER-WITH(INTERMITTENT); L=1450(*H,L=130),MOON ROOF-WITH(REMOTE CONTROL); L=1450(*H,L=130),REAR WINDOW WIPER-WITH(INTERMITTENT)
85379BGROMMET, WASHER, A
main85379-12850iGRJ200..LHD..05S..G;VDJ200..GX..(GCC,GEN)..G;GRJ200,UZJ200..(08S,09S)..GX..(GCC,GEN)..G; GRJ200..LHD..08S..GEN;GRJ200,UZJ200..GX..GCC..G; VDJ200..VX;UZJ200..ARL,GEN;VDJ200..GX..ARL;URJ200,UZJ200..VX..GCC200709-201201
MOON ROOF-WITH&REAR WINDOW WIPER-WITH(INTERMITTENT); REAR WINDOW WIPER-WITH(INTERMITTENT)
8271122830WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)
main82711-22830
827112C170WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)
main82711-2C170
827112C190WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)
main82711-2C190
827113F290WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)
main82711-3F290
8271152090WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)
main82711-52090
8281960380GROMMET, WIRING HARNESS
main82819-60380
33 parts on this diagram · 3 diagrams in section
