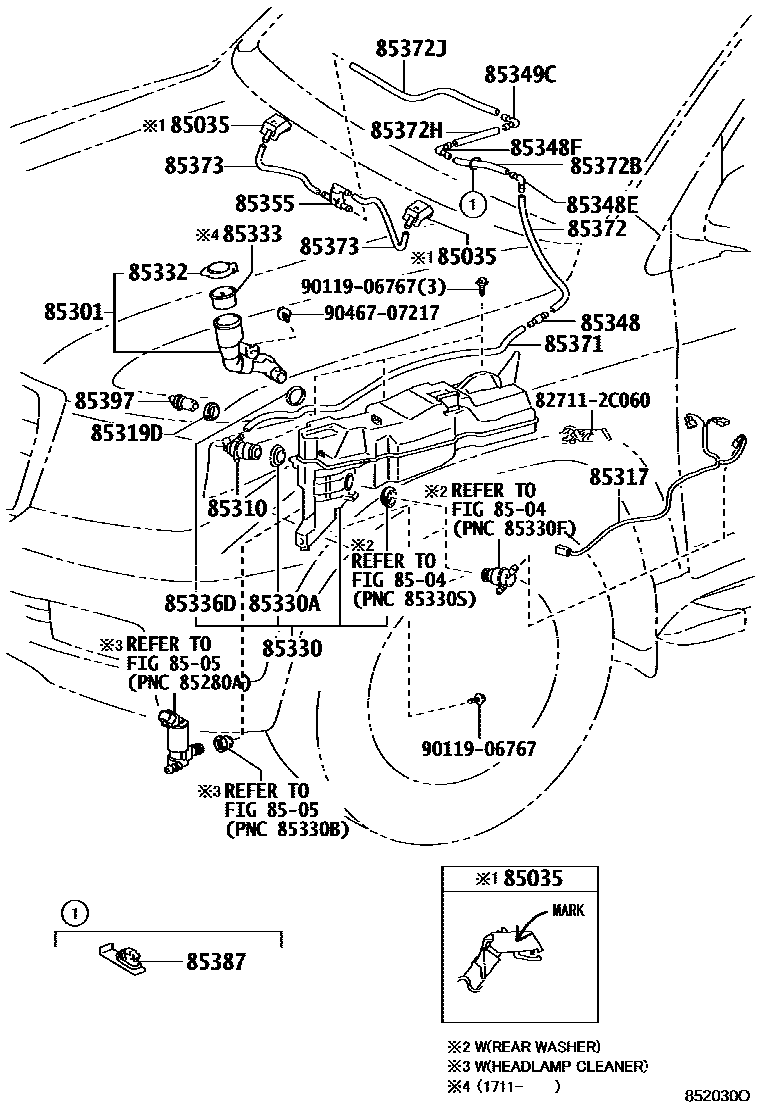

WINDSHIELD WASHER
85035NOZZLE SUB-ASSY, WASHER
MARK +1
MARK +3
main85381-28240×2iGRJ200..09S..SOB;VDJ200..ARL..LUB;GRJ200,URJ200..ATM;VDJ200..LHD..6FC..GEN;URJ202..VXR..(ARL,GCC);VDJ200..RHD..(05S,08S)..GEN;GRJ200,URJ202..(05S,08S)..(GX,VX)..GEN;URJ202,VDJ200..(08S,09S)..(GX,GXR)..GCC..LUB201508-202104
MARK -1
8504REAR WASHER
8505HEADLAMP CLEANER
85301INLET SUB-ASSY, WASHER
main85301-60062iGRJ200..5F;VDJ200..GX;URJ202..ARL;URJ202..VX..GCC;URJ202..VXR..GEN;VDJ200..(VX,VXR)..GCC;VDJ200..LHD..5F..GEN..LUB201709-202103
85310MOTOR AND PUMP ASSY, WINDSHIELD WASHER
main85330-47010iURJ202..VX..GCC;VDJ200..09S..SOB;URJ202..(GXR,VX)..ARL;VDJ200..(VX,VXR)..GCC;VDJ200..05S..(ARL,GCC);VDJ200..LHD..5F..GEN..LUB;GRJ200..(05S,08S)..5F..GCC;GRJ200,URJ202..(GXR,VXR)..GEN201508-202103
85317WIRING ASSY, WASHER
HEADLAMP CLEANER-WITH
main85317-60450supersedes 85317-60410iURJ202..VX..ARL;URJ202..VXR..GEN; URJ202..VX..GCC; VDJ200..VX..GCC; VDJ200..VXR..GCC201508-202103
HEADLAMP LEVELING DEVICE-WITH(AUTO); HEADLAMP LEVELING DEVICE-WITH(AUTO) & WITH(*AHB); HEADLAMP LEVELING DEVICE-WITH(AUTO) & WITH(*AHB)&HEADLAMP CLEANER-WITH; HEADLAMP LEVELING DEVICE-WITH(AUTO)&HEADLAMP CLEANER-WITH; WITH(AVS)&HEADLAMP CLEANER-WITH
main85317-60360iGRJ200,UZJ200,VDJ200..08S..GX..GCC; UZJ200..VX..ARL;URJ200,VDJ200..VX..(ARL,GCC)200709-201201
HEADLAMP CLEANER-WITH; REAR WINDOW WIPER-WITH(INTERMITTENT)&HEADLAMP CLEANER-WITH
85319DPACKING, FRONT WASHER
85330JAR ASSY, WINDSHIELD WASHER
HEADLAMP CLEANER-WITH
main85355-60211iGRJ200,URJ202,VDJ200..08S..GX..GCC; GRJ200,VDJ200..GX..SOB; URJ200; URJ202,VDJ200..VX201406-201508
HEADLAMP CLEANER-WITH; REAR WINDOW WIPER-WITH(*DSBD&INTERMITTENT&WASHER CONTROL)&HEADLAMP CLEANER-WITH; REAR WINDOW WIPER-WITH(INTERMITTENT & WASHER CONTROL)&HEADLAMP CLEANER-WITH
main85355-60220iURJ202..VXR..GEN;URJ202..VX..(ARL,GCC); VDJ200..(VX,VXR)..GCC; VDJ200..VX..GCC; VDJ200..VXR..GCC201508-202103
HEADLAMP CLEANER-WITH; HEADLAMP LEVELING DEVICE-WITH(AUTO) & WITH(*AHB)&HEADLAMP CLEANER-WITH; HEADLAMP LEVELING DEVICE-WITH(AUTO)&HEADLAMP CLEANER-WITH; WITH(AVS)&HEADLAMP CLEANER-WITH
main85355-60180iGRJ200,UZJ200,VDJ200..08S..GX..GCC; UZJ200..VX..ARL;URJ200,VDJ200..VX..(ARL,GCC)200709-201201
HEADLAMP CLEANER-WITH; REAR WINDOW WIPER-WITH(INTERMITTENT)&HEADLAMP CLEANER-WITH
85330ABUSH, WINDSHIELD WASHER JAR
85332CAP, WINDSHIELD WASHER JAR
85333FILTER, WINDSHIELD WASHER JAR
main85312-60050iURJ202..VXR..GEN;URJ202..VX..(ARL,GCC); VDJ200..(VX,VXR)..GCC; VDJ200..VX..GCC; VDJ200..VXR..GCC201711-202103
HEADLAMP CLEANER-WITH; HEADLAMP LEVELING DEVICE-WITH(AUTO) & WITH(*AHB)&HEADLAMP CLEANER-WITH; HEADLAMP LEVELING DEVICE-WITH(AUTO)&HEADLAMP CLEANER-WITH; WITH(AVS)&HEADLAMP CLEANER-WITH
85336DPACKING, WINDSHIELD WASHER JAR
85348JOINT, WINDSHIELD WASHER HOSE, NO.1
85348EJOINT, WINDSHIELD WASHER ELBOW, NO.2
85348FJOINT, WINDSHIELD WASHER ELBOW, NO.3
85349CJOINT, WINDSHIELD WASHER ELBOW, NO.4
85355VALVE, WINDSHIELD WASHER HOSE
85371HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)
main90099-33080iGRJ200,UZJ200,VDJ200..08S..GX..GCC; GRJ200..LHD..05S..G;GRJ200..(08S,09S)..G;URJ200,UZJ200,VDJ200..G; GRJ200..LHD..05S..G;VDJ200..GX..(GCC,GEN)..G;GRJ200,UZJ200..(08S,09S)..GX..(GCC,GEN)..G; UZJ200..VX..ARL;URJ200,VDJ200..VX..(ARL,GCC)200709-201201
L=1450(*H,L=330); L=1450(*H,L=330),HEADLAMP CLEANER-WITH; L=1450(*H,L=330),REAR WINDOW WIPER-WITH(INTERMITTENT); L=1450(*H,L=330),REAR WINDOW WIPER-WITH(INTERMITTENT)&HEADLAMP CLEANER-WITH
85372HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1
L=1450(*H,L=240)
85372BHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.2
L=1450(*H,L=110)
85372HHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.3
L=1450(*H,L=65)
85372JHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.4
L=1450(*H,L=760)
85373HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)
L=1450(*H,L=310)
85387CLAMP NO.1 (FOR WINDSEIELD WASHER)
85397SWITCH ASSY,LEVEL WARNING
827112C060WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)
main82711-2C060
9011906767
main90119-06767
9046707217
main90467-07217
28 parts on this diagram · 1 diagram in section
