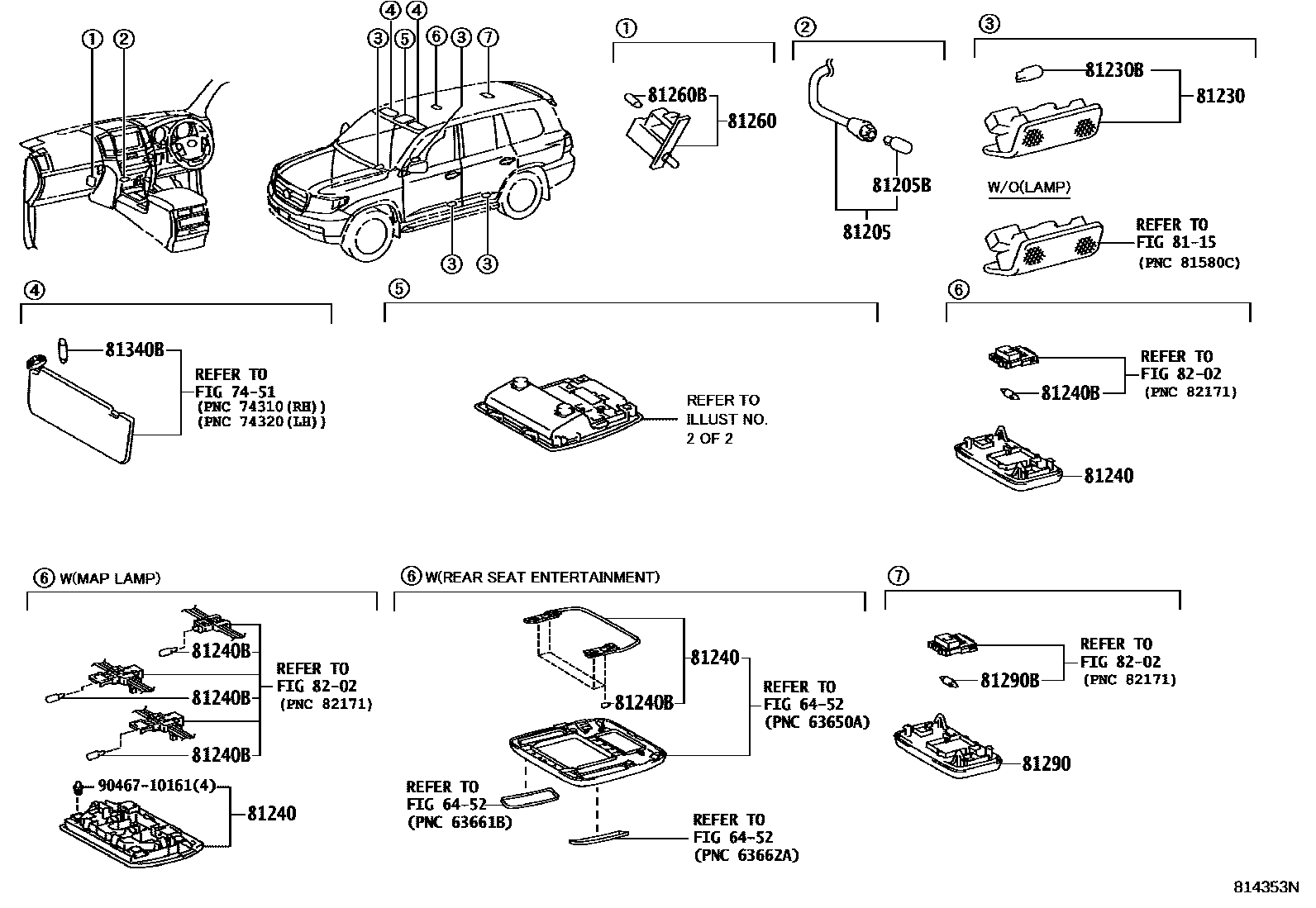

INTERIOR LAMP
6452ROOF HEADLINING & SILENCER PAD
7451ARMREST & VISOR
8115REFLEX REFLECTOR
81205LAMP SUB-ASSY, ASH RECEPTACLE
main81850-60570iGRJ200..SOB..G;VDJ200..08S..GX;GRJ200,URJ20#..ATM;VDJ200..GX..SOB..G;VDJ200..(STD,VX)..G;GRJ200..LHD..08S..5F;VDJ200..LHD..05S..LUB201109-201508
81205BBULB, ASH RECEPTACLE LAMP
main90981-11018iGRJ200..SOB..G;VDJ200..08S..GX;GRJ200,URJ20#..ATM;VDJ200..GX..SOB..G;VDJ200..(STD,VX)..G;GRJ200..LHD..08S..5F;VDJ200..LHD..05S..LUB201109-201508
12V 1.2W W/O SOCKET
81230LAMP ASSY, COURTESY
main81230-30200×4iURJ200;URJ202..VX..GEN;URJ202..VXR..(ARL,GCC);VDJ200..(VX,VXR)..(ARL,GEN); URJ200;URJ202..VXR..GCC201508-202104
DOOR COURTESY LAMP-FOR ACCESSORY(LED, FR & RR); DOOR COURTESY LAMP-WITH(DOP)
DOOR COURTESY LAMP-FOR ACCESSORY
main81230-50070×4iURJ202..VX..GEN;VDJ200..(VX,VXR)..GEN; URJ202..VXR..ARL;URJ202,VDJ200..VX..GEN;VDJ200..VXR..(ARL,GEN)201508-202104
ILLUMINATED ENTRY SYSTEM-DOP(IG SW & ROOM & FOOT & SCUFF PLATE); ILLUMINATED ENTRY SYSTEM-IG SW & ROOM & FOOT & SCUFF PLATE
DOOR COURTESY LAMP-FOR ACCESSORY(LED, FR & RR)
81230BBULB(FOR COURTESY LAMP)
12V 5W; 12V 5W,DOOR COURTESY LAMP-WITHOUT
81240LAMP ASSY, ROOM, NO.1
main81240-12100-B0supersedes 81240-52040-B1iVDJ200..GXR..ARL; VDJ200..GXR..GCC;GRJ200,URJ202..6FC..GXR..GCC; VDJ200..LHD..6FC..GXR..GEN; VDJ200..RHD..GXR..GEN202005-202104
LT.GRAY,TRIM1#; LT.GRAY,TRIM1#,2#,46; W(OVER HEAD CONSOLE) & W/O(MOON ROOF),LT.GRAY,TRIM1#; W(OVER HEAD CONSOLE) & W/O(MOON ROOF),LT.GRAY,TRIM1#,2#
main81240-12100-E0iVDJ200..GXR..GCC;GRJ200,URJ202..6FC..GXR..GCC; VDJ200..LHD..6FC..GXR..GEN202005-202104
NEUTRAL BEIGE,TRIM47; W(OVER HEAD CONSOLE) & W/O(MOON ROOF),NEUTRAL BEIGE,TRIM4#
SHELL,TRIM0#
main81240-52040-A3iGRJ200,URJ202,VDJ200..GXR..GCC; VDJ200..GX..LUB;GRJ200..05S..LUB;GRJ200,VDJ200..GXR..GEN;GRJ200,VDJ200..09S..(5F,5FC)..GCC201508-201708
FLAXEN,TRIM0#; WITHOUT(OVER HEAD CONSOLE),FLAXEN,TRIM0#
main81240-52040-B1iGRJ200,VDJ200..LHD..5F..GEN..LUB; VDJ200..09S..SOB;GRJ200..05S..GCC..SOB;VDJ200..05S..(ARL,GCC)201508-202103
LT.GRAY,TRIM1#; LT.GRAY,TRIM1#,2#
main81240-52040-E2iGRJ200..LHD..05S..G;VDJ200..GX..(GCC,GEN)..G;GRJ200,UZJ200..(08S,09S)..GX..(GCC,GEN)..G200709-201201
SAND BEIGE,TRIM4#
main81240-52040-E3iGRJ200..5F..GCC..LUB; VDJ200..GX..LUB;GRJ200,VDJ200..LHD..5F..GEN..LUB201708-202103
NEUTRAL BEIGE,TRIM4#; WITHOUT(OVER HEAD CONSOLE),NEUTRAL BEIGE,TRIM47
OVER HEAD CONSOLE-WITH,SHELL,TRIM0#; SHELL,TRIM0#
FLAXEN,TRIM0#; W(OVER HEAD CONSOLE) & W/O(MOON ROOF),FLAXEN,TRIM0#
LT.GRAY,TRIM1#,2#,4#
OVER HEAD CONSOLE-WITH,SAND BEIGE,TRIM4#; SAND BEIGE,TRIM4#
NEUTRAL BEIGE,TRIM47; W(OVER HEAD CONSOLE) & W/O(MOON ROOF),NEUTRAL BEIGE,TRIM4#
main81360-60020-B0iGRJ200,VDJ200..(5F,5FC)..GXR..GCC; URJ202,VDJ200..6FC..GXR..GCC; URJ202..GXR..ARL; URJ202..VX..ARL; URJ202..VXR;URJ202..LHD..VX;URJ200,VDJ200..VX,VXR201508-201708
LT.GRAY,TRIM1#,2#,4#; LT.GRAY,TRIM2#,4#; MOON ROOF-WITH&W(OVER HEAD CONSOLE) & W(MOON ROOF),LT.GRAY,TRIM1#,2#,4#; MOON ROOF-WITH&W(OVER HEAD CONSOLE) & W(MOON ROOF),LT.GRAY,TRIM1#,2#,4#,5#; MOON ROOF-WITH,LT.GRAY,TRIM1#,2#,4#
main81360-60020-E0iGRJ200,UZJ200..LHD..08S..GX; URJ200,UZJ200,VDJ200..VX; UZJ200..GX..ARL;GRJ200..09S..GCC..G200709-201201
MOON ROOF-WITH&OVER HEAD CONSOLE-WITH(W/MOON ROOF),SAND BEIGE,TRIM4#; MOON ROOF-WITH,SAND BEIGE,TRIM4#; SAND BEIGE,TRIM4#
MOON ROOF-WITH(REMOTE CONTROL)&REAR SEAT ENTERTAINMENT-WITH(SINGLE MONITOR),SHELL,TRIM0#
MOON ROOF-WITH(REMOTE CONTROL)&REAR SEAT ENTERTAINMENT-WITH,LT.GRAY,TRIM1#
MOON ROOF-WITH(REMOTE CONTROL)&REAR SEAT ENTERTAINMENT-WITH,SAND BEIGE,TRIM4#
BROWN STONE PACKAGE,SHELL,TRIM23; PREMIUM EDITION,SHELL,TRIM23
main81360-60020-A1iURJ20#,VDJ200..VX,VXR; URJ202..GXR..ARL; VDJ200..GXR..GCC;GRJ200,URJ202..LHD..GXR201508-201708
FLAXEN,TRIM0#; MOON ROOF-WITH&W(OVER HEAD CONSOLE) & W(MOON ROOF),FLAXEN,TRIM0#; MOON ROOF-WITH,FLAXEN,TRIM0#
main81360-60020-E1iGRJ200,VDJ200..LHD..5F..GEN..LUB; URJ202..GXR..ARL; URJ202..VXR..GEN;URJ202..VX..(ARL,GCC);VDJ200..(VX,VXR)..GCC201708-202103
MOON ROOF-WITH&W(OVER HEAD CONSOLE) & W(MOON ROOF),NEUTRAL BEIGE,TRIM4#; MOON ROOF-WITH,NEUTRAL BEIGE,TRIM47; NEUTRAL BEIGE,TRIM47
ILLUMINATED ENTRY SYSTEM-DOP(IG SW & ROOM & FOOT & SCUFF PLATE),FLAXEN,TRIM0#; ILLUMINATED ENTRY SYSTEM-IG SW & ROOM & FOOT & SCUFF PLATE,FLAXEN,TRIM0#
main81360-60090-B0iURJ20#..VXR..(ARL,GCC);VDJ200..VXR..(ARL,GEN); URJ20#..VXR..GCC;VDJ200..VXR..GEN; URJ200..VX;URJ202,VDJ200..VX..GEN; URJ200..VX;URJ202..VX..GEN;VDJ200..VX..(ARL,GEN)201508-202104
ILLUMINATED ENTRY SYSTEM-DOP(IG SW & ROOM & FOOT & SCUFF PLATE),LT.GRAY,TRIM1#,23,46; ILLUMINATED ENTRY SYSTEM-DOP(IG SW & ROOM & FOOT & SCUFF PLATE),LT.GRAY,TRIM23,46; ILLUMINATED ENTRY SYSTEM-IG SW & ROOM & FOOT & SCUFF PLATE,LT.GRAY,TRIM1#,23,46; ILLUMINATED ENTRY SYSTEM-IG SW & ROOM & FOOT & SCUFF PLATE,LT.GRAY,TRIM23,46
main81360-60090-C0iURJ202..VX..GCC;URJ202..VXR..GEN;VDJ200..(VX,VXR)..GCC; URJ202..VXR..GEN;URJ202..VX..(ARL,GCC);VDJ200..(VX,VXR)..GCC201508-202103
ILLUMINATED ENTRY SYSTEM-DOP(IG SW & ROOM & FOOT & SCUFF PLATE),BLACK,TRIM25,42; ILLUMINATED ENTRY SYSTEM-IG SW & ROOM & FOOT & SCUFF PLATE,BLACK,TRIM25,42
main81360-60090-E0supersedes 81360-60020-E1iURJ200;URJ202..VX..GEN;URJ202..VXR..GCC;VDJ200..(VX,VXR)..(ARL,GEN); URJ200;URJ202..VX..GEN;URJ202..VXR..GCC;VDJ200..(VX,VXR)..GEN201708-202104
ILLUMINATED ENTRY SYSTEM-DOP(IG SW & ROOM & FOOT & SCUFF PLATE),NEUTRAL BEIGE,TRIM47; ILLUMINATED ENTRY SYSTEM-IG SW & ROOM & FOOT & SCUFF PLATE,NEUTRAL BEIGE,TRIM47
81240BBULB, ROOM LAMP, NO.1
main90981-11062×3iGRJ200..GEN..LUB;GRJ200..5FC..GXR; URJ202..GXR..ARL; URJ202..VXR..GEN;URJ202..VX..(ARL,GCC);VDJ200..(VX,VXR)..GCC201508-202103
12V 8W; 12V 8W,MOON ROOF-WITH; 12V 8W,MOON ROOF-WITH&W(OVER HEAD CONSOLE) & W(MOON ROOF)
main90981-14011iVDJ200..09S..SOB;VDJ200..05S..(ARL,GCC);VDJ200..LHD..5F..GEN..LUB;GRJ200..(05S,08S)..5F..GCC;GRJ200,URJ202..GXR..(ARL,GEN)201508-202103
12V 8W
81260LAMP ASSY, GLOVE BOX
81260BBULB(FOR GLOVE BOX)
12V 1.2W W/O SOCKET
81290LAMP ASSY, ROOM, NO.3
main81240-12100-B0supersedes 81240-52040-B1iGRJ200,VDJ200..LHD..5F..GEN..LUB; URJ202..GXR..ARL; URJ202..VX..ARL; URJ202..VX..GCC;URJ202..VXR..GEN;GRJ200..5F..GCC..LUB;VDJ200..(VX,VXR)..GCC202005-202103
LT.GRAY,TRIM1#; LT.GRAY,TRIM1#,2#,46; LT.GRAY,TRIM2#,46; W(OVER HEAD CONSOLE) & W(MOON ROOF),LT.GRAY,TRIM1#,2#; W(OVER HEAD CONSOLE) & W/O(MOON ROOF),LT.GRAY,TRIM1#,2#
main81240-12100-E0iGRJ200,VDJ200..LHD..5F..GEN..LUB; URJ202..GXR..ARL; URJ202..VXR..GEN;GRJ200..5F..GCC..LUB;URJ202..VX..(ARL,GCC);VDJ200..(VX,VXR)..GCC202005-202103
NEUTRAL BEIGE,TRIM4#; NEUTRAL BEIGE,TRIM47; W(OVER HEAD CONSOLE) & W(MOON ROOF),NEUTRAL BEIGE,TRIM4#; W(OVER HEAD CONSOLE) & W/O(MOON ROOF),NEUTRAL BEIGE,TRIM4#
SHELL,TRIM0#
main81240-52040-A3iGRJ200,URJ202,VDJ200..GXR..GCC; VDJ200..GX..LUB;GRJ200..05S..LUB;GRJ200,VDJ200..GXR..GEN;GRJ200,VDJ200..09S..(5F,5FC)..GCC201508-201708
FLAXEN,TRIM0#; WITHOUT(OVER HEAD CONSOLE),FLAXEN,TRIM0#
main81240-52040-B1iGRJ200..09S..5FC;GRJ200,VDJ200..SOB..G;VDJ200..LHD..05S..LUB;VDJ200..08S..GX..(GCC,GEN);GRJ200,URJ202..LHD..08S..(5F,6FC)..GX201109-201508
LT.GRAY,TRIM1#
SAND BEIGE,TRIM4#
main81240-52040-E3iGRJ200..5F..GCC..LUB; VDJ200..GX..LUB;GRJ200,VDJ200..LHD..5F..GEN..LUB201708-202103
NEUTRAL BEIGE,TRIM4#; WITHOUT(OVER HEAD CONSOLE),NEUTRAL BEIGE,TRIM47
main81240-60060-A4iGRJ200,URJ202,VDJ200..08S..GX..(GCC,GEN); GRJ200,URJ202..LHD..08S..GX; VDJ200..VX;URJ202..ARL,GEN;URJ20#..VX..GCC;VDJ200..GX..ARL201201-201508
OVER HEAD CONSOLE-WITH(W/MOON ROOF),SHELL,TRIM0#; OVER HEAD CONSOLE-WITH,SHELL,TRIM0#; SHELL,TRIM0#
main81240-60060-A5iGRJ200,VDJ200..GXR..GEN; GRJ200..GEN..LUB; URJ20#;VDJ200..VX,VXR;GRJ200,VDJ200..GXR..(ARL,GCC)201508-201708
FLAXEN,TRIM0#; W(OVER HEAD CONSOLE) & W(MOON ROOF),FLAXEN,TRIM0#; W(OVER HEAD CONSOLE) & W/O(MOON ROOF),FLAXEN,TRIM0#
main81240-60060-B0supersedes 81240-52040-B1iGRJ200,URJ202,VDJ200..6FC..GXR..GCC; URJ202..VX..ARL; VDJ200..LHD..5F..GEN..LUB; VDJ200..VX,VXR;URJ202..VX..GEN;VDJ200..GXR..ARL;URJ202..(VX,VXR)..GCC;URJ202..(GXR,VXR)..(ARL,GEN);GRJ200,URJ200,VDJ200..(5F,8FC)..GCC..LUB201708-202004
LT.GRAY,TRIM1#,2#,46; LT.GRAY,TRIM1#,2#,46,49,5#; LT.GRAY,TRIM2#,46; W(OVER HEAD CONSOLE) & W(MOON ROOF),LT.GRAY,TRIM1#,2#
main81240-60060-E0iGRJ200,UZJ200,VDJ200..08S..GX..(GCC,GEN); GRJ200,UZJ200..LHD..08S..GX; GRJ200..09S..GCC..G; VDJ200..VX;UZJ200..ARL,GEN;VDJ200..GX..ARL;URJ200,UZJ200..VX..GCC200709-201201
MOON ROOF-WITH,SAND BEIGE,TRIM4#; OVER HEAD CONSOLE-WITH(W/MOON ROOF),SAND BEIGE,TRIM4#; OVER HEAD CONSOLE-WITH,SAND BEIGE,TRIM4#; SAND BEIGE,TRIM4#
main81240-60060-E2iGRJ200,URJ202,VDJ200..6FC..GXR..GCC; GRJ200,VDJ200..GXR..GEN; GRJ200,VDJ200..LHD..5F..GEN..LUB; VDJ200..VX,VXR;URJ202..ARL,GEN;VDJ200..GXR..ARL;URJ202..(VX,VXR)..GCC;GRJ200,URJ200,VDJ200..(5F,8FC)..GCC..LUB201708-202004
NEUTRAL BEIGE,TRIM47; NEUTRAL BEIGE,TRIM47,48; W(OVER HEAD CONSOLE) & W(MOON ROOF),NEUTRAL BEIGE,TRIM4#; W(OVER HEAD CONSOLE) & W/O(MOON ROOF),NEUTRAL BEIGE,TRIM4#
ILLUMINATED ENTRY SYSTEM-DOP(IG SW & ROOM & FOOT & SCUFF PLATE),FLAXEN,TRIM0#; ILLUMINATED ENTRY SYSTEM-IG SW & ROOM & FOOT & SCUFF PLATE,FLAXEN,TRIM0#
main81360-60080-B0iURJ202..VX..ARL; URJ202..VX..GCC;URJ202..VXR..GEN;VDJ200..(VX,VXR)..GCC201508-202103
ILLUMINATED ENTRY SYSTEM-DOP(IG SW & ROOM & FOOT & SCUFF PLATE),LT.GRAY,TRIM1#,23,46; ILLUMINATED ENTRY SYSTEM-IG SW & ROOM & FOOT & SCUFF PLATE,LT.GRAY,TRIM1#,23,46; ILLUMINATED ENTRY SYSTEM-IG SW & ROOM & FOOT & SCUFF PLATE,LT.GRAY,TRIM23,46
main81360-60080-C0iURJ202..VX..GCC;URJ202..VXR..GEN;VDJ200..(VX,VXR)..GCC; URJ202..VXR..GEN;URJ202..VX..(ARL,GCC);VDJ200..(VX,VXR)..GCC201508-202103
ILLUMINATED ENTRY SYSTEM-DOP(IG SW & ROOM & FOOT & SCUFF PLATE),BLACK,TRIM25,42; ILLUMINATED ENTRY SYSTEM-IG SW & ROOM & FOOT & SCUFF PLATE,BLACK,TRIM25,42
main81360-60080-E0iURJ200;URJ202..VX..GEN;URJ202..VXR..GCC;VDJ200..(VX,VXR)..(ARL,GEN); URJ200;URJ202..VX..GEN;URJ202..VXR..GCC;VDJ200..(VX,VXR)..GEN201708-202104
ILLUMINATED ENTRY SYSTEM-DOP(IG SW & ROOM & FOOT & SCUFF PLATE),NEUTRAL BEIGE,TRIM47; ILLUMINATED ENTRY SYSTEM-IG SW & ROOM & FOOT & SCUFF PLATE,NEUTRAL BEIGE,TRIM47
81290BBULB, ROOM LAMP, NO.3
12V 8W
81340BBULB (FOR VANITY LAMP)
main90981-14014×2iURJ202..VX..GCC;URJ202..VXR..GEN;URJ202..(GXR,VX)..ARL;VDJ200..(VX,VXR)..GCC; VDJ200..05S..GCC..SOB;GRJ200..(05S,08S)..5F..GCC;GRJ200,VDJ200..LHD..5F..GEN..LUB201508-202103
12V 2W; 12V 2W,SUN VISOR-WITH(MIRROR & SLIDE)
8202WIRING & CLAMP
9046710161
main90467-10161
16 parts on this diagram · 4 diagrams in section
