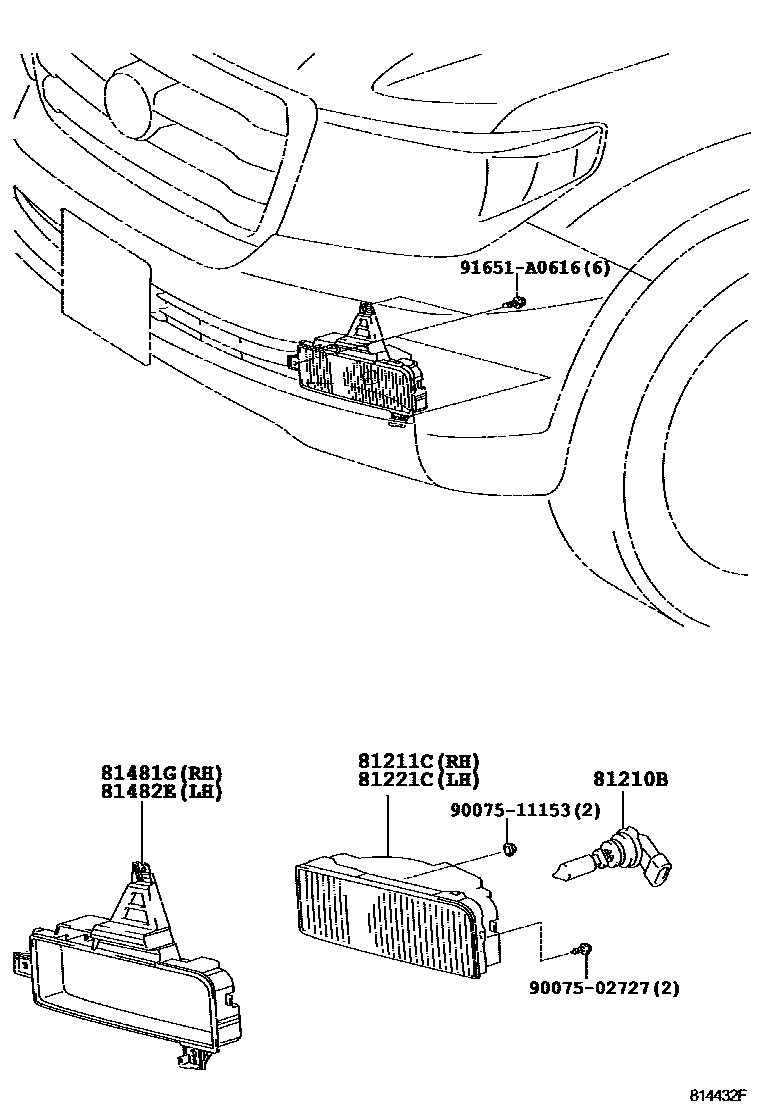

FOG LAMP

0001 1 0002 1 0003 1

81210BBULB, FOG LAMP

main90981-13047iURJ200,UZJ200,VDJ200..VX200709-201201

12V 51W,HALOGEN

main90981-13047iURJ200,UZJ200,VDJ200..VX200709-201201

12V 51W,HALOGEN,FRONT FOG LAMP-WITH

main90981-13090iURJ20#,VDJ200..VX201201-201508

12V 19W,FRONT FOG LAMP-WITH

main90981-13090iURJ20#,VDJ200..VX201201-201508

12V 19W

81211CLAMP UNIT, FOG LAMP, RH

main81211-60220iUZJ200,VDJ200..VX200709-200806

ARGENTINA SPEC

main81211-60220iUZJ200,VDJ200..VX200709-200806

FRONT FOG LAMP-WITH

main81211-60221iURJ200,UZJ200,VDJ200..VX200806-201201

FRONT FOG LAMP-WITH

81221CLAMP UNIT, FOG LAMP, LH

main81221-60140iGRJ200,UZJ200,VDJ200..08S..GX..(ARL,GCC)200709-200806

ARGENTINA SPEC

main81221-60140iGRJ200,UZJ200,VDJ200..08S..GX..(ARL,GCC)200709-200806

FRONT FOG LAMP-WITH

main81221-60141iURJ200,UZJ200,VDJ200..VX200806-201201

FRONT FOG LAMP-WITH

81481GBRACKET, FOG LAMP, RH

main81481-60070iUZJ200,VDJ200..VX200709-200805

ARGENTINA SPEC

main81481-60070iUZJ200,VDJ200..VX200709-200805

FRONT FOG LAMP-WITH

main81481-60071iUZJ200,VDJ200..VX200806-200908

FRONT FOG LAMP-WITH

main81481-60072iURJ200,UZJ200,VDJ200..VX200909-201201

FRONT FOG LAMP-WITH

81482EBRACKET, FOG LAMP, LH

main81482-60060iGRJ200,UZJ200,VDJ200..08S..GX..(ARL,GCC)200709-200805

FRONT FOG LAMP-WITH

main81482-60060iUZJ200,VDJ200..VX200709-200805

ARGENTINA SPEC

main81482-60061iGRJ200,UZJ200,VDJ200..08S..GX..(ARL,GCC)200806-200908

FRONT FOG LAMP-WITH

main81482-60062iVDJ200..LHD..(05S,08S)..GX..GEN;GRJ200,UZJ200,VDJ200..08S..GX..(ARL,GCC)200909-201201

FRONT FOG LAMP-WITH

9007502727

main90075-02727

9007511153

main90075-11153

91651A0616

main91651-A0616

8 parts on this diagram · 3 diagrams in section
