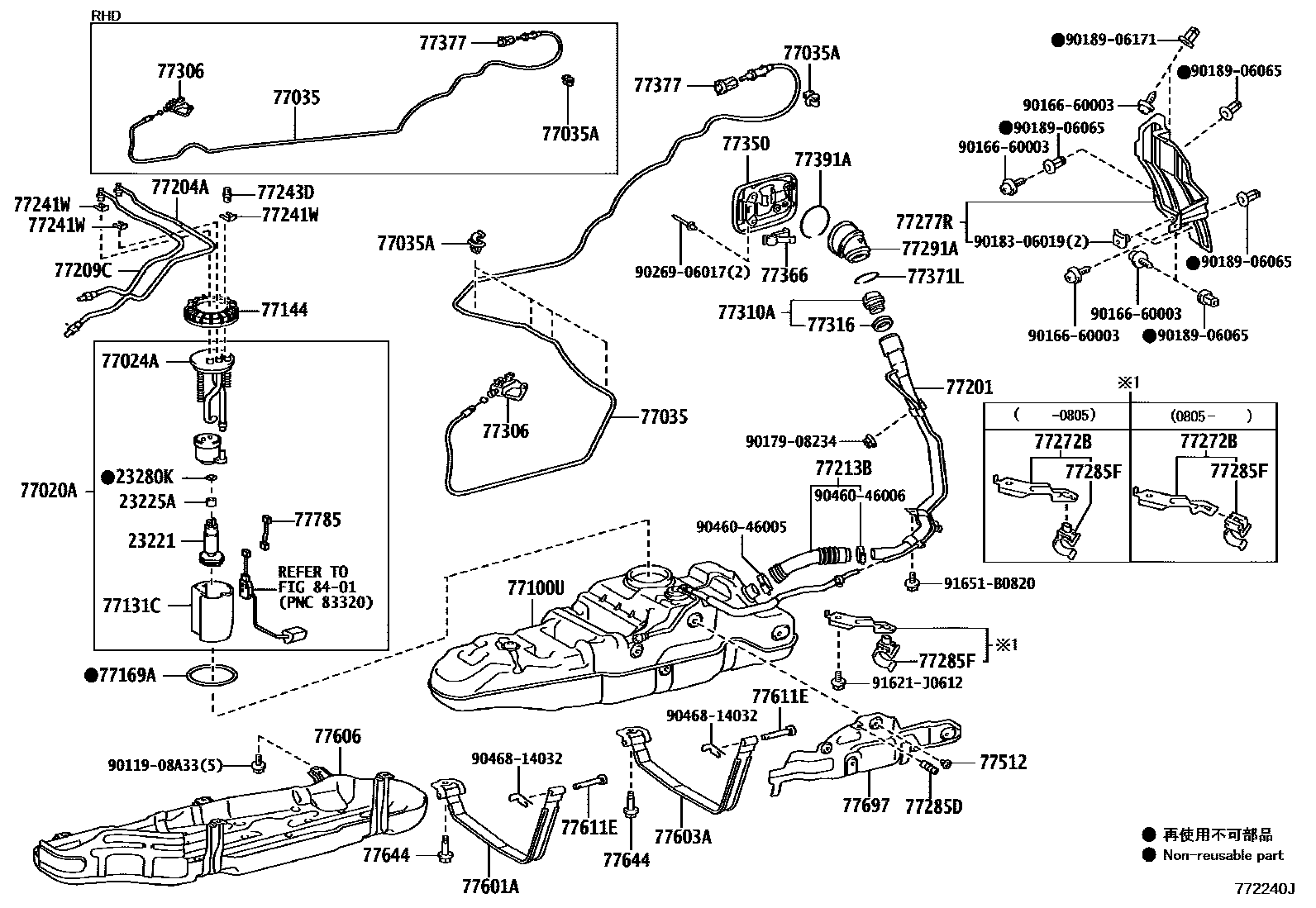

FUEL TANK & TUBE
23221PUMP, FUEL
main23220-38061i1URFE..URJ202..VX..GCC;1URFE..URJ202..VXR..GEN;1URFE..URJ202..(GXR,VX)..ARL201007-202104
sub23220-50261
FUEL TANK-WITH(SUB TANK)
FUEL TANK-WITHOUT(SUB TANK)
ARGENTINA SPEC&EXHAUST EMISSION CONTROL-EUROPE STEP5, WITH(EGR) & WITH(OBD)&FUEL TANK-WITH(SUB TANK)
main23220-51010i1VDFTV..VDJ200..09S..SOB;1VDFTV..VDJ200..(VX,VXR)..GCC;1VDFTV..VDJ200..05S..(ARL,GCC);1VDFTV..VDJ200..LHD..5F..GEN..LUB201008-202103
23225ASPACER, FUEL PUMP
main23225-23010i1URFE..URJ202..VX..GCC;1URFE..URJ202..(GXR,VX)..ARL;1GRFE..GRJ200..(05S,08S)..5F..GCC;1GRFE,1URFE..GRJ200,URJ202..(GXR,VXR)..GEN200709-202104
23280KRING, O(FOR FUEL PRESSURE REGULATOR)
77024APLATE SUB-ASSY, FUEL SUCTION
sub77024-60241
FUEL TANK-WITHOUT(SUB TANK)
sub77024-60241
sub77024-60242
FUEL TANK-WITHOUT(SUB TANK)
FUEL TANK-WITH(SUB TANK)
sub77024-60251
sub77024-60251
FUEL TANK-WITH(SUB TANK)
main77024-60251iVDJ200..09S..SOB;VDJ200..(VX,VXR)..GCC;VDJ200..05S..(ARL,GCC);VDJ200..LHD..5F..GEN..LUB201508-202103
ARGENTINA SPEC&EXHAUST EMISSION CONTROL-EUROPE STEP5, WITH(EGR) & WITH(OBD)&FUEL TANK-WITH(SUB TANK)
main77024-60400iURJ202..VX..GCC;URJ202..(GXR,VX)..ARL;GRJ200..(05S,08S)..5F..GCC;GRJ200,URJ202..(GXR,VXR)..GEN201508-202104
77035CABLE SUB-ASSY, FUEL LID LOCK CONTROL
main77035-60140iGRJ200..LHD..SOB..G;GRJ200..LHD..08S..5F;GRJ200,URJ20#..LHD..ATM;VDJ200..LHD..09S..SOB..G;VDJ200..LHD..(05S,08S)..G200709-202104
77035ACLAMP (FOR FUEL LID LOCK CONTROL CABLE)
main90469-06005iGRJ200,URJ200..ATM;GRJ200..LHD..09S..SOB;VDJ200..LHD..6FC..GEN;URJ202..(GXR,VXR)..GCC;VDJ200..(08S,09S)..(GX,GXR)..GCC..LUB;GRJ200,URJ202..(05S,08S)..(GX,VX)..GEN200709-202104
77100UTANK SUB-ASSY, FUEL
FUEL TANK-WITHOUT(SUB TANK)
FUEL TANK-WITH(SUB TANK)
sub77001-60822
sub77001-60822
main77001-60822iURJ202..VX..GCC;VDJ200..09S..SOB;URJ202..(GXR,VX)..ARL;VDJ200..(VX,VXR)..GCC;VDJ200..05S..(ARL,GCC);VDJ200..LHD..5F..GEN..LUB;GRJ200..(05S,08S)..5F..GCC;GRJ200,URJ2201611-202103
main77001-60822iGRJ200..09S..SOB;VDJ200..ARL..LUB;GRJ200,URJ200..ATM;URJ202..VXR..(ARL,GCC);VDJ200..RHD..(05S,08S)..5F;GRJ200,URJ202..(05S,08S)..(GX,VX)..GEN;URJ202,VDJ200..(08S,09201611-202104
FUEL TANK-WITH(SUB TANK)
ARGENTINA SPEC&EXHAUST EMISSION CONTROL-EUROPE STEP5, WITH(EGR) & WITH(OBD)&FUEL TANK-WITH(SUB TANK)
77131CSUB-TANK, FUEL, NO.1
main77131-60170iURJ202..VX..GCC;URJ202..(GXR,VX)..ARL;GRJ200..(05S,08S)..5F..GCC;GRJ200,URJ202..(GXR,VXR)..GEN201508-202104
main77131-60180iVDJ200..09S..SOB;VDJ200..(VX,VXR)..GCC;VDJ200..05S..(ARL,GCC);VDJ200..LHD..5F..GEN..LUB201508-202104
77144RETAINER, FUEL PUMP GAUGE
77169AGASKET, FUEL SUCTION TUBE SET
main77169-30050iVDJ200..ARL..LUB;VDJ200..LHD..6FC..GEN;VDJ200..RHD..(05S,08S)..GEN;VDJ200..(08S,09S)..(GX,GXR)..GCC..LUB200709-202104
77201PIPE SUB-ASSY, FUEL TANK INLET
sub77201-60A90
FUEL TANK-WITHOUT(SUB TANK)
sub77201-60A90
sub77201-60E50
sub77300-12030
sub77201-60B01
GCC SPEC(EXCEPT SAUDI ARABIA)
sub77201-60B90
main77201-60B20iVDJ200..05S..SOB..G;VDJ200..GCC..SOB..G;VDJ200..LHD..05S..LUB;VDJ200..08S..(ARL,GCC)200709-201508
FUEL TANK-WITH(SUB TANK)
sub77201-60B21
sub77201-60B21
SYRIA, LEBANON, JORDAN SPEC
IRAQ, LEBANON SPEC
LEBANON SPEC
GCC SPEC(UAE,BAHRAIN)
QATAR, OMAN, BAHRAIN SPEC
KUWAIT SPEC
NIGERIA SPEC
EGYPT SPEC
YEMEN SPEC
FUEL TANK-WITH(SUB TANK)
77204ATUBE, FUEL TANK RETURN
main77204-60070iGRJ200..09S..SOB;URJ202..GXR..GCC;GRJ200,URJ200..ATM;URJ202..VXR..(ARL,GCC);GRJ200,URJ202..(05S,08S)..(GX,VX)..GEN200709-202104
77209CTUBE SUB-ASSY, FUEL TANK MAIN
main77209-60480iVDJ200..09S..SOB;VDJ200..(VX,VXR)..GCC;VDJ200..05S..(ARL,GCC);VDJ200..LHD..5F..GEN..LUB200709-202104
77213BHOSE, FUEL TANK TO FILLER PIPE
YEMEN SPEC
GCC SPEC(UAE,BAHRAIN)
SYRIA, LEBANON, JORDAN SPEC
QATAR, OMAN, BAHRAIN SPEC
KUWAIT SPEC
NIGERIA SPEC
EGYPT SPEC
main77213-60310iGRJ200..09S..SOB;VDJ200..ARL..LUB;GRJ200,URJ200..ATM;VDJ200..LHD..6FC..GEN;URJ202..VXR..(ARL,GCC);VDJ200..RHD..(05S,08S)..GEN;GRJ200,URJ202..(05S,08S)..(GX,VX)..GEN200709-202104
SAUDI ARABIA SPEC
main77213-60310iGRJ200..09S..SOB;VDJ200..ARL..LUB;GRJ200,URJ200..ATM;VDJ200..LHD..6FC..GEN;URJ202..VXR..(ARL,GCC);VDJ200..RHD..(05S,08S)..GEN;GRJ200,URJ202..(05S,08S)..(GX,VX)..GEN201508-202104
AZERBAIJAN, GEORGIA, ARMENIA SPEC
main77213-60310iGRJ200..09S..SOB;VDJ200..ARL..LUB;GRJ200,URJ200..ATM;VDJ200..LHD..6FC..GEN;URJ202..VXR..(ARL,GCC);VDJ200..RHD..(05S,08S)..GEN;GRJ200,URJ202..(05S,08S)..(GX,VX)..GEN200709-202104
FUEL TANK-WITH(SUB TANK)
SOUTH AFRICA SPEC&FUEL TANK-WITH(SUB TANK)
GCC SPEC(EXCEPT SAUDI ARABIA)
FUEL TANK-WITHOUT(SUB TANK)
SYRIA OR LEBANON OR JORDAN SPEC
COMOROS ISLANDS & IVORY COAST SPEC
77241WCLIP, TUBE JOINT
NO.2:REFER ILLUST.
FUEL TANK-WITH(SUB TANK),NO.2:REFER ILLUST.
FUEL TANK-WITHOUT(SUB TANK),NO.2:REFER ILLUST.
ARGENTINA SPEC&EXHAUST EMISSION CONTROL-EUROPE STEP5, WITH(EGR) & WITH(OBD)&FUEL TANK-WITH(SUB TANK),NO.2:REFER ILLUST.
main77241-60310iVDJ200..08S..GX;VDJ200..GX..SOB..G;VDJ200..(STD,VX)..G;VDJ200..LHD..05S..LUB200709-202104
NO.1:REFER ILLUST.
NO.2:REFER ILLUST.
FUEL TANK-WITHOUT(SUB TANK),NO.2:REFER ILLUST.
FUEL TANK-WITH(SUB TANK),NO.2:REFER ILLUST.
77243DJOINT, FUEL TUBE, NO.1
77272BSUPPORT, BREATHER TUBE, NO.1
77277RPROTECTOR, FUEL TANK FILLER PIPE
77285BRACKET, FUEL TUBE
77285DCLAMP, FUEL TUBE, NO.1
77285FCLAMP, FUEL TUBE, NO.1
77291ASHIELD, FUEL TANK FILLER PIPE
main77291-60120iGRJ200..SOB..G;VDJ200..08S..GX;GRJ200,URJ20#..ATM;VDJ200..GX..SOB..G;VDJ200..(STD,VX)..G;GRJ200..LHD..08S..5F;VDJ200..LHD..05S..LUB200709-202104
77306LEVER SUB-ASSY, FUEL LID LOCK OPEN
DK. BROWN,TRIM4#
sub77306-28060
main77306-58020-A2iGRJ200..05S..LUB;GRJ200..GEN..LUB;URJ20#,VDJ200..LUB;VDJ200..09S..GCC..SOB;GRJ200..(08S,09S)..GCC201508-201708
FLAXEN,TRIM0#
sub77306-58020
main77306-58020-C0iGRJ200,VDJ200..05S,09S;GRJ200,URJ202,VDJ200..08S..(5F,6FC)..GX..(GCC,GEN)201201-202104
BLACK,TRIM1#,2#
sub77306-58020
main77306-58020-C0iGRJ200,VDJ200..05S,09S;GRJ200,URJ202,VDJ200..08S..(5F,6FC)..GX..(GCC,GEN)201201-201508
BLACK,TRIM2#
sub77306-58020
main77306-58020-C0iURJ202..VX..GEN;URJ202..VXR..GCC;VDJ200..GXR..ARL;VDJ200..(VX,VXR)..(ARL,GEN);URJ200,VDJ200..(5F,8FC)..GCC..LUB201708-202104
BLACK,TRIM1#,2#,42,46,49,5#
sub77306-58020
NEUTRAL BEIGE,TRIM4#
sub77306-58020
NEUTRAL BEIGE,TRIM47
sub77306-58020
NEUTRAL BEIGE,TRIM47,48
sub77306-58020
77310ACAP ASSY, FUEL TANK
77316GASKET, FUEL TANK CAP
77350LID ASSY, FUEL FILLER OPENING
77366SPRING, FUEL FILLER OPENING LID HINGE
77371LRING, FUEL TANK FILLER PIPE SHIELD
main77371-60040iGRJ200..5F;VDJ200..GX;URJ202..ARL;URJ202..VX..GCC;URJ202..VXR..GEN;VDJ200..(VX,VXR)..GCC;VDJ200..LHD..5F..GEN..LUB202102-202104
77377RETAINER, FUEL FILLER OPENING LID LOCK
77391ARING, FUEL INLET BOX
main77391-60070iURJ202..VX..GCC;VDJ200..09S..SOB;URJ202..(GXR,VX)..ARL;VDJ200..(VX,VXR)..GCC;VDJ200..05S..(ARL,GCC);VDJ200..LHD..5F..GEN..LUB;GRJ200..(05S,08S)..5F..GCC;GRJ200,URJ2201508-202104
77512BRACKET, FUEL TANK, REAR
77601ABAND SUB-ASSY, FUEL TANK, NO.1
77603ABAND SUB-ASSY, FUEL TANK, NO.2
77606PROTECTOR SUB-ASSY, FUEL TANK, NO.1
main77606-60170iGRJ200..09S..SOB;VDJ200..ARL..LUB;GRJ200,URJ200..ATM;VDJ200..LHD..6FC..GEN;URJ202..VXR..(ARL,GCC);VDJ200..RHD..(05S,08S)..GEN;GRJ200,URJ202..(05S,08S)..(GX,VX)..GEN200709-202104
77611EPIN, FUEL TANK BAND
main77653-35040iGRJ200..09S..SOB;VDJ200..ARL..LUB;GRJ200,URJ200..ATM;VDJ200..LHD..6FC..GEN;URJ202..VXR..(ARL,GCC);VDJ200..RHD..(05S,08S)..GEN;GRJ200,URJ202..(05S,08S)..(GX,VX)..GEN200709-202104
77644BOLT, FUEL TANK
main77644-35030iURJ202..VX..GCC;VDJ200..09S..SOB;URJ202..(GXR,VX)..ARL;VDJ200..(VX,VXR)..GCC;VDJ200..05S..(ARL,GCC);VDJ200..LHD..5F..GEN..LUB;GRJ200..(05S,08S)..5F..GCC;GRJ200,URJ2200709-202104
77697INSULATOR, FUEL TANK HEAT, NO.1
main77697-60010iGRJ200..SOB..G;VDJ200..08S..GX;GRJ200,URJ20#..ATM;VDJ200..GX..SOB..G;VDJ200..(STD,VX)..G;GRJ200..LHD..08S..5F;VDJ200..LHD..05S..LUB200709-202104
77785HARNESS, FUEL PUMP
sub77785-60011
FUEL TANK-WITH(SUB TANK)
sub77785-60021
ARGENTINA SPEC&EXHAUST EMISSION CONTROL-EUROPE STEP5, WITH(EGR) & WITH(OBD)&FUEL TANK-WITH(SUB TANK)
sub77785-60021
sub77785-60021
FUEL TANK-WITH(SUB TANK)
ARGENTINA SPEC&EXHAUST EMISSION CONTROL-EUROPE STEP5, WITH(EGR) & WITH(OBD)&FUEL TANK-WITH(SUB TANK)
8401
9011908A33
main90119-08A33
9016660003
main90166-60003
9017908234
main90179-08234
9018306019
main90183-06019
9018906065
main90189-06065
9018906171
main90189-06171
9026906017
main90269-06017
9046046005
main90460-46005
9046046006
main90460-46006
9046814032
main90468-14032
91621J0612
main91621-J0612
91651B0820
main91651-B0820
52 parts on this diagram · 15 diagrams in section
