SPOILER & SIDE MUDGUARD
5253REAR BUMPER & BUMPER STAY
5353HOOD & FRONT FENDER
7552MOULDING
76085SPOILER SUB-ASSY, REAR
main76085-60020-A0iGRJ200..LHD..05S..G;VDJ200..(GCC,GEN)..G;GRJ200,URJ200,UZJ200..(08S,09S)..(GCC,GEN)..G; UZJ200,VDJ200..ARL..G200709-201201
REAR SPOILER-WITH,SUPER WHITE 2,040; SUPER WHITE 2,040
main76085-60020-A1iGRJ200..5F..LUB;URJ202..VX..GCC;URJ202..VXR..GEN;VDJ200..LHD..5F..GEN..LUB;VDJ200..(05S,08S)..(GX,VX,VXR)..GCC..LUB; URJ202..(GXR,VX)..ARL201508-202103
REAR SPOILER-WITH,WHITE PEARL CS.,070; WHITE PEARL CS.,070
main76085-60020-B0iGRJ200,URJ20#,VDJ200..(05S,08S)..(GCC,GEN)..LUB; URJ202,VDJ200..ARL..LUB201201-201508
REAR SPOILER-WITH,SILVER ME.,1F7; SILVER ME.,1F7
main76085-60020-B1iGRJ200,URJ20#,VDJ200..(05S,08S)..(GCC,GEN)..LUB; URJ202,VDJ200..ARL..LUB201201-201508
GRAY ME.,1G3; REAR SPOILER-WITH,GRAY ME.,1G3
main76085-60020-C0iGRJ200..5F..LUB;URJ202..VX..GCC;URJ202..VXR..GEN;VDJ200..LHD..5F..GEN..LUB;VDJ200..(05S,08S)..(GX,VX,VXR)..GCC..LUB; URJ202..(GXR,VX)..ARL201508-202103
BLACK,202; REAR SPOILER-WITH,BLACK,202
main76085-60020-C1iGRJ200,URJ20#,VDJ200..(05S,08S)..(GCC,GEN)..LUB; URJ202,VDJ200..ARL..LUB201201-201508
ATTITUDE BLACK MC.,218; REAR SPOILER-WITH,ATTITUDE BLACK MC.,218
main76085-60020-C2iURJ202,VDJ200..ARL..LUB; VDJ200..(GCC,GEN)..LUB;GRJ200,URJ20#..LHD..08S201908-202006
REAR SPOILER-WITH,SPARKLING BLACK PEARL CS.,220; SPARKLING BLACK PEARL CS.,220
main76085-60020-D0iGRJ200..5F..LUB;URJ202..VX..GCC;URJ202..VXR..GEN;VDJ200..LHD..5F..GEN..LUB;VDJ200..(05S,08S)..(GX,VX,VXR)..GCC..LUB; URJ202..(GXR,VX)..ARL201508-202103
DK. RED M.M.,3Q3; REAR SPOILER-WITH,DK. RED M.M.,3Q3
main76085-60020-E0iGRJ200,URJ20#,VDJ200..(05S,08S)..(GCC,GEN)..LUB; URJ202,VDJ200..ARL..LUB201201-201508
BEIGE M.M.,4R3; REAR SPOILER-WITH,BEIGE M.M.,4R3
main76085-60020-E2iURJ202,VDJ200..ARL..LUB; VDJ200..(GCC,GEN)..LUB;GRJ200,URJ20#..LHD..08S201508-201908
COPPER BROWN MC.,4S6; REAR SPOILER-WITH,COPPER BROWN MC.,4S6
main76085-60020-F0iGRJ200..LHD..05S..G;VDJ200..(GCC,GEN)..G;GRJ200,URJ200,UZJ200..(08S,09S)..(GCC,GEN)..G; UZJ200,VDJ200..ARL..G200709-201201
GOLD M.M.,5A5; REAR SPOILER-WITH,GOLD M.M.,5A5
main76085-60020-G0iGRJ200..LHD..05S..G;VDJ200..(GCC,GEN)..G;GRJ200,URJ200,UZJ200..(08S,09S)..(GCC,GEN)..G; UZJ200,VDJ200..ARL..G200709-201201
GREEN M.M.,6V2; REAR SPOILER-WITH,GREEN M.M.,6V2
main76085-60020-J0iGRJ200..LHD..05S..G;VDJ200..(GCC,GEN)..G;GRJ200,URJ200,UZJ200..(08S,09S)..(GCC,GEN)..G; UZJ200,VDJ200..ARL..G200709-201201
GRAYISH BLUE ME.,8R3; REAR SPOILER-WITH,GRAYISH BLUE ME.,8R3
main76085-60020-J1iGRJ200,URJ20#,VDJ200..(05S,08S)..(GCC,GEN)..LUB; URJ202,VDJ200..ARL..LUB201201-201408
LT.BLUE M.M.,8S1; REAR SPOILER-WITH,LT.BLUE M.M.,8S1
main76085-60020-J2iURJ202,VDJ200..ARL..LUB; VDJ200..(GCC,GEN)..LUB;GRJ200,URJ20#..LHD..08S201508-201912
DARK BLUE MC.,8P8; REAR SPOILER-WITH,DARK BLUE MC.,8P8
76621DMUDGUARD, FRONT FENDER, RH
SIDE STEP-WITH(STEP LAMP)&MUD GUARD-WIHT(ONLY FRONT & STEP LAMP); SIDE STEP-WITH(STEP LAMP)&MUD GUARD-WITH(FRONT & REAR)
76622DMUDGUARD, FRONT FENDER, LH
main76622-60120iGRJ200,VDJ200..LHD..5F..GEN..LUB; URJ202..VX..GCC;VDJ200..09S..SOB;URJ202..(GXR,VX)..ARL;VDJ200..(VX,VXR)..GCC;VDJ200..05S..(ARL,GCC);VDJ200..LHD..5F..GEN..LUB;GRJ200..(05S,08S)..5F..GCC;GRJ200,URJ202..(GXR,VXR)..GEN201508-202103
SIDE STEP-WITH(DOP)&MUD GUARD-WITHOUT
SIDE STEP-WITH(STEP LAMP)&MUD GUARD-WIHT(ONLY FRONT & STEP LAMP); SIDE STEP-WITH(STEP LAMP)&MUD GUARD-WITH(FRONT & REAR)
76625GMUDGUARD, QUARTER PANEL, REAR RH
main76625-60350iGRJ200,VDJ200..LHD..5F..GEN..LUB; GRJ200..5F..LUB;URJ202..VX..GCC;URJ202..VXR..GEN;URJ202..(GXR,VX)..ARL;VDJ200..LHD..5F..GEN..LUB;VDJ200..(05S,08S)..(GX,VX,VXR)..GCC..LUB201508-202103
SIDE STEP-WITH(DOP)&MUD GUARD-WITHOUT
76626EMUDGUARD, QUARTER PANEL, REAR LH
main76626-60350iGRJ200,VDJ200..LHD..5F..GEN..LUB; GRJ200..5F..LUB;URJ202..VX..GCC;URJ202..VXR..GEN;URJ202..(GXR,VX)..ARL;VDJ200..LHD..5F..GEN..LUB;VDJ200..(05S,08S)..(GX,VX,VXR)..GCC..LUB201508-202103
SIDE STEP-WITH(DOP)&MUD GUARD-WITHOUT
76889DCLIP, REAR SPOILER, NO.2
main76889-44020×3iGRJ200..LHD..05S..G;VDJ200..(GCC,GEN)..G;GRJ200,URJ200,UZJ200..(08S,09S)..(GCC,GEN)..G; UZJ200,VDJ200..ARL..G200709-201201
REAR SPOILER-WITH
9011906762
main90119-06762
9016660003
main90166-60003
9018906065
main90189-06065
9046709127
main90467-09127

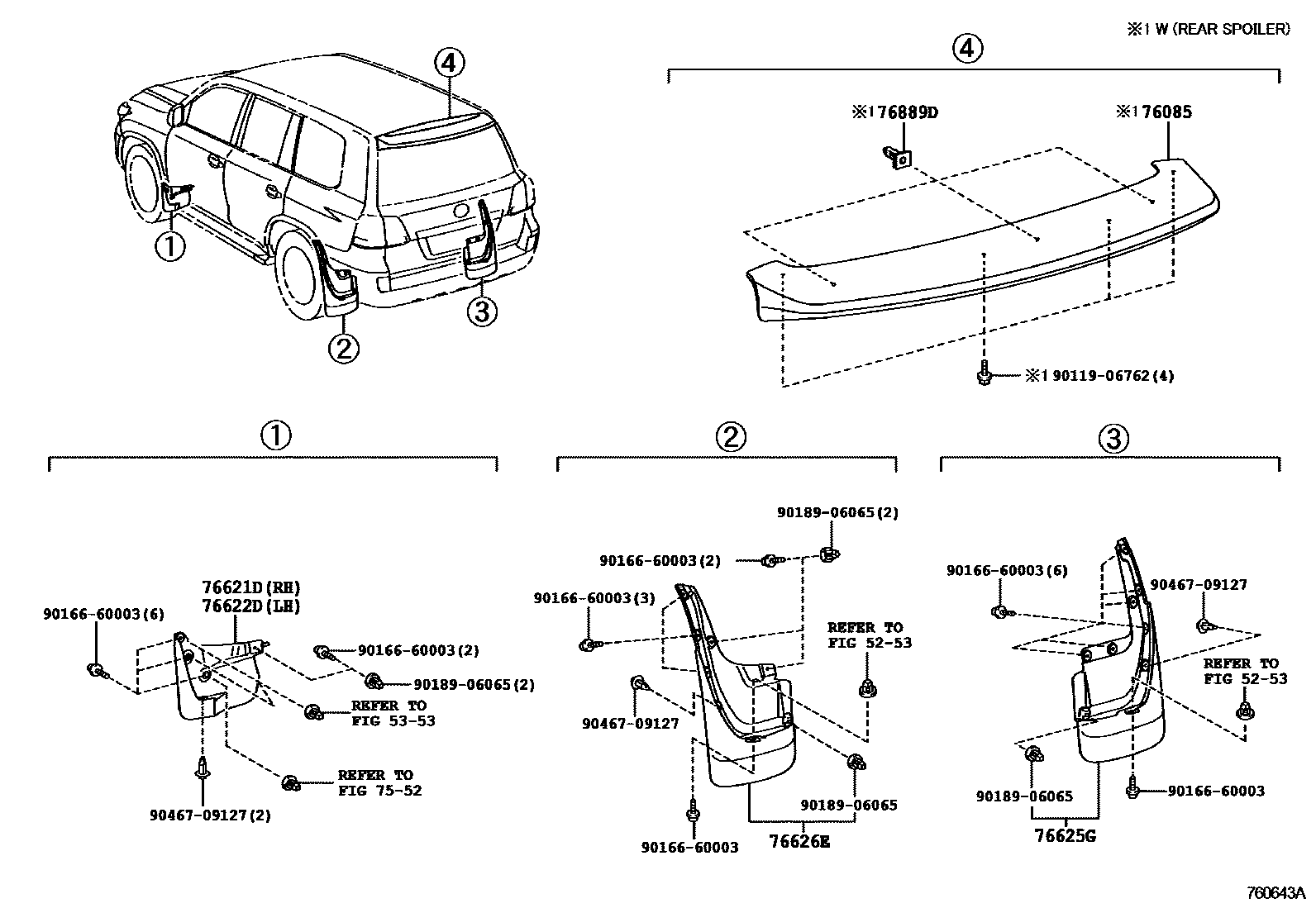

13 parts on this diagram · 3 diagrams in section
