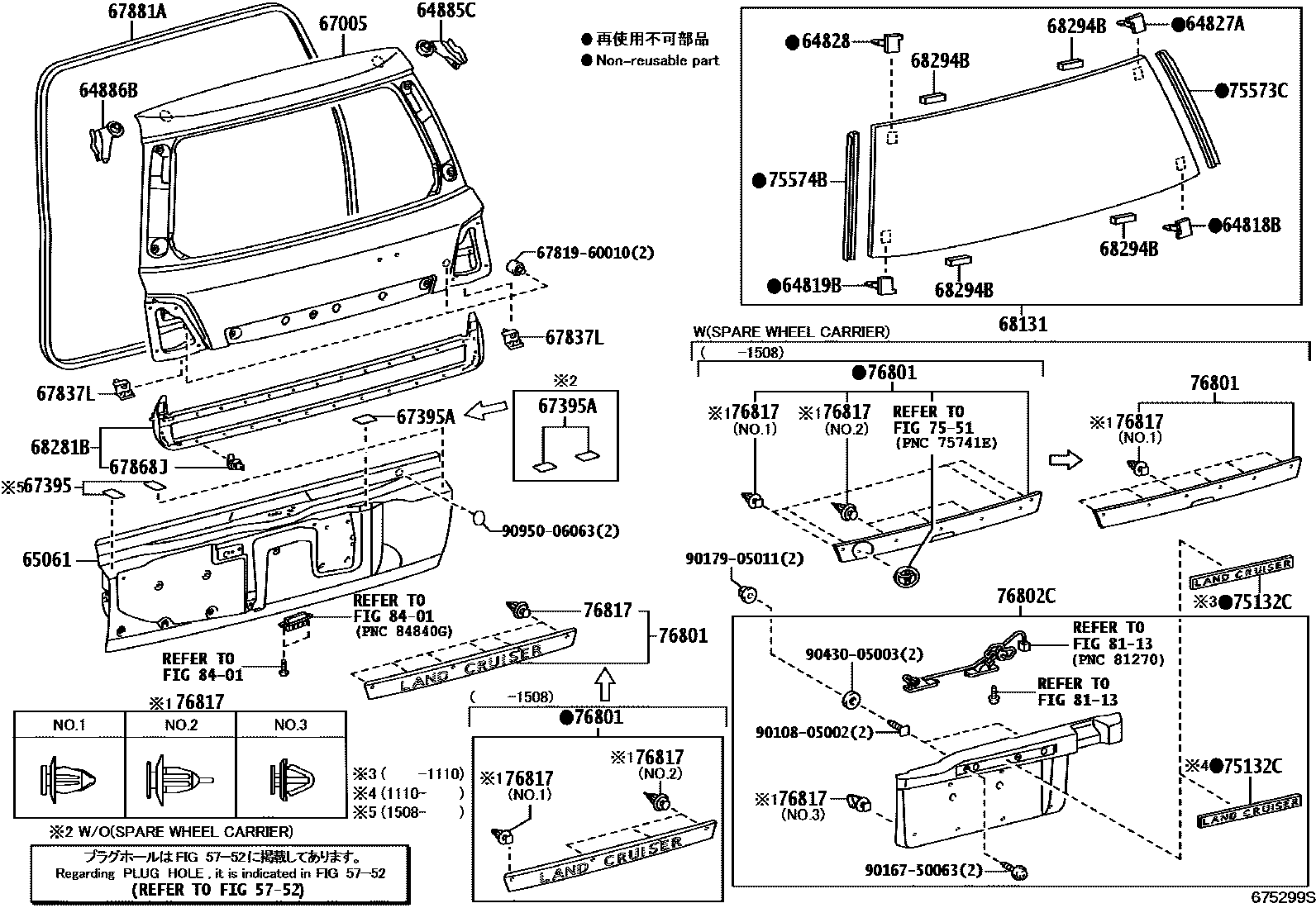

BACK DOOR PANEL & GLASS
5752
64818BSPACER, BACK DOOR GLASS, NO.1
64819BSPACER, BACK WINDOW GLASS, NO.2
main64819-60030iGRJ200..5F..LUB;URJ202..VX..GCC;URJ202..VXR..GEN;URJ202..(GXR,VX)..ARL;VDJ200..LHD..5F..GEN..LUB;VDJ200..(05S,08S)..(GX,VX,VXR)..GCC..LUB200709-202104
64827ACLIP, BACK WINDOW GLASS, RH
UPPER
LOWER
64828CLIP, BACK WINDOW GLASS, LH
main64828-60040iGRJ200..5F..LUB;URJ202..VX..GCC;URJ202..VXR..GEN;URJ202..(GXR,VX)..ARL;VDJ200..LHD..5F..GEN..LUB;VDJ200..(05S,08S)..(GX,VX,VXR)..GCC..LUB200709-202104
UPPER
LOWER
64885CCHANNEL, BACK DOOR GLASS, RH
64886BCHANNEL, BACK DOOR GLASS, LH
main64886-60010iURJ202..VX..GEN;VDJ200..RHD..LUB;GRJ200,URJ200..ATM;VDJ200..LHD..6FC..GEN;URJ202..VXR..(ARL,GCC);URJ202,VDJ200..(08S,09S)..(GX,GXR)..GCC..LUB200709-202104
65061PANEL SUB-ASSY, TAIL GATE
sub65061-60341
main65061-60341iURJ202..ARL;GRJ200..5F..LUB;URJ202..VX..GCC;URJ202..VXR..GEN;VDJ200..LHD..5F..GEN..LUB;VDJ200..(GX,VX,VXR)..GCC..LUB201907-202104
67005PANEL SUB-ASSY, BACK DOOR
REAR SPOILER-WITH&REAR WINDOW WIPER-WITH(INTERMITTENT)
sub67005-60D11
sub69450-60040
sub69460-60040
sub69478-60020
REAR SPOILER-WITH&REAR WINDOW WIPER-WITH(INTERMITTENT)
REAR SPOILER-WITH
REAR WINDOW WIPER-WITH(INTERMITTENT)
REAR SPOILER-WITH&REAR WINDOW WIPER-WITH(INTERMITTENT & WASHER CONTROL)
sub67005-60J61
REAR SPOILER-WITH
REAR WINDOW WIPER-WITH(INTERMITTENT & WASHER CONTROL)
sub67005-60K01
sub67005-60K11
67395PROTECTOR, BACK DOOR, LOWER
SPARE WHEEL CARRIER-BACK DOOR FRAME
main67395-60090iGRJ200..5F..LUB;URJ202..VX..GCC;URJ202..VXR..GEN;URJ202..(GXR,VX)..ARL;VDJ200..LHD..5F..GEN..LUB;VDJ200..(05S,08S)..(GX,VX,VXR)..GCC..LUB201508-202104
SPARE WHEEL CARRIER-REAR UNDER FRAME & BACK DOOR FRAME
67395APROTECTOR, BACK DOOR, LOWER
main67395-60050iURJ202..VX..GEN;VDJ200..RHD..LUB;GRJ200,URJ200..ATM;VDJ200..LHD..6FC..GEN;URJ202..VXR..(ARL,GCC);URJ202,VDJ200..(08S,09S)..(GX,GXR)..GCC..LUB200709-202104
67837LSEAL, DOOR DUST PROOF
67868JRETAINER, DOOR WEATHERSTRIP
PINK
main90467-04034iGRJ200..5F..LUB;URJ202..VX..GCC;URJ202..VXR..GEN;URJ202..(GXR,VX)..ARL;VDJ200..LHD..5F..GEN..LUB;VDJ200..(05S,08S)..(GX,VX,VXR)..GCC..LUB201112-202104
WHITE
67881AWEATHERSTRIP, BACK DOOR
main67881-60120iGRJ200..5F..LUB;URJ202..VX..GCC;URJ202..VXR..GEN;URJ202..(GXR,VX)..ARL;VDJ200..LHD..5F..GEN..LUB;VDJ200..(05S,08S)..(GX,VX,VXR)..GCC..LUB200709-202104
68131GLASS, BACK DOOR
*UVCT,T=3.5,GREEN
*UVCT,T=3.5,GREEN,REAR WINDOW WIPER-WITH(INTERMITTENT)
*UVCT,T=3.5,GREEN
*TEM,T=3.5,DK.GREEN
*UVCEHT,T=3.1,GREEN
*UVCEHT,T=3.1,GREEN,REAR WINDOW WIPER-WITH(INTERMITTENT)
*UVCEHT,T=3.1,GREEN
*EHT,T=3.1,DK.GRAY
SIDE GLASS-GREEN(FRONT) & PRIVACY(REAR)&TAILGATE DOOR EASY CLOSER-WITH
SIDE GLASS-GREEN(FRONT) & PRIVACY(REAR)
*UVCEHT,T=3.1,GREEN
*UVCEHT,T=3.1,GREEN
*EHT,T=3.1,DK.GRAY
68281BWEATHERSTRIP, LIFT GATE
main68281-60030iGRJ200..5F..LUB;URJ202..VX..GCC;URJ202..VXR..GEN;URJ202..(GXR,VX)..ARL;VDJ200..LHD..5F..GEN..LUB;VDJ200..(05S,08S)..(GX,VX,VXR)..GCC..LUB200709-202104
68294BDAM, BACK DOOR GLASS ADHESIVE
main68294-26030iGRJ200..5F..LUB;URJ202..VX..GCC;URJ202..VXR..GEN;URJ202..(GXR,VX)..ARL;VDJ200..LHD..5F..GEN..LUB;VDJ200..(05S,08S)..(GX,VX,VXR)..GCC..LUB200709-202104
75132CCOVER, LICENSE REAR LAMP
7551
75573CMOULDING, BACK WINDOW, OUTSIDE
main75573-60070iGRJ200..5F..LUB;URJ202..VX..GCC;URJ202..VXR..GEN;URJ202..(GXR,VX)..ARL;VDJ200..LHD..5F..GEN..LUB;VDJ200..(05S,08S)..(GX,VX,VXR)..GCC..LUB200709-202104
75574BMOULDING, BACK WINDOW, OUTSIDE LH
main75574-60020iGRJ200..5F..LUB;URJ202..VX..GCC;URJ202..VXR..GEN;URJ202..(GXR,VX)..ARL;VDJ200..LHD..5F..GEN..LUB;VDJ200..(05S,08S)..(GX,VX,VXR)..GCC..LUB200709-202104
76801GARNISH SUB-ASSY, BACK DOOR, OUTSIDE
PLATED
NO PAINT REQ.,RADIATOR GRILLE-SILVER-COLORED PAINTED(OUTER)
sub76801-60161
NO PAINT REQ.,RADIATOR GRILLE-SILVER-COLORED PAINTED(OUTER)
sub76801-60121
main76801-60341iURJ202..VX..GEN;VDJ200..RHD..LUB;VDJ200..GXR..GCC;GRJ200,URJ200..ATM;VDJ200..LHD..6FC..GEN;URJ202..(GXR,VXR)..GCC201805-202104
76802CGARNISH SUB-ASSY, BACK DOOR, OUTSIDE NO.2
76817CLIP, BACK DOOR OUTSIDE GARNISH
NO.2:REFER ILLUST.
TYPE B:REFER ILLUST.
main76817-68010iVDJ200..5F..G;VDJ200..VX..GEN;GRJ200..LHD..05S..G;VDJ200..LHD..6FC..GX;GRJ200,URJ200,UZJ200..(08S,09S)..(GCC,GEN)..G200709-201508
SPARE WHEEL CARRIER-REAR UNDER FRAME & BACK DOOR FRAME,NO.1:REFER ILLUST.
NO.1:REFER ILLUST.
SPARE WHEEL CARRIER-BACK DOOR FRAME,NO.1:REFER ILLUST.
SPARE WHEEL CARRIER-BACK DOOR FRAME&RADIATOR GRILLE-SILVER-COLORED PAINTED(OUTER),NO.1:REFER ILLUST.
SPARE WHEEL CARRIER-BACK DOOR FRAME&RADIATOR GRILLE-GOLD-COLORED PLATED(OUTER),NO.1:REFER ILLUST.
SPARE WHEEL CARRIER-REAR UNDER FRAME & BACK DOOR FRAME&RADIATOR GRILLE-SILVER-COLORED PAINTED(OUTER),NO.1:REFER ILLUST.
SPARE WHEEL CARRIER-REAR UNDER FRAME & BACK DOOR FRAME&RADIATOR GRILLE-GOLD-COLORED PLATED(OUTER),NO.1:REFER ILLUST.
SPARE WHEEL CARRIER-REAR UNDER FRAME & BACK DOOR FRAME,NO.1:REFER ILLUST.
SPARE WHEEL CARRIER-BACK DOOR FRAME,NO.1:REFER ILLUST.
main90467-09206iVDJ200..LHD..6FC..GXR;GRJ200,URJ20#..LHD..LUB;VDJ200..(GX,VX,VXR)..(GCC,GEN)..LUB201508-201802
SPARE WHEEL CARRIER-BACK DOOR FRAME,NO.1:REFER ILLUST.
TYPE A:REFER ILLUST.
main90467-09206iVDJ200..LHD..6FC..GXR;GRJ200,URJ20#..LHD..LUB;VDJ200..(GX,VX,VXR)..(GCC,GEN)..LUB201508-201802
SPARE WHEEL CARRIER-REAR UNDER FRAME & BACK DOOR FRAME,NO.1:REFER ILLUST.
8113
8401
6781960010PAD, BACK DOOR OUTSIDE PANEL
main67819-60010
9010805002
main90108-05002
9016750063
main90167-50063
9017905011
main90179-05011
9043005003
main90430-05003
9095006063
main90950-06063
32 parts on this diagram · 4 diagrams in section
