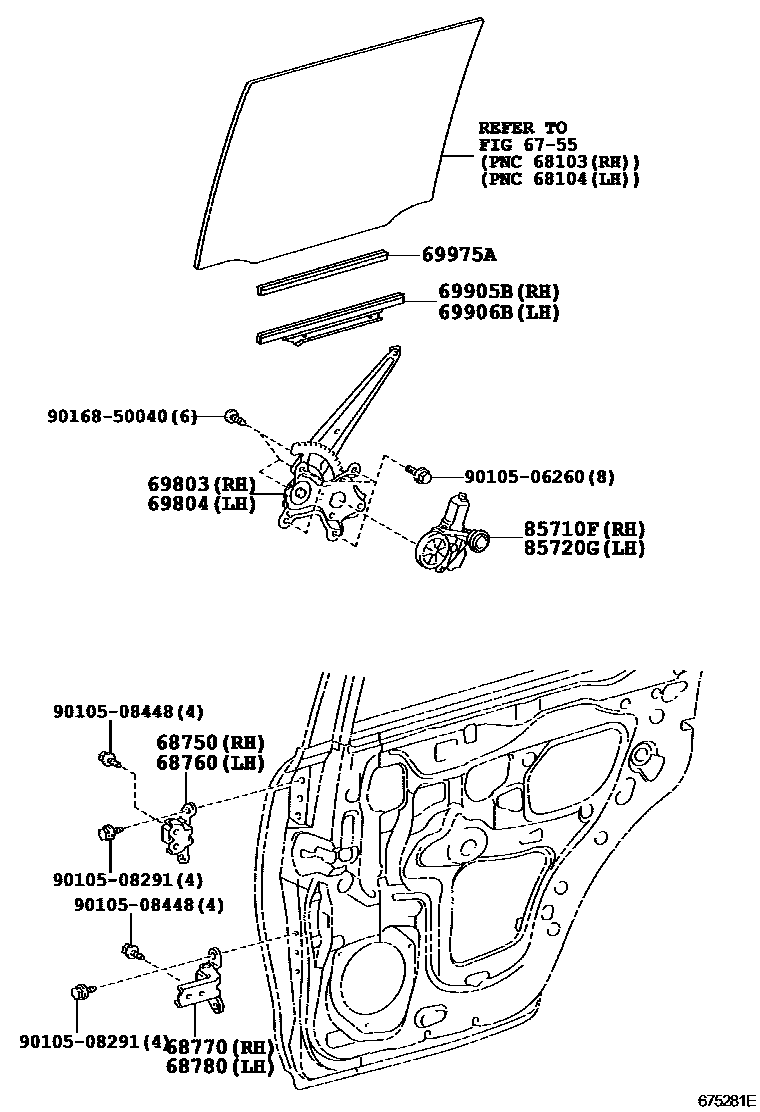

REAR DOOR WINDOW REGULATOR & HINGE

6755REAR DOOR PANEL & GLASS

→ Go to FIG 67-55

68750HINGE ASSY, REAR DOOR, UPPER RH

main68750-60080iGRJ200..LHD..05S..G;GRJ200..(08S,09S)..G;URJ200,UZJ200,VDJ200..G200709-202104

68760HINGE ASSY, REAR DOOR, UPPER LH

main68760-60060iGRJ200..RHD..05S200709-202104

68770HINGE ASSY, REAR DOOR, LOWER RH

main68770-60040iGRJ200..RHD..05S200709-202104

68780HINGE ASSY, REAR DOOR, LOWER LH

main68780-60040iGRJ200..RHD..05S200709-202104

69803REGULATOR SUB-ASSY, REAR DOOR WINDOW, RH

main69803-35080iGRJ200..RHD..05S200709-202104

69804REGULATOR SUB-ASSY, REAR DOOR WINDOW, LH

main69804-35080iGRJ200..RHD..05S200709-202104

69905BCHANNEL SUB-ASSY, REAR DOOR GLASS, RH

main69905-0C020iGRJ200..SOB..G;VDJ200..08S..GX;GRJ200,URJ20#..ATM;VDJ200..GX..SOB..G;VDJ200..(STD,VX)..G;GRJ200..LHD..08S..5F;VDJ200..LHD..05S..LUB200709-202104

69906BCHANNEL SUB-ASSY, REAR DOOR GLASS, LH

main69906-0C020iGRJ200..RHD..05S200709-202104

69975AFILLER, REAR DOOR GLASS CHANNEL

main69975-33010iGRJ200..RHD..05S200709-202104

85710FMOTOR ASSY, POWER WINDOW REGULATOR, RH

main85720-35140iGRJ200,VDJ200..STD..G201109-202103

main85720-60160iGRJ200..RHD..05S200709-200910

main85720-60161iGRJ200,URJ200,UZJ200,VDJ200..G200911-201212

main85720-60162iGRJ200,URJ20#,VDJ200..GX,VX201301-201508

main85720-60341iURJ202..VX..GCC;URJ202..(GXR,VX)..ARL;VDJ200..(VX,VXR)..GCC;VDJ200..05S..(ARL,GCC);VDJ200..LHD..5F..GEN..LUB;GRJ200..(05S,08S)..5F..GCC;GRJ200,URJ202..(GXR,VXR)..GEN201508-202104

85720GMOTOR ASSY, POWER WINDOW REGULATOR, LH

main85710-35180iVDJ200..09S201109-202103

main85710-60180iGRJ200..RHD..05S200709-200910

main85710-60181iVDJ200..08S;GRJ200,URJ20#..ATM;GRJ200..LHD..08S..5F;VDJ200..LHD..05S..LUB;GRJ200,VDJ200..GX..SOB..G200911-201212

main85710-60182iGRJ200,URJ20#,VDJ200..GX,VX201301-201508

main85710-60361iVDJ200..09S..SOB201508-202104

9010506260

main90105-06260

9010508291

main90105-08291

9010508448

main90105-08448

9016850040

main90168-50040

16 parts on this diagram · 1 diagram in section
