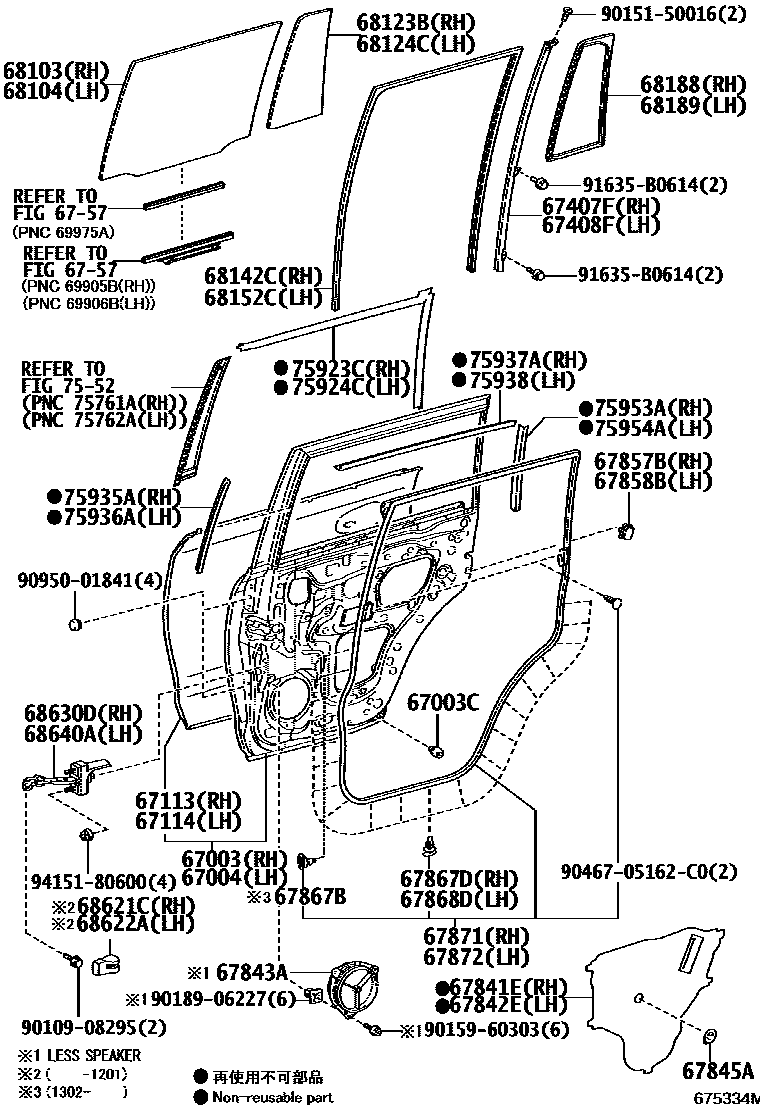

REAR DOOR PANEL & GLASS

0001 1DOOR PANEL 0002 1DOOR PANEL 0003 1DOOR TRIM

67003PANEL SUB-ASSY, REAR DOOR, RH

main67003-60410iGRJ200,VDJ200..K200709-201412

main67003-60411iGRJ200,URJ20#,VDJ200201501-201508

main67003-60540iURJ202..VX..GCC;VDJ200..09S..SOB;URJ202..(GXR,VX)..ARL;VDJ200..(VX,VXR)..GCC;VDJ200..05S..(ARL,GCC);VDJ200..LHD..5F..GEN..LUB;GRJ200..(05S,08S)..5F..GCC;GRJ200,URJ2201508-202104

67003CCUSHION, REAR DOOR PANEL

main90541-09069iGRJ200,VDJ200..K200709-202104

67004PANEL SUB-ASSY, REAR DOOR, LH

main67004-60410iGRJ200..SOB..G;VDJ200..08S..GX;GRJ200,URJ20#..ATM;VDJ200..GX..SOB..G;VDJ200..(STD,VX)..G;GRJ200..LHD..08S..5F;VDJ200..LHD..05S..LUB200709-201412

main67004-60411iGRJ200,URJ20#,VDJ200201501-201508

main67004-60540iGRJ200..09S..SOB;VDJ200..ARL..LUB;GRJ200,URJ200..ATM;VDJ200..LHD..6FC..GEN;URJ202..VXR..(ARL,GCC);VDJ200..RHD..(05S,08S)..GEN;GRJ200,URJ202..(05S,08S)..(GX,VX)..GEN201508-202104

67113PANEL, REAR DOOR, OUTER RH

main67113-60210iGRJ200..SOB..G;VDJ200..08S..GX;GRJ200,URJ20#..ATM;VDJ200..GX..SOB..G;VDJ200..(STD,VX)..G;GRJ200..LHD..08S..5F;VDJ200..LHD..05S..LUB200709-201508

main67113-60280iGRJ200..09S..SOB;VDJ200..ARL..LUB;GRJ200,URJ200..ATM;VDJ200..LHD..6FC..GEN;URJ202..VXR..(ARL,GCC);VDJ200..RHD..(05S,08S)..GEN;GRJ200,URJ202..(05S,08S)..(GX,VX)..GEN201508-202104

67114PANEL, REAR DOOR, OUTER LH

main67114-60210iGRJ200..SOB..G;VDJ200..08S..GX;GRJ200,URJ20#..ATM;VDJ200..GX..SOB..G;VDJ200..(STD,VX)..G;GRJ200..LHD..08S..5F;VDJ200..LHD..05S..LUB200709-201508

main67114-60280iURJ202..VX..GCC;VDJ200..09S..SOB;URJ202..(GXR,VX)..ARL;VDJ200..(VX,VXR)..GCC;VDJ200..05S..(ARL,GCC);VDJ200..LHD..5F..GEN..LUB;GRJ200..(05S,08S)..5F..GCC;GRJ200,URJ2201508-202104

67407FFRAME SUB-ASSY, REAR DOOR WINDOW, REAR LOWER RH

main67407-60060iGRJ200..09S..SOB;VDJ200..ARL..LUB;GRJ200,URJ200..ATM;VDJ200..LHD..6FC..GEN;URJ202..VXR..(ARL,GCC);VDJ200..RHD..(05S,08S)..GEN;GRJ200,URJ202..(05S,08S)..(GX,VX)..GEN200709-202104

67408FFRAME SUB-ASSY, REAR DOOR WINDOW, REAR LOWER LH

main67408-60060iGRJ200,VDJ200..K200709-202104

6757REAR DOOR WINDOW REGULATOR & HINGE

→ Go to FIG 67-57

67841ECOVER, REAR DOOR SERVICE HOLE, RH

main67841-60110iGRJ200..RHD..05S200709-201501

main67841-60140iGRJ200,URJ20#,VDJ200201502-202104

67842ECOVER, REAR DOOR SERVICE HOLE, LH

main67842-60060iGRJ200..RHD..05S200709-201501

main67842-60090iGRJ200,URJ20#,VDJ200201502-202104

67843ACOVER, REAR DOOR SERVICE HOLE, NO.2

main67843-60030iGRJ200..RHD..05S200709-201508

main67843-60030iVDJ200..09S..GCC..G;VDJ200..GX..(ARL,GEN);GRJ200..LHD..(05S,09S)..G;GRJ200,UZJ200..08S..GX..(ARL,GEN)200709-202104

AUDIO(FOR OVERSEAS MARKET)-RADIO LESS & 4SPEAKER

67845ASUB-SHEET, REAR DOOR SERVICE HOLE

main67846-60010iGRJ200..RHD..05S200709-202104

67857BPROTECTOR, REAR DOOR PANEL, RH

main67857-60030iGRJ200..RHD..05S200709-202104

67858BPROTECTOR, REAR DOOR PANEL, LH

main67857-60030iGRJ200..RHD..05S200709-202104

67867BCLIP, DOOR WEATHERSTRIP(FOR REAR DOOR)

main67867-52010iURJ202..VX..GCC;VDJ200..09S..SOB;URJ202..(GXR,VX)..ARL;VDJ200..(VX,VXR)..GCC;VDJ200..05S..(ARL,GCC);VDJ200..LHD..5F..GEN..LUB;GRJ200..(05S,08S)..5F..GCC;GRJ200,URJ2201302-202104

67867DRETAINER, REAR DOOR WEATHERSTRIP, RH

main67867-12150iGRJ200..SOB..G;VDJ200..08S..GX;GRJ200,URJ20#..ATM;VDJ200..GX..SOB..G;VDJ200..(STD,VX)..G;GRJ200..LHD..08S..5F;VDJ200..LHD..05S..LUB200709-202104

67868DRETAINER, REAR DOOR WEATHERSTRIP, LH

main67867-12150iGRJ200..RHD..05S200709-202104

67871WEATHERSTRIP, REAR DOOR, RH

main67871-60110iURJ200,UZJ200,VDJ200..VX200709-202104

main67871-60120iVDJ200..08S..GX;GRJ200..LHD..08S..5F;GRJ200,VDJ200..SOB..G;VDJ200..LHD..05S..LUB;GRJ200,URJ202..ATM..GX200709-202104

67872WEATHERSTRIP, REAR DOOR, LH

main67872-60110iURJ200,UZJ200,VDJ200..VX200709-202104

main67872-60120iVDJ200..08S..GX;GRJ200..LHD..08S..5F;GRJ200,VDJ200..SOB..G;VDJ200..LHD..05S..LUB;GRJ200,URJ202..ATM..GX200709-202104

68103GLASS SUB-ASSY, REAR DOOR, RH

main68113-60300iGRJ200,VDJ200..K200709-201201

*UVCT,T=4.0,GREEN

main68113-60301iVDJ200..05S,09S;GRJ200,URJ20#..GCC,GEN;VDJ200..08S..(GCC,GEN)201112-201508

*UVCT,T=4.0,GREEN

main68113-60301iURJ202..VX..GCC;VDJ200..09S..SOB;VDJ200..(VX,VXR)..GCC;VDJ200..05S..(ARL,GCC);VDJ200..LHD..5F..GEN..LUB;GRJ200..(05S,08S)..5F..GCC;GRJ200,URJ202..(GXR,VXR)..GEN201508-202104

main68113-60310iUZJ200,VDJ200..VX..ARL200709-200907

*TEM,T=4.0,DK.GREEN

main68113-60370iURJ202..VXR..GEN201508-202104

SIDE GLASS-GREEN(FRONT) & PRIVACY(REAR)

main68113-60370iUZJ200,VDJ200..VX..ARL200907-201508

*TEM,T=4.0,DARK GRAY

68104GLASS SUB-ASSY, REAR DOOR, LH

main68114-60300iGRJ200,VDJ200..K200709-201201

*UVCT,T=4.0,GREEN

main68114-60301iURJ202,VDJ200..GX..ARL201112-201508

*UVCT,T=4.0,GREEN

main68114-60301iGRJ200..09S..SOB;GRJ200,URJ200..ATM;VDJ200..LHD..6FC..GEN;URJ202..(GXR,VXR)..GCC;VDJ200..RHD..(05S,08S)..GEN;VDJ200..(08S,09S)..(GX,GXR)..GCC..LUB;GRJ200,URJ202..(0201508-202104

main68114-60310iUZJ200,VDJ200..VX..ARL200709-200907

*TEM,T=4.0,DK.GREEN

main68114-60370iURJ202..VXR..GEN201508-202104

SIDE GLASS-GREEN(FRONT) & PRIVACY(REAR)

main68114-60370iUZJ200,VDJ200..VX..ARL200907-201508

*TEM,T=4.0,DARK GRAY

68123BGLASS, REAR DOOR QUARTER WINDOW, RH

main68123-60290iGRJ200,VDJ200..K200709-201201

*UVCT,T=4.0,GREEN

main68123-60291iURJ202,VDJ200..GX..ARL201112-201508

*UVCT,T=4.0,GREEN

main68123-60291iURJ202..VX..GCC;VDJ200..09S..SOB;VDJ200..(VX,VXR)..GCC;VDJ200..05S..(ARL,GCC);VDJ200..LHD..5F..GEN..LUB;GRJ200..(05S,08S)..5F..GCC;GRJ200,URJ202..(GXR,VXR)..GEN201508-202104

main68123-60300iUZJ200,VDJ200..VX..ARL200709-200907

*TEM,T=4.0,DK.GREEN

main68123-60360iURJ202..(GXR,VX)..ARL201508-202104

SIDE GLASS-GREEN(FRONT) & PRIVACY(REAR)

main68123-60360iUZJ200,VDJ200..VX..ARL200907-201508

*TEM,T=4.0,DARK GRAY

68124CGLASS, REAR DOOR QUARTER WINDOW, LH

main68124-60290iGRJ200,VDJ200..K200709-201201

*UVCT,T=4.0,GREEN

main68124-60291iGRJ200..09S..SOB;GRJ200,URJ200..ATM;VDJ200..LHD..6FC..GEN;URJ202..(GXR,VXR)..GCC;VDJ200..RHD..(05S,08S)..GEN;VDJ200..(08S,09S)..(GX,GXR)..GCC..LUB;GRJ200,URJ202..(0201508-202104

main68124-60291iUZJ200..GX;UZJ200..LHD..VX;VDJ200..GX..ARL;GRJ200,URJ200,VDJ200..(GCC,GEN)..G201112-201508

*UVCT,T=4.0,GREEN

main68124-60300iUZJ200,VDJ200..VX..ARL200709-200907

*TEM,T=4.0,DK.GREEN

main68124-60360iURJ202..VX..GEN;VDJ200..LHD..(VX,VXR)..GEN201508-202104

SIDE GLASS-GREEN(FRONT) & PRIVACY(REAR)

main68124-60360iURJ202,VDJ200..VX..ARL200907-201508

*TEM,T=4.0,DARK GRAY

68142CRUN, REAR DOOR GLASS, RH

main68142-60060iGRJ200..LHD..05S..G;GRJ200..(08S,09S)..G;URJ200,UZJ200,VDJ200..G200709-202104

68152CRUN, REAR DOOR GLASS, LH

main68152-60050iGRJ200..LHD..05S..G;GRJ200..(08S,09S)..G;URJ200,UZJ200,VDJ200..G200709-202104

68188WEATHERSTRIP, REAR DOOR QUARTER WINDOW, RH

main68188-60060iGRJ200..RHD..05S200709-202104

68189WEATHERSTRIP, REAR DOOR QUARTER WINDOW, LH

main68189-60060iGRJ200..RHD..05S200709-202104

68621CCOVER, REAR DOOR CHECK, RH

main68621-60010iGRJ200..RHD..05S200709-201201

68622ACOVER, REAR DOOR CHECK, LH

main68622-60010iGRJ200..RHD..05S200709-201201

68630DCHECK ASSY, REAR DOOR, RH

main68630-60110iGRJ200..RHD..05S200709-201002

main68630-60111iGRJ200,URJ200,UZJ200,VDJ200..G201003-201201

main68630-60130iGRJ200,URJ20#,VDJ200201201-201411

main68630-60131iGRJ200,URJ20#,VDJ200201412-201908

main68630-60132iGRJ200..5F;VDJ200..GX;URJ202..ARL;URJ202..VX..GCC;URJ202..VXR..GEN;VDJ200..(VX,VXR)..GCC;VDJ200..LHD..5F..GEN..LUB201909-202104

68640ACHECK ASSY, REAR DOOR, LH

main68640-60100iGRJ200..RHD..05S200709-201002

main68640-60101iGRJ200,URJ200,UZJ200,VDJ200..G201003-201201

main68640-60110iGRJ200,URJ20#,VDJ200201201-201411

main68640-60111iGRJ200,URJ20#,VDJ200201412-201908

main68640-60112iURJ202..VX..GEN;VDJ200..RHD..LUB;VDJ200..GXR..GCC;GRJ200,URJ200..ATM;VDJ200..LHD..6FC..GEN;URJ202..(GXR,VXR)..GCC201909-202104

7552MOULDING

→ Go to FIG 75-52

75923CTAPE, BLACK OUT, NO.2 RH

main75923-60020iGRJ200..RHD..05S200709-201201

RADIATOR GRILLE-SILVER-COLORED PAINTED(OUTER)

main75923-60020iGRJ200,VDJ200..GX..K201109-202104

main75923-60020iVDJ200..09S..SOB201508-202103

STD

75924CTAPE, BLACK OUT, NO.2 LH

main75924-60020iURJ202..VX..GCC;URJ202..(GXR,VX)..ARL;VDJ200..(VX,VXR)..GCC;VDJ200..05S..(ARL,GCC);VDJ200..LHD..5F..GEN..LUB;GRJ200..(05S,08S)..5F..GCC;GRJ200,URJ202..(GXR,VXR)..GE201508-202103

STD

main75924-60020iGRJ200..09S..SOB;VDJ200..ARL..LUB;GRJ200,URJ200..ATM;VDJ200..LHD..6FC..GEN;URJ202..VXR..(ARL,GCC);VDJ200..RHD..(05S,08S)..GEN;GRJ200,URJ202..(05S,08S)..(GX,VX)..GEN201109-202104

main75924-60020iGRJ200..RHD..05S200709-201201

RADIATOR GRILLE-SILVER-COLORED PAINTED(OUTER)

75935ATAPE, BLACK OUT, NO.6 RH

main75935-60010iGRJ200..RHD..05S200709-201201

RADIATOR GRILLE-SILVER-COLORED PAINTED(OUTER)

main75935-60010iGRJ200,VDJ200..GX..K201109-202104

main75935-60010iVDJ200..09S..SOB201508-202103

STD

75936ATAPE, BLACK OUT, NO.6 LH

main75936-60010iGRJ200..RHD..05S200709-201201

RADIATOR GRILLE-SILVER-COLORED PAINTED(OUTER)

main75936-60010iGRJ200,VDJ200..GX..K201109-202104

main75936-60010iGRJ200..SOB;VDJ200..05S..5F201508-202103

STD

75937ATAPE, BLACK OUT, INNER UPPER RH

main75937-60010iGRJ200..RHD..05S200709-201201

RADIATOR GRILLE-SILVER-COLORED PAINTED(OUTER)

main75937-60010iGRJ200,VDJ200..GX..K201109-202104

main75937-60010iVDJ200..09S..SOB201508-202103

STD

75938TAPE, BLACK OUT, INNER UPPER LH

main75938-60010iVDJ200..08S;GRJ200,URJ20#..ATM;GRJ200..LHD..08S..5F;VDJ200..LHD..05S..LUB;GRJ200,VDJ200..GX..SOB..G201109-202104

main75938-60010iVDJ200..09S..SOB201508-202103

STD

main75938-60010iGRJ200..LHD..05S..G;VDJ200..(05S,08S)..GX..(GCC,GEN);GRJ200,UZJ200..08S..GX..(GCC,GEN)200709-201201

RADIATOR GRILLE-SILVER-COLORED PAINTED(OUTER)

75953ATAPE, BLACK OUT, INNER REAR RH

main75953-60010iGRJ200..RHD..05S200709-201201

RADIATOR GRILLE-SILVER-COLORED PAINTED(OUTER)

main75953-60010iGRJ200,VDJ200..GX..K201109-202104

main75953-60010iVDJ200..09S..SOB201508-202103

STD

75954ATAPE, BLACK OUT, INNER REAR LH

main75954-60010iGRJ200..SOB;VDJ200..05S..5F201508-202103

STD

main75954-60010iGRJ200..RHD..05S200709-201201

RADIATOR GRILLE-SILVER-COLORED PAINTED(OUTER)

main75954-60010iGRJ200,VDJ200..GX..K201109-202104

9010908295

main90109-08295

9015150016

main90151-50016

9015960303

main90159-60303

9018906227

main90189-06227

9046705162C0

main90467-05162C0

9095001841

main90950-01841

91635B0614

main91635-B0614

9415180600

main94151-80600

48 parts on this diagram · 3 diagrams in section
