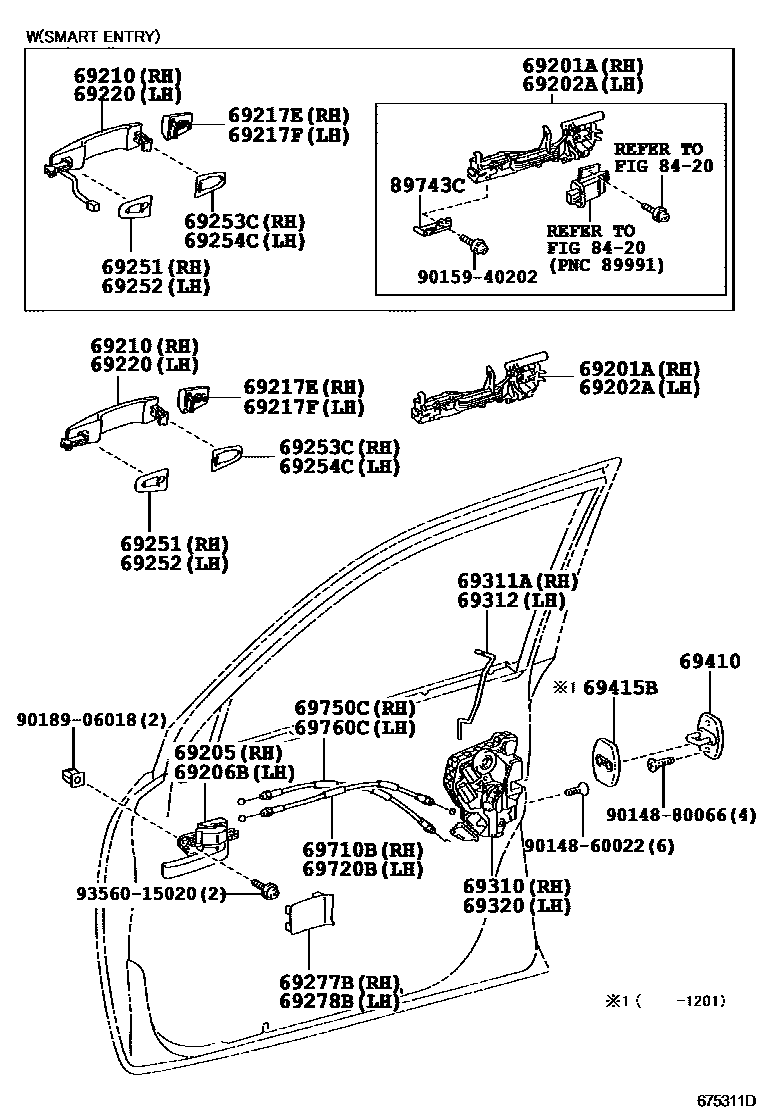

FRONT DOOR LOCK & HANDLE

0001 1 0002 1

69201AFRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, RH

main69201-60040iGRJ200,URJ20#,VDJ200..LUB200709-201508

main69201-60080iGRJ200,VDJ200..SOB..G201109-201508

main69201-60110iGRJ200..09S..SOB;VDJ200..ARL..LUB;GRJ200,URJ200..ATM;VDJ200..LHD..6FC..GEN;URJ202..VXR..(ARL,GCC);VDJ200..RHD..(05S,08S)..GEN;GRJ200,URJ202..(05S,08S)..(GX,VX)..GEN201508-202104

sub69201-60111

69202AFRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, LH

main69202-60010iGRJ200..LHD..05S..G;GRJ200..(08S,09S)..G;URJ200,UZJ200,VDJ200..G200709-201508

main69202-60040iGRJ200,VDJ200..K201109-201508

main69202-60050iURJ202..VX..GCC;VDJ200..09S..SOB;URJ202..(GXR,VX)..ARL;VDJ200..(VX,VXR)..GCC;VDJ200..05S..(ARL,GCC);VDJ200..LHD..5F..GEN..LUB;GRJ200..(05S,08S)..5F..GCC;GRJ200,URJ2201508-202104

sub69202-60051

69205HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH

main69205-60120iURJ200,UZJ200,VDJ200..VX200709-201201

SILVER PAINT

main69205-60140-C0iVDJ200..05S..LUB200709-202103

BLACK,TRIM1#

main69205-60140-C0iVDJ200..05S..LUB201201-202103

BLACK,TRIM0#,1#

main69205-60140-C0iVDJ200..05S..LUB201508-202104

BLACK,TRIM0#,1#,2#,4#

main69205-60140-C0iGRJ200..LHD..05S..G;VDJ200..(05S,08S)..GX;GRJ200,UZJ200..08S..GX200709-202104

BLACK,TRIM1#,4#

main69205-60140-C0iGRJ200,VDJ200..05S..GCC..SOB;GRJ200,VDJ200..(ARL,GEN)..SOB201508-202104

BLACK,TRIM0#,1#,4#

main69205-60140-C0iGRJ200..09S..GX;VDJ200..GX..(GCC,GEN);GRJ200,URJ202..LHD..(5F,6FC)..GX..LUB201201-201508

BLACK,TRIM0#,1#,2#

main69205-60140-C0iGRJ200..6FC..GXR201708-202104

BLACK,TRIM1#,2#,4#

main69205-60150iURJ20#,VDJ200..VX201201-201508

CHROME PLATED

main69205-60170iURJ200;URJ202..VX..GEN;URJ202..VXR..(ARL,GCC);VDJ200..(VX,VXR)..(ARL,GEN)201508-202104

CHROME PLATED

69206BHANDLE SUB-ASSY, FRONT DOOR INSIDE, LH

main69206-60120iURJ200,UZJ200,VDJ200..VX200709-201201

SILVER PAINT

main69206-60140-C0iGRJ200..05S..5FC;GRJ200,VDJ200..09S..GCC200709-202103

BLACK,TRIM1#

main69206-60140-C0iGRJ200..RHD..05S200709-202104

BLACK,TRIM1#,4#

main69206-60140-C0iGRJ200..09S..GX;VDJ200..GX..(GCC,GEN);GRJ200,URJ202..LHD..(5F,6FC)..GX..LUB201201-202103

BLACK,TRIM0#,1#

main69206-60140-C0iGRJ200..09S..GX;VDJ200..GX..(GCC,GEN);GRJ200,URJ202..LHD..(5F,6FC)..GX..LUB201201-201508

BLACK,TRIM0#,1#,2#

main69206-60140-C0iVDJ200..05S..LUB201508-202104

BLACK,TRIM0#,1#,4#

main69206-60140-C0iVDJ200..05S..LUB201508-202104

BLACK,TRIM0#,1#,2#,4#

main69206-60140-C0iGRJ200..6FC..GXR201708-202104

BLACK,TRIM1#,2#,4#

main69206-60150iURJ20#,VDJ200..VX201201-201508

CHROME PLATED

main69206-60160iURJ200;URJ202..VX..GEN;URJ202..VXR..(ARL,GCC);VDJ200..(VX,VXR)..(ARL,GEN)201508-202104

CHROME PLATED

69210HANDLE ASSY, FRONT DOOR, OUTSIDE RH

main69210-60100-A0iGRJ200..LHD..05S..G;VDJ200..(05S,08S)..G;GRJ200,URJ200,UZJ200..08S200709-201508

SUPER WHITE 2,040

sub69210-60100

main69210-60100-A2iGRJ200,URJ200,UZJ200,VDJ200..08S..(ARL,GCC)200709-201508

WHITE PEARL CS.,070

sub69210-60100

main69210-60100-B0iGRJ200,URJ20#,VDJ200..LUB200709-201508

SILVER ME.,1F7

sub69210-60100

main69210-60100-B1iGRJ200,URJ20#,VDJ200..LUB200709-201508

GRAY ME.,1G3

sub69210-60100

main69210-60100-C0iVDJ200..GCC..G;GRJ200..09S..GCC..G200709-201201

BLACK,040 ,070 ,1F7 ,1G3 ,202 ,3Q3 ,4R3 ,5A5 ,6V2 ,8R3

sub69210-60100

main69210-60100-C0iGRJ200..RHD..05S200709-201201

BLACK,040 ,1F7 ,1G3 ,202 ,3Q3 ,4R3 ,5A5 ,6V2 ,8R3

sub69210-60100

main69210-60100-C0iGRJ200,UZJ200..08S..GX..GCC200709-201201

BLACK,040 ,070 ,1F7 ,1G3 ,202 ,3Q3 ,4R3 ,5A5 ,6V2 ,8R3 ,8S1

sub69210-60100

main69210-60100-C0iGRJ200,UZJ200..08S..GX..GCC200709-201508

BLACK,202

sub69210-60100

main69210-60100-C1iGRJ200,URJ20#,VDJ200..LUB201201-201508

ATTITUDE BLACK MC.,218

sub69210-60100

main69210-60100-D0iGRJ200,URJ20#,VDJ200..LUB200709-201508

DK. RED M.M.,3Q3

sub69210-60100

main69210-60100-E0iGRJ200..RHD..05S200709-201508

BEIGE M.M.,4R3

sub69210-60100

main69210-60100-F0iGRJ200..RHD..05S200709-201201

GOLD M.M.,5A5

sub69210-60100

main69210-60100-G1iGRJ200..RHD..05S200709-201508

GREEN M.M.,6V2

sub69210-60100

main69210-60100-J0iGRJ200..RHD..05S200709-201201

GRAYISH BLUE ME.,8R3

sub69210-60100

main69210-60100-J1iUZJ200..GX;UZJ200..VX..GCC;VDJ200..GX..ARL;GRJ200,URJ200..08S..GCC201008-201408

LT.BLUE M.M.,8S1

sub69210-60100

main69210-60130iGRJ200,VDJ200..GX..K201109-201508

PLATED

main69210-60190iGRJ200,VDJ200..STD201109-201508

NO PAINT REQ.

main69210-60260-A0iURJ202..VX..GEN;VDJ200..RHD..LUB;GRJ200,URJ200..ATM;VDJ200..LHD..6FC..GEN;URJ202..VXR..(ARL,GCC);URJ202,VDJ200..(08S,09S)..(GX,GXR)..GCC..LUB201508-202104

SUPER WHITE 2,040

main69210-60260-A1iURJ202..VX..GEN;VDJ200..RHD..LUB;GRJ200,URJ200..ATM;VDJ200..LHD..6FC..GEN;URJ202..VXR..(ARL,GCC);URJ202,VDJ200..(08S,09S)..(GX,GXR)..GCC..LUB201508-202104

WHITE PEARL CS.,070

main69210-60260-B0iURJ202..VX..GEN;VDJ200..RHD..LUB;GRJ200,URJ200..ATM;VDJ200..LHD..6FC..GEN;URJ202..VXR..(ARL,GCC);URJ202,VDJ200..(08S,09S)..(GX,GXR)..GCC..LUB201508-202104

SILVER ME.,1F7

main69210-60260-B1iURJ202..VX..GEN;VDJ200..RHD..LUB;GRJ200,URJ200..ATM;VDJ200..LHD..6FC..GEN;URJ202..VXR..(ARL,GCC);URJ202,VDJ200..(08S,09S)..(GX,GXR)..GCC..LUB201508-202104

GRAY ME.,1G3

main69210-60260-C0iGRJ200..5F..LUB;URJ202..VX..GCC;URJ202..VXR..GEN;URJ202..(GXR,VX)..ARL;VDJ200..LHD..5F..GEN..LUB;VDJ200..(05S,08S)..(GX,VX,VXR)..GCC..LUB201508-202104

BLACK,202

main69210-60260-C1iGRJ200..5F..LUB;URJ202..VX..GCC;URJ202..VXR..GEN;URJ202..(GXR,VX)..ARL;VDJ200..LHD..5F..GEN..LUB;VDJ200..(05S,08S)..(GX,VX,VXR)..GCC..LUB201508-202104

ATTITUDE BLACK MC.,218

main69210-60260-C4iGRJ200,URJ20#,VDJ200..LUB201908-202006

SPARKLING BLACK PEARL CS.,220

main69210-60260-D0iGRJ200..5F..LUB;URJ202..VX..GCC;URJ202..VXR..GEN;URJ202..(GXR,VX)..ARL;VDJ200..LHD..5F..GEN..LUB;VDJ200..(05S,08S)..(GX,VX,VXR)..GCC..LUB201508-202104

DK. RED M.M.,3Q3

main69210-60260-E0iGRJ200,URJ20#,VDJ200..LUB201508-202006

BEIGE M.M.,4R3

main69210-60260-E1iGRJ200,URJ20#,VDJ200..LUB201508-201908

COPPER BROWN MC.,4S6

main69210-60260-J0iGRJ200,URJ20#,VDJ200..LUB201508-201912

DARK BLUE MC.,8P8

main69210-60290iVDJ200..09S..SOB201508-202103

PLATED

main69211-60080iVDJ200..09S201908-202103

NO PAINT REQ.

69217ECOVER, FRONT DOOR OUTSIDE HANDLE, RH

main69217-60060iGRJ200,VDJ200..RHD..SOB..G201109-201508

BLACK MATERIAL

main69217-60070iGRJ200,VDJ200..LHD..STD..G201109-201508

BLACK MATERIAL

main69217-60100-A0iURJ202,VDJ200..RHD..LUB200709-201508

SUPER WHITE 2,040

main69217-60100-A1iURJ202,VDJ200..RHD..LUB200709-201508

WHITE PEARL CS.,070

main69217-60100-B0iGRJ200..RHD..05S200709-201508

SILVER ME.,1F7

main69217-60100-B1iURJ202,VDJ200..RHD..LUB200709-201508

GRAY ME.,1G3

main69217-60100-C0iUZJ200..ARL;VDJ200..RHD..VX;VDJ200..GX..ARL200709-201508

BLACK,202

main69217-60100-C0iGRJ200..RHD..05S200709-201201

BLACK,040 ,1F7 ,1G3 ,202 ,3Q3 ,4R3 ,5A5 ,6V2 ,8R3

main69217-60100-C1iURJ202,VDJ200..RHD..LUB201201-201508

ATTITUDE BLACK MC.,218

main69217-60100-D0iGRJ200..RHD..05S200709-201508

DK. RED M.M.,3Q3

main69217-60100-E0iURJ202,VDJ200..RHD..LUB200709-201508

BEIGE M.M.,4R3

main69217-60100-F0iVDJ200..RHD..G;GRJ200,UZJ200..RHD..08S200709-201201

GOLD M.M.,5A5

main69217-60100-G0iVDJ200..RHD..G;GRJ200,UZJ200..RHD..08S200709-201508

GREEN M.M.,6V2

main69217-60100-J0iVDJ200..RHD..G;GRJ200,UZJ200..RHD..08S200709-201201

GRAYISH BLUE ME.,8R3

main69217-60100-J1iURJ202,VDJ200..RHD..LUB201008-201408

LT.BLUE M.M.,8S1

main69217-60120-A0iGRJ200,URJ20#,VDJ200..LHD..LUB200709-201508

SUPER WHITE 2,040

sub69217-60120

main69217-60120-A1iGRJ200,URJ200,UZJ200,VDJ200..GCC..G200709-201508

WHITE PEARL CS.,070

sub69217-60120

main69217-60120-B0iGRJ200,URJ20#,VDJ200..LHD..LUB200709-201508

SILVER ME.,1F7

sub69217-60120

main69217-60120-B1iGRJ200,URJ20#,VDJ200..LHD..LUB200709-201508

GRAY ME.,1G3

sub69217-60120

main69217-60120-C0iGRJ200,UZJ200..08S..GX..GCC200709-201508

BLACK,202

sub69217-60120

main69217-60120-C0iGRJ200,VDJ200..LHD..GX..GEN200709-201201

BLACK,040 ,1F7 ,1G3 ,202 ,3Q3 ,4R3 ,5A5 ,6V2 ,8R3

sub69217-60120

main69217-60120-C0iGRJ200,VDJ200..LHD..GX..GEN200709-201201

BLACK,040 ,070 ,1F7 ,1G3 ,202 ,3Q3 ,4R3 ,5A5 ,6V2 ,8R3 ,8S1

sub69217-60120

main69217-60120-C0iGRJ200,VDJ200..LHD..GX..GEN200709-201201

BLACK,040 ,070 ,1F7 ,1G3 ,202 ,3Q3 ,4R3 ,5A5 ,6V2 ,8R3

sub69217-60120

main69217-60120-C1iGRJ200,URJ20#,VDJ200..LHD..LUB201201-201508

ATTITUDE BLACK MC.,218

sub69217-60120

main69217-60120-D0iGRJ200,URJ200,UZJ200,VDJ200..LHD..G200709-201508

DK. RED M.M.,3Q3

sub69217-60120

main69217-60120-E0iGRJ200,URJ20#,VDJ200..LHD..LUB200709-201508

BEIGE M.M.,4R3

sub69217-60120

main69217-60120-F0iGRJ200,URJ200,UZJ200,VDJ200..LHD..G200709-201201

GOLD M.M.,5A5

sub69217-60120

main69217-60120-G0iGRJ200,URJ20#,VDJ200..LHD..LUB200709-201508

GREEN M.M.,6V2

sub69217-60120

main69217-60120-J0iGRJ200,URJ200,UZJ200,VDJ200..LHD..G200709-201201

GRAYISH BLUE ME.,8R3

sub69217-60120

main69217-60120-J1iGRJ200,URJ20#,VDJ200..LHD..LUB201008-201408

LT.BLUE M.M.,8S1

sub69217-60120

main69217-60130iGRJ200,VDJ200..GX..K201109-201508

*CR

69217FCOVER, FRONT DOOR OUTSIDE HANDLE, LH

main69218-60010iGRJ200,VDJ200..LHD..STD..G201109-201508

BLACK MATERIAL

main69218-60020iGRJ200,VDJ200..RHD..SOB..G201109-201508

BLACK MATERIAL

main69218-60030-A0iGRJ200,URJ200,UZJ200,VDJ200..LHD..(05S,08S)..G200709-201508

SUPER WHITE 2,040

sub69218-60030

main69218-60030-A1iGRJ200,URJ200,UZJ200,VDJ200..08S..GCC200709-201508

WHITE PEARL CS.,070

sub69218-60030

main69218-60030-B0iGRJ200,URJ200,UZJ200,VDJ200..LHD..(05S,08S)..G200709-201508

SILVER ME.,1F7

sub69218-60030

main69218-60030-B1iGRJ200,URJ20#,VDJ200..LHD..LUB200709-201508

GRAY ME.,1G3

sub69218-60030

main69218-60030-C0iURJ200,UZJ200,VDJ200..LHD..VX200709-201201

BLACK,040 ,070 ,1F7 ,1G3 ,202 ,3Q3 ,4R3 ,5A5 ,6V2 ,8R3

sub69218-60030

main69218-60030-C0iGRJ200,VDJ200..LHD..GX..GEN200709-201201

BLACK,040 ,1F7 ,1G3 ,202 ,3Q3 ,4R3 ,5A5 ,6V2 ,8R3

sub69218-60030

main69218-60030-C0iGRJ200,VDJ200..LHD..GX..GEN200709-201201

BLACK,040 ,070 ,1F7 ,1G3 ,202 ,3Q3 ,4R3 ,5A5 ,6V2 ,8R3 ,8S1

sub69218-60030

main69218-60030-C0iGRJ200,VDJ200..LHD..GX..GEN200709-201508

BLACK,202

sub69218-60030

main69218-60030-C1iGRJ200,URJ20#,VDJ200..LHD..LUB201201-201508

ATTITUDE BLACK MC.,218

sub69218-60030

main69218-60030-D0iGRJ200,URJ200,UZJ200,VDJ200..LHD..(05S,08S)..G200709-201508

DK. RED M.M.,3Q3

sub69218-60030

main69218-60030-E0iGRJ200,URJ20#,VDJ200..LHD..LUB200709-201508

BEIGE M.M.,4R3

sub69218-60030

main69218-60030-F0iGRJ200,URJ200,UZJ200,VDJ200..LHD..(05S,08S)..G200709-201201

GOLD M.M.,5A5

sub69218-60030

main69218-60030-G0iGRJ200,URJ20#,VDJ200..LHD..LUB200709-201508

GREEN M.M.,6V2

sub69218-60030

main69218-60030-J0iGRJ200,URJ200,UZJ200,VDJ200..LHD..(05S,08S)..G200709-201201

GRAYISH BLUE ME.,8R3

sub69218-60030

main69218-60030-J1iGRJ200,URJ20#,VDJ200..LHD..LUB201008-201408

LT.BLUE M.M.,8S1

sub69218-60030

main69218-60040iGRJ200,VDJ200..GX..K201109-201508

*CR

main69218-60050-A0iGRJ200,UZJ200..RHD..08S;VDJ200..RHD..(05S,08S)..G200709-201508

SUPER WHITE 2,040

main69218-60050-A1iUZJ200,VDJ200..ARL..G200709-201508

WHITE PEARL CS.,070

main69218-60050-B0iGRJ200,UZJ200..RHD..08S;VDJ200..RHD..(05S,08S)..G200709-201508

SILVER ME.,1F7

main69218-60050-B1iURJ202,VDJ200..RHD..LUB200709-201508

GRAY ME.,1G3

main69218-60050-C0iUZJ200..ARL;VDJ200..RHD..VX;VDJ200..GX..ARL200709-201508

BLACK,202

main69218-60050-C0iUZJ200..ARL;VDJ200..RHD..VX;VDJ200..GX..ARL200709-201201

BLACK,040 ,1F7 ,1G3 ,202 ,3Q3 ,4R3 ,5A5 ,6V2 ,8R3

main69218-60050-C1iURJ202,VDJ200..RHD..LUB201201-201508

ATTITUDE BLACK MC.,218

main69218-60050-D0iURJ202,VDJ200..RHD..LUB200709-201508

DK. RED M.M.,3Q3

main69218-60050-E0iURJ202,VDJ200..RHD..LUB200709-201508

BEIGE M.M.,4R3

main69218-60050-F0iGRJ200..RHD..05S200709-201201

GOLD M.M.,5A5

main69218-60050-G0iURJ202,VDJ200..RHD..LUB200709-201508

GREEN M.M.,6V2

main69218-60050-J0iGRJ200..RHD..05S200709-201201

GRAYISH BLUE ME.,8R3

main69218-60050-J1iURJ202,VDJ200..RHD..LUB201008-201408

LT.BLUE M.M.,8S1

69220HANDLE ASSY, FRONT DOOR OUTSIDE, LH

main69210-60100-A0iGRJ200,URJ20#,VDJ200..LUB200709-201508

SUPER WHITE 2,040

sub69210-60100

main69210-60100-A2iGRJ200,URJ20#,VDJ200..LUB200709-201508

WHITE PEARL CS.,070

sub69210-60100

main69210-60100-B0iGRJ200,URJ20#,VDJ200..LUB200709-201508

SILVER ME.,1F7

sub69210-60100

main69210-60100-B1iGRJ200..RHD..05S200709-201508

GRAY ME.,1G3

sub69210-60100

main69210-60100-C0iVDJ200..GCC..G;GRJ200..09S..GCC..G200709-201201

BLACK,040 ,1F7 ,1G3 ,202 ,3Q3 ,4R3 ,5A5 ,6V2 ,8R3

sub69210-60100

main69210-60100-C0iVDJ200..GCC..G;GRJ200..09S..GCC..G200709-201201

BLACK,040 ,070 ,1F7 ,1G3 ,202 ,3Q3 ,4R3 ,5A5 ,6V2 ,8R3

sub69210-60100

main69210-60100-C0iVDJ200..GCC..G;GRJ200..09S..GCC..G200709-201508

BLACK,202

sub69210-60100

main69210-60100-C0iVDJ200..VX;UZJ200..ARL,GEN;VDJ200..GX..ARL;URJ200,UZJ200..VX..GCC200709-201201

BLACK,040 ,070 ,1F7 ,1G3 ,202 ,3Q3 ,4R3 ,5A5 ,6V2 ,8R3 ,8S1

sub69210-60100

main69210-60100-C1iGRJ200,URJ20#,VDJ200..LUB201201-201508

ATTITUDE BLACK MC.,218

sub69210-60100

main69210-60100-D0iGRJ200..LHD..05S..G;VDJ200..(05S,08S)..G;GRJ200,URJ200,UZJ200..08S200709-201508

DK. RED M.M.,3Q3

sub69210-60100

main69210-60100-E0iGRJ200,URJ20#,VDJ200..LUB200709-201508

BEIGE M.M.,4R3

sub69210-60100

main69210-60100-F0iGRJ200..LHD..05S..G;VDJ200..(05S,08S)..G;GRJ200,URJ200,UZJ200..08S200709-201201

GOLD M.M.,5A5

sub69210-60100

main69210-60100-G1iGRJ200..RHD..05S200709-201508

GREEN M.M.,6V2

sub69210-60100

main69210-60100-J0iGRJ200..RHD..05S200709-201201

GRAYISH BLUE ME.,8R3

sub69210-60100

main69210-60100-J1iUZJ200..GX;UZJ200..VX..GCC;VDJ200..GX..ARL;GRJ200,URJ200..08S..GCC201008-201408

LT.BLUE M.M.,8S1

sub69210-60100

main69210-60130iGRJ200,VDJ200..GX..SOB..G201109-201508

PLATED

main69210-60190iGRJ200,VDJ200..STD..G201109-201508

NO PAINT REQ.

main69210-60260-A0iGRJ200..5F..LUB;URJ202..VX..GCC;URJ202..VXR..GEN;URJ202..(GXR,VX)..ARL;VDJ200..LHD..5F..GEN..LUB;VDJ200..(05S,08S)..(GX,VX,VXR)..GCC..LUB201508-202104

SUPER WHITE 2,040

main69210-60260-A1iGRJ200..5F..LUB;URJ202..VX..GCC;URJ202..VXR..GEN;URJ202..(GXR,VX)..ARL;VDJ200..LHD..5F..GEN..LUB;VDJ200..(05S,08S)..(GX,VX,VXR)..GCC..LUB201508-202104

WHITE PEARL CS.,070

main69210-60260-B0iURJ202..VX..GEN;VDJ200..RHD..LUB;GRJ200,URJ200..ATM;VDJ200..LHD..6FC..GEN;URJ202..VXR..(ARL,GCC);URJ202,VDJ200..(08S,09S)..(GX,GXR)..GCC..LUB201508-202104

SILVER ME.,1F7

main69210-60260-B1iGRJ200..5F..LUB;URJ202..VX..GCC;URJ202..VXR..GEN;URJ202..(GXR,VX)..ARL;VDJ200..LHD..5F..GEN..LUB;VDJ200..(05S,08S)..(GX,VX,VXR)..GCC..LUB201508-202104

GRAY ME.,1G3

main69210-60260-C0iGRJ200..5F..LUB;URJ202..VX..GCC;URJ202..VXR..GEN;URJ202..(GXR,VX)..ARL;VDJ200..LHD..5F..GEN..LUB;VDJ200..(05S,08S)..(GX,VX,VXR)..GCC..LUB201508-202104

BLACK,202

main69210-60260-C1iGRJ200..5F..LUB;URJ202..VX..GCC;URJ202..VXR..GEN;URJ202..(GXR,VX)..ARL;VDJ200..LHD..5F..GEN..LUB;VDJ200..(05S,08S)..(GX,VX,VXR)..GCC..LUB201508-202104

ATTITUDE BLACK MC.,218

main69210-60260-C4iGRJ200,URJ20#,VDJ200..LUB201908-202006

SPARKLING BLACK PEARL CS.,220

main69210-60260-D0iGRJ200..5F..LUB;URJ202..VX..GCC;URJ202..VXR..GEN;URJ202..(GXR,VX)..ARL;VDJ200..LHD..5F..GEN..LUB;VDJ200..(05S,08S)..(GX,VX,VXR)..GCC..LUB201508-202104

DK. RED M.M.,3Q3

main69210-60260-E0iGRJ200,URJ20#,VDJ200..LUB201508-202006

BEIGE M.M.,4R3

main69210-60260-E1iGRJ200,URJ20#,VDJ200..LUB201508-201908

COPPER BROWN MC.,4S6

main69210-60260-J0iGRJ200,URJ20#,VDJ200..LUB201508-201912

DARK BLUE MC.,8P8

main69210-60290iVDJ200..09S..SOB201508-202103

PLATED

main69211-60080iVDJ200..09S201908-202103

NO PAINT REQ.

69251PAD, FRONT DOOR OUTSIDE HANDLE, FRONT RH

main69241-60030iURJ202..VX..GCC;VDJ200..09S..SOB;URJ202..(GXR,VX)..ARL;VDJ200..(VX,VXR)..GCC;VDJ200..05S..(ARL,GCC);VDJ200..LHD..5F..GEN..LUB;GRJ200..(05S,08S)..5F..GCC;GRJ200,URJ2201508-202104

main69241-60040iGRJ200..SOB..G;VDJ200..08S..GX;GRJ200,URJ20#..ATM;VDJ200..GX..SOB..G;VDJ200..(STD,VX)..G;GRJ200..LHD..08S..5F;VDJ200..LHD..05S..LUB200709-201508

69252PAD, FRONT DOOR OUTSIDE HANDLE, FRONT LH

main69241-60030iGRJ200..09S..SOB;VDJ200..ARL..LUB;GRJ200,URJ200..ATM;VDJ200..LHD..6FC..GEN;URJ202..VXR..(ARL,GCC);VDJ200..RHD..(05S,08S)..GEN;GRJ200,URJ202..(05S,08S)..(GX,VX)..GEN201508-202104

main69241-60050iGRJ200..RHD..05S200709-201508

69253CPAD, FRONT DOOR OUTSIDE HANDLE, REAR RH

main69242-60040iURJ202..VX..GCC;VDJ200..09S..SOB;URJ202..(GXR,VX)..ARL;VDJ200..(VX,VXR)..GCC;VDJ200..05S..(ARL,GCC);VDJ200..LHD..5F..GEN..LUB;GRJ200..(05S,08S)..5F..GCC;GRJ200,URJ2201508-202104

main69242-60060iGRJ200..LHD..05S..G;GRJ200..(08S,09S)..G;URJ200,UZJ200,VDJ200..G200709-201508

69254CPAD, FRONT DOOR OUTSIDE HANDLE, REAR LH

main69242-60040iURJ202..VX..GCC;VDJ200..09S..SOB;URJ202..(GXR,VX)..ARL;VDJ200..(VX,VXR)..GCC;VDJ200..05S..(ARL,GCC);VDJ200..LHD..5F..GEN..LUB;GRJ200..(05S,08S)..5F..GCC;GRJ200,URJ2201508-202104

main69242-60070iGRJ200..LHD..05S..G;GRJ200..(08S,09S)..G;URJ200,UZJ200,VDJ200..G200709-201508

69277BBEZEL, FRONT DOOR INSIDE HANDLE, RH

main69277-60090-C0iGRJ200..5F..LUB;URJ202..VX..GCC;URJ202..GXR..ARL;URJ202..VXR..GEN;VDJ200..(VX,VXR)..GCC;VDJ200..LHD..5F..GEN..LUB201508-202104

BLACK,TRIM0#,1#,2#,4#

main69277-60090-C0iGRJ200..RHD..05S200709-201201

BLACK,TRIM1#,42

main69277-60090-C0iGRJ200,VDJ200..09S..G200709-202104

BLACK,TRIM1#,4#

main69277-60090-C0iGRJ200,VDJ200..09S..G200709-202103

BLACK,TRIM1#

main69277-60090-C0iURJ202..VX..ARL201508-202103

BLACK,TRIM0#,2#,4#

main69277-60090-C0iURJ202..VX..ARL201508-202104

BLACK,TRIM0#,1#,4#

main69277-60090-C0iGRJ200..6FC..GXR201708-202104

BLACK,TRIM1#,2#,4#

main69277-60090-C0iVDJ200..VX;URJ202..LHD..VX;URJ202,VDJ200..GX..ARL;GRJ200,URJ200..08S..ATM201201-201508

BLACK,TRIM1#,2#

main69277-60090-C0iVDJ200..VX;URJ202..LHD..VX;URJ202,VDJ200..GX..ARL;GRJ200,URJ200..08S..ATM201201-201508

BLACK,TRIM2#

main69277-60090-C0iGRJ200..GX..LUB;VDJ200..09S..LUB201508-201707

BLACK,TRIM0#,1#

main69277-60090-E0iGRJ200..RHD..05S200709-201201

DK. BROWN,TRIM42

main69277-60090-E0iURJ200,UZJ200,VDJ200..VX200709-201201

DK. BROWN,TRIM4#

main69277-60090-E1iGRJ200,URJ20#,VDJ200..GX,VX201201-201508

ORCHID BROWN,TRIM0#

69278BBEZEL, FRONT DOOR INSIDE HANDLE, LH

main69278-60060-C0iGRJ200,VDJ200..SOB200709-202103

BLACK,TRIM1#

main69278-60060-C0iGRJ200..RHD..05S200709-201201

BLACK,TRIM1#,42

main69278-60060-C0iGRJ200,VDJ200..09S..G200709-202104

BLACK,TRIM1#,4#

main69278-60060-C0iGRJ200..5F..LUB;URJ202..VX..GCC;URJ202..GXR..ARL;URJ202..VXR..GEN;VDJ200..(VX,VXR)..GCC;VDJ200..LHD..5F..GEN..LUB201508-202104

BLACK,TRIM0#,1#,4#

main69278-60060-C0iGRJ200..5F..LUB;URJ202..VX..GCC;URJ202..GXR..ARL;URJ202..VXR..GEN;VDJ200..(VX,VXR)..GCC;VDJ200..LHD..5F..GEN..LUB201508-202104

BLACK,TRIM0#,1#,2#,4#

main69278-60060-C0iURJ202..VX..ARL201508-202103

BLACK,TRIM0#,2#,4#

main69278-60060-C0iGRJ200..6FC..GXR201708-202104

BLACK,TRIM1#,2#,4#

main69278-60060-C0iVDJ200..VX;URJ202..LHD..VX;URJ202,VDJ200..GX..ARL;GRJ200,URJ200..08S..ATM201201-201508

BLACK,TRIM1#,2#

main69278-60060-C0iVDJ200..VX;URJ202..LHD..VX;URJ202,VDJ200..GX..ARL;GRJ200,URJ200..08S..ATM201201-201508

BLACK,TRIM2#

main69278-60060-C0iGRJ200..GX..LUB;VDJ200..09S..LUB201508-201707

BLACK,TRIM0#,1#

main69278-60060-E0iURJ200,UZJ200,VDJ200..VX200709-201201

DK. BROWN,TRIM4#

main69278-60060-E0iGRJ200..LHD..05S..G;VDJ200..(05S,08S)..GX;GRJ200,UZJ200..08S..GX200709-201201

DK. BROWN,TRIM42

main69278-60060-E1iGRJ200,URJ20#,VDJ200..GX,VX201201-201508

ORCHID BROWN,TRIM0#

69310LOCK ASSY, FRONT DOOR, RH

main69030-42210iVDJ200..RHD..G;GRJ200,UZJ200..RHD..08S200709-202104

main69030-42221iGRJ200..LHD..SOB..G;GRJ200..LHD..08S..5F;GRJ200,URJ20#..LHD..ATM;VDJ200..LHD..09S..SOB..G;VDJ200..LHD..(05S,08S)..G200709-202104

69311AROD, FRONT DOOR LOCK OPEN, RH

main69311-60050iGRJ200..LHD..05S..G;GRJ200..(08S,09S)..G;URJ200,UZJ200,VDJ200..G200709-201508

main69311-60070iURJ202..VX..GCC;VDJ200..09S..SOB;URJ202..(GXR,VX)..ARL;VDJ200..(VX,VXR)..GCC;VDJ200..05S..(ARL,GCC);VDJ200..LHD..5F..GEN..LUB;GRJ200..(05S,08S)..5F..GCC;GRJ200,URJ2201508-202104

69312ROD, FRONT DOOR LOCK OPEN, LH

main69312-60050iGRJ200..RHD..05S200709-201508

main69312-60070iGRJ200..09S..SOB;VDJ200..ARL..LUB;GRJ200,URJ200..ATM;VDJ200..LHD..6FC..GEN;URJ202..VXR..(ARL,GCC);VDJ200..RHD..(05S,08S)..GEN;GRJ200,URJ202..(05S,08S)..(GX,VX)..GEN201508-202104

69320LOCK ASSY, FRONT DOOR, LH

main69040-42230iVDJ200..RHD..09S;VDJ200..ARL..SOB;URJ202..(GXR,VX)..ARL200709-202104

main69040-42241iURJ202..VX..GCC;VDJ200..LHD..5F..GEN;VDJ200..09S..GCC..SOB;GRJ200..(05S,08S)..5F..GCC;GRJ200,URJ202..(GXR,VXR)..GEN;VDJ200..(05S,08S)..(GX,VX,VXR)..GCC200709-202104

69410PLATE ASSY, FRONT DOOR LOCK STRIKER

main69410-30060iGRJ200..LHD..05S..G;GRJ200..(08S,09S)..G;URJ200,UZJ200,VDJ200..G200709-201201

main69410-60030iGRJ200..09S..SOB;VDJ200..ARL..LUB;GRJ200,URJ200..ATM;VDJ200..LHD..6FC..GEN;URJ202..VXR..(ARL,GCC);VDJ200..RHD..(05S,08S)..GEN;GRJ200,URJ202..(05S,08S)..(GX,VX)..GEN201109-202104

69415BCOVER, DOOR LOCK STRIKER, FRONT

main69415-33010iGRJ200..LHD..05S..G;GRJ200..(08S,09S)..G;URJ200,UZJ200,VDJ200..G200709-201201

69710BCABLE ASSY, FRONT DOOR LOCK REMOTE CONTROL, RH

main69710-60020iGRJ200..SOB..G;VDJ200..08S..GX;GRJ200,URJ20#..ATM;VDJ200..GX..SOB..G;VDJ200..(STD,VX)..G;GRJ200..LHD..08S..5F;VDJ200..LHD..05S..LUB200709-202104

69720BCABLE ASSY, FRONT DOOR LOCK REMOTE CONTROL, LH

main69710-60020iGRJ200..09S..SOB;VDJ200..ARL..LUB;GRJ200,URJ200..ATM;VDJ200..LHD..6FC..GEN;URJ202..VXR..(ARL,GCC);VDJ200..RHD..(05S,08S)..GEN;GRJ200,URJ202..(05S,08S)..(GX,VX)..GEN200709-202104

69750CCABLE ASSY, FRONT DOOR INSIDE LOCKING, RH

main69750-60030iGRJ200..RHD..05S200709-202104

69760CCABLE ASSY, FRONT DOOR INSIDE LOCKING LH

main69750-60030iGRJ200..RHD..05S200709-202104

8420

89743CBRACKET, ELECTRICAL KEY WIRE HARNESS

main89743-53010iGRJ200..LHD..05S..G;GRJ200..(08S,09S)..G;URJ200,UZJ200,VDJ200..G200709-201508

RH

main89743-53020iGRJ200..LHD..05S..G;GRJ200..(08S,09S)..G;URJ200,UZJ200,VDJ200..G200709-201508

LH

9014860022

main90148-60022

9014880066

main90148-80066

9015940202

main90159-40202

9018906018

main90189-06018

9356015020

main93560-15020

31 parts on this diagram · 2 diagrams in section
