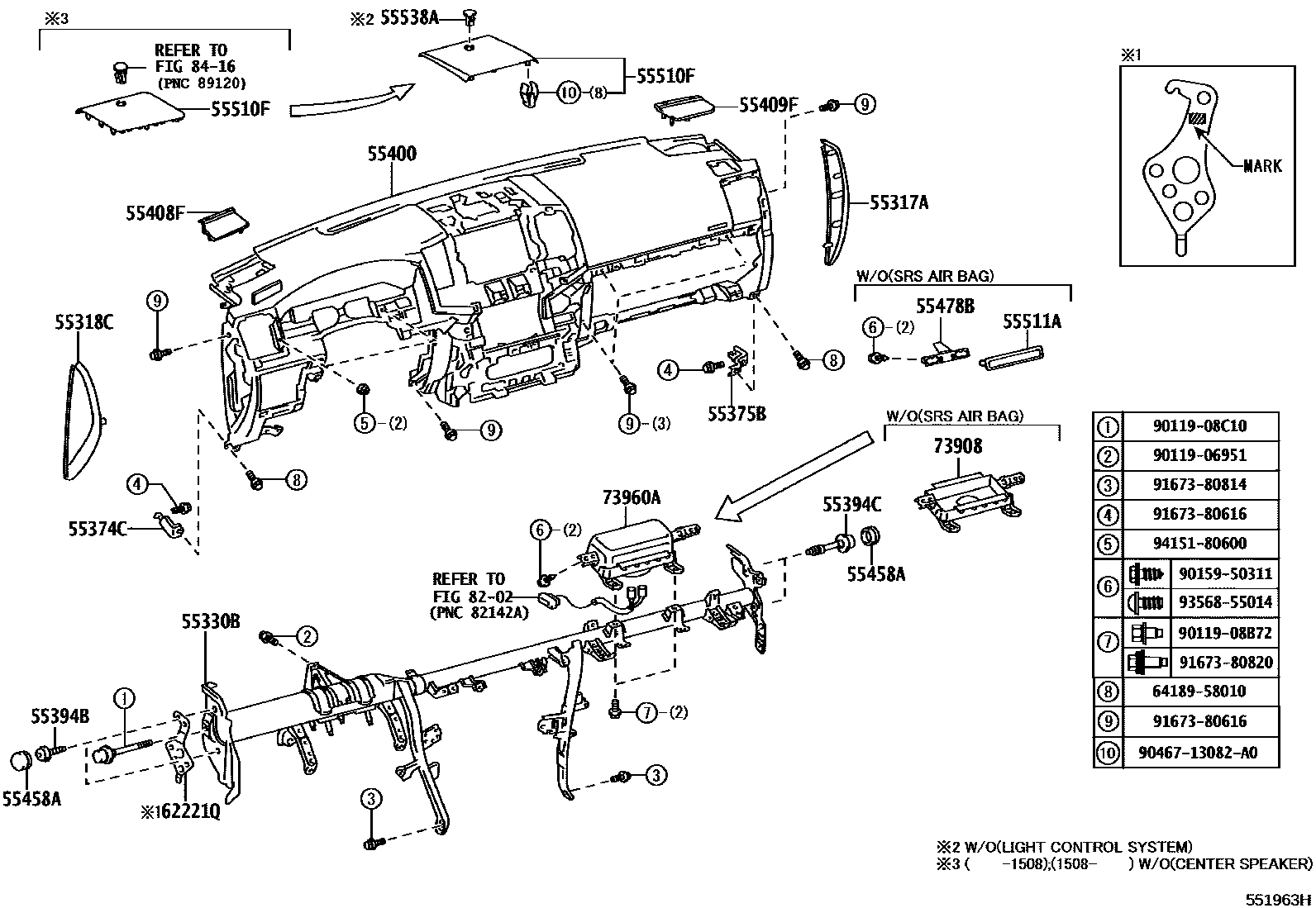

INSTRUMENT PANEL & GLOVE COMPARTMENT

0001 1 0002 1 0003 1DRIVER SIDE 0005 1DRIVER SIDE 0006 1DRIVER SIDE 0008 1DRIVER SIDE 0009 1CENTER 0011 1CENTER 0012 1CENTER 0014 1CENTER 0015 1PASSENGER SIDE 0017 1PASSENGER SIDE 0018 1PASSENGER SIDE 0020 1PASSENGER SIDE

55317APANEL, INSTRUMENT SIDE, RH

main55317-60020-C0iGRJ200,UZJ200,VDJ200200709-200807

BLACK,TRIM1#

sub55317-60021

main55317-60020-E0iGRJ200,UZJ200,VDJ200200709-200807

DK. BROWN,TRIM4#

sub55317-60021

main55317-60021-A1iGRJ200,URJ20#,VDJ200..GX,VX201201-201508

SHELL,TRIM0#

sub55317-60021

main55317-60021-A3iGRJ200..05S..LUB;GRJ200..GEN..LUB;URJ20#,VDJ200..LUB;VDJ200..09S..GCC..SOB;GRJ200..(08S,09S)..GCC201508-201708

FLAXEN,TRIM0#

sub55317-60021

main55317-60021-C0iURJ202..VX..ARL201508-201708

BLACK,TRIM1#,2#,4#

sub55317-60021

main55317-60021-C0iGRJ200..09S..5FC;GRJ200,VDJ200..SOB..G;VDJ200..LHD..05S..LUB;VDJ200..08S..GX..(GCC,GEN);GRJ200,URJ202..LHD..08S..(5F,6FC)..GX200808-202104

BLACK,TRIM1#

sub55317-60021

main55317-60021-C0iVDJ200..VX;URJ202..LHD..VX;URJ202,VDJ200..GX..ARL;GRJ200,URJ200..08S..ATM201201-202104

BLACK,TRIM1#,2#

sub55317-60021

main55317-60021-C0iVDJ200..VX;URJ202..LHD..VX;URJ202,VDJ200..GX..ARL;GRJ200,URJ200..08S..ATM201201-201508

BLACK,TRIM2#

sub55317-60021

main55317-60021-C0iURJ202..VX..ARL201508-201708

BLACK,TRIM2#,4#

sub55317-60021

main55317-60021-C0iURJ202..VX..ARL201508-201708

BLACK,TRIM1#,2#,4#,5#

sub55317-60021

main55317-60021-C0iURJ202..VX..ARL201708-202103

BLACK,TRIM2#,42,46

sub55317-60021

main55317-60021-C0iURJ202..VX..ARL201708-202104

BLACK,TRIM1#,2#,42,46

sub55317-60021

main55317-60021-C0iURJ202,VDJ200..6FC..GXR..GCC201708-202104

BLACK,TRIM1#,2#,42,46,49,5#

sub55317-60021

main55317-60021-C0iURJ202,VDJ200..6FC..GXR..GCC201708-202104

BLACK,TRIM1#,2#,46,49,5#

sub55317-60021

main55317-60021-E0iGRJ200..LHD..05S..G;VDJ200..(05S,08S)..G;GRJ200,URJ200,UZJ200..08S200808-201201

DK. BROWN,TRIM4#

sub55317-60021

main55317-60021-E1iURJ202..ARL;URJ202..VX..GCC;URJ202..VXR..GEN;GRJ200..5F..GCC..LUB;VDJ200..(VX,VXR)..GCC201708-202104

NEUTRAL BEIGE,TRIM4#

sub55317-60021

main55317-60021-E1iVDJ200..GX..LUB;GRJ200,VDJ200..LHD..5F..GEN..LUB201708-202104

NEUTRAL BEIGE,TRIM47

sub55317-60021

main55317-60021-E1iGRJ200,URJ202,VDJ200..6FC..GXR..GCC201708-202104

NEUTRAL BEIGE,TRIM47,48

sub55317-60021

55318CPANEL, INSTRUMENT SIDE, LH

main55318-60050-C0iGRJ200,UZJ200,VDJ200200709-200807

BLACK,TRIM1#

sub55318-60051

main55318-60050-E0iGRJ200,UZJ200,VDJ200200709-200807

DK. BROWN,TRIM4#

sub55318-60051

main55318-60051-A1iGRJ200,URJ20#,VDJ200..GX,VX201201-201508

SHELL,TRIM0#

sub55318-60051

main55318-60051-A3iGRJ200..05S..LUB;GRJ200..GEN..LUB;URJ20#,VDJ200..LUB;VDJ200..09S..GCC..SOB;GRJ200..(08S,09S)..GCC201508-201708

FLAXEN,TRIM0#

sub55318-60051

main55318-60051-C0iGRJ200..6FC..GXR201708-202104

BLACK,TRIM1#,2#,46,49,5#

sub55318-60051

main55318-60051-C0iGRJ200..RHD..05S200808-202104

BLACK,TRIM1#

sub55318-60051

main55318-60051-C0iVDJ200..VX;URJ202..LHD..VX;URJ202,VDJ200..GX..ARL;GRJ200,URJ200..08S..ATM201201-202104

BLACK,TRIM1#,2#

sub55318-60051

main55318-60051-C0iVDJ200..VX;URJ202..LHD..VX;URJ202,VDJ200..GX..ARL;GRJ200,URJ200..08S..ATM201201-201508

BLACK,TRIM2#

sub55318-60051

main55318-60051-C0iURJ202..VX..ARL201508-201708

BLACK,TRIM1#,2#,4#

sub55318-60051

main55318-60051-C0iURJ202,VDJ200..6FC..GXR..GCC201508-201708

BLACK,TRIM2#,4#

sub55318-60051

main55318-60051-C0iURJ202,VDJ200..6FC..GXR..GCC201508-201708

BLACK,TRIM1#,2#,4#,5#

sub55318-60051

main55318-60051-C0iURJ202..VX..ARL201708-202103

BLACK,TRIM2#,42,46

sub55318-60051

main55318-60051-C0iURJ202..VX..ARL201708-202104

BLACK,TRIM1#,2#,42,46

sub55318-60051

main55318-60051-C0iURJ202,VDJ200..6FC..GXR..GCC201708-202104

BLACK,TRIM1#,2#,42,46,49,5#

sub55318-60051

main55318-60051-E0iGRJ200..RHD..05S200808-201201

DK. BROWN,TRIM4#

sub55318-60051

main55318-60051-E1iGRJ200..GX..LUB;VDJ200..RHD..GXR..GEN;VDJ200..LHD..6FC..GXR..GEN201708-202104

NEUTRAL BEIGE,TRIM4#

sub55318-60051

main55318-60051-E1iGRJ200..GX..LUB;VDJ200..RHD..GXR..GEN;VDJ200..LHD..6FC..GXR..GEN201708-202104

NEUTRAL BEIGE,TRIM47

sub55318-60051

main55318-60051-E1iGRJ200..GX..LUB;VDJ200..RHD..GXR..GEN;VDJ200..LHD..6FC..GXR..GEN201708-202104

NEUTRAL BEIGE,TRIM47,48

sub55318-60051

55330BREINFORCEMENT ASSY, INSTRUMENT PANEL

main55330-60210iGRJ200,URJ200,UZJ200,VDJ200..LHD..G200709-201201

main55330-60220iVDJ200..RHD..G;GRJ200,UZJ200..RHD..08S200709-201201

main55330-60310iURJ202..VX..GEN;GRJ200,URJ200..ATM;VDJ200..LHD..6FC..GEN;URJ202..(GXR,VXR)..GCC;VDJ200..(08S,09S)..(GX,GXR)..GCC..LUB201508-202104

main55330-60330iGRJ200,VDJ200..LHD..SOB..G201109-201508

main55330-60340iGRJ200,VDJ200..RHD..K201109-201508

main55330-60350iGRJ200,URJ20#,VDJ200..LHD..LUB201201-201508

main55330-60360iURJ202,VDJ200..RHD..LUB201201-201508

main55330-60390iURJ202..(GXR,VX)..ARL201508-202104

main55330-60420iGRJ200,VDJ200..LHD..SOB201508-202103

main55330-60430iGRJ200,VDJ200..RHD..SOB201508-202103

55374CBRACKET, INSTRUMENT PANEL LOWER MOUNTING, NO.1

main55374-60090iGRJ200,VDJ200..LHD..K200709-202104

main55374-60100iGRJ200..RHD..05S200709-202104

55375BBRACKET, INSTRUMENT PANEL LOWER MOUNTING, NO.2

main55375-60090iGRJ200,VDJ200..LHD..K200709-202104

main55375-60100iGRJ200..RHD..05S200709-202104

55394BBOLT, INSTRUMENT PANEL

main55394-50010iGRJ200..LHD..05S..G;GRJ200..(08S,09S)..G;URJ200,UZJ200,VDJ200..G200709-202104

55394CBOLT, INSTRUMENT PANEL

main55394-33041iURJ202..VX..GCC;VDJ200..09S..SOB;URJ202..(GXR,VX)..ARL;VDJ200..(VX,VXR)..GCC;VDJ200..05S..(ARL,GCC);VDJ200..LHD..5F..GEN..LUB;GRJ200..(05S,08S)..5F..GCC;GRJ200,URJ2200709-202104

55400PAD ASSY, INSTRUMENT PANEL SAFETY

main55400-60030-C0iURJ20#,VDJ200..LHD..VX201201-201508

BLACK,TRIM1#,2#

sub55400-60031

main55400-60030-C0iURJ20#,VDJ200..LHD..(VX,VXR)201508-201512

BLACK,TRIM1#,2#,4#

sub55400-60031

main55400-60030-C0iURJ200,UZJ200,VDJ200..LHD..VX200709-201201

BLACK,TRIM1#

sub55400-60031

main55400-60030-E0iURJ200,UZJ200,VDJ200..LHD..VX200709-201201

DK. BROWN,TRIM4#

sub55400-60031

main55400-60030-E1iURJ20#,VDJ200..LHD..VX201201-201508

ORCHID BROWN,TRIM0#

sub55400-60031

main55400-60030-E2iURJ20#,VDJ200..LHD..(VX,VXR)201508-201512

ORCHID BROWN,TRIM0#

sub55400-60031

main55400-60031-C0iURJ202..VX..GCC;URJ202..VXR..GEN;VDJ200..(VX,VXR)..GCC201708-202104

BLACK,TRIM1#,2#,42,46

main55400-60031-C0iURJ20#,VDJ200..LHD..(VX,VXR)201601-201708

BLACK,TRIM1#,2#,4#

main55400-60031-E2iURJ20#,VDJ200..LHD..(VX,VXR)201601-201708

ORCHID BROWN,TRIM0#

main55400-60031-E3iURJ202..VX..GCC;URJ202..VXR..GEN;VDJ200..(VX,VXR)..GCC201708-202104

ORCHID BROWN,TRIM47

main55400-60040-C0iURJ202..VXR..ARL;VDJ200..RHD..(VX,VXR)201508-201708

BLACK,TRIM2#,4#

main55400-60040-C0iVDJ200..RHD..VX201201-201508

BLACK,TRIM1#,2#

main55400-60040-C0iURJ202..VXR..ARL;VDJ200..RHD..(VX,VXR)201508-201708

BLACK,TRIM1#,2#,4#

main55400-60040-C0iUZJ200,VDJ200..RHD..VX200709-201201

BLACK,TRIM1#

main55400-60040-C0iURJ202..VX..ARL201201-201508

BLACK,TRIM2#

main55400-60040-C0iVDJ200..RHD..(VX,VXR)201708-202104

BLACK,TRIM1#,2#,42,46

main55400-60040-C0iURJ202..VX..ARL201708-202103

BLACK,TRIM2#,42,46

main55400-60040-E0iUZJ200,VDJ200..RHD..VX200709-201201

DK. BROWN,TRIM4#

main55400-60040-E1iURJ202,VDJ200..RHD..VX201201-201508

ORCHID BROWN,TRIM0#

main55400-60040-E2iURJ202,VDJ200..RHD..(VX,VXR)201508-201708

ORCHID BROWN,TRIM0#

main55400-60040-E3iVDJ200..RHD..(VX,VXR)201708-202104

ORCHID BROWN,TRIM47

main55400-60050-C0iGRJ200,VDJ200..LHD..STD201109-201508

BLACK,TRIM1#

main55400-60060-C0iGRJ200,VDJ200..RHD..GEN..K201109-201508

BLACK,TRIM1#

main55401-60400-C0iGRJ200,URJ202,VDJ200..GXR..GCC201508-201512

BLACK,TRIM1#,2#,4#

sub55401-60401

main55401-60400-C0iGRJ200,URJ202,VDJ200..GXR..GCC200709-201512

BLACK,TRIM1#

sub55401-60401

main55401-60400-C0iGRJ200,VDJ200..GX..K201109-201508

SRS AIR BAG-*DRP,BLACK,TRIM1#

sub55401-60401

main55401-60400-C0iGRJ200..08S..5FC201201-201508

BLACK,TRIM1#,2#

sub55401-60401

main55401-60400-E0iGRJ200,UZJ200,VDJ200..LHD..GX..G200709-201201

DK. BROWN,TRIM4#

sub55401-60401

main55401-60400-E1iGRJ200,URJ202,VDJ200..LHD..GX201201-201508

ORCHID BROWN,TRIM0#

sub55401-60401

main55401-60400-E2iGRJ200..GEN..LUB;VDJ200..GCC..SOB;VDJ200..LHD..(GX,GXR)..LUB;GRJ200,URJ202..(GX,GXR)..GCC201508-201512

ORCHID BROWN,TRIM0#

sub55401-60401

main55401-60401-C0iGRJ200,VDJ200..(5F,5FC)..GXR..GCC201601-201708

BLACK,TRIM1#,2#,4#

main55401-60401-C0iURJ202,VDJ200..6FC..GXR..GCC201601-201708

BLACK,TRIM1#,2#,4#,5#

main55401-60401-C0iGRJ200,VDJ200..LHD..5F..GEN..LUB201601-202104

BLACK,TRIM1#,2#

main55401-60401-C0iGRJ200,VDJ200..LHD..5F..GEN..LUB201601-202104

BLACK,TRIM1#

main55401-60401-C0iGRJ200..5F..GCC..LUB201708-202104

BLACK,TRIM1#,2#,46

main55401-60401-C0iVDJ200..5F..GCC..LUB201708-202104

BLACK,TRIM1#,2#,46,49,5#

main55401-60401-C2iGRJ200,URJ202,VDJ200..6FC..GXR..GCC201908-202104

BLACK,TRIM48

main55401-60401-E2iGRJ200,URJ202,VDJ200..LHD..(GX,GXR)..LUB201601-201708

ORCHID BROWN,TRIM0#

main55401-60401-E4iGRJ200..5F..GCC..LUB201708-202104

ORCHID BROWN,TRIM47

main55401-60401-E4iGRJ200..5F..GCC..LUB201708-202104

ORCHID BROWN,TRIM4#

main55401-60410-C0iGRJ200,VDJ200..RHD..GEN..K200709-202104

BLACK,TRIM1#

main55401-60410-C0iVDJ200..ARL..K201109-201508

SRS AIR BAG-*DRP,BLACK,TRIM1#

main55401-60410-C0iURJ202..GXR..ARL201708-202104

BLACK,TRIM1#,2#,42,46

main55401-60410-C0iURJ202,VDJ200..GXR..ARL201508-201708

BLACK,TRIM1#,2#,4#

main55401-60410-C0iURJ202,VDJ200..GX..ARL201201-201508

BLACK,TRIM1#,2#

main55401-60410-E0iVDJ200..RHD..GX;GRJ200,UZJ200..RHD..08S..GX200709-201201

DK. BROWN,TRIM4#

main55401-60410-E1iURJ202,VDJ200..RHD..GX201201-201508

ORCHID BROWN,TRIM0#

main55401-60410-E2iURJ202,VDJ200..RHD..GXR201508-201708

ORCHID BROWN,TRIM0#

main55401-60410-E3iVDJ200..GXR..ARL201708-202104

ORCHID BROWN,TRIM4#

main55401-60410-E3iVDJ200..RHD..GXR..GEN201708-202104

ORCHID BROWN,TRIM47

55408FPANEL SUB-ASSY, INSTRUMENT PANEL SPEAKER, NO.1

main55408-60100iUZJ200,VDJ200..VX..GEN200709-200907

main55408-60110iUZJ200,VDJ200..VX..ARL200709-200907

AUDIO(FOR OVERSEAS MARKET)-EMV+DVD CHANGER+AM/FM 9SPEAKER

main55408-60160iUZJ200,VDJ200..VX..GEN200709-200907

AUDIO(FOR OVERSEAS MARKET)-RADIO LESS & 4SPEAKER

main55408-60160iVDJ200..GX..GEN;GRJ200..LHD..05S..G;GRJ200..(08S,09S)..GEN..G200709-202104

main55472-60100iURJ200200709-202104

main55472-60100iURJ202..VX..GCC;URJ202..(GXR,VX)..ARL;VDJ200..09S..GCC..SOB;VDJ200..(VX,VXR)..GCC;VDJ200..05S..(ARL,GCC);GRJ200..(05S,08S)..5F..GCC201508-202103

REGULATION COMPLIANCE LABEL & NAME PLATE-EUROPE NTA NAME PLATE & ID

55409FPANEL SUB-ASSY, INSTRUMENT PANEL SPEAKER, NO.2

main55409-60020iUZJ200..LHD;VDJ200..VX..GEN;GRJ200,VDJ200..08S..GCC200709-200907

AUDIO(FOR OVERSEAS MARKET)-EMV+DVD CHANGER+AM/FM 9SPEAKER

main55473-60060iGRJ200..RHD..05S200709-200907

AUDIO(FOR OVERSEAS MARKET)-RADIO LESS & 6SPEAKER

main55473-60060iGRJ200..RHD..05S200709-200907

AUDIO(FOR OVERSEAS MARKET)-RADIO LESS & 4SPEAKER

main55473-60060iUZJ200..ARL;VDJ200..VX..ARL;GRJ200..08S..GEN;VDJ200..09S..GCC..G;VDJ200..GX..(ARL,GEN);GRJ200..LHD..(05S,09S)..G200709-202104

55458ACAP, INSTRUMENT PANEL SAFETY PAD

main55458-50100iURJ202..VX..GCC;VDJ200..09S..SOB;URJ202..(GXR,VX)..ARL;VDJ200..(VX,VXR)..GCC;VDJ200..05S..(ARL,GCC);VDJ200..LHD..5F..GEN..LUB;GRJ200..(05S,08S)..5F..GCC;GRJ200,URJ2200709-202104

55478BRETAINER, INSTRUMENT PANEL SAFETY PAD, NO.4

main55478-60050iGRJ200,VDJ200..5F..STD201109-201508

55510FCOVER ASSY, SPEAKER OPENING, NO.1

main55510-60120iGRJ200..5F..LUB;URJ202..VX..GCC;URJ202..VXR..GEN;URJ202..(GXR,VX)..ARL;VDJ200..LHD..5F..GEN..LUB;VDJ200..(05S,08S)..(GX,VX,VXR)..GCC..LUB201508-202104

main55525-60040iGRJ200,VDJ200..SOB200709-202103

55511APLATE, INSTRUMENT PANEL, NAME

main55471-60230-C0iGRJ200,VDJ200..5F..STD201109-201508

BLACK,TRIM1#

55538ACOVER, COOLER SWITCH HOLE

main55538-48010iGRJ200,VDJ200..STD201109-202103

62221QSPACER, FRONT PILLAR, NO.1 RH

main62221-60070iGRJ200,URJ200,UZJ200,VDJ200..LHD..G200709-202104

MARK 1L

main62221-60080iGRJ200,VDJ200..LHD..K200709-202104

MARK 2L

main62221-60090iGRJ200..LHD..SOB..G;GRJ200..LHD..08S..5F;GRJ200,URJ20#..LHD..ATM;VDJ200..LHD..09S..SOB..G;VDJ200..LHD..(05S,08S)..G200709-202104

MARK 3L

main62221-60100iURJ202..VX..GCC;VDJ200..LHD..5F..GEN;VDJ200..09S..GCC..SOB;GRJ200..(05S,08S)..5F..GCC;GRJ200,URJ202..(GXR,VXR)..GEN;VDJ200..(05S,08S)..(GX,VX,VXR)..GCC200709-202104

MARK 4L

main62221-60110iGRJ200,URJ200..ATM;GRJ200..LHD..09S..SOB;VDJ200..LHD..6FC..GEN;URJ202..(GXR,VXR)..GCC;VDJ200..(08S,09S)..(GX,GXR)..GCC..LUB;GRJ200,URJ202..(05S,08S)..(GX,VX)..GEN200709-202104

MARK 5L

73908CASE SUB-ASSY, INSTRUMENT PANEL PASSENGER AIRBAG

main73908-60110iGRJ200,VDJ200..5F..STD..G201109-201508

73960AAIRBAG ASSY, INSTRUMENT PANEL PASSENGER W/O DOOR

main73960-60170iGRJ200,VDJ200..LHD..STD..G201109-201508

SRS AIR BAG-*DRP

main73960-60170iURJ202..VX..GCC;VDJ200..LHD..5F..GEN;VDJ200..09S..GCC..SOB;GRJ200..(05S,08S)..5F..GCC;GRJ200,URJ202..(GXR,VXR)..GEN;VDJ200..(05S,08S)..(GX,VX,VXR)..GCC200709-202104

main73960-60190iGRJ200,VDJ200..RHD..GEN..K201109-201508

SRS AIR BAG-*DRP

main73960-60190iVDJ200..ARL..LUB;VDJ200..RHD..(05S,08S)..GEN;GRJ200,URJ202..RHD..(GX,VXR)200709-202104

8202

8416

6418958010CLAMP, BACK PANEL SILENCER

main64189-58010

9011906951

main90119-06951

9011908B72

main90119-08B72

9011908C10

main90119-08C10

9015950311

main90159-50311

9046713082A0

main90467-13082A0

9167380616

main91673-80616

9167380814

main91673-80814

9167380820

main91673-80820

9356855014

main93568-55014

9415180600

main94151-80600

31 parts on this diagram · 14 diagrams in section
