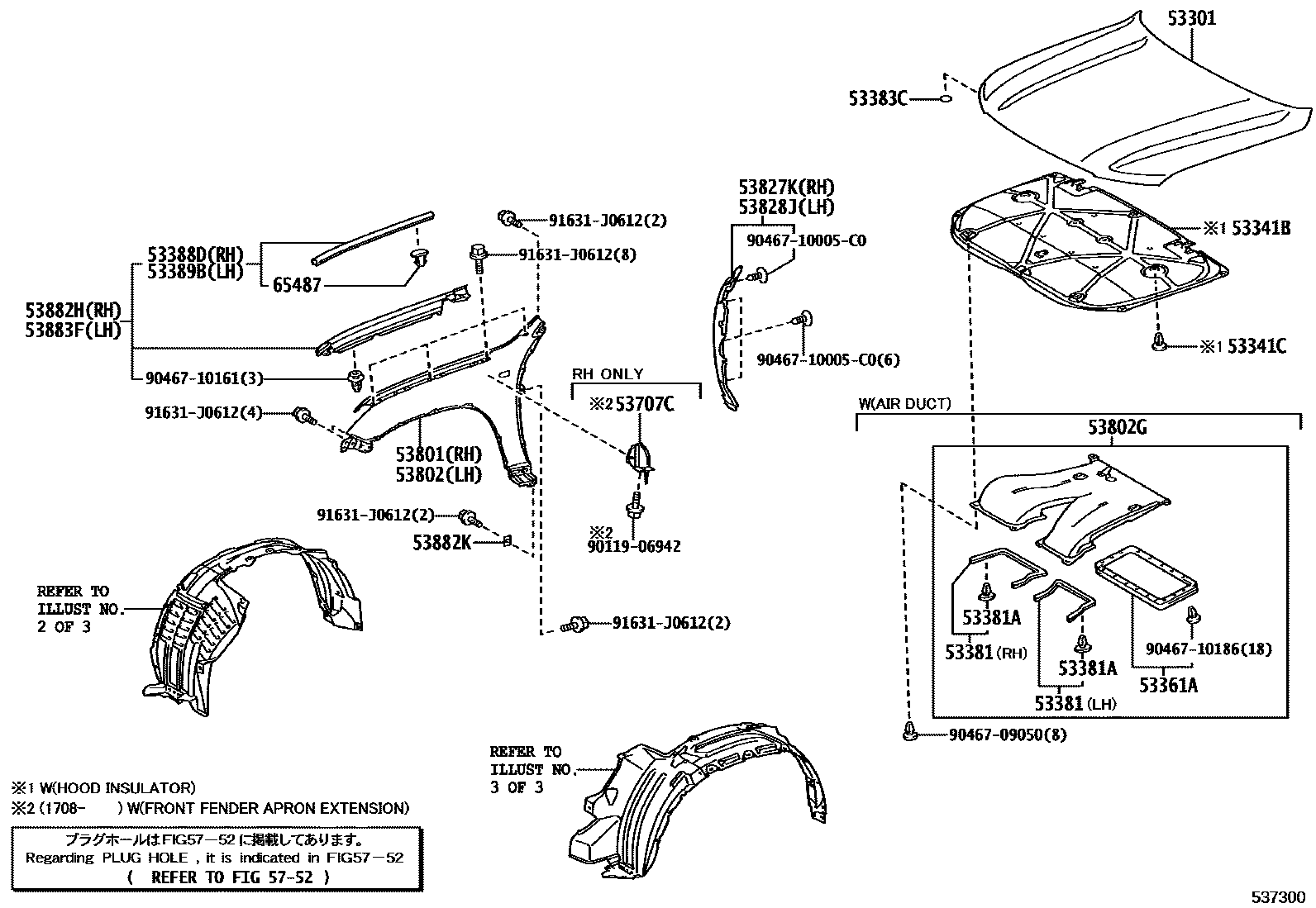

HOOD & FRONT FENDER

0001 1 0002 1FENDER LINER RH 0003 1FENDER LINER LH

53301HOOD SUB-ASSY

main53301-60590iGRJ200..SOB..G;VDJ200..08S..GX;GRJ200,URJ20#..ATM;VDJ200..GX..SOB..G;VDJ200..(STD,VX)..G;GRJ200..LHD..08S..5F;VDJ200..LHD..05S..LUB200709-201204

main53301-60591iGRJ200,URJ20#,VDJ200201205-201508

main53301-60690iGRJ200..09S..SOB;VDJ200..ARL..LUB;GRJ200,URJ200..ATM;VDJ200..LHD..6FC..GEN;URJ202..VXR..(ARL,GCC);VDJ200..RHD..(05S,08S)..GEN;GRJ200,URJ202..(05S,08S)..(GX,VX)..GEN201508-202104

53341BINSULATOR, HOOD

main53341-60320iGRJ200..GX..K200709-201508

main53341-60330iVDJ200..GEN..SOB..G201109-201508

EXHAUST EMISSION CONTROL-EUROPE STEP3,WITH(EGR) & WITHOUT(OBD)

main53341-60330iVDJ200..6FC..G;VDJ200..08S..5F;VDJ200..GX..SOB..G;VDJ200..LHD..05S..LUB201109-201508

EXHAUST EMISSION CONTROL-EUROPE STEP2,WITH(EGR) & WITHOUT(OBD)

main53341-60330iVDJ200..G200709-201201

main53341-60340iURJ200,UZJ200200709-201508

main53341-60380iGRJ200..ATM;GRJ200..09S..GCC..SOB201508-202104

main53341-60390iURJ202..VX..GCC;URJ202..VXR..GEN;URJ202..(GXR,VX)..ARL201508-202104

main53341-60400iVDJ200..GEN..SOB201508-201808

EXHAUST EMISSION CONTROL-EUROPE STEP2, WITH(EGR) & WITHOUT(OBD)

main53341-60400iVDJ200..GEN..SOB201508-201808

EXHAUST EMISSION CONTROL-EUROPE STEP3, WITH(EGR) & WITHOUT(OBD)

main53341-60401iVDJ200..RHD..LUB;VDJ200..GXR..GCC;VDJ200..LHD..6FC..GEN201809-202104

main53341-60401iVDJ200..VX..GCC;VDJ200..LHD..5F..GEN..LUB;VDJ200..(GX,VXR)..(ARL,GCC)201809-202103

EXHAUST EMISSION CONTROL-EUROPE STEP3, WITH(EGR) & WITHOUT(OBD)

main53341-60401iVDJ200..VX..GCC;VDJ200..LHD..5F..GEN..LUB;VDJ200..(GX,VXR)..(ARL,GCC)201809-202103

EXHAUST EMISSION CONTROL-EUROPE STEP2, WITH(EGR) & WITHOUT(OBD)

53341CCLIP(FOR HOOD INSULATOR)

main90467-09050iVDJ200..GEN..SOB201508-202103

EXHAUST EMISSION CONTROL-EUROPE STEP3, WITH(EGR) & WITHOUT(OBD)

main90467-09050iVDJ200..GEN..SOB201508-202103

EXHAUST EMISSION CONTROL-EUROPE STEP2, WITH(EGR) & WITHOUT(OBD)

main90467-09050iVDJ200..RHD..LUB;VDJ200..LHD..6FC..GEN;VDJ200..(08S,09S)..(GX,GXR)..GCC..LUB200709-202104

main90467-09050iVDJ200..GX..K;VDJ200..ARL..K201109-201508

EXHAUST EMISSION CONTROL-EUROPE STEP3,WITH(EGR) & WITHOUT(OBD)

main90467-09050iVDJ200..GX..K;VDJ200..ARL..K201109-201508

EXHAUST EMISSION CONTROL-EUROPE STEP2,WITH(EGR) & WITHOUT(OBD)

53361AWEATHERSTRIP, HOOD

main53361-60040iVDJ200..G200709-202104

main53361-60040iVDJ200..GX..K;VDJ200..ARL..K201109-201508

EXHAUST EMISSION CONTROL-EUROPE STEP3,WITH(EGR) & WITHOUT(OBD)

main53361-60040iVDJ200..GX..K;VDJ200..ARL..K201109-201508

EXHAUST EMISSION CONTROL-EUROPE STEP2,WITH(EGR) & WITHOUT(OBD)

main53361-60040iVDJ200..09S..GCC..SOB;VDJ200..(VX,VXR)..GCC;VDJ200..05S..(ARL,GCC);VDJ200..LHD..5F..GEN..LUB201508-202103

EXHAUST EMISSION CONTROL-EUROPE STEP3, WITH(EGR) & WITHOUT(OBD)

main53361-60040iVDJ200..09S..GCC..SOB;VDJ200..(VX,VXR)..GCC;VDJ200..05S..(ARL,GCC);VDJ200..LHD..5F..GEN..LUB201508-202103

EXHAUST EMISSION CONTROL-EUROPE STEP2, WITH(EGR) & WITHOUT(OBD)

53381SEAL, HOOD TO RADIATOR SUPPORT

main53381-60090iVDJ200..G200709-202104

RH

main53381-60090iVDJ200..GX..K;VDJ200..ARL..K201109-201508

EXHAUST EMISSION CONTROL-EUROPE STEP3,WITH(EGR) & WITHOUT(OBD),RH

main53381-60090iVDJ200..GX..K;VDJ200..ARL..K201109-201508

EXHAUST EMISSION CONTROL-EUROPE STEP2,WITH(EGR) & WITHOUT(OBD),RH

main53381-60090iVDJ200..GEN..SOB201508-202103

EXHAUST EMISSION CONTROL-EUROPE STEP2, WITH(EGR) & WITHOUT(OBD),RH

main53381-60090iVDJ200..GEN..SOB201508-202103

EXHAUST EMISSION CONTROL-EUROPE STEP3, WITH(EGR) & WITHOUT(OBD),RH

main53381-60100iVDJ200..GX..K;VDJ200..ARL..K200709-202104

LH

main53381-60100iVDJ200..GX..K;VDJ200..ARL..K201109-201508

EXHAUST EMISSION CONTROL-EUROPE STEP3,WITH(EGR) & WITHOUT(OBD),LH

main53381-60100iVDJ200..GX..K;VDJ200..ARL..K201109-201508

EXHAUST EMISSION CONTROL-EUROPE STEP2,WITH(EGR) & WITHOUT(OBD),LH

main53381-60100iVDJ200..09S..GCC..SOB;VDJ200..(VX,VXR)..GCC;VDJ200..05S..(ARL,GCC);VDJ200..LHD..5F..GEN..LUB201508-202103

EXHAUST EMISSION CONTROL-EUROPE STEP3, WITH(EGR) & WITHOUT(OBD),LH

main53381-60100iVDJ200..09S..GCC..SOB;VDJ200..(VX,VXR)..GCC;VDJ200..05S..(ARL,GCC);VDJ200..LHD..5F..GEN..LUB201508-202103

EXHAUST EMISSION CONTROL-EUROPE STEP2, WITH(EGR) & WITHOUT(OBD),LH

53381ACLIP(FOR HOOD TO RADIATOR SUPPORT SEAL)

main90467-08108iVDJ200..GX..K;VDJ200..ARL..K201109-201508

EXHAUST EMISSION CONTROL-EUROPE STEP3,WITH(EGR) & WITHOUT(OBD)

main90467-08108iVDJ200..GX..K;VDJ200..ARL..K201109-201508

EXHAUST EMISSION CONTROL-EUROPE STEP2,WITH(EGR) & WITHOUT(OBD)

main90467-08108iVDJ200..G200709-202104

main90467-08108iVDJ200..09S..GCC..SOB;VDJ200..(VX,VXR)..GCC;VDJ200..05S..(ARL,GCC);VDJ200..LHD..5F..GEN..LUB201508-202103

EXHAUST EMISSION CONTROL-EUROPE STEP3, WITH(EGR) & WITHOUT(OBD)

main90467-08108iVDJ200..09S..GCC..SOB;VDJ200..(VX,VXR)..GCC;VDJ200..05S..(ARL,GCC);VDJ200..LHD..5F..GEN..LUB201508-202103

EXHAUST EMISSION CONTROL-EUROPE STEP2, WITH(EGR) & WITHOUT(OBD)

53383CSEAL, HOOD TO COWL TOP

main53397-60010iGRJ200..RHD..05S200709-202104

53388DSEAL, HOOD TO FRONT FENDER, RH

main53388-60020iGRJ200..RHD..05S200709-201508

main53388-60060iURJ202..VX..GCC;VDJ200..09S..SOB;URJ202..(GXR,VX)..ARL;VDJ200..(VX,VXR)..GCC;VDJ200..05S..(ARL,GCC);VDJ200..LHD..5F..GEN..LUB;GRJ200..(05S,08S)..5F..GCC;GRJ200,URJ2201508-202104

53389BSEAL, HOOD TO FRONT FENDER, LH

main53389-60020iGRJ200..RHD..05S200709-201508

main53389-60080iURJ202..VX..GCC;VDJ200..09S..SOB;URJ202..(GXR,VX)..ARL;VDJ200..(VX,VXR)..GCC;VDJ200..05S..(ARL,GCC);VDJ200..LHD..5F..GEN..LUB;GRJ200..(05S,08S)..5F..GCC;GRJ200,URJ2201508-202104

53707CEXTENSION SUB-ASSY, FRONT FENDER APRON, FRONT RH

53801FENDER SUB-ASSY, FRONT RH

main53801-60B80iGRJ200,URJ200,UZJ200,VDJ200..G200709-201508

main53801-60B90iGRJ200,URJ20#,VDJ200..GX,VX201201-201508

main53801-60D40iGRJ200,VDJ200..SOB201508-202103

main53801-60D50iGRJ200..5F..LUB;URJ202..VX..GCC;URJ202..VXR..GEN;URJ202..(GXR,VX)..ARL;VDJ200..LHD..5F..GEN..LUB;VDJ200..(05S,08S)..(GX,VX,VXR)..GCC..LUB201508-202104

53802FENDER SUB-ASSY, FRONT LH

main53802-60B50iGRJ200,URJ200,UZJ200,VDJ200..G200709-201508

main53802-60B60iGRJ200,URJ20#,VDJ200..GX,VX201201-201508

main53802-60D50iGRJ200,VDJ200..SOB201508-202103

main53802-60D60iGRJ200..5F..LUB;URJ202..VX..GCC;URJ202..VXR..GEN;URJ202..(GXR,VX)..ARL;VDJ200..LHD..5F..GEN..LUB;VDJ200..(05S,08S)..(GX,VX,VXR)..GCC..LUB201508-202104

53802GDUCT,COOLING FAN AIR

main53207-60170iVDJ200..G200709-201201

main53207-60170iVDJ200..GX..K;VDJ200..ARL..K201109-201508

EXHAUST EMISSION CONTROL-EUROPE STEP3,WITH(EGR) & WITHOUT(OBD)

main53207-60170iVDJ200..GX..K;VDJ200..ARL..K201109-201508

EXHAUST EMISSION CONTROL-EUROPE STEP2,WITH(EGR) & WITHOUT(OBD)

main53207-60200iVDJ200..09S..GCC..SOB;VDJ200..(VX,VXR)..GCC;VDJ200..05S..(ARL,GCC);VDJ200..LHD..5F..GEN..LUB201508-202103

EXHAUST EMISSION CONTROL-EUROPE STEP3, WITH(EGR) & WITHOUT(OBD)

main53207-60200iVDJ200..09S..GCC..SOB;VDJ200..(VX,VXR)..GCC;VDJ200..05S..(ARL,GCC);VDJ200..LHD..5F..GEN..LUB201508-202103

EXHAUST EMISSION CONTROL-EUROPE STEP2, WITH(EGR) & WITHOUT(OBD)

main53207-60200iVDJ200..RHD..LUB;VDJ200..LHD..6FC..GEN;VDJ200..(08S,09S)..(GX,GXR)..GCC..LUB201508-202104

53827KPROTECTOR, FRONT FENDER SIDE PANEL, RH

main53827-60020iGRJ200..RHD..05S200709-202104

53828JPROTECTOR, FRONT FENDER SIDE PANEL, LH

main53828-60040iGRJ200..RHD..05S200709-202104

53882HSEAL, FRONT FENDER MAIN, RH

main53805-60020iGRJ200..RHD..05S200709-201107

main53805-60021iGRJ200,URJ200,UZJ200,VDJ200..G201108-201508

main53805-60090iURJ202..VX..GCC;VDJ200..09S..SOB;URJ202..(GXR,VX)..ARL;VDJ200..(VX,VXR)..GCC;VDJ200..05S..(ARL,GCC);VDJ200..LHD..5F..GEN..LUB;GRJ200..(05S,08S)..5F..GCC;GRJ200,URJ2201508-202104

53882KSEAL, FRONT FENDER

main53882-16030iGRJ200,URJ200,UZJ200,VDJ200..G200709-202104

53883FSEAL, FRONT FENDER MAIN, LH

main53806-60020iGRJ200..RHD..05S200709-201508

main53806-60080iURJ202..VX..GCC;VDJ200..09S..SOB;URJ202..(GXR,VX)..ARL;VDJ200..(VX,VXR)..GCC;VDJ200..05S..(ARL,GCC);VDJ200..LHD..5F..GEN..LUB;GRJ200..(05S,08S)..5F..GCC;GRJ200,URJ2201508-202104

5752HOLE PLUG

→ Go to FIG 57-52

65487CLIP, CORNER PROTECTOR

main65487-60010iGRJ200,URJ200,UZJ200,VDJ200..G200709-202104

9011906942

main90119-06942

9046709050

main90467-09050

9046710005C0

main90467-10005C0

9046710161

main90467-10161

9046710186

main90467-10186

91631J0612

main91631-J0612

26 parts on this diagram · 3 diagrams in section
