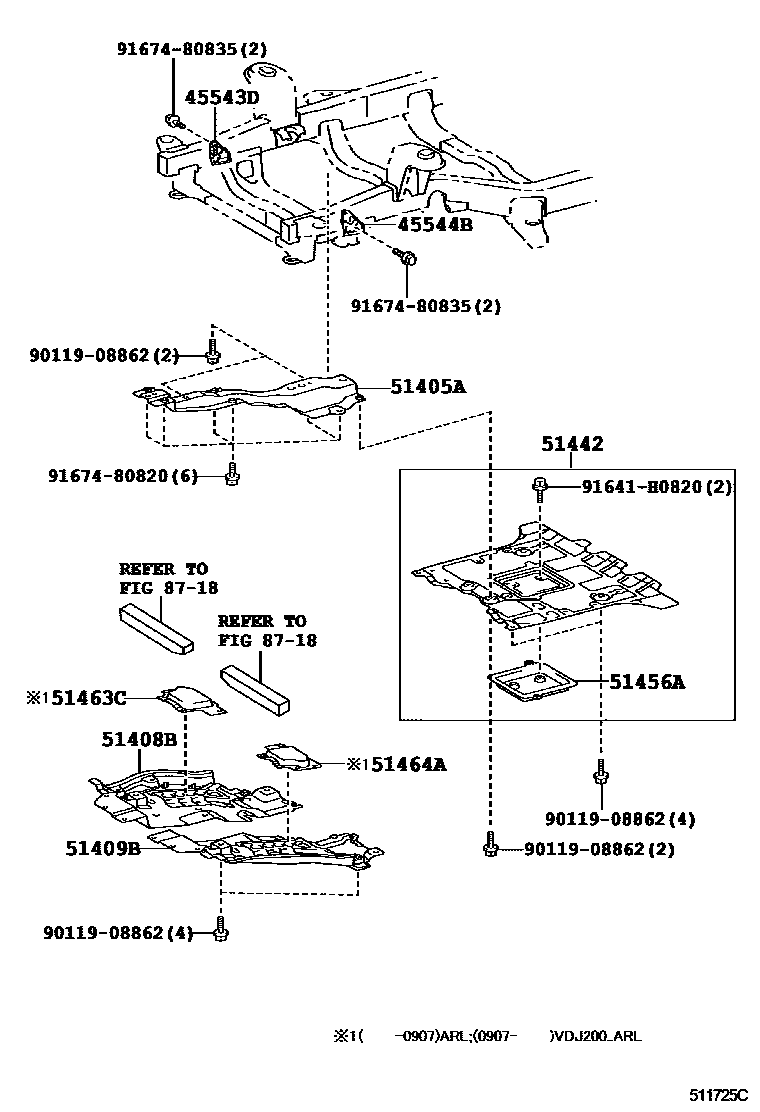

SUSPENSION CROSSMEMBER & UNDER COVER

45543DPROTECTOR, STEERING RACK BOOT, RH

main45543-60020iGRJ200,VDJ200..K201109-201201

45544BPROTECTOR, STEERING RACK BOOT, LH

main45544-60020iGRJ200..RHD..05S200709-200907

51405ACOVER SUB-ASSY, ENGINE UNDER, NO.1

main51405-60200iGRJ200..RHD..05S200709-200907

main51405-60250iGRJ200,URJ20#,VDJ200201201-201508

51408BCOVER SUB-ASSY, ENGINE UNDER, RH

main51408-60030iGRJ200..RHD..05S200709-200907

main51408-60040iURJ202..VX..GCC;VDJ200..09S..GCC..SOB;GRJ200..(05S,08S)..5F..GCC;VDJ200..(05S,08S)..(GX,VX,VXR)..GCC201508-202103

main51408-60050iVDJ200..ARL..K201109-201201

51409BCOVER SUB-ASSY, ENGINE UNDER, LH

main51409-60030iGRJ200,VDJ200..GEN..K201109-201201

main51409-60040iGRJ200,VDJ200..GCC..K201109-201201

main51409-60050iUZJ200..ARL200709-200907

main51409-60080iVDJ200..09S..GEN;URJ202..(GXR,VX)..ARL;VDJ200..LHD..5F..GEN..LUB;GRJ200,URJ202..(GXR,VXR)..GEN201508-202103

main51409-60090iURJ202..VX..GCC;VDJ200..09S..GCC..SOB;GRJ200..(05S,08S)..5F..GCC;VDJ200..(05S,08S)..(GX,VX,VXR)..GCC201508-202103

main51409-60100iVDJ200..ARL201201-201508

51442COVER, ENGINE UNDER, NO.2

main51420-60070iURJ200,VDJ200..(GCC,GEN)..G200709-201201

main51420-60080iGRJ200..RHD..05S200709-200907

main51420-60090iVDJ200..ARL..G200709-201201

main51420-60100iUZJ200..ARL200709-200907

51456ASEAL, ENGINE UNDER COVER, REAR

main51456-60070iURJ202..VX..GCC;URJ202..VXR..GEN;VDJ200..09S..SOB;URJ202..(GXR,VX)..ARL;VDJ200..(VX,VXR)..GCC;VDJ200..05S..(ARL,GCC);VDJ200..LHD..5F..GEN..LUB201508-202103

main51456-60080iGRJ200..5FC;GRJ200..SOB..G;GRJ200..LHD..08S..5F201109-201508

51463CSILENCER, ENGINE UNDER COVER, RH

main51477-60010iVDJ200..ARL..G201109-201508

51464ASILENCER, ENGINE UNDER COVER, LH

main51478-60040iUZJ200..ARL200709-200907

8718HEATING & AIR CONDITIONING - COOLER PIPING

→ Go to FIG 87-18

9011908862

main90119-08862

91641H0820

main91641-H0820

9167480820

main91674-80820

9167480835

main91674-80835

14 parts on this diagram · 1 diagram in section
