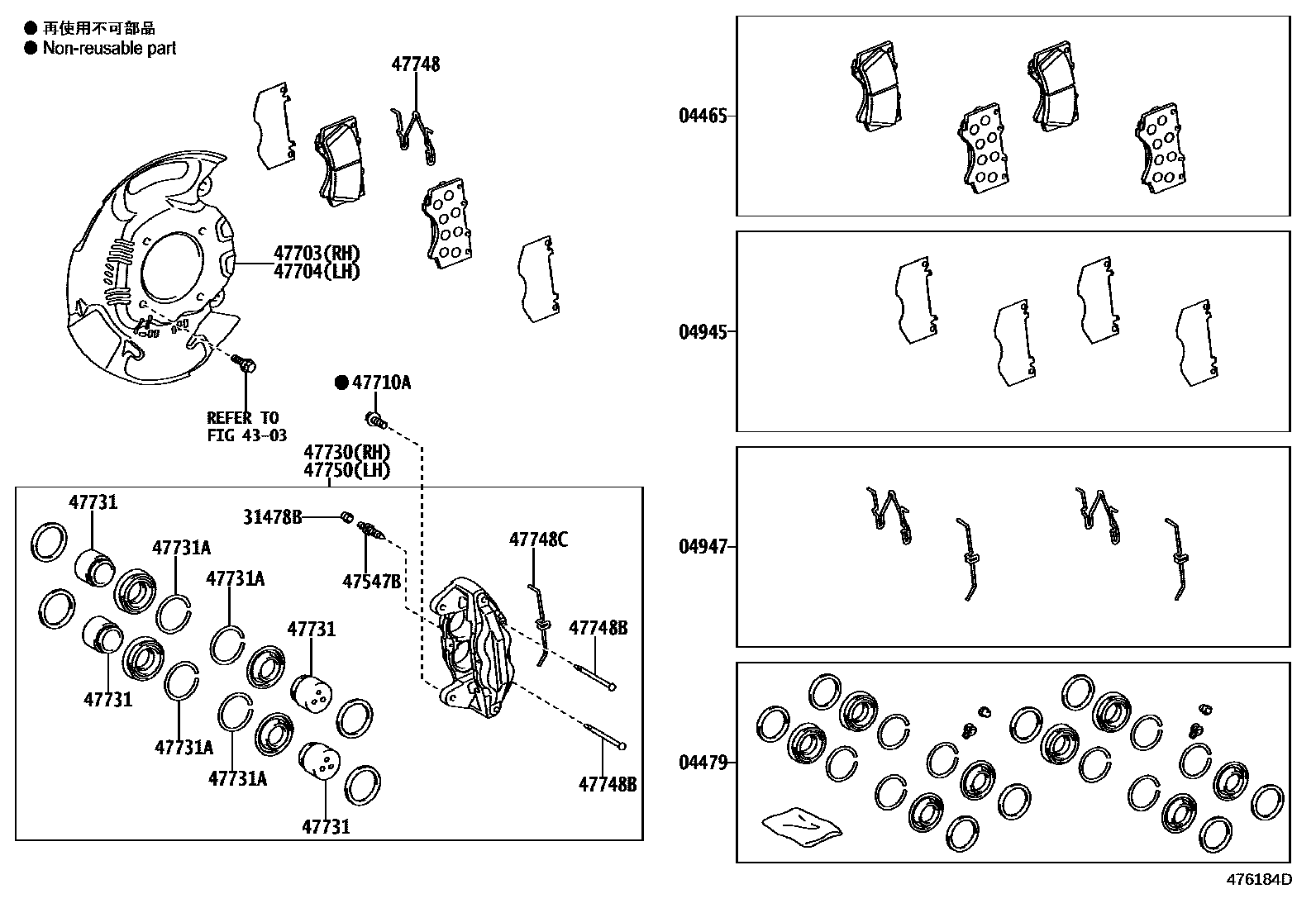

FRONT DISC BRAKE CALIPER & DUST COVER
04465PAD KIT, DISC BRAKE, FRONT
MARK ADVICS PV565H
main04465-60281iGRJ200..5F;VDJ200..GX;URJ202..ARL;URJ202..VX..GCC;URJ202..VXR..GEN;VDJ200..(VX,VXR)..GCC;VDJ200..LHD..5F..GEN..LUB201908-202103
MARK ADVICS VC084H
04479CYLINDER KIT, DISC BRAKE, FRONT
main04478-60070iGRJ200..09S..SOB;VDJ200..ARL..LUB;GRJ200,URJ200..ATM;VDJ200..LHD..6FC..GEN;URJ202..VXR..(ARL,GCC);VDJ200..RHD..(05S,08S)..GEN;GRJ200,URJ202..(05S,08S)..(GX,VX)..GEN;URJ202,VDJ200..(08S,09S)..(GX,GXR)..GCC..LUB201508-202104
04945SHIM KIT, ANTI SQUEAL, FRONT
04947FITTING KIT, DISC BRAKE, FRONT
31478BCAP, BLEEDER PLUG(FOR FRONT DISC BRAKE)
4303FRONT AXLE HUB
47547BPLUG, BLEEDER(FOR FRONT DISC BRAKE)
47703COVER SUB-ASSY, DISC BRAKE DUST, FRONT RH
main47703-60090iURJ202..VX..GCC;VDJ200..09S..SOB;URJ202..(GXR,VX)..ARL;VDJ200..(VX,VXR)..GCC;VDJ200..05S..(ARL,GCC);VDJ200..LHD..5F..GEN..LUB;GRJ200..(05S,08S)..5F..GCC;GRJ200,URJ202..(GXR,VXR)..GEN201508-202103
main47703-60100iURJ202..VX..GCC;URJ202..VXR..GEN;VDJ200..(VX,VXR)..GCC; URJ202..VXR..GEN;GRJ200..5F..GCC..LUB;URJ202..VX..(ARL,GCC);VDJ200..(VX,VXR)..GCC201508-202103
TIRE & DISC WHEEL-285/50R20, 8.5J,ALUMINUM,CHROME PAINTED; TIRE & DISC WHEEL-285/60R18, 8J, ALUMINUM(HEAVY)
47704COVER SUB-ASSY, DISC BRAKE DUST, FRONT LH
main47704-60100iURJ200;URJ202..VXR..GCC;VDJ200..VXR..GEN; URJ202..VX..GEN;URJ202..VXR..(ARL,GCC);GRJ200,URJ200..08S..ATM;URJ202,VDJ200..GXR..GCC;VDJ200..(VX,VXR)..(ARL,GEN)201508-202104
TIRE & DISC WHEEL-285/50R20, 8.5J,ALUMINUM,CHROME PAINTED; TIRE & DISC WHEEL-285/60R18, 8J, ALUMINUM(HEAVY)
47710ABOLT, HEXAGON(FOR FRONT DISC BRAKE CALIPER)
main90105-14198×4iURJ202..VX..GCC;VDJ200..09S..SOB;URJ202..(GXR,VX)..ARL;VDJ200..(VX,VXR)..GCC;VDJ200..05S..(ARL,GCC);VDJ200..LHD..5F..GEN..LUB;GRJ200..(05S,08S)..5F..GCC;GRJ200,URJ202..(GXR,VXR)..GEN201508-202103
*14-1.5PX35-30.5
*12-1.25PX40-30
47730CYLINDER ASSY, FRONT DISC BRAKE, RH
main47730-60340iURJ202..VX..GCC;VDJ200..09S..SOB;URJ202..(GXR,VX)..ARL;VDJ200..(VX,VXR)..GCC;VDJ200..05S..(ARL,GCC);VDJ200..LHD..5F..GEN..LUB;GRJ200..(05S,08S)..5F..GCC;GRJ200,URJ202..(GXR,VXR)..GEN201508-202103
TIRE & DISC WHEEL-285/50R20, 8.5J, ALUMINUM
47731PISTON, FRONT DISC BRAKE
main47731-60280×8iGRJ200..SOB..G;VDJ200..08S..GX;GRJ200,URJ20#..ATM;VDJ200..GX..SOB..G;VDJ200..(STD,VX)..G;GRJ200..LHD..08S..5F;VDJ200..LHD..05S..LUB201109-201508
47731ARING, SET(FOR FRONT DISC BRAKE PISTON)
47748SPRING, ANTI-RATTLE, NO.1(FOR FRONT DISC BRAKE)
47748BPIN, W/HOLE(FOR FRONT DISC BRAKE ANTI-RATTLE)
47748CSPRING, ANTI-RATTLE, NO.2(FOR FRONT DISC BRAKE)
47750CYLINDER ASSY, DISC BRAKE, LH
main47750-60340iURJ202..VX..GCC;VDJ200..09S..SOB;URJ202..(GXR,VX)..ARL;VDJ200..(VX,VXR)..GCC;VDJ200..05S..(ARL,GCC);VDJ200..LHD..5F..GEN..LUB;GRJ200..(05S,08S)..5F..GCC;GRJ200,URJ202..(GXR,VXR)..GEN201508-202103
main47750-60320iGRJ200,URJ202,VDJ200..6FC..GXR..GCC; VDJ200..6FC..GXR..GCC;URJ202..(GXR,VXR)..GCC;GRJ200,URJ200..08S..ATM202006-202104
TIRE & DISC WHEEL-285/50R20, 8.5J, ALUMINUM; TIRE & DISC WHEEL-285/50R20, 8.5J,ALUMINUM,CHROME PAINTED
17 parts on this diagram · 1 diagram in section
