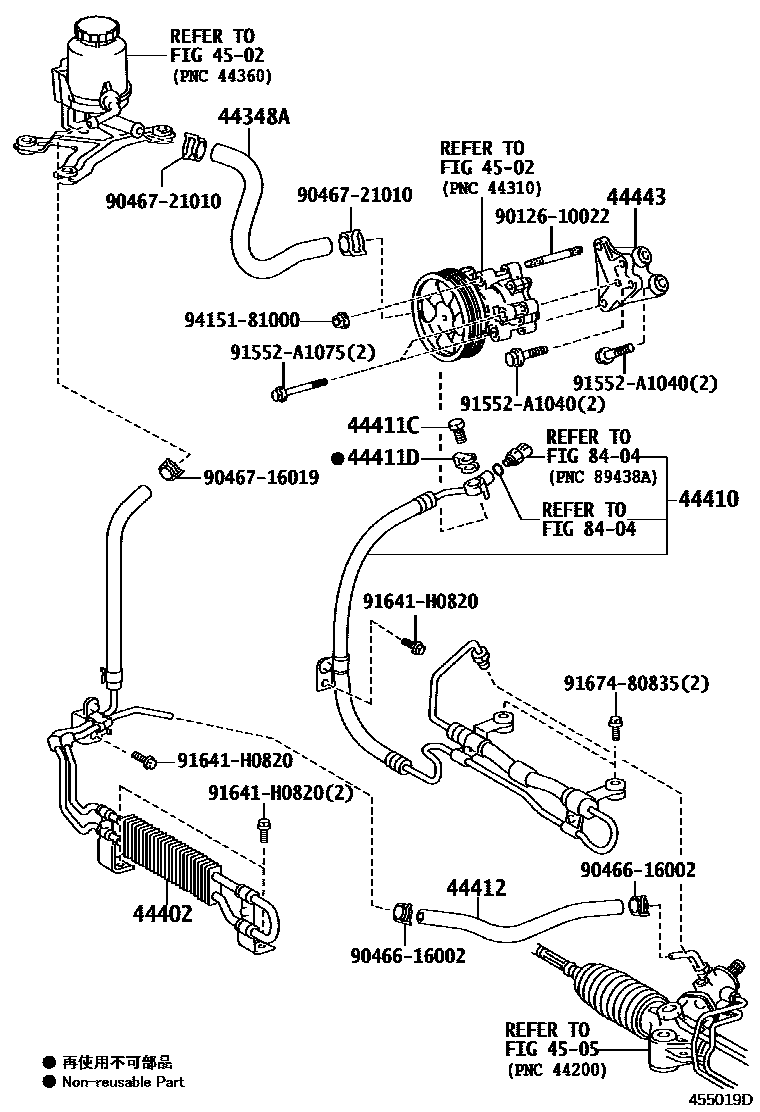

Toyota LAND CRUISER — POWER STEERING TUBE
44348AHOSE, OIL RESERVOIR TO PUMP, NO.1
44402COOLER SUB-ASSY, POWER STEERING OIL, NO.1
44410TUBE ASSY, PRESSURE FEED
44411CBOLT, UNION(FOR PRESSURE FEED HOSE)
44411DGASKET(FOR PRESSURE FEED HOSE)
44412HOSE, RETURN
44443BRACKET, PUMP
4502VANE PUMP & RESERVOIR (POWER STEERING)
4505FRONT STEERING GEAR & LINK
8404ELECTRONIC FUEL INJECTION SYSTEM
9012610022
9046616002
9046716019
9046721010
91552A1040
91552A1075
91641H0820
9167480835
9415181000
19 parts on this diagram · 16 diagrams in section
POWER STEERING TUBE for Toyota LAND CRUISER
This section contains 26 genuine Toyota parts for the POWER STEERING TUBE system of the Toyota LAND CRUISER. Key components include: HOSE, OIL RESERVOIR TO PUMP, NO.1, COOLER SUB-ASSY, POWER STEERING OIL, NO.1, TUBE ASSY, PRESSURE FEED, BOLT, UNION(FOR PRESSURE FEED HOSE), GASKET(FOR PRESSURE FEED HOSE).
