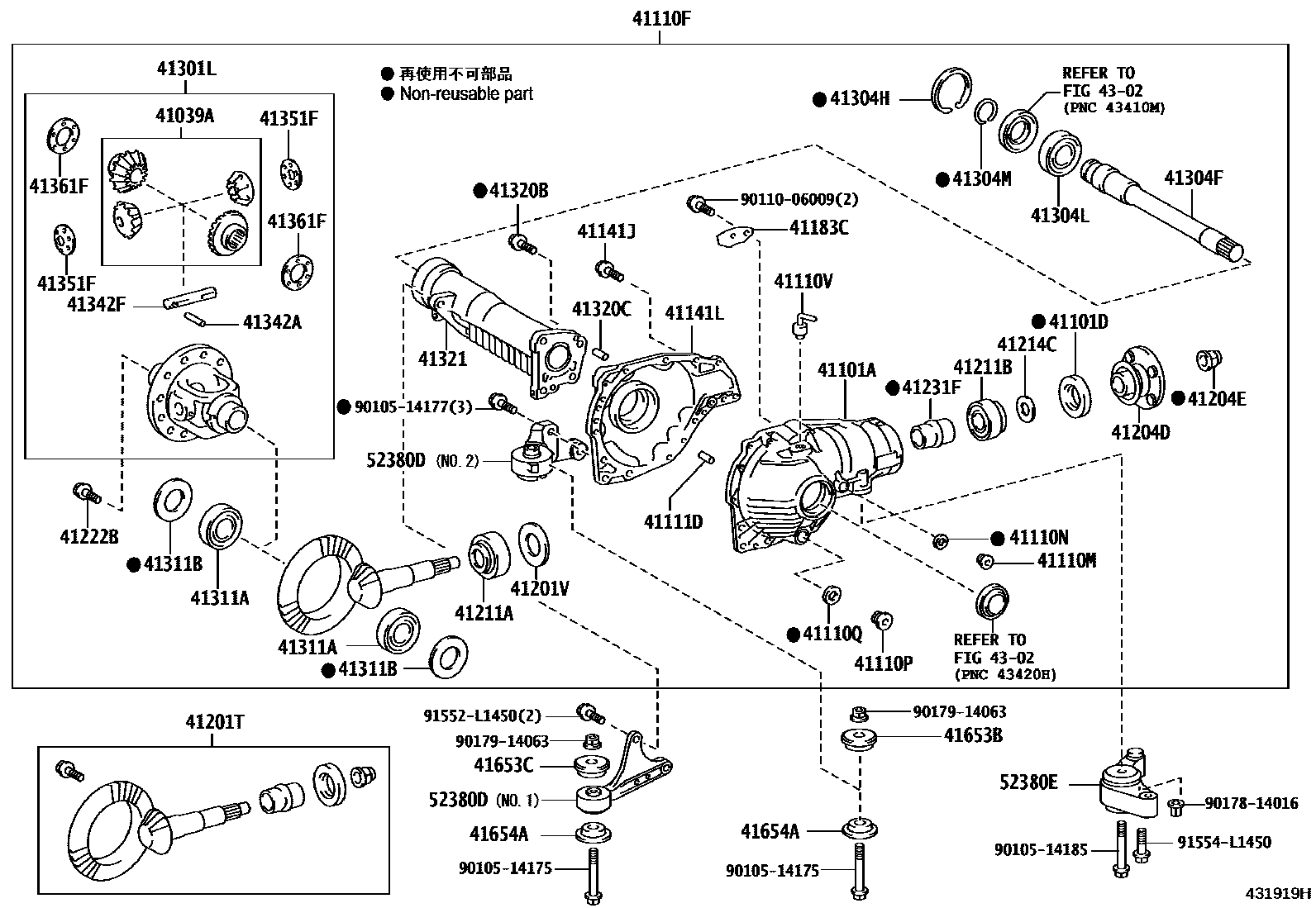

FRONT AXLE HOUSING & DIFFERENTIAL

0001 1 0002 1

41039AGEAR KIT, DIFFERENTIAL

main41039-34121iGRJ200..LHD..05S..G;GRJ200..(08S,09S)..G;URJ200,UZJ200,VDJ200..G200709-201201

41101ACARRIER SUB-ASSY, DIFFERENTIAL, FRONT

main41111-34050iGRJ200..RHD..05S200709-200907

41101DSEAL, OIL (FOR FRONT DIFFERENTIAL CARRIER)

main90311-46006iGRJ200..RHD..05S200709-200907

main90311-46007iGRJ200,URJ20#,VDJ200201505-201508

41110FCARRIER ASSY, DIFFERENTIAL, FRONT

main41110-60B80iVDJ200..08S..GX;VDJ200..GX..SOB..G;VDJ200..LHD..05S..LUB;URJ200,VDJ200..(STD,VX)..G201109-201505

*FGR=43:11=3.909

main41110-60B81iVDJ200..ARL..LUB;VDJ200..LHD..6FC..GEN;VDJ200..RHD..(05S,08S)..GEN;VDJ200..(08S,09S)..(GX,GXR)..GCC..LUB201508-202104

*FGR=43:11=3.909

main41110-60B90iGRJ200..5FC201109-201505

*FGR=41:10=4.100

main41110-60B91iGRJ200..5FC201508-201707

*FGR=41:10=4.100

main41110-60C20iGRJ200,URJ202..5F,6FC201201-201505

*FGR=43:10=4.300

main41110-60C21iGRJ200,URJ202..5F,6FC201505-201508

*FGR=43:10=4.300

main41110-60C50iURJ200201508-202104

*FGR=43:13=3.307

41110MPLUG, FRONT DIFFERENTIAL FILLER

main90341-18032iGRJ200..09S..SOB;VDJ200..ARL..LUB;GRJ200,URJ200..ATM;VDJ200..LHD..6FC..GEN;URJ202..VXR..(ARL,GCC);VDJ200..RHD..(05S,08S)..GEN;GRJ200,URJ202..(05S,08S)..(GX,VX)..GEN;URJ202,VDJ200..(08S,09S)..(GX,GXR)..GCC..LUB201508-202104

main90341-18066iGRJ200..08S,09S;GRJ200..LHD..05S;URJ200,UZJ200,VDJ200200709-201108

41110NGASKET, FRONT DIFFERENTIAL FILLER PLUG

main12157-10010iGRJ200,VDJ200..K201109-201201

41110PPLUG, FRONT DIFFERENTIAL DRAIN

main90341-24014iGRJ200..RHD..05S200709-200907

41110QGASKET, FRONT DIFFERENTIAL DRAIN PLUG

main90430-24003iGRJ200,VDJ200..K201109-201201

41110VUNION (FOR FRONT DIFFERENTIAL)

main90407-10027iGRJ200..09S..SOB;VDJ200..ARL..LUB;GRJ200,URJ200..ATM;VDJ200..LHD..6FC..GEN;URJ202..VXR..(ARL,GCC);VDJ200..RHD..(05S,08S)..GEN;GRJ200,URJ202..(05S,08S)..(GX,VX)..GEN;URJ202,VDJ200..(08S,09S)..(GX,GXR)..GCC..LUB201508-202104

41111DPIN, STRAIGHT (FOR FRONT DIFFERENTIAL CARRIER)

main90250-10017×2iGRJ200..RHD..05S200709-200907

41141JBOLT(FOR FRONT DIFFERENTIAL SIDE BEARING RETAINER)

main91552-01035×11iGRJ200..RHD..05S200709-200907

*10-1.25PX35-26

41141LRETAINER, FRONT DIFFERENTIAL CROSS SHAFT BEARING

main41141-34010iGRJ200,VDJ200..K201109-201201

41183CDEFLECTOR, FRONT DIFFERENTIAL BREATHER PLUG OIL

main41183-34010iGRJ200,VDJ200..K201109-201201

main41183-60020iURJ200201508-202104

41201TFINAL GEAR KIT, DIFFERENTIAL, FRONT

main41201-80481iVDJ200..08S..GX;VDJ200..GX..SOB..G;VDJ200..LHD..05S..LUB;URJ200,VDJ200..(STD,VX)..G201109-201505

*FGR=43:11=3.909

main41201-80482iGRJ200..K201109-201201

*FGR=41:10=4.100

main41201-80483iGRJ200,URJ202..5F,6FC201201-201505

*FGR=43:10=4.300

main41201-80602iVDJ200..09S..SOB;VDJ200..(VX,VXR)..GCC;VDJ200..05S..(ARL,GCC);VDJ200..LHD..5F..GEN..LUB201508-202103

*FGR=43:11=3.909

main41201-80603iGRJ200..5FC201508-201707

*FGR=41:10=4.100

main41201-80604iURJ202..VX..GCC;URJ202..(GXR,VX)..ARL;GRJ200..(05S,08S)..5F..GCC;GRJ200,URJ202..(GXR,VXR)..GEN201508-202103

*FGR=43:10=4.300

main41201-80794iURJ200201508-202104

*FGR=43:13=3.307

41201VSHIM (FOR FRONT DIFF DRIVE PINION SPACER REAR ADJUST)

main90564-63065iGRJ200..09S..SOB;VDJ200..ARL..LUB;GRJ200,URJ200..ATM;VDJ200..LHD..6FC..GEN;URJ202..VXR..(ARL,GCC);VDJ200..RHD..(05S,08S)..GEN;GRJ200,URJ202..(05S,08S)..(GX,VX)..GEN;URJ202,VDJ200..(08S,09S)..(GX,GXR)..GCC..LUB201508-202104

T=1.825

main90564-63066iGRJ200..RHD..05S200709-200907

T=1.850

main90564-63067iURJ202..VX..GCC;VDJ200..09S..SOB;URJ202..(GXR,VX)..ARL;VDJ200..(VX,VXR)..GCC;VDJ200..05S..(ARL,GCC);VDJ200..LHD..5F..GEN..LUB;GRJ200..(05S,08S)..5F..GCC;GRJ200,URJ202..(GXR,VXR)..GEN201508-202103

T=1.875

main90564-63068iURJ202..VX..GCC;VDJ200..09S..SOB;URJ202..(GXR,VX)..ARL;VDJ200..(VX,VXR)..GCC;VDJ200..05S..(ARL,GCC);VDJ200..LHD..5F..GEN..LUB;GRJ200..(05S,08S)..5F..GCC;GRJ200,URJ202..(GXR,VXR)..GEN201508-202103

T=1.900

main90564-63069iGRJ200..09S..SOB;VDJ200..ARL..LUB;GRJ200,URJ200..ATM;VDJ200..LHD..6FC..GEN;URJ202..VXR..(ARL,GCC);VDJ200..RHD..(05S,08S)..GEN;GRJ200,URJ202..(05S,08S)..(GX,VX)..GEN;URJ202,VDJ200..(08S,09S)..(GX,GXR)..GCC..LUB201508-202104

T=1.925

main90564-63070iURJ202..VX..GCC;VDJ200..09S..SOB;URJ202..(GXR,VX)..ARL;VDJ200..(VX,VXR)..GCC;VDJ200..05S..(ARL,GCC);VDJ200..LHD..5F..GEN..LUB;GRJ200..(05S,08S)..5F..GCC;GRJ200,URJ202..(GXR,VXR)..GEN201508-202103

T=1.950

main90564-63071iGRJ200..SOB..G;VDJ200..08S..GX;GRJ200,URJ20#..ATM;VDJ200..GX..SOB..G;VDJ200..(STD,VX)..G;GRJ200..LHD..08S..5F;VDJ200..LHD..05S..LUB201109-201508

T=1.975

main90564-63072iURJ202..VX..GCC;VDJ200..09S..SOB;URJ202..(GXR,VX)..ARL;VDJ200..(VX,VXR)..GCC;VDJ200..05S..(ARL,GCC);VDJ200..LHD..5F..GEN..LUB;GRJ200..(05S,08S)..5F..GCC;GRJ200,URJ202..(GXR,VXR)..GEN201508-202103

T=2.000

main90564-63074iGRJ200..LHD..05S..G;GRJ200..(08S,09S)..G;URJ200,UZJ200,VDJ200..G200709-201201

T=2.025

main90564-63075iURJ202..VX..GCC;VDJ200..09S..SOB;URJ202..(GXR,VX)..ARL;VDJ200..(VX,VXR)..GCC;VDJ200..05S..(ARL,GCC);VDJ200..LHD..5F..GEN..LUB;GRJ200..(05S,08S)..5F..GCC;GRJ200,URJ202..(GXR,VXR)..GEN201508-202103

T=2.050

main90564-63076iGRJ200..09S..SOB;VDJ200..ARL..LUB;GRJ200,URJ200..ATM;VDJ200..LHD..6FC..GEN;URJ202..VXR..(ARL,GCC);VDJ200..RHD..(05S,08S)..GEN;GRJ200,URJ202..(05S,08S)..(GX,VX)..GEN;URJ202,VDJ200..(08S,09S)..(GX,GXR)..GCC..LUB201508-202104

T=2.075

main90564-63077iGRJ200..LHD..05S..G;GRJ200..(08S,09S)..G;URJ200,UZJ200,VDJ200..G200709-201201

T=2.100

main90564-63078iGRJ200..09S..SOB;VDJ200..ARL..LUB;GRJ200,URJ200..ATM;VDJ200..LHD..6FC..GEN;URJ202..VXR..(ARL,GCC);VDJ200..RHD..(05S,08S)..GEN;GRJ200,URJ202..(05S,08S)..(GX,VX)..GEN;URJ202,VDJ200..(08S,09S)..(GX,GXR)..GCC..LUB201508-202104

T=2.125

main90564-63079iGRJ200..09S..SOB;VDJ200..ARL..LUB;GRJ200,URJ200..ATM;VDJ200..LHD..6FC..GEN;URJ202..VXR..(ARL,GCC);VDJ200..RHD..(05S,08S)..GEN;GRJ200,URJ202..(05S,08S)..(GX,VX)..GEN;URJ202,VDJ200..(08S,09S)..(GX,GXR)..GCC..LUB201508-202104

T=2.150

main90564-63080iGRJ200..LHD..05S..G;GRJ200..(08S,09S)..G;URJ200,UZJ200,VDJ200..G200709-201201

T=2.175

main90564-63081iGRJ200..SOB..G;VDJ200..08S..GX;GRJ200,URJ20#..ATM;VDJ200..GX..SOB..G;VDJ200..(STD,VX)..G;GRJ200..LHD..08S..5F;VDJ200..LHD..05S..LUB201109-201508

T=2.200

main90564-63082iGRJ200..09S..SOB;VDJ200..ARL..LUB;GRJ200,URJ200..ATM;VDJ200..LHD..6FC..GEN;URJ202..VXR..(ARL,GCC);VDJ200..RHD..(05S,08S)..GEN;GRJ200,URJ202..(05S,08S)..(GX,VX)..GEN;URJ202,VDJ200..(08S,09S)..(GX,GXR)..GCC..LUB201508-202104

T=2.225

main90564-63083iGRJ200..SOB..G;VDJ200..08S..GX;GRJ200,URJ20#..ATM;VDJ200..GX..SOB..G;VDJ200..(STD,VX)..G;GRJ200..LHD..08S..5F;VDJ200..LHD..05S..LUB201109-201508

T=2.250

main90564-63084iGRJ200..LHD..05S..G;GRJ200..(08S,09S)..G;URJ200,UZJ200,VDJ200..G200709-201201

T=2.275

41204DFLANGE SUB-ASSY, FRONT DRIVE PINION COMPANION, FRONT

main41204-34050iGRJ200,VDJ200..K201109-201201

main41204-60090iURJ202..VX..GCC;VDJ200..09S..SOB;URJ202..(GXR,VX)..ARL;VDJ200..(VX,VXR)..GCC;VDJ200..05S..(ARL,GCC);VDJ200..LHD..5F..GEN..LUB;GRJ200..(05S,08S)..5F..GCC;GRJ200,URJ202..(GXR,VXR)..GEN201508-202103

41204ENUT (FOR FRONT DRIVE PINION COMPANION FLANGE FRONT)

main90179-22029iGRJ200..09S..SOB;VDJ200..ARL..LUB;GRJ200,URJ200..ATM;VDJ200..LHD..6FC..GEN;URJ202..VXR..(ARL,GCC);VDJ200..RHD..(05S,08S)..GEN;GRJ200,URJ202..(05S,08S)..(GX,VX)..GEN;URJ202,VDJ200..(08S,09S)..(GX,GXR)..GCC..LUB201508-202104

41211ABEARING, TAPERED ROLLER (FOR FRONT DRIVE PINION FRONT)

main90366-40114iGRJ200..RHD..05S200709-200907

41211BBEARING, TAPERED ROLLER (FOR FRONT DRIVE PINION REAR)

main90363-35063iGRJ200..RHD..05S200709-200907

41214CSLINGER, FRONT DIFFERENTIAL DRIVE PINION OIL

main41214-34010iGRJ200..LHD..05S..G;GRJ200..(08S,09S)..G;URJ200,UZJ200,VDJ200..G200709-201201

41222BBOLT (FOR FRONT DIFFERENTIAL RING GEAR SET)

main90105-12365×12iGRJ200..LHD..05S..G;GRJ200..(08S,09S)..G;URJ200,UZJ200,VDJ200..G200709-201201

41231FSPACER, FRONT DIFFERENTIAL DRIVE PINION BEARING

main41231-34040iGRJ200..RHD..05S200709-200907

main41231-60060iURJ202..VX..GCC;VDJ200..09S..SOB;URJ202..(GXR,VX)..ARL;VDJ200..(VX,VXR)..GCC;VDJ200..05S..(ARL,GCC);VDJ200..LHD..5F..GEN..LUB;GRJ200..(05S,08S)..5F..GCC;GRJ200,URJ202..(GXR,VXR)..GEN201508-202103

41301LCASE SUB-ASSY, FRONT DIFFERENTIAL, NO.1

main41301-60150iGRJ200..RHD..05S200709-200907

main41301-60151iGRJ200..5F;VDJ200..GX;URJ202..ARL;URJ202..VX..GCC;URJ202..VXR..GEN;VDJ200..(VX,VXR)..GCC;VDJ200..LHD..5F..GEN..LUB201906-202103

main41301-60170iURJ200201508-201906

main41301-60171iURJ200201906-202104

41304FSHAFT SUB-ASSY, DIFFERENTIAL SIDE GEAR, RH

main41337-60020iGRJ200,VDJ200..K201109-201201

41304HRING, HOLE SNAP (FOR DIFFERENTIAL SIDE GEAR SHAFT)

main90521-75009iGRJ200,VDJ200..K201109-201201

41304LBEARING (FOR FRONT DIFFERENTIAL SIDE GEAR SHAFT RH)

main90363-47002iGRJ200..RHD..05S200709-200907

41304MRING, SHAFT SNAP (FOR DIFFERENTIAL SIDE GEAR SHAFT RH)

main90520-44040iGRJ200..RHD..05S200709-200907

41311ABEARING (FOR FRONT DIFFERENTIAL CASE)

main90366-58013×2iGRJ200..RHD..05S200709-200907

41311BWASHER, PLATE (FOR FRONT DIFFERENTIAL CASE)

main90564-50238iGRJ200,VDJ200..K201109-201201

T=1.50

main90564-50239iGRJ200,URJ20#,VDJ200201204-201508

T=1.52

main90564-50240iGRJ200,VDJ200..K201109-201201

T=1.54

main90564-50241iGRJ200..LHD..05S..G;GRJ200..(08S,09S)..G;URJ200,UZJ200,VDJ200..G200709-201201

T=1.56

main90564-50242iGRJ200,VDJ200..K201109-201201

T=1.58

main90564-50243iGRJ200..SOB..G;VDJ200..08S..GX;GRJ200,URJ20#..ATM;VDJ200..GX..SOB..G;VDJ200..(STD,VX)..G;GRJ200..LHD..08S..5F;VDJ200..LHD..05S..LUB201109-201204

T=1.60

main90564-50244iGRJ200..LHD..05S..G;GRJ200..(08S,09S)..G;URJ200,UZJ200,VDJ200..G200709-201201

T=1.62

main90564-50245iGRJ200,URJ20#,VDJ200201204-201508

T=1.64

main90564-50246iGRJ200..09S..SOB;VDJ200..ARL..LUB;GRJ200,URJ200..ATM;VDJ200..LHD..6FC..GEN;URJ202..VXR..(ARL,GCC);VDJ200..RHD..(05S,08S)..GEN;GRJ200,URJ202..(05S,08S)..(GX,VX)..GEN;URJ202,VDJ200..(08S,09S)..(GX,GXR)..GCC..LUB201508-202104

T=1.66

main90564-50247iGRJ200,URJ20#,VDJ200201204-201508

T=1.68

main90564-50248iGRJ200..SOB..G;VDJ200..08S..GX;GRJ200,URJ20#..ATM;VDJ200..GX..SOB..G;VDJ200..(STD,VX)..G;GRJ200..LHD..08S..5F;VDJ200..LHD..05S..LUB201109-201204

T=1.70

main90564-50249iGRJ200..SOB..G;VDJ200..08S..GX;GRJ200,URJ20#..ATM;VDJ200..GX..SOB..G;VDJ200..(STD,VX)..G;GRJ200..LHD..08S..5F;VDJ200..LHD..05S..LUB201109-201204

T=1.72

main90564-50250iGRJ200,URJ20#,VDJ200201204-201508

T=1.74

main90564-50251iGRJ200,URJ20#,VDJ200201204-201508

T=1.76

main90564-50252iGRJ200,URJ20#,VDJ200201204-201508

T=1.78

main90564-50253iGRJ200..LHD..05S..G;GRJ200..(08S,09S)..G;URJ200,UZJ200,VDJ200..G200709-201201

T=1.80

main90564-50254iGRJ200..RHD..05S200709-200907

T=1.82

main90564-50255iGRJ200..SOB..G;VDJ200..08S..GX;GRJ200,URJ20#..ATM;VDJ200..GX..SOB..G;VDJ200..(STD,VX)..G;GRJ200..LHD..08S..5F;VDJ200..LHD..05S..LUB201109-201204

T=1.84

main90564-50256iGRJ200,VDJ200..K201109-201201

T=1.86

main90564-50257iURJ202..VX..GCC;VDJ200..09S..SOB;URJ202..(GXR,VX)..ARL;VDJ200..(VX,VXR)..GCC;VDJ200..05S..(ARL,GCC);VDJ200..LHD..5F..GEN..LUB;GRJ200..(05S,08S)..5F..GCC;GRJ200,URJ202..(GXR,VXR)..GEN201508-202103

T=1.88

main90564-50258iGRJ200..09S..SOB;VDJ200..ARL..LUB;GRJ200,URJ200..ATM;VDJ200..LHD..6FC..GEN;URJ202..VXR..(ARL,GCC);VDJ200..RHD..(05S,08S)..GEN;GRJ200,URJ202..(05S,08S)..(GX,VX)..GEN;URJ202,VDJ200..(08S,09S)..(GX,GXR)..GCC..LUB201508-202104

T=1.90

main90564-50259iGRJ200..09S..SOB;VDJ200..ARL..LUB;GRJ200,URJ200..ATM;VDJ200..LHD..6FC..GEN;URJ202..VXR..(ARL,GCC);VDJ200..RHD..(05S,08S)..GEN;GRJ200,URJ202..(05S,08S)..(GX,VX)..GEN;URJ202,VDJ200..(08S,09S)..(GX,GXR)..GCC..LUB201508-202104

T=1.92

main90564-50260iGRJ200,VDJ200..K201109-201201

T=1.94

main90564-50261iGRJ200..09S..SOB;VDJ200..ARL..LUB;GRJ200,URJ200..ATM;VDJ200..LHD..6FC..GEN;URJ202..VXR..(ARL,GCC);VDJ200..RHD..(05S,08S)..GEN;GRJ200,URJ202..(05S,08S)..(GX,VX)..GEN;URJ202,VDJ200..(08S,09S)..(GX,GXR)..GCC..LUB201508-202104

T=1.96

main90564-50262iGRJ200..RHD..05S200709-200907

T=1.98

main90564-50263iURJ202..VX..GCC;VDJ200..09S..SOB;URJ202..(GXR,VX)..ARL;VDJ200..(VX,VXR)..GCC;VDJ200..05S..(ARL,GCC);VDJ200..LHD..5F..GEN..LUB;GRJ200..(05S,08S)..5F..GCC;GRJ200,URJ202..(GXR,VXR)..GEN201508-202103

T=2.00

main90564-50264iGRJ200,VDJ200..K201109-201201

T=2.02

main90564-50265iGRJ200..LHD..05S..G;GRJ200..(08S,09S)..G;URJ200,UZJ200,VDJ200..G200709-201201

T=2.04

main90564-50266iURJ202..VX..GCC;VDJ200..09S..SOB;URJ202..(GXR,VX)..ARL;VDJ200..(VX,VXR)..GCC;VDJ200..05S..(ARL,GCC);VDJ200..LHD..5F..GEN..LUB;GRJ200..(05S,08S)..5F..GCC;GRJ200,URJ202..(GXR,VXR)..GEN201508-202103

T=2.06

main90564-50267iGRJ200,VDJ200..K201109-201201

T=2.08

main90564-50268iGRJ200,URJ20#,VDJ200201204-201508

T=2.10

main90564-50269iGRJ200,URJ20#,VDJ200201204-201508

T=2.12

main90564-50270iGRJ200,VDJ200..K201109-201201

T=2.14

main90564-50271iGRJ200..RHD..05S200709-200907

T=2.16

main90564-50272iGRJ200,URJ20#,VDJ200201204-201508

T=2.18

main90564-50273iGRJ200..09S..SOB;VDJ200..ARL..LUB;GRJ200,URJ200..ATM;VDJ200..LHD..6FC..GEN;URJ202..VXR..(ARL,GCC);VDJ200..RHD..(05S,08S)..GEN;GRJ200,URJ202..(05S,08S)..(GX,VX)..GEN;URJ202,VDJ200..(08S,09S)..(GX,GXR)..GCC..LUB201508-202104

T=2.20

main90564-50274iGRJ200..RHD..05S200709-200907

T=2.22

main90564-50275iGRJ200..LHD..05S..G;GRJ200..(08S,09S)..G;URJ200,UZJ200,VDJ200..G200709-201201

T=2.24

main90564-50276iURJ202..VX..GCC;VDJ200..09S..SOB;URJ202..(GXR,VX)..ARL;VDJ200..(VX,VXR)..GCC;VDJ200..05S..(ARL,GCC);VDJ200..LHD..5F..GEN..LUB;GRJ200..(05S,08S)..5F..GCC;GRJ200,URJ202..(GXR,VXR)..GEN201508-202103

T=2.26

main90564-50277iURJ202..VX..GCC;VDJ200..09S..SOB;URJ202..(GXR,VX)..ARL;VDJ200..(VX,VXR)..GCC;VDJ200..05S..(ARL,GCC);VDJ200..LHD..5F..GEN..LUB;GRJ200..(05S,08S)..5F..GCC;GRJ200,URJ202..(GXR,VXR)..GEN201508-202103

T=2.28

main90564-50278iGRJ200,VDJ200..K201109-201201

T=2.30

main90564-50279iGRJ200,VDJ200..K201109-201201

T=2.32

main90564-50280iGRJ200..RHD..05S200709-200907

T=2.34

41320BBOLT (FOR FRONT DIFFERENTIAL TUBE)

main90105-12373×4iGRJ200..RHD..05S200709-200907

41320CPIN, STRAIGHT (FOR FRONT DIFFERENTIAL TUBE)

main90250-10017×2iGRJ200..LHD..05S..G;GRJ200..(08S,09S)..G;URJ200,UZJ200,VDJ200..G200709-201201

41321TUBE, DIFFERENTIAL EXTENSION FLANGE

main41321-60020iGRJ200..RHD..05S200709-200907

41342APIN, STRAIGHT (FOR FRONT DIFFERENTIAL PINION SHAFT)

main90250-06058iGRJ200..RHD..05S200709-200907

41342FSHAFT, FRONT DIFFERENTIAL PINION, NO.1

main41342-34020iGRJ200..RHD..05S200709-200907

main41342-60040iGRJ200..09S..SOB;VDJ200..ARL..LUB;GRJ200,URJ200..ATM;VDJ200..LHD..6FC..GEN;URJ202..VXR..(ARL,GCC);VDJ200..RHD..(05S,08S)..GEN;GRJ200,URJ202..(05S,08S)..(GX,VX)..GEN;URJ202,VDJ200..(08S,09S)..(GX,GXR)..GCC..LUB201508-202104

41351FWASHER, FRONT DIFFERENTIAL PINION THRUST

main41351-34020×2iGRJ200..LHD..05S..G;GRJ200..(08S,09S)..G;URJ200,UZJ200,VDJ200..G200709-201201

41361FWASHER, FRONT DIFFERENTIAL SIDE GEAR THRUST, NO.1

main41361-34100×2iGRJ200,VDJ200..K201109-201201

T=1.45

main41361-34110×2iGRJ200..SOB..G;VDJ200..08S..GX;GRJ200,URJ20#..ATM;VDJ200..GX..SOB..G;VDJ200..(STD,VX)..G;GRJ200..LHD..08S..5F;VDJ200..LHD..05S..LUB201109-201508

T=1.50

main41361-34120×2iGRJ200,VDJ200..K201109-201201

T=1.55

main41361-34130×2iGRJ200..SOB..G;VDJ200..08S..GX;GRJ200,URJ20#..ATM;VDJ200..GX..SOB..G;VDJ200..(STD,VX)..G;GRJ200..LHD..08S..5F;VDJ200..LHD..05S..LUB201109-201508

T=1.60

main41361-34140×2iGRJ200..LHD..05S..G;GRJ200..(08S,09S)..G;URJ200,UZJ200,VDJ200..G200709-201201

T=1.65

main41361-34150×2iGRJ200..LHD..05S..G;GRJ200..(08S,09S)..G;URJ200,UZJ200,VDJ200..G200709-201201

T=1.70

main41361-34160×2iGRJ200..SOB..G;VDJ200..08S..GX;GRJ200,URJ20#..ATM;VDJ200..GX..SOB..G;VDJ200..(STD,VX)..G;GRJ200..LHD..08S..5F;VDJ200..LHD..05S..LUB201109-201508

T=1.75

main41361-34170×2iGRJ200..SOB..G;VDJ200..08S..GX;GRJ200,URJ20#..ATM;VDJ200..GX..SOB..G;VDJ200..(STD,VX)..G;GRJ200..LHD..08S..5F;VDJ200..LHD..05S..LUB201109-201508

T=1.80

main41361-34180×2iGRJ200..RHD..05S200709-200907

T=1.85

41653BSTOPPER, DIFFERENTIAL MOUNT, UPPER

main41653-60060iGRJ200..RHD..05S200709-200907

41653CSTOPPER, FRONT DIFFERENTIAL MOUNT, UPPER

main41653-60050iGRJ200..RHD..05S200709-200907

41654ASTOPPER, DIFFERENTIAL MOUNT, LOWER

main41654-60020×2iGRJ200..SOB..G;VDJ200..08S..GX;GRJ200,URJ20#..ATM;VDJ200..GX..SOB..G;VDJ200..(STD,VX)..G;GRJ200..LHD..08S..5F;VDJ200..LHD..05S..LUB201109-201508

4302FRONT DRIVE SHAFT

→ Go to FIG 43-02

52380DSUPPORT ASSY, FRONT DIFFERENTIAL

main52380-60080iGRJ200..SOB..G;VDJ200..08S..GX;GRJ200,URJ20#..ATM;VDJ200..GX..SOB..G;VDJ200..(STD,VX)..G;GRJ200..LHD..08S..5F;VDJ200..LHD..05S..LUB201109-201508

NO.1

main52380-60090iURJ202..VX..GCC;VDJ200..09S..SOB;URJ202..(GXR,VX)..ARL;VDJ200..(VX,VXR)..GCC;VDJ200..05S..(ARL,GCC);VDJ200..LHD..5F..GEN..LUB;GRJ200..(05S,08S)..5F..GCC;GRJ200,URJ202..(GXR,VXR)..GEN201508-202103

NO.2

52380ESUPPORT ASSY, DIFFERENTIAL

main52380-60070iGRJ200..RHD..05S200709-200907

9010514175

main90105-14175

9010514177

main90105-14177

9010514185

main90105-14185

9011006009

main90110-06009

9017814016

main90178-14016

9017914063

main90179-14063

91552L1450

main91552-L1450

91554L1450

main91554-L1450

50 parts on this diagram · 2 diagrams in section
