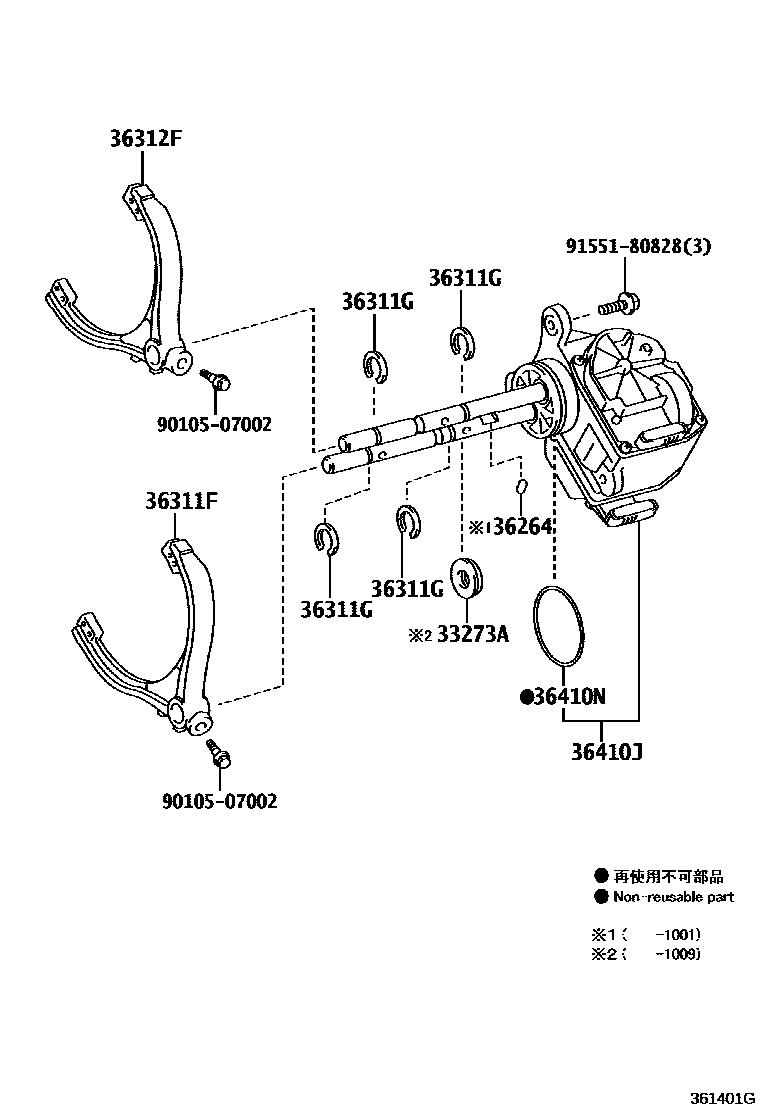

TRANSFER LEVER & SHIFT ROD

33273AWASHER, SHIFT LEVER SHAFT HOUSING, NO.1

main33273-34010iGRJ200..RHD..05S200709-200907

36264PIN OR ROLLER, SHIFT INTER-LOCK

main90250-06040iGRJ200..RHD..05S200709-200907

L=14.7,OD=6

36311FFORK, TRANSFER GEAR SHIFT, NO.1

main36301-34010iGRJ200..RHD..05S200709-200907

36311GRING, SHAFT SNAP (FOR TRANSFER GEAR SHIFT FORK)

main90520-13006×4iGRJ200..LHD..05S..G;GRJ200..(08S,09S)..G;URJ200,UZJ200,VDJ200..G200709-201201

36312FFORK, TRANSFER GEAR SHIFT, NO.2

main36301-34010iGRJ200,VDJ200..K201109-201201

main36301-34021iGRJ200..08S,09S;GRJ200..LHD..05S;URJ200,UZJ200,VDJ200200709-201009

36410JACTUATOR ASSY, TRANSFER SHIFT

main36410-60100iGRJ200,UZJ200..5FC; GRJ200,VDJ200..5F,6FC200709-200711

REFER84-01:PNC89533

main36410-60101iGRJ200,UZJ200..5FC; GRJ200,VDJ200..5F,6FC200711-201001

REFER84-01:PNC89533

main36410-60102iGRJ200,URJ200,UZJ200,VDJ200201001-201009

main36410-60103iVDJ200..08S..5F;GRJ200..LHD..08S..5F;VDJ200..LHD..05S..LUB;GRJ200,VDJ200..5F..SOB..G201109-201508

main36410-60120iGRJ200,URJ20#,VDJ200..ATM..G201109-201508

36410NRING, O (FOR TRANSFER SHIFT ACTUATOR)

main90301-56009iGRJ200..RHD..05S200709-200907

9010507002

main90105-07002

9155180828

main91551-80828

9 parts on this diagram · 1 diagram in section
