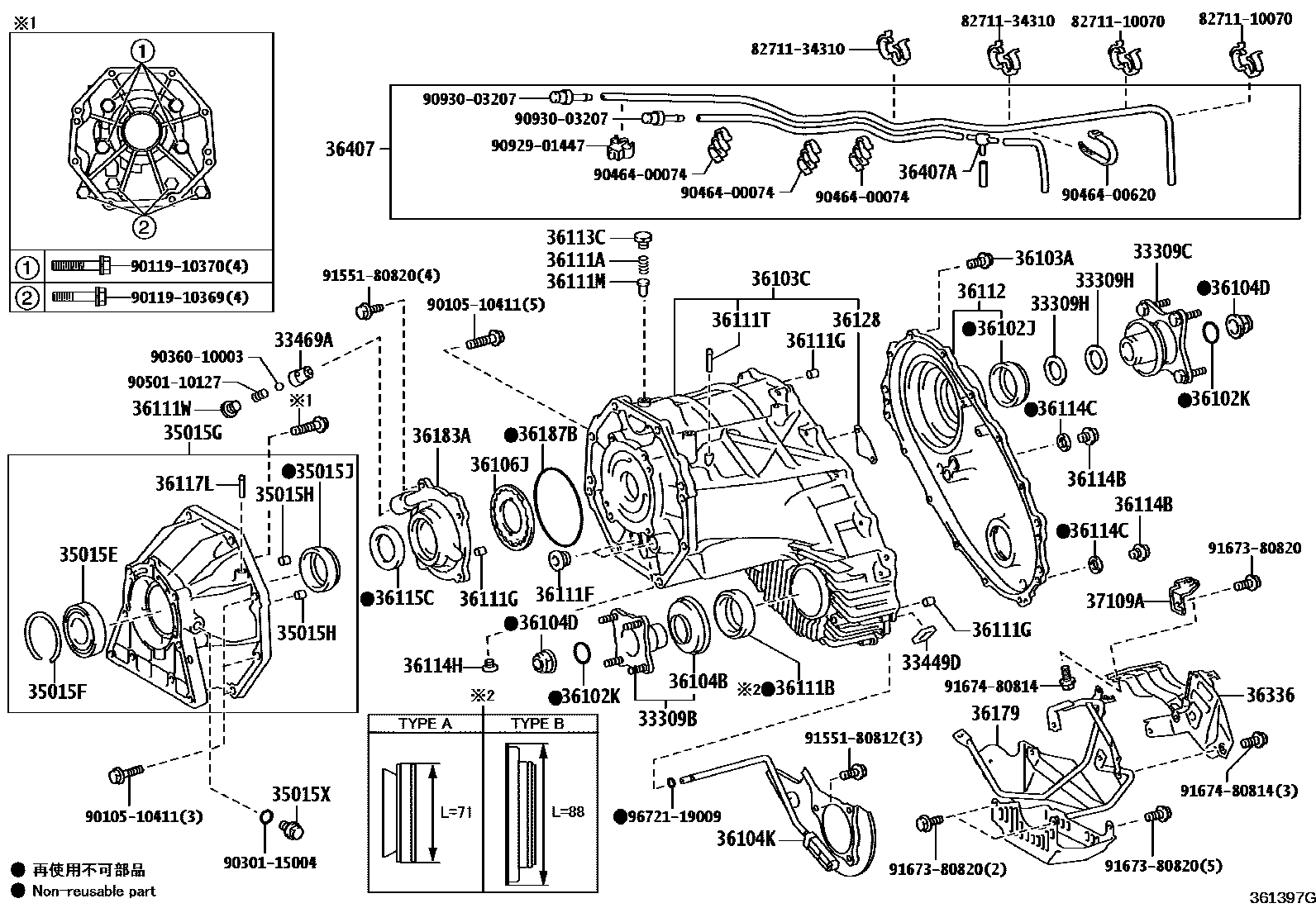

TRANSFER CASE & EXTENSION HOUSING

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1 0008 1 0009 1

33309BFLANGE SUB-ASSY, OUTPUT SHAFT COMPANION

main33309-34020iGRJ200..SOB..G;VDJ200..08S..GX;GRJ200,URJ20#..ATM;VDJ200..GX..SOB..G;VDJ200..(STD,VX)..G;GRJ200..LHD..08S..5F;VDJ200..LHD..05S..LUB201109-201502

PNC 36111B=TYPE A

main33309-34030iGRJ200,URJ20#,VDJ200201508-201811

main33309-34031iURJ202;VDJ200..6FC..GXR;VDJ200..GX,VX,VXR;GRJ200,URJ200..5F,8FC;VDJ200..LHD..5F..GEN..LUB201811-202103

main33309-60170iURJ200;URJ202..VX..GEN;VDJ200..6FC..GXR..GCC;URJ202..(GXR,VXR)..GCC;VDJ200..6FC..(ARL,GEN)..LUB202103-202104

33309CFLANGE SUB-ASSY, OUTPUT SHAFT COMPANION

main33309-60110iGRJ200..RHD..05S200709-200907

33309HWASHER, TRANSFER OUTPUT SHAFT

main36275-34010×2iGRJ200..09S..SOB;VDJ200..ARL..LUB;GRJ200,URJ200..ATM;VDJ200..LHD..6FC..GEN;URJ202..VXR..(ARL,GCC);VDJ200..RHD..(05S,08S)..GEN;GRJ200,URJ202..(05S,08S)..(GX,VX)..GEN;URJ202,VDJ200..(08S,09S)..(GX,GXR)..GCC..LUB201508-202104

T=0.8

33449DMAGNET (FOR TRANSFER CASE)

main33449-60010iGRJ200..RHD..05S200709-200907

33469ASEAT, RELIEF VALVE (FOR TRANSFER EXTENSION REAR HOUSING)

main33469-60020iGRJ200..RHD..05S200709-200907

35015EBEARING, RADIAL BALL(FOR TRANSFER CASE ADAPTER)

main90363-35067iGRJ200,UZJ200..5FC200709-201201

main90363-40084iURJ200201007-201201

(J)

main90363-A0009iURJ200201201-201508

(L)

35015FRING, HOLE SNAP(FOR TRANSFER ADAPTER)

main90520-A0045iURJ200201405-201508

(L)

main90521-80004iGRJ200,URJ202,VDJ200..ATM..G201109-201508

35015GADAPTER, TRANSFER, REAR

main35015-0C040iURJ200201007-201201

(L)

main35015-60200iGRJ200..5FC201201-201508

main35015-60210iURJ202,VDJ200..6FC..G201109-201508

main35015-60220iURJ200201508-202104

main35015-60230iGRJ200..6FC201708-202104

35015HPIN, RING(FOR TRANSFER CASE)

main90250-11003×2iGRJ200,UZJ200..5FC200709-201201

35015JSEAL, OIL(FOR TRANSFER CASE ADAPTER REAR)

main90311-51008iURJ202..VX..GCC;URJ202..VXR..GEN;VDJ200..05S..6FC;URJ202..(GXR,VX)..ARL;VDJ200..(VX,VXR)..GCC201508-202103

35015XPLUG, REFILL(FOR TRANSMISSION CASE ADAPTER)

main90341-18059iGRJ200..5FC201201-201508

36102JSEAL, TYPE T OIL (FOR TRANSFER COVER)

main90311-50040iGRJ200..RHD..05S200709-200907

main90311-50065iURJ200;URJ202..VX..GEN;VDJ200..6FC..GXR..GCC;URJ202..(GXR,VXR)..GCC;VDJ200..6FC..(ARL,GEN)..LUB202103-202104

36102KRING, O

main90301-31003×2iGRJ200..RHD..05S200709-200907

36103ABOLT (FOR TRANSFER CASE)

main91551-00845×14iGRJ200..RHD..05S200709-200907

*8-1.25PX45-22

36103CCASE, TRANSFER, FRONT

main36103-60360iGRJ200..RHD..05S200709-200907

main36103-60361iGRJ200..5F;VDJ200..GX;URJ202..ARL;URJ202..VX..GCC;URJ202..VXR..GEN;VDJ200..(VX,VXR)..GCC;VDJ200..LHD..5F..GEN..LUB201905-202103

36104BDEFLECTOR, DUST (FOR TRANSFER OUTPUT SHAFT)

main33325-34020iGRJ200..RHD..05S200709-200907

main33325-34030iGRJ200,URJ20#,VDJ200201502-201508

PNC 36111B=TYPE B

main33325-34031iURJ202;VDJ200..6FC..GXR;VDJ200..GX,VX,VXR;GRJ200,URJ200..5F,8FC;VDJ200..LHD..5F..GEN..LUB201811-202103

36104DNUT (FOR TRANSFER OUTPUT SHAFT)

main90179-24011×2iGRJ200..RHD..05S200709-200907

36104KSEPARATOR SUB-ASSY, TRANSFER OIL

main36104-34010iGRJ200..RHD..05S200709-200907

36106JROTOR, TRANSFER OIL PUMP

main36106-34010iGRJ200..RHD..05S200709-200907

36111ASPRING, COMPRESSION (FOR TRANSFER CASE)

main90501-20091iGRJ200..RHD..05S200709-200907

36111BSEAL, OIL (FOR TRANSFER CASE)

main90311-50039iGRJ200..RHD..05S200709-200907

main90311-50055iGRJ200,URJ20#,VDJ200201502-201508

TYPE B:REFER ILLUST.

main90311-50066iURJ200;URJ202..VX..GEN;VDJ200..6FC..GXR..GCC;URJ202..(GXR,VXR)..GCC;VDJ200..6FC..(ARL,GEN)..LUB202103-202104

36111FPLUG (FOR TRANSFER CASE)

main90341-24006×2iGRJ200..RHD..05S200709-200907

36111GPIN, STRAIGHT (FOR TRANSFER CASE)

main90250-10214×4iGRJ200..RHD..05S200709-200907

L=14,OD=10

36111MPIN, SLOTTED SPRING (FOR TRANSFER CASE)

main90241-07003iGRJ200..LHD..05S..G;GRJ200..(08S,09S)..G;URJ200,UZJ200,VDJ200..G200709-201201

36111TTUBE (FOR TRANSFER CASE)

main90441-05001iGRJ200..RHD..05S200709-200907

36111WPLUG, TIGHT NO.2(FOR TRANSFER CASE)

main90341-18039iGRJ200..RHD..05S200709-200907

36112CASE, TRANSFER, REAR

main36104-60051iGRJ200..RHD..05S200709-200907

main36104-60052iGRJ200,URJ200,UZJ200,VDJ200..G201009-201201

main36104-60053iGRJ200..5F;VDJ200..GX;URJ202..ARL;URJ202..VX..GCC;URJ202..VXR..GEN;VDJ200..(VX,VXR)..GCC;VDJ200..LHD..5F..GEN..LUB201905-202103

36113CPLUG (FOR TRANSFER CASE)

main90341-14012iGRJ200..RHD..05S200709-200907

36114BPLUG, NO.1 (FOR TRANSFER CASE)

main90341-18006×2iGRJ200..RHD..05S200709-200907

36114CGASKET, NO.1 (FOR TRANSFER CASE)

main90430-18008×2iGRJ200..RHD..05S200709-200907

36114HPLUG, NO.2 (FOR TRANSFER CASE)

main90341-14008iGRJ200..RHD..05S200709-200907

36115CSEAL, TYPE T OIL (FOR TRANSFER EXTENSION HOUSING)

main90311-51009iGRJ200..RHD..05S200709-200907

36117LTUBE(FOR TRANSFER ADAPTER)

main90441-05001iURJ202..VX..GCC;URJ202..VXR..GEN;VDJ200..05S..6FC;URJ202..(GXR,VX)..ARL;VDJ200..(VX,VXR)..GCC201508-202103

36128DEFLECTOR, BREATHER OIL

main36128-34010iGRJ200..RHD..05S200709-200907

main36128-60080iURJ200;URJ202..VX..GEN;VDJ200..6FC..GXR..GCC;URJ202..(GXR,VXR)..GCC;VDJ200..6FC..(ARL,GEN)..LUB202103-202104

T=1.4

36179PROTECTOR, TRANSFER CASE LOWER

main36179-60010iGRJ200..RHD..05S200709-200907

36183APLATE, TRANSFER OIL PUMP

main36183-34011iGRJ200..RHD..05S200709-200907

36187BRING, O (FOR TRANSFER OIL STRAINER)

main96721-31130iGRJ200..RHD..05S200709-200907

36336INSULATOR, TRANSFER HEAT

main36336-60030iGRJ200..RHD..05S200709-200907

36407HOSE SUB-ASSY, TRANSFER BREATHER

main36407-60160iGRJ200..5FC201201-201508

main36407-60170iGRJ200..5F201508-202103

main36407-60180iUZJ200200709-201201

main36407-60190iURJ200201201-201508

main36407-60200iVDJ200..ARL..K201109-201201

main36407-60210iVDJ200..09S..SOB;VDJ200..05S..GCC..SOB;VDJ200..LHD..5F..GEN..LUB201508-202103

main36407-60290iURJ202..VX..GEN;URJ202..GXR..GCC;URJ202..VXR..(ARL,GCC)201508-202104

main36407-60310iURJ200201508-202104

main36407-60360iGRJ200..5FC201508-201707

main36407-60370iVDJ200..05S..6FC;VDJ200..(VX,VXR)..GCC201508-202103

main36407-60380iGRJ200..6FC201708-202104

36407AWAY, 3(FOR TRANSFER BREATHER HOSE)

main90413-04001iURJ202..VX..GEN;GRJ200,URJ200..ATM;URJ202..VXR..(ARL,GCC);VDJ200..6FC..(ARL,GEN)..LUB;URJ202,VDJ200..(08S,09S)..6FC..(GX,GXR)..GCC201508-202104

37109ABRACKET SUB-ASSY, PROPELLER SHAFT HEAT INSULATOR

main37109-60080iGRJ200..RHD..05S200709-200907

8271110070WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-10070

8271134310WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-34310

9010510411

main90105-10411

9011910369

main90119-10369

9011910370

main90119-10370

9030115004

main90301-15004

9036010003

main90360-10003

9046400074

main90464-00074

9046400620

main90464-00620

9050110127

main90501-10127

9092901447

main90929-01447

9093003207

main90930-03207

9155180812

main91551-80812

9155180820

main91551-80820

9167380820

main91673-80820

9167480814

main91674-80814

9672119009

main96721-19009

58 parts on this diagram · 9 diagrams in section
