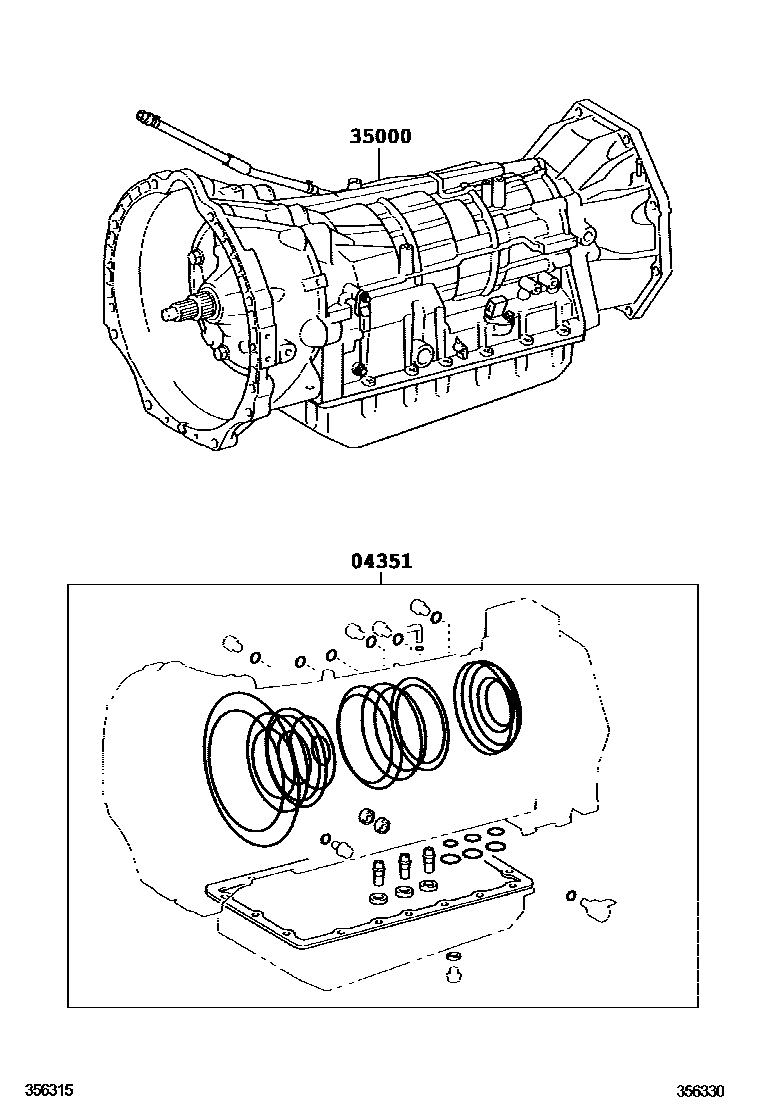

TRANSAXLE OR TRANSMISSION ASSY & GASKET KIT (ATM)

0001 1A750F 0002 1AB60F 0003 1AE80F 0004 1AC60F

04351GASKET KIT, AUTOMATIC TRANSMISSION OVERHAUL

main04351-60470iGRJ200..5FC201201-201508

main04351-60520iVDJ200..6FC200709-200911

main04351-60530iURJ20#,VDJ200..6FC..G201109-201508

main04351-60610iURJ200201508-202104

main04351-60630iGRJ200..6FC201708-202104

35000TRANSMISSION ASSY, AUTOMATIC

main35000-0W020iURJ200201201-201508

AB60F,(L)

main35000-60B60iGRJ200..5FC200709-201105

A750F

main35000-60B70iUZJ200200709-201105

A750F

main35000-60B90iVDJ200..6FC..G200709-201201

AB60F

main35000-60C10iURJ200201007-201201

AB60F,(J)

main35000-60C80iGRJ200..5FC201105-201110

A750F

main35000-60C90iURJ202201201-201508

AB60F

main35000-60D10iUZJ200201105-201201

A750F

main35000-60D30iVDJ200..6FC201201-201508

AB60F

main35000-60D80iGRJ200..5FC201508-201707

A750F

main35000-60E10iGRJ200..5FC201111-201201

A750F

main35000-60E50iURJ200201508-201703

AE80F

main35000-60E51iURJ200201703-201807

AE80F

main35000-60E90iVDJ200..05S..6FC;VDJ200..(VX,VXR)..GCC201508-202103

AB60F

main35000-60F10iGRJ200..6FC201708-202104

AC60F

main35000-60F20iURJ200201808-202104

AE80F

2 parts on this diagram · 4 diagrams in section
