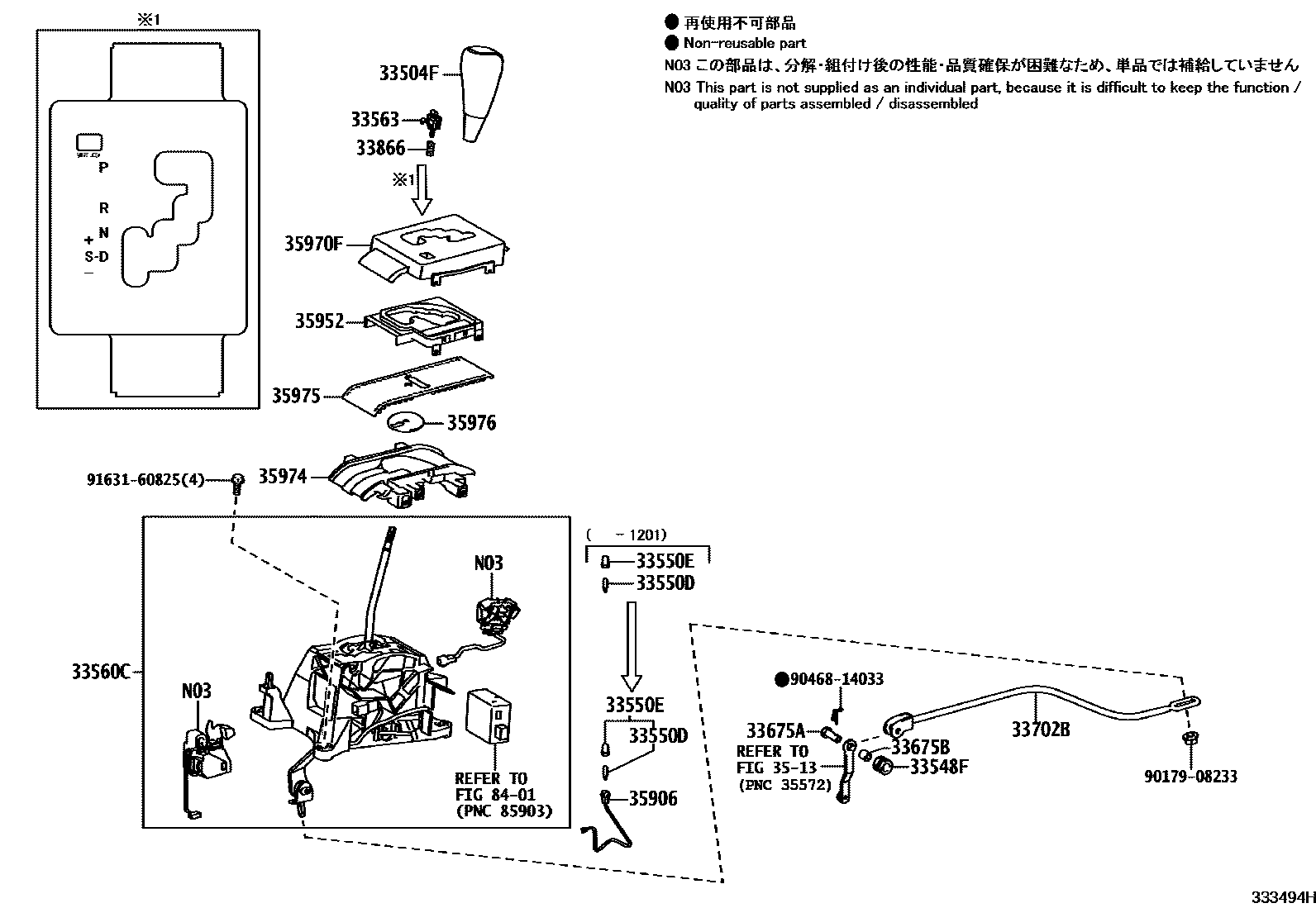

SHIFT LEVER & RETAINER
33504FKNOB SUB-ASSY, SHIFT LEVER
main33504-60121-C0iGRJ200,VDJ200..LHD..5F..GEN..LUB; GRJ200..5F..GCC..LUB; VDJ200..09S..SOB;GRJ200,VDJ200..05S..GCC..SOB201508-202103
BLACK,TRIM1#; BLACK,TRIM1#,2#; BLACK,TRIM1#,2#,42,46
DK. BROWN,TRIM4#
ORCHID BROWN,TRIM0#,4#; ORCHID BROWN,TRIM0#,47
BLACK,TRIM1#,2#
DK. BROWN,TRIM4#
ORCHID BROWN,TRIM0#
BLACK & MD.SILVER,TRIM1#,2#; BLACK & MD.SILVER,TRIM2#
ORCHID BROWN & MD.SILVER,TRIM0#
BLACK & MD.SILVER,TRIM1#,2#; BLACK & MD.SILVER,TRIM2#
ORCHID BROWN & MD. SILVER,TRIM0#
main33504-60440-C0iGRJ200..GX..LUB;VDJ200..09S..LUB;VDJ200..RHD..6FC..GXR..GEN; URJ202,VDJ200..6FC..GXR..GCC; VDJ200..LHD..6FC..GXR..GEN201508-202104
BLACK,TRIM1#; BLACK,TRIM1#,2#; BLACK,TRIM1#,2#,42,46
ORCHID BROWN,TRIM0#,4#; ORCHID BROWN,TRIM0#,47
main33504-60450-C0iURJ202..VX..ARL; URJ202..VX..GCC;URJ202..GXR..ARL;URJ202..VXR..GEN;VDJ200..(VX,VXR)..GCC201508-202103
BLACK,TRIM1#,2#,42,46; BLACK,TRIM2#,42,46
main33504-60450-E0iURJ200;URJ202..VX..GEN;VDJ200..GXR..ARL;URJ202..VXR..(ARL,GCC);VDJ200..(VX,VXR)..(ARL,GEN)201508-202104
ORCHID BROWN,TRIM0#,47
GRADE MARK-GX(MARK LESS) & 60TH ANNIVERSARY,BLACK,TRIM1#
GRADE MARK-GX(MARK LESS) & 60TH ANNIVERSARY,DK. BROWN,TRIM4#
SHIFT LEVER & KNOB-WOOD & LEATHER,BLACK,TRIM1#
main33504-60240-C1iURJ202,VDJ200..6FC..GX..GCC; URJ202..LHD..VX;GRJ200..08S..5FC;URJ200,VDJ200..VX; URJ202..VX..ARL; VDJ200..VX;URJ202..GEN201201-201302
STEERING WHEEL-LEATHER & FAKE WOOD,W(STRG HEATER),BLACK & BROWN,TRIM1#,2#; STEERING WHEEL-LEATHER & FAKE WOOD,W(STRG HEATER),BLACK & BROWN,TRIM2#; STEERING WHEEL-LEATHER+FAKE WOOD,BLACK & BROWN,TRIM1#; STEERING WHEEL-LEATHER+FAKE WOOD,BLACK & BROWN,TRIM1#,2#; STEERING WHEEL-LEATHER+FAKE WOOD,BLACK & BROWN,TRIM2#
SHIFT LEVER & KNOB-WOOD & LEATHER,DK. BROWN,TRIM4#
main33504-60240-E2iURJ202,VDJ200..VX..(ARL,GEN); URJ202..GX..GCC;URJ202,VDJ200..VX;GRJ200,URJ200,VDJ200..08S..ATM..GCC201201-201302
STEERING WHEEL-LEATHER & FAKE WOOD,W(STRG HEATER),ORCHID BROWN & LT.BROWN,TRIM0#; STEERING WHEEL-LEATHER+FAKE WOOD,ORCHID BROWN & LT.BROWN,TRIM0#
main33504-60241-C1iURJ202,VDJ200..6FC..GX..GCC; URJ202..LHD..VX;GRJ200..08S..5FC;URJ200,VDJ200..VX; URJ202..VX..ARL; VDJ200..VX;URJ202..GEN201302-201508
STEERING WHEEL-LEATHER & FAKE WOOD,W(STRG HEATER),BLACK & BROWN,TRIM1#,2#; STEERING WHEEL-LEATHER & FAKE WOOD,W(STRG HEATER),BLACK & BROWN,TRIM2#; STEERING WHEEL-LEATHER+FAKE WOOD,BLACK & BROWN,TRIM1#; STEERING WHEEL-LEATHER+FAKE WOOD,BLACK & BROWN,TRIM1#,2#; STEERING WHEEL-LEATHER+FAKE WOOD,BLACK & BROWN,TRIM2#
main33504-60241-E2iURJ202,VDJ200..VX..(ARL,GEN); URJ202..GX..GCC;URJ202,VDJ200..VX;GRJ200,URJ200,VDJ200..08S..ATM..GCC201302-201508
STEERING WHEEL-LEATHER & FAKE WOOD,W(STRG HEATER),ORCHID BROWN & LT.BROWN,TRIM0#; STEERING WHEEL-LEATHER+FAKE WOOD,ORCHID BROWN & LT.BROWN,TRIM0#
33548FBUSH, NO.1, SHIFT LEVER (FOR FLOOR SHIFT)
33550FLOOR SHIFT ASSY, TRANSMISSION
33550DBULB, POSITION INDICATOR LAMP
12V 1.2W W/O SOCKET
33550ECAP, POSITION INDICATOR LAMP
33560CLEVER ASSY, SHIFT, LOWER
33563BUTTON, SHIFT LOCK RELEASE
main33563-60210iURJ202..VX..GCC;URJ202..VXR..GEN;URJ202..(GXR,VX)..ARL;VDJ200..(05S,08S)..(GX,VX,VXR)..GCC..LUB201508-202103
33675APIN, W/HOLE (FOR TRANSMISSION CONTROL ROD)
33675BBUSH (FOR TRANSMISSION CONTROL ROD)
33702BROD SUB-ASSY, GEAR SHIFTING, NO.1 (FOR FLOOR SHIFT)
33866SPRING, SHIFT LOCK RELEASE
main33866-33010iURJ202..VX..GCC;URJ202..VXR..GEN;URJ202..(GXR,VX)..ARL;VDJ200..(05S,08S)..(GX,VX,VXR)..GCC..LUB201508-202103
3513THROTTLE LINK & VALVE LEVER (ATM)
35906WIRE SUB-ASSY, INDICATOR LAMP
main35906-30220iURJ202..VX..GCC;URJ202..VXR..GEN;URJ202..(GXR,VX)..ARL;VDJ200..(05S,08S)..(GX,VX,VXR)..GCC..LUB201508-202103
35952LENS, POSITION INDICATOR
main35952-60050iURJ202..VX..GCC;URJ202..VXR..GEN;VDJ200..(05S,08S)..(GX,VX,VXR)..GCC..LUB201508-202103
35970FHOUSING ASSY, POSITION INDICATOR
main35970-60260iURJ202..VX..GEN;GRJ200,URJ200..ATM;VDJ200..LHD..6FC..GEN;URJ202..(GXR,VXR)..GCC;VDJ200..(08S,09S)..6FC..(GX,GXR)..GCC201508-202104
35974HOUSING, POSITION INDICATOR, LOWER
35975COVER, SLIDE (FOR POSITION INDICATOR)
main35975-60130iURJ202..VX..GCC;URJ202..VXR..GEN;URJ202..(GXR,VX)..ARL;VDJ200..(05S,08S)..(GX,VX,VXR)..GCC..LUB201508-202103
35976COVER, SLIDE, NO.2 (FOR POSITION INDICATOR)
main35976-60060iURJ202..VX..GCC;URJ202..VXR..GEN;URJ202..(GXR,VX)..ARL;VDJ200..(05S,08S)..(GX,VX,VXR)..GCC..LUB201508-202103
8401SWITCH & RELAY & COMPUTER
9017908233
main90179-08233
9046814033
main90468-14033
9163160825
main91631-60825
22 parts on this diagram · 7 diagrams in section
