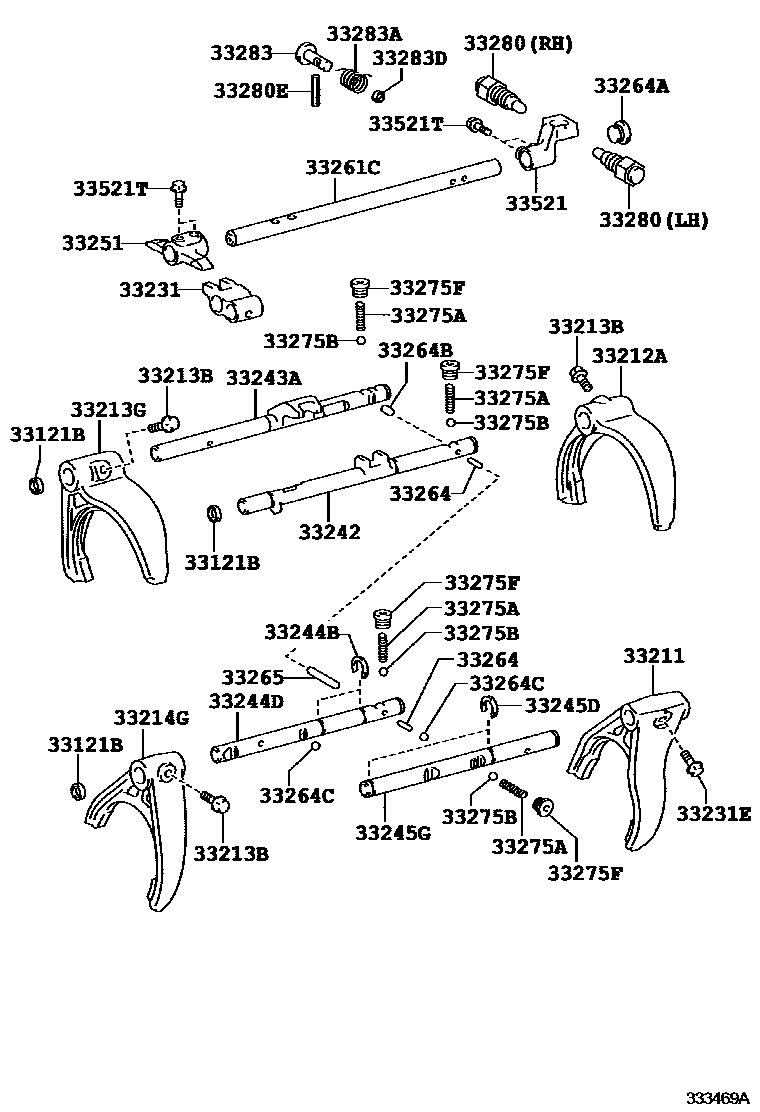

GEAR SHIFT FORK & LEVER SHAFT (MTM)
33121BPLUG, EXPANSION OR TIGHT(FOR TRANSMISSION CASE COVER)
33211FORK, REVERSE SHIFT
33212AFORK, GEAR SHIFT, NO.1
33213BBOLT(FOR SHIFT FORK SET)
33213GFORK, GEAR SHIFT, NO.2
33214GFORK, GEAR SHIFT, NO.3
33231HEAD, REVERSE SHIFT
33231EBOLT(FOR REVERSE SHIFT HEAD)
33242SHAFT, GEAR SHIFT FORK, NO.1
33243ASHAFT, GEAR SHIFT FORK, NO.2
33244BRING, SHAFT SNAP (FOR SHIFT FORK SHAFT)
33244DSHAFT, GEAR SHIFT FORK, NO.3
main33244-60051iVDJ200..09S..SOB;VDJ200..05S..GCC..SOB;GRJ200..(05S,08S)..5F..GCC;GRJ200,VDJ200..LHD..5F..GEN..LUB201602-202104
33245DRING, SHAFT SNAP (FOR 3RD & 4TH SHIFT FORK SHAFT)
33245GSHAFT, GEAR SHIFT FORK, NO.4
33251LEVER, SHIFT & SELECT
33261CSHAFT, SHIFT & SELECT LEVER
33264PIN, OR BALL, SHIFT INTERLOCK, NO.1
L=15.45
33264APLUG, INTERLOCK HOLE
33264BROLLER, NO.1 (FOR SHIFT INTERLOCK )
L=13.6,OD=9.5
33264CBALL (FOR SHIFT INTERLOCK)
33265PIN, SHIFT INTERLOCK, NO.2
L=56.95,OD=9.53
33275ASPRING, COMPRESSION (FOR SHIFT DETENT BALL LOW SIDE)
L=29.3
33275BBALL, SHAFT DETENT
33275FPLUG (FOR SHIFT DETENT BALL)
33280PIN ASSY, REVERSE RESTRICT
RH
LH
LH
LH
33280EPIN, SLOTTED SPRING (FOR REVERSE RESTRICT PIN)
33283PIN, REVERSE RESTRICT, NO.1
33283ASPRING, COMPRESSION (FOR REVERSE RESTRICT PIN)
33283DPLUG (FOR REVERSE RESTRICT PIN)
33521HOUSING, SHIFT LEVER
33521TBOLT (FOR SHIFT LEVER HOUSING)
31 parts on this diagram · 1 diagram in section
