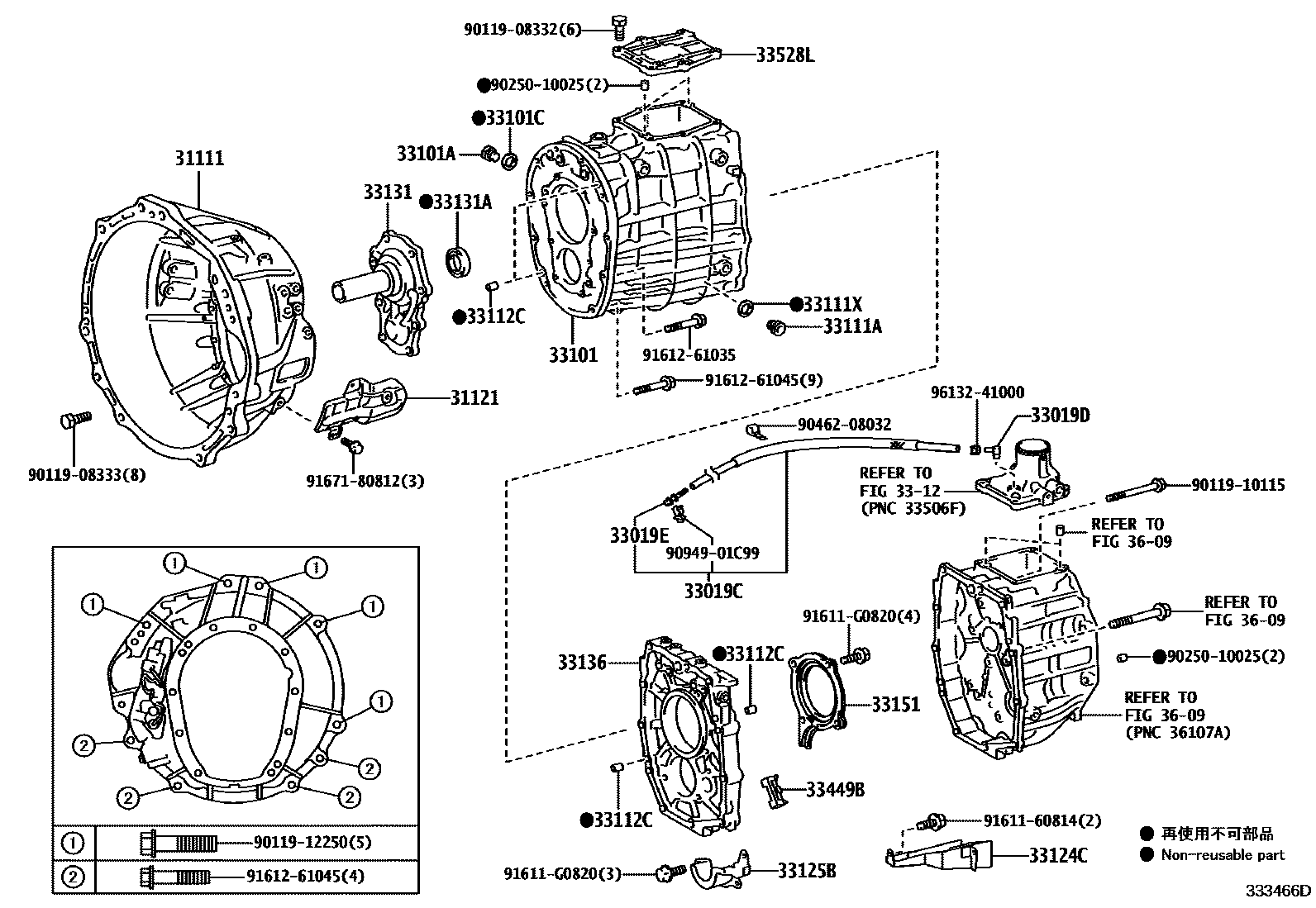

CLUTCH HOUSING & TRANSMISSION CASE (MTM)
31111HOUSING, CLUTCH
31121COVER, CLUTCH HOUSING, NO.1
33019CBREATHER SUB-ASSY, TRANSMISSION
33019D2 WAY(FOR TRANSMISSION BREATHER HOSE)
main90412-07004iVDJ200..09S..SOB;VDJ200..05S..GCC..SOB;GRJ200..(05S,08S)..5F..GCC;GRJ200,VDJ200..LHD..5F..GEN..LUB201508-202103
33019EPLUG SUB-ASSY, BREATHER(FOR TRANSMISSION)
33101CASE SUB-ASSY, MANUAL TRANSMISSION
33101APLUG(FOR MANUAL TRANSMISSION FILLER)
33101CGASKET(FOR MANUAL TRANSMISSION FILLER PLUG)
33111APLUG, MANUAL TRANSMISSION CASE
main90341-18019iGRJ200..09S..SOB;GRJ200..05S..GEN;VDJ200..5F..GCC..LUB;VDJ200..RHD..(05S,08S)..5F201508-202104
33111XGASKET, TRANSMISSION CASE PLUG
33112CPIN, STRAIGHT(FOR TRANSFER ADAPTER)
3312SHIFT LEVER & RETAINER
33124CPIPE, OIL RECEIVER, NO.1(MTM)
main33124-60070iVDJ200..09S..SOB;VDJ200..05S..GCC..SOB;GRJ200..(05S,08S)..5F..GCC;GRJ200,VDJ200..LHD..5F..GEN..LUB201602-202103
33125BRECEIVER, MANUAL TRANSMISSION CASE
33131RETAINER, BEARING, FRONT(MTM)
33131ASEAL, OIL(FOR TRANSMISSION FRONT BEARING RETAINER)
33136PLATE, TRANSMISSION INTERMEDIATE
33151RETAINER, OUTPUT SHAFT REAR BEARING(MTM)
33449BMAGNET, TRANSMISSION
33528LCOVER, CONTROL SHAFT
3609TRANSFER CASE & EXTENSION HOUSING
9011908332
main90119-08332
9011908333
main90119-08333
9011910115
main90119-10115
9011912250
main90119-12250
9025010025
main90250-10025
9046208032
main90462-08032
9094901C99
main90949-01C99
9161160814
main91611-60814
91611G0820
main91611-G0820
9161261035
main91612-61035
9161261045
main91612-61045
9167180812
main91671-80812
9613241000
main96132-41000
34 parts on this diagram · 2 diagrams in section
