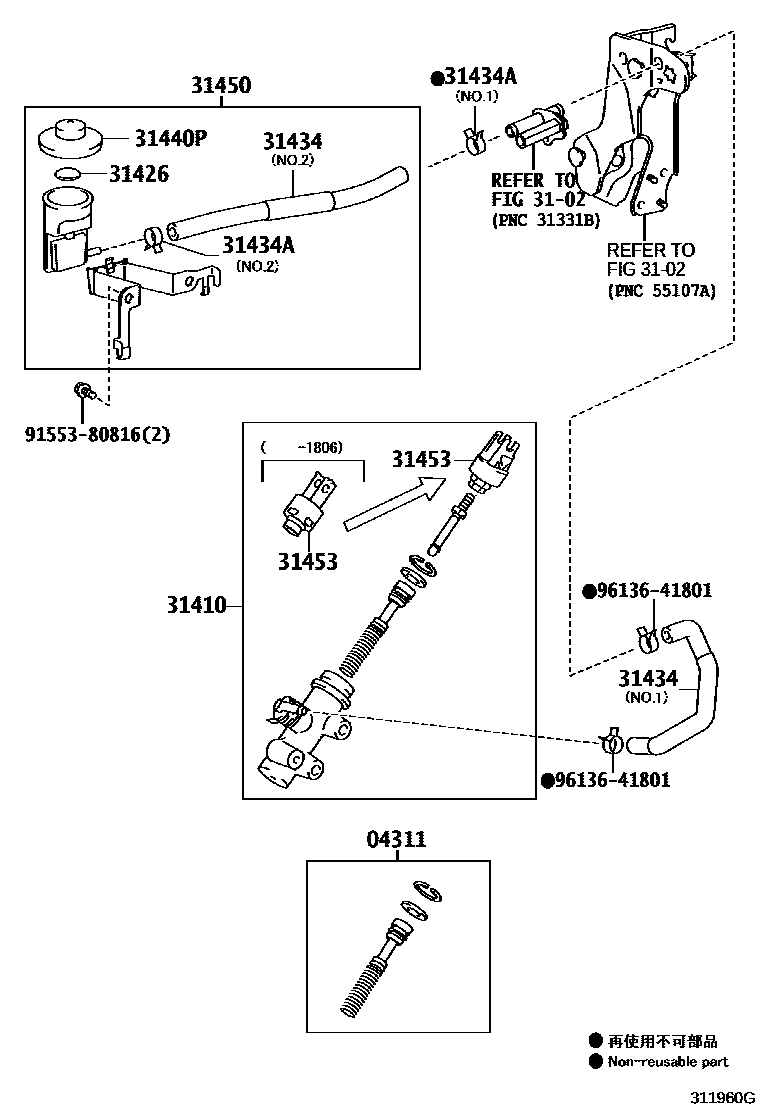

CLUTCH MASTER CYLINDER

0001 1 0002 1 0003 1

04311CYLINDER KIT, CLUTCH MASTER

main04311-60100iGRJ200..RHD..05S200709-200907

main04311-60180iGRJ200,VDJ200..LHD..5F..G200709-201201

3102CLUTCH PEDAL & FLEXIBLE HOSE

→ Go to FIG 31-02

31410CYLINDER ASSY, CLUTCH MASTER

main31420-35070iGRJ200..5F;VDJ200..GCC..SOB;VDJ200..LHD..5F..GEN201806-202103

main31420-60060iGRJ200,VDJ200..LHD..5F..G200709-201201

main31420-60070iGRJ200..RHD..05S200709-200907

main31420-60071iVDJ200..RHD..09S201701-202103

31426FLOAT, CLUTCH MASTER CYLINDER RESERVOIR

main31426-22020iGRJ200..RHD..05S200709-200907

31434TUBE, CLUTCH RESERVOIR

main31434-60070iGRJ200..GEN..LUB;VDJ200..GCC..SOB;VDJ200..LHD..5F..GEN;GRJ200..(05S,08S)..5F..GCC201508-202103

NO.1

main31434-60080iGRJ200..LHD..5F201508-202103

NO.2

main31434-60090iGRJ200..RHD;VDJ200..RHD..(05S,08S)..5F201508-202104

main31434-60100iVDJ200..LHD..K201109-201201

NO.2

31434ACLIP(FOR CLUTCH RESERVOIR TUBE)

main96133-41500iGRJ200..05S..GEN;VDJ200..5F..GCC..LUB;GRJ200..LHD..09S..SOB201508-202104

NO.2

main96136-41801iGRJ200,VDJ200..LHD..K; GRJ200,VDJ200..RHD..GEN..K201109-201201

NO.1

31440PCAP ASSY, CLUTCH MASTER CYLINDER RESERVOIR FILLER

main31405-35020iVDJ200..5F..G;GRJ200..LHD..05S..G;GRJ200..(08S,09S)..5F..G200709-201201

31450RESERVOIR ASSY, CLUTCH MASTER CYLINDER W/BRACKET

main31450-60020iGRJ200..LHD..SOB..G;GRJ200..LHD..08S..5F201109-201508

main31450-60030iVDJ200..LHD..5F..G200709-201201

31453CLEVIS, CLUTCH MASTER CYLINDER PUSH ROD

main31404-0K010iVDJ200..5F..GCC..LUB201806-202104

main31404-35013iGRJ200,VDJ200..LHD..5F..G200709-201201

9155380816

main91553-80816

9613641801

main96136-41801

11 parts on this diagram · 3 diagrams in section
