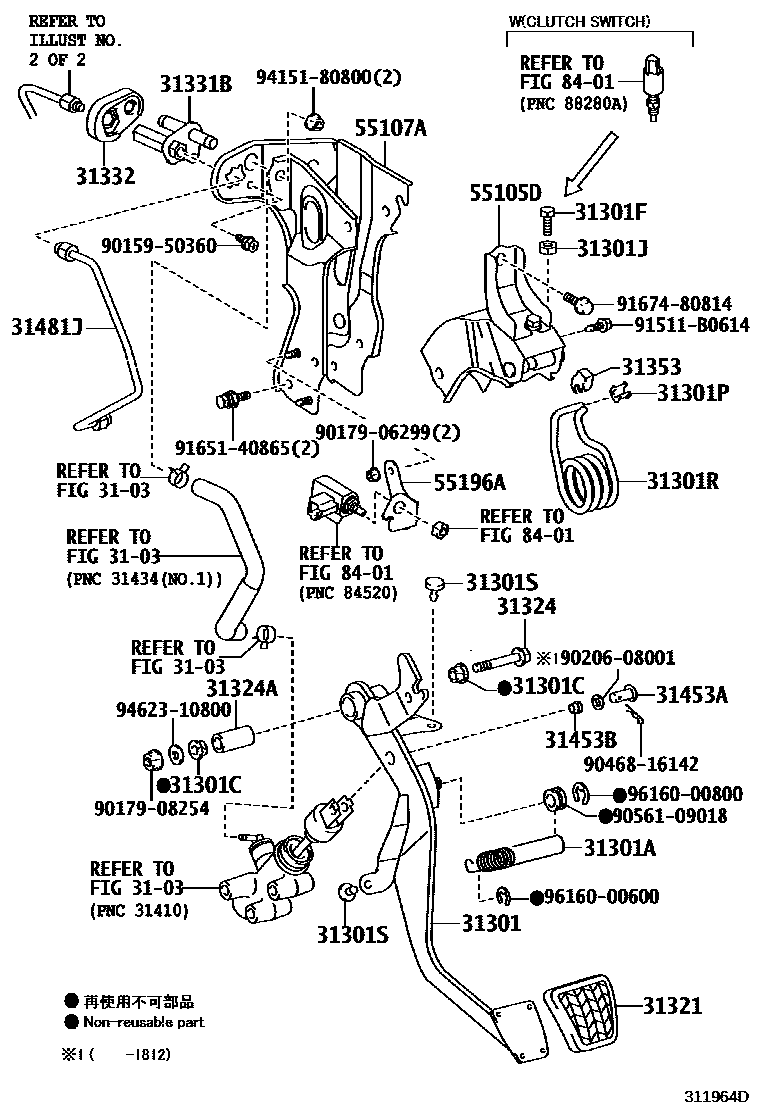

CLUTCH PEDAL & FLEXIBLE HOSE

0001 1 0002 1 0003 1 0004 1 0005 1

3103CLUTCH MASTER CYLINDER

→ Go to FIG 31-03

31301PEDAL SUB-ASSY, CLUTCH

main31301-60300iGRJ200..GEN..LUB;VDJ200..GCC..SOB;VDJ200..LHD..5F..GEN;GRJ200..(05S,08S)..5F..GCC201508-202103

main31311-60260iGRJ200..RHD..08S;VDJ200..RHD..5F..G200709-201201

31301ASPRING(FOR CLUTCH PEDAL)

main90507-23024iGRJ200..RHD..05S200709-200907

main90507-23025iGRJ200..LHD..SOB..G;GRJ200..LHD..08S..5F;VDJ200..LHD..09S..SOB..G;VDJ200..LHD..(05S,08S)..5F..G201109-201508

31301CBUSH(FOR CLUTCH PEDAL)

main90386-14015×2iGRJ200..09S..SOB;GRJ200..05S..GEN;VDJ200..5F..GCC..LUB;VDJ200..RHD..(05S,08S)..5F201508-202104

31301FBOLT(FOR CLUTCH PEDAL STOPPER)

main90101-10369iGRJ200..LHD..05S..G;GRJ200..(08S,09S)..5F..G200709-201201

31301JNUT(FOR CLUTCH PEDAL STOPPER)

main94130-61000iGRJ200..RHD..05S200709-200907

31301PBUSH(FOR CLUTCH PEDAL TURNOVER)

main90389-06055iGRJ200..GEN..LUB;VDJ200..GCC..SOB;VDJ200..LHD..5F..GEN;GRJ200..(05S,08S)..5F..GCC201508-202103

31301RSPRING, COMPRESSION(FOR TURNOVER SPRING SEAT)

main90949-03152iGRJ200..RHD..05S200709-200907

main90949-03153iGRJ200..LHD..SOB..G;GRJ200..LHD..08S..5F;VDJ200..LHD..09S..SOB..G;VDJ200..LHD..(05S,08S)..5F..G201109-201508

31301SCUSHION, NO.2(FOR CLUTCH PEDAL)

main90541-06036iGRJ200..LHD..SOB..G;GRJ200..LHD..08S..5F;VDJ200..LHD..09S..SOB..G;VDJ200..LHD..(05S,08S)..5F..G; VDJ200..RHD..08S..5F;GRJ200,VDJ200..RHD..GEN..SOB..G201109-201508

31321PAD, CLUTCH PEDAL

main31321-52010iVDJ200..5F..G;GRJ200..LHD..05S..G;GRJ200..(08S,09S)..5F..G200709-201201

main31321-52020iVDJ200..09S..SOB;VDJ200..05S..GCC..SOB;GRJ200..(05S,08S)..5F..GCC;GRJ200,VDJ200..LHD..5F..GEN..LUB201512-202103

31324SHAFT, CLUTCH PEDAL

main90105-08261iGRJ200..RHD..05S200709-200907

31324ACOLLAR, CLUTCH PEDAL SHAFT

main90387-08160iGRJ200..RHD..05S200709-200907

31331BWAY, CLUTCH PEDAL SUPPORT

main31331-60020iGRJ200,VDJ200..LHD..5F..G200709-201201

31332GROMMET, CLUTCH PEDAL SUPPORT

main31332-60021iGRJ200,VDJ200..LHD..K201109-201201

31353HOLDER, CLUTCH PEDAL SPRING

main31353-26010iVDJ200..5F..G;GRJ200..LHD..05S..G;GRJ200..(08S,09S)..5F..G200709-201201

31453APIN, W/HOLE(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS)

main90240-08006iGRJ200,VDJ200..LHD..5F..G200709-201201

L=23.5

main90249-08256iVDJ200..5F..GCC..LUB201805-202104

L=36.5

31453BBUSH(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS)

main90386-08033iGRJ200,VDJ200..LHD..K201109-201201

31481TUBE, CLUTCH MASTER CYLINDER TO FLEXIBLE HOSE

main31481-60A60iVDJ200..RHD..08S..5F;GRJ200,VDJ200..RHD..GEN..SOB..G201109-201508

main31481-60A70iGRJ200,VDJ200..LHD..5F..G200709-201201

main31481-60B80iVDJ200..RHD..5F..LUB201808-202104

31481JTUBE, CLUTCH MASTER CYLINDER TO 2 WAY

main31481-60A80iGRJ200,VDJ200..LHD..5F..G200709-201201

55105DBRACKET SUB-ASSY, CLUTCH PEDAL

main55105-60031iGRJ200,VDJ200..RHD..GEN..K201109-201201

main55105-60041iGRJ200..05S..GEN;VDJ200..5F..GCC..LUB;GRJ200..LHD..09S..SOB201508-202104

55107ASUPPORT SUB-ASSY, CLUTCH PEDAL

main55107-60250iGRJ200,VDJ200..RHD..GEN..K201109-201201

main55107-60261iGRJ200..GEN..LUB;VDJ200..GCC..SOB;VDJ200..LHD..5F..GEN;GRJ200..(05S,08S)..5F..GCC201508-202103

55196ABRACKET, CLUTCH START SWITCH MOUNTING

main55196-60040iGRJ200,VDJ200..LHD..K201109-201201

main55196-60050iGRJ200..RHD..05S200709-200907

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

9015950360

main90159-50360

9017906299

main90179-06299

9017908254

main90179-08254

9020608001

main90206-08001

9046816142

main90468-16142

9056109018

main90561-09018

91511B0614

main91511-B0614

9165140865

main91651-40865

9167480814

main91674-80814

9415180800

main94151-80800

9462310800

main94623-10800

9616000600

main96160-00600

9616000800

main96160-00800

36 parts on this diagram · 5 diagrams in section
