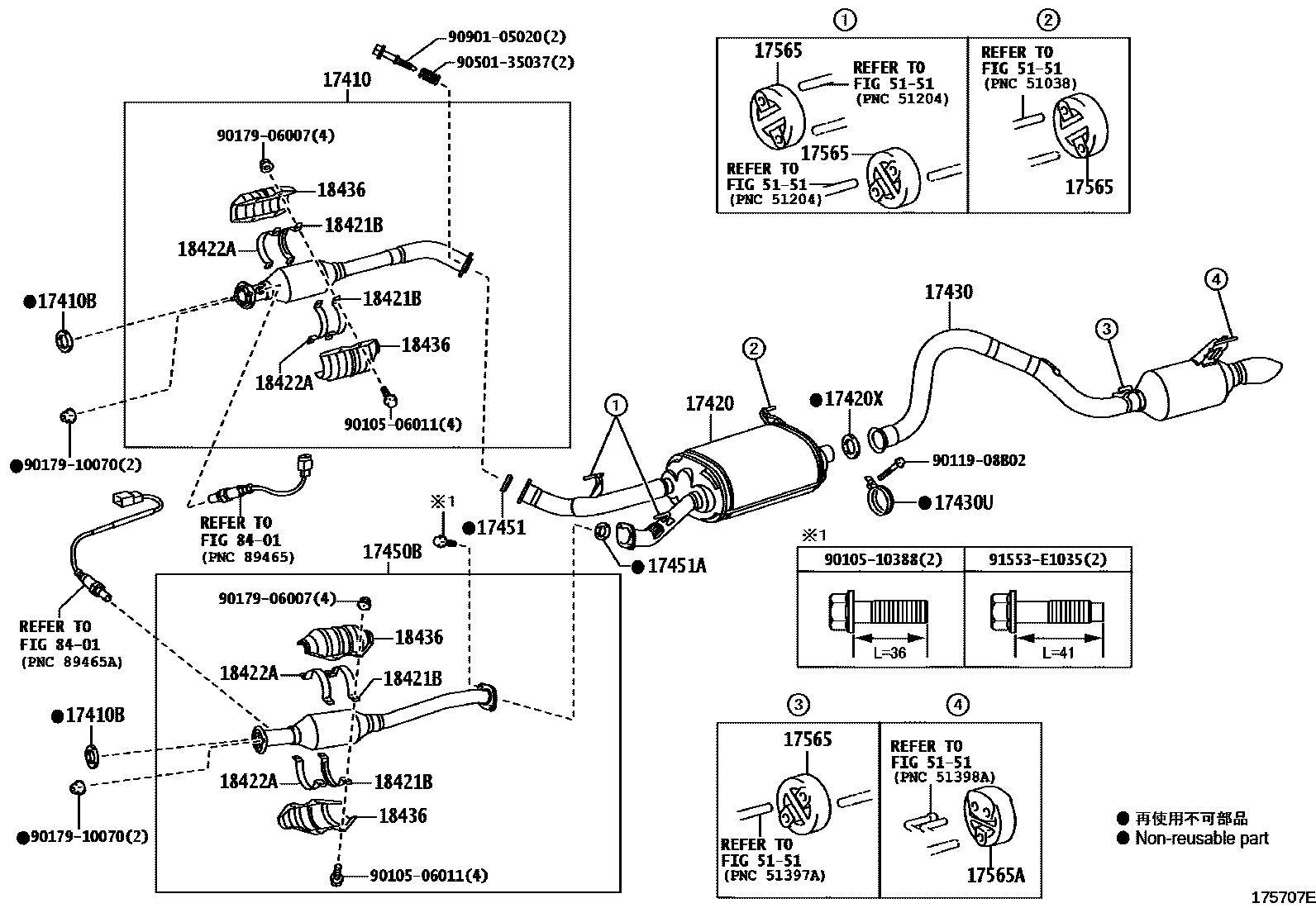

EXHAUST PIPE
17410PIPE ASSY, EXHAUST, FRONT
COMOROS ISLANDS & IVORY COAST SPEC
NIGERIA SPEC
*114=TOYOTA/X71/Y
*114=TOYOTA/X57/Y
*114=TOYOTA/T77T89/Y
*114=TOYOTA/X31/Y,EXHAUST EMISSION CONTROL-EUROPE STEP3,WITH(EGR) & WITHOUT(OBD)
*114=TOYOTA/X31/Y
*114=TOYOTA/X31/Y,EXHAUST EMISSION CONTROL-EUROPE STEP2,WITH(EGR) & WITHOUT(OBD)
*114=TOYOTA/X31/Y,NIGERIA SPEC&EXHAUST EMISSION CONTROL-EUROPE STEP2,WITH(EGR) & WITHOUT(OBD)
EXHAUST EMISSION CONTROL-EUROPE STEP2,WITH(EGR) & WITHOUT(OBD)
EXHAUST EMISSION CONTROL-EUROPE STEP3,WITH(EGR) & WITHOUT(OBD)
EXHAUST EMISSION CONTROL-EUROPE STEP4,WITH(EGR) & WITHOUT(OBD)
EXHAUST EMISSION CONTROL-EUROPE STEP5, WITH(EGR) & WITH(OBD)
17410BGASKET, EXHAUST PIPE
SOUTH AFRICA SPEC
main90917-06090i1GRFE..GRJ200..SOB..G;1GRFE..GRJ200..LHD..08S..5F;1GRFE,1URFE,3URFE..GRJ200,URJ20#..ATM200709-202104
17420PIPE ASSY, EXHAUST, CENTER
main17420-51010i1VDFTV..VDJ200..LHD..6FC..GEN;1VDFTV..VDJ200..RHD..(05S,08S)..GEN;1VDFTV..VDJ200..(08S,09S)..(GX,GXR)..GCC..LUB200709-202104
EXHAUST EMISSION CONTROL-EUROPE STEP3, WITH(EGR) & WITHOUT(OBD)
EXHAUST EMISSION CONTROL-EUROPE STEP3,WITH(EGR) & WITHOUT(OBD)
EXHAUST EMISSION CONTROL-EUROPE STEP2,WITH(EGR) & WITHOUT(OBD)
EXHAUST EMISSION CONTROL-EUROPE STEP2, WITH(EGR) & WITHOUT(OBD)
17420XGASKET, EXHAUST PIPE, CENTER
main90917-06093i1URFE,3URFE..URJ20#;1VDFTV..VDJ200..08S..GX;1VDFTV..VDJ200..GX..SOB..G;1VDFTV..VDJ200..(STD,VX)..G;1VDFTV..VDJ200..LHD..05S..LUB200709-202104
17430PIPE ASSY, EXHAUST, TAIL
KUWAIT SPEC
GCC SPEC(UAE,BAHRAIN)
QATAR, OMAN, BAHRAIN SPEC
YEMEN SPEC
main17430-51010i1VDFTV..VDJ200..09S..SOB;1VDFTV..VDJ200..LHD..5F..GEN..LUB;1VDFTV..VDJ200..(05S,08S)..(GX,VX,VXR)..GCC200709-202104
QATAR, OMAN, BAHRAIN SPEC
GCC SPEC(UAE,BAHRAIN)
SAUDI ARABIA SPEC
KUWAIT SPEC
YEMEN SPEC
17430UCLAMP NO.1, EXHAUST TAILPIPE (FOR REAR)
17450PIPE ASSY, EXHAUST, NO.5
17450BPIPE ASSY, EXHAUST, FRONT NO.2
COMOROS ISLANDS & IVORY COAST SPEC
NIGERIA SPEC
*114=TOYOTA/X57/Y
*114=TOYOTA/X71/Y
*114=TOYOTA/T77T89/Y
main17450-51010i1VDFTV..VDJ200..LHD..VX;1VDFTV..VDJ200..08S..GX..GEN;1VDFTV..VDJ200..LHD..05S..LUB;1VDFTV..VDJ200..RHD..(STD,VX)..GEN..G201109-201308
*114=TOYOTA/X31/Y,NIGERIA SPEC&EXHAUST EMISSION CONTROL-EUROPE STEP2,WITH(EGR) & WITHOUT(OBD)
*114=TOYOTA/X31/Y
*114=TOYOTA/X31/Y,EXHAUST EMISSION CONTROL-EUROPE STEP3,WITH(EGR) & WITHOUT(OBD)
*114=TOYOTA/X31/Y,EXHAUST EMISSION CONTROL-EUROPE STEP2,WITH(EGR) & WITHOUT(OBD)
main17450-51020i1VDFTV..VDJ200..09S..SOB;1VDFTV..VDJ200..LHD..5F..GEN..LUB;1VDFTV..VDJ200..(05S,08S)..(GX,VX,VXR)..GCC200709-202104
*114=TOYOTA/ZC2/Y
EXHAUST EMISSION CONTROL-EUROPE STEP4,WITH(EGR) & WITHOUT(OBD)
EXHAUST EMISSION CONTROL-EUROPE STEP2,WITH(EGR) & WITHOUT(OBD)
EXHAUST EMISSION CONTROL-EUROPE STEP3,WITH(EGR) & WITHOUT(OBD)
EXHAUST EMISSION CONTROL-EUROPE STEP5, WITH(EGR) & WITH(OBD)
17451GASKET, EXHAUST PIPE
main17451-28040i1VDFTV..VDJ200..G;1GRFE..GRJ200..LHD..05S..G;1GRFE..GRJ200..(08S,09S)..G200709-202104
17451AGASKET, EXHAUST PIPE, NO.2
main90917-06078i1URFE..URJ202..VX..GCC;1URFE..URJ202..VXR..GEN;1VDFTV..VDJ200..09S..SOB;1URFE..URJ202..(GXR,VX)..ARL;1VDFTV..VDJ200..LHD..5F..GEN..LUB;1VDFTV..VDJ200..(05S,08S)..(G201508-202103
SOUTH AFRICA SPEC
17565SUPPORT, EXHAUST PIPE, NO.5
main17565-28010i1GRFE..GRJ200..09S..SOB;1VDFTV..VDJ200..ARL..LUB;1URFE..URJ202..VXR..(ARL,GCC);1VDFTV..VDJ200..LHD..6FC..GEN;1GRFE,3URFE..GRJ200,URJ200..ATM;1VDFTV..VDJ200..RHD..(0200709-202104
17565ASUPPORT, EXHAUST PIPE, NO.4
main17565-31050i1GRFE..GRJ200..SOB..G;1VDFTV..VDJ200..08S..GX;1VDFTV..VDJ200..GX..SOB..G;1GRFE..GRJ200..LHD..08S..5F;1VDFTV..VDJ200..(STD,VX)..G;1VDFTV..VDJ200..LHD..05S..LUB;1GRFE200709-202104
18421BSTAY, CONVERTER PROTECTOR, NO.2
18422STAY, CONVERTER PROTECTOR, NO.2
NO.2
NO.1
18422ASTAY, CONVERTER PROTECTOR, NO.3
18436PROTECTOR, MONOLITHIC CONVERTER, NO.1
NO.1
NO.1
NO.2
NO.2
5151FRAME
8401SWITCH & RELAY & COMPUTER
9010506011
main90105-06011
9010510388
main90105-10388
9011908B02
main90119-08B02
9017906007
main90179-06007
9017910070
main90179-10070
9050135037
main90501-35037
9090105020
main90901-05020
91553E1035
main91553-E1035
26 parts on this diagram · 5 diagrams in section
