V-BELT

Parts diagram

1106TIMING GEAR COVER & REAR END PLATE

→ Go to FIG 11-06

1601WATER PUMP

→ Go to FIG 16-01

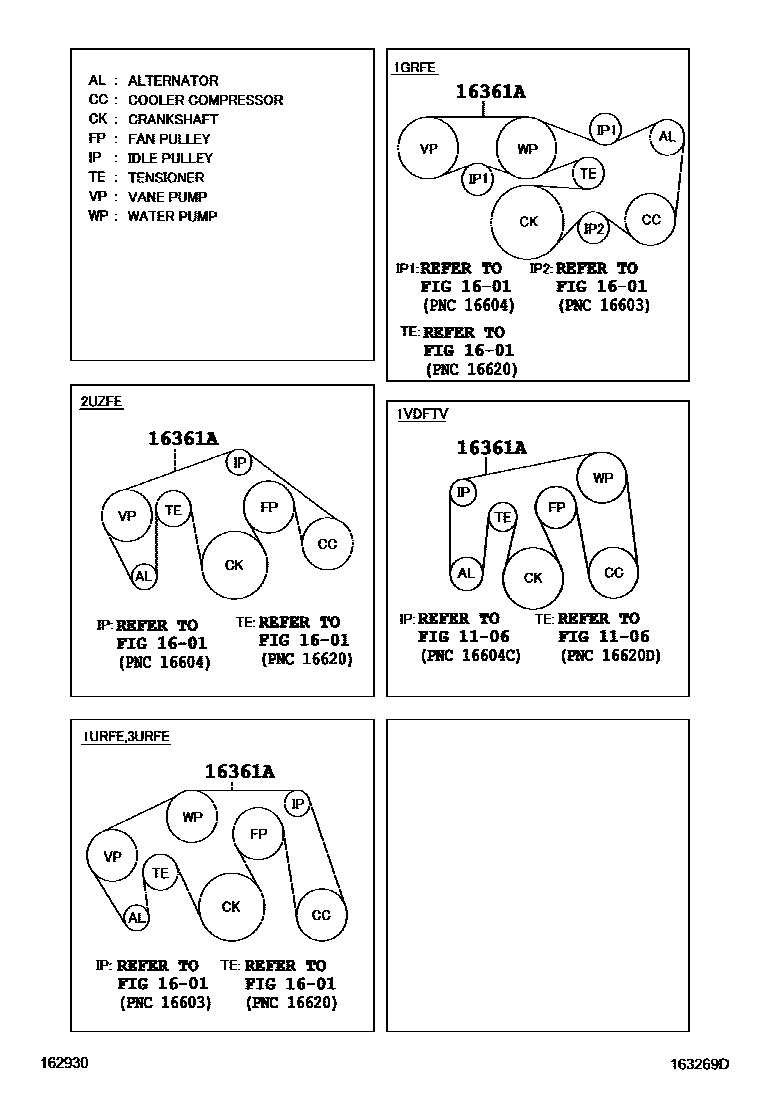

16361ABELT, V(FOR FAN & ALTERNATOR)

main90916-02464i200709-201201

main90916-02571i201109-201201

main90916-02680i201201-201508

main90916-02759i201707-202103

main99367-H2150i201201-201508

main99369-K2250i201109-201201
