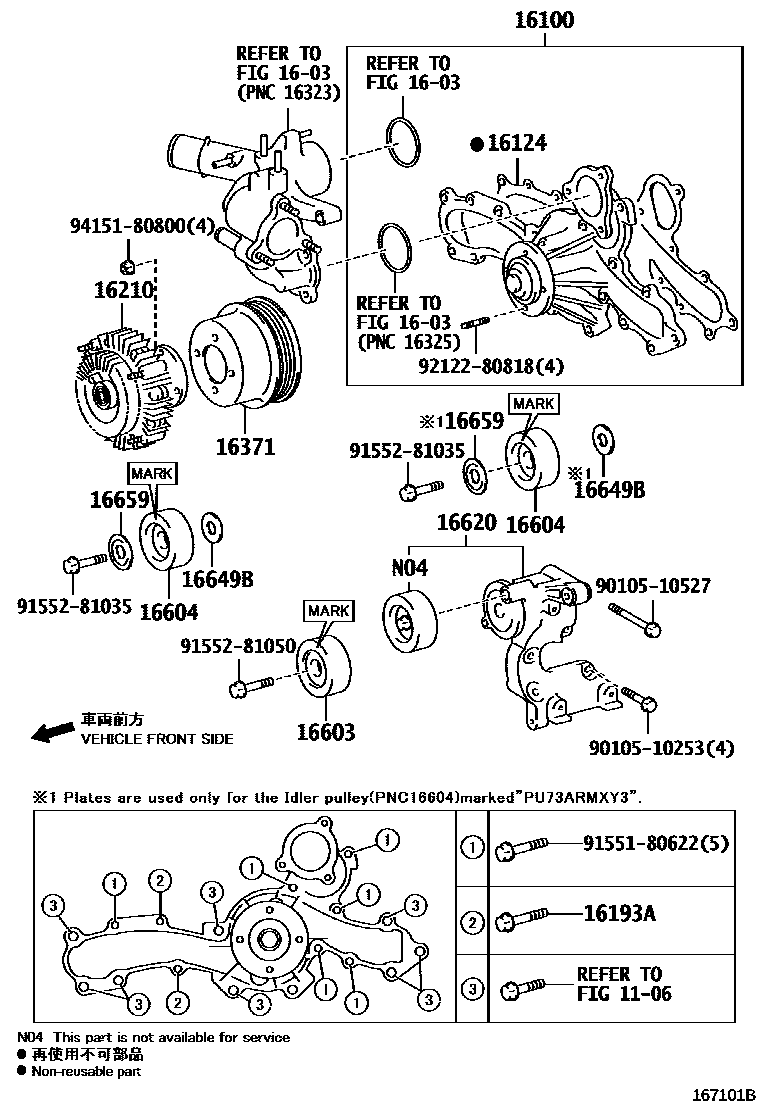

WATER PUMP

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1

1106TIMING GEAR COVER & REAR END PLATE

→ Go to FIG 11-06

1603RADIATOR & WATER OUTLET

→ Go to FIG 16-03

16100PUMP ASSY, ENGINE WATER

main16100-39405i1GRFE..GRJ200200709-200903

main16100-39406i1GRFE..GRJ200..RHD..05S200903-200907

main16100-39496i3URFE..URJ200201201-201508

main16100-39545i1GRFE..GRJ200..ATM;1GRFE..GRJ200..09S..SOB;1GRFE..GRJ200..05S..GEN201508-202104

main16100-39555i1URFE..URJ202..VX..GCC;1URFE..URJ202..VXR..GEN;1URFE..URJ202..(GXR,VX)..ARL201508-202103

main16100-59275i2UZFE..UZJ200200709-200811

main16100-59276i2UZFE..UZJ200200811-201201

main16100-59365i1VDFTV..VDJ200201508-201602

main16100-59366i1VDFTV..VDJ200..09S..SOB;1VDFTV..VDJ200..(VX,VXR)..GCC;1VDFTV..VDJ200..05S..(ARL,GCC);1VDFTV..VDJ200..LHD..5F..GEN..LUB201602-202103

16124GASKET, WATER PUMP COVER

main16124-31070i1GRFE..GRJ200..RHD..05S200709-200907

main16124-51010i1VDFTV..VDJ200..09S..SOB;1VDFTV..VDJ200..(VX,VXR)..GCC;1VDFTV..VDJ200..05S..(ARL,GCC);1VDFTV..VDJ200..LHD..5F..GEN..LUB201508-202103

16193ABOLT(FOR WATER PUMP COVER)

main16193-31080×2i1GRFE..GRJ200..LHD..05S..G;1GRFE..GRJ200..(08S,09S)..G200709-201201

16210COUPLING ASSY, FLUID

main16210-31020i1GRFE..GRJ200..K201109-201201

main16210-31040i1GRFE..GRJ200201201-201508

main16210-38070i3URFE..URJ200201007-201201

main16210-38071i3URFE..URJ200;1URFE..URJ202..VX..GEN;1URFE..URJ202..GXR..GCC;1URFE..URJ202..VXR..(ARL,GCC)201508-202104

main16210-38090i1URFE..URJ202..ARL201801-202103

main16210-50101i2UZFE..UZJ200..ARL200709-201111

main16210-50102i2UZFE..UZJ200..ARL201111-201201

main16210-50110i2UZFE..UZJ200..LHD200709-201201

main16210-51020i1VDFTV..VDJ200..G200709-201201

16371PULLEY, FAN

main16371-31040i1GRFE..GRJ200..K201109-201201

main16371-38010i1URFE..URJ202..VX..GCC;1URFE..URJ202..VXR..GEN;1URFE..URJ202..(GXR,VX)..ARL201508-202103

main16371-50040i2UZFE..UZJ200200709-201201

main16371-51020i1VDFTV..VDJ200..K201109-201201

16603PULLEY SUB-ASSY, IDLER, NO.1

main16603-0W030i2UZFE..UZJ200200709-201201

main16603-31040i1GRFE..GRJ200200709-200810

main16603-31050i1GRFE..GRJ200..LHD..05S..G;1GRFE..GRJ200..(08S,09S)..G200810-201201

main16603-38010i1URFE,3URFE..URJ20#201201-201212

main16603-38011i1URFE,3URFE..URJ20#201508-201902

main16603-38012i1URFE..URJ202..ARL;1URFE..URJ202..VX..GCC;1URFE..URJ202..VXR..GEN201903-202103

16604PULLEY SUB-ASSY, IDLER, NO.2

main16604-31010×2i1GRFE..GRJ200..08S,09S;1GRFE..GRJ200..LHD..05S200711-201105

MARK=PU107013ARMXY1

main16604-31020×2i1GRFE..GRJ200..GEN..LUB;1GRFE..GRJ200..(05S,08S)..5F..GCC201508-202103

MARK=PU107013ARMXY3

main16604-31030×2i1GRFE..GRJ200..K201109-201201

MARK=PU107016RMXY

main16604-50030i2UZFE..UZJ200200709-201201

16620TENSIONER ASSY, V-RIBBED BELT

main16620-0S010i1URFE,3URFE..URJ20#201201-201209

main16620-0S011i1URFE,3URFE..URJ20#201209-201508

main16620-0S012i1URFE..URJ202..ARL;1URFE..URJ202..VX..GCC;1URFE..URJ202..VXR..GEN201707-202103

main16620-0W101i2UZFE..UZJ200200709-201201

main16620-31012i1GRFE..GRJ200..LHD..05S..G;1GRFE..GRJ200..(08S,09S)..G200709-201201

main16620-31051i1GRFE..GRJ200..ATM;1GRFE..GRJ200..09S..SOB;1GRFE..GRJ200..05S..GEN201508-202104

16649BPLATE, IDLER PULLEY COVER

main16649-31020×2i1GRFE..GRJ200..GEN..LUB;1GRFE..GRJ200..(05S,08S)..5F..GCC201508-202103

16659PLATE, IDLER PULLEY COVER, NO.2

main16659-31011×2i1GRFE..GRJ200..LHD..05S..G;1GRFE..GRJ200..(08S,09S)..G200709-201201

main16659-50022i2UZFE..UZJ200200709-201201

9010510253

main90105-10253

9010510527

main90105-10527

9155180622

main91551-80622

9155281035

main91552-81035

9155281050

main91552-81050

9212280818

main92122-80818

9415180800

main94151-80800

19 parts on this diagram · 6 diagrams in section
