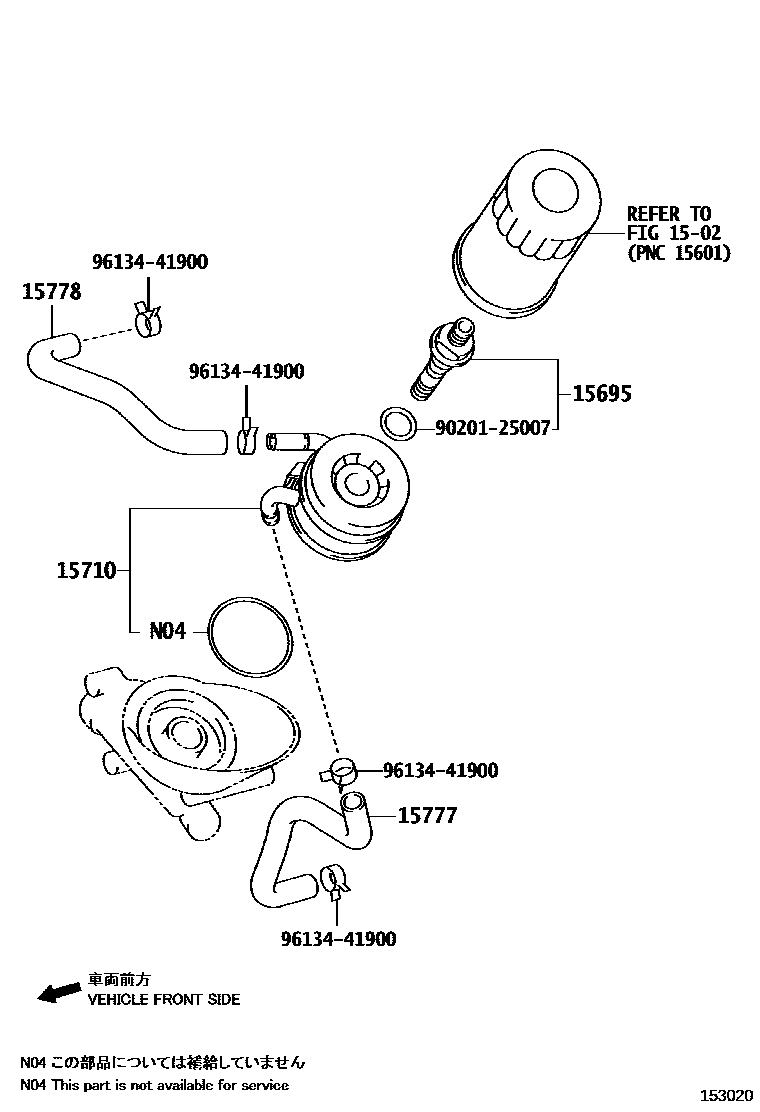

ENGINE OIL COOLER

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1

1502OIL FILTER

→ Go to FIG 15-02

15695BOLT, OIL COOLER UNION

main15695-22010i1GRFE..GRJ200..RHD..05S200709-200907

main15695-62010i1GRFE..GRJ200201201-201508

15710COOLER ASSY, OIL

main15710-31010i1GRFE..GRJ200..K201109-201201

main15710-31040i1GRFE..GRJ200201508-202011

main15710-31090i1GRFE..GRJ200..5F202011-202103

main15710-38021i1URFE..URJ202..VX..GCC;1URFE..URJ202..VXR..GEN;1URFE..URJ202..(GXR,VX)..ARL201508-202103

main15710-50090i2UZFE..UZJ200200709-201201

main15710-51020i1VDFTV..VDJ200..ARL..LUB;1VDFTV..VDJ200..LHD..6FC..GEN;1VDFTV..VDJ200..RHD..(05S,08S)..GEN;1VDFTV..VDJ200..(08S,09S)..(GX,GXR)..GCC..LUB201508-202104

15777HOSE, OIL COOLER

main15777-31010i1GRFE..GRJ200..RHD..05S200709-200907

main15777-50100i2UZFE..UZJ200200709-201201

main15777-51020i1VDFTV..VDJ200..G200709-201201

15778HOSE, OIL COOLER, NO.2

main15778-31010i1GRFE..GRJ200..RHD..05S200709-200907

main15778-51020i1VDFTV..VDJ200..08S..GX;1VDFTV..VDJ200..GX..SOB..G;1VDFTV..VDJ200..(STD,VX)..G;1VDFTV..VDJ200..LHD..05S..LUB201109-201508

9020125007

main90201-25007

9613441900

main96134-41900

7 parts on this diagram · 6 diagrams in section
