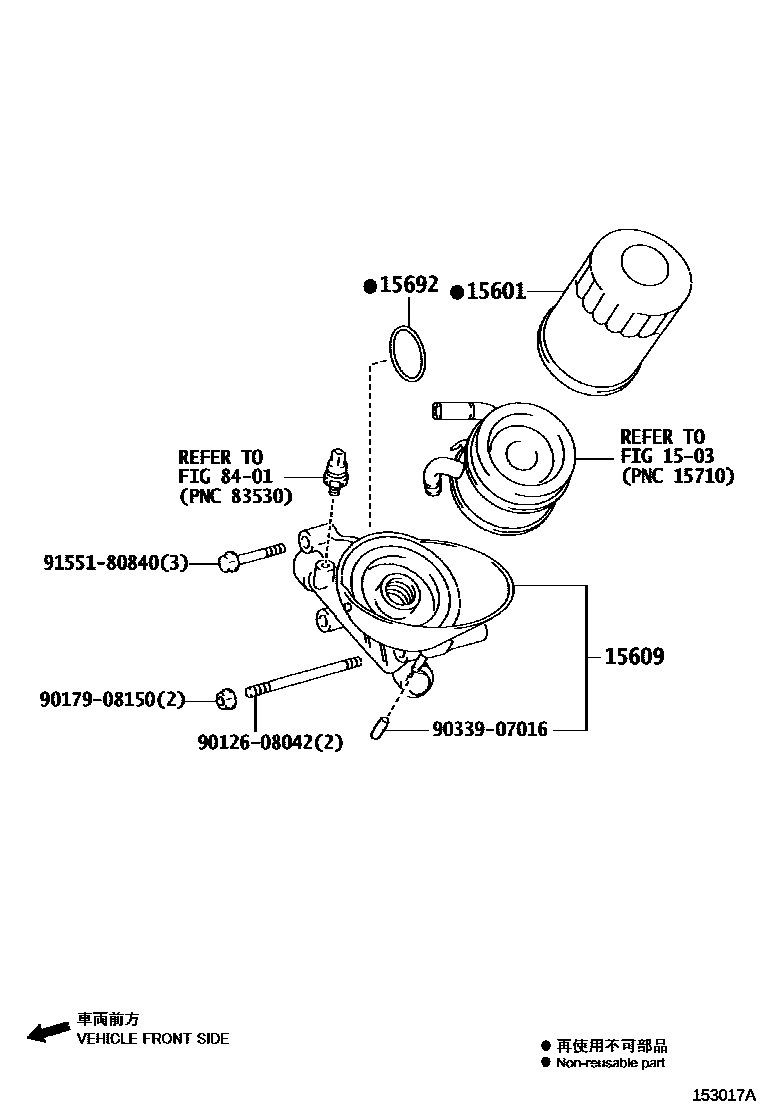

OIL FILTER

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1

1503

15601FILTER SUB-ASSY, OIL

main90915-20004i1GRFE..GRJ200..LHD..05S..G;1GRFE..GRJ200..(08S,09S)..G200709-201201

15609BRACKET SUB-ASSY, OIL FILTER

main15609-50110i2UZFE..UZJ200200709-201201

main15609-51010i1VDFTV..VDJ200..G200709-202104

main15670-31010i1GRFE..GRJ200..LHD..05S..G;1GRFE..GRJ200..(08S,09S)..G200709-201201

15692GASKET, OIL FILTER BRACKET

main15692-31010i1GRFE..GRJ200..K200709-201201

main15692-31030i1GRFE..GRJ200..GEN..LUB;1GRFE..GRJ200..(05S,08S)..5F..GCC201201-202104

main15692-50020i2UZFE..UZJ200200709-201201

8401

9012608042

main90126-08042

9017908150

main90179-08150

9033907016

main90339-07016

9155180840

main91551-80840

9 parts on this diagram · 6 diagrams in section
