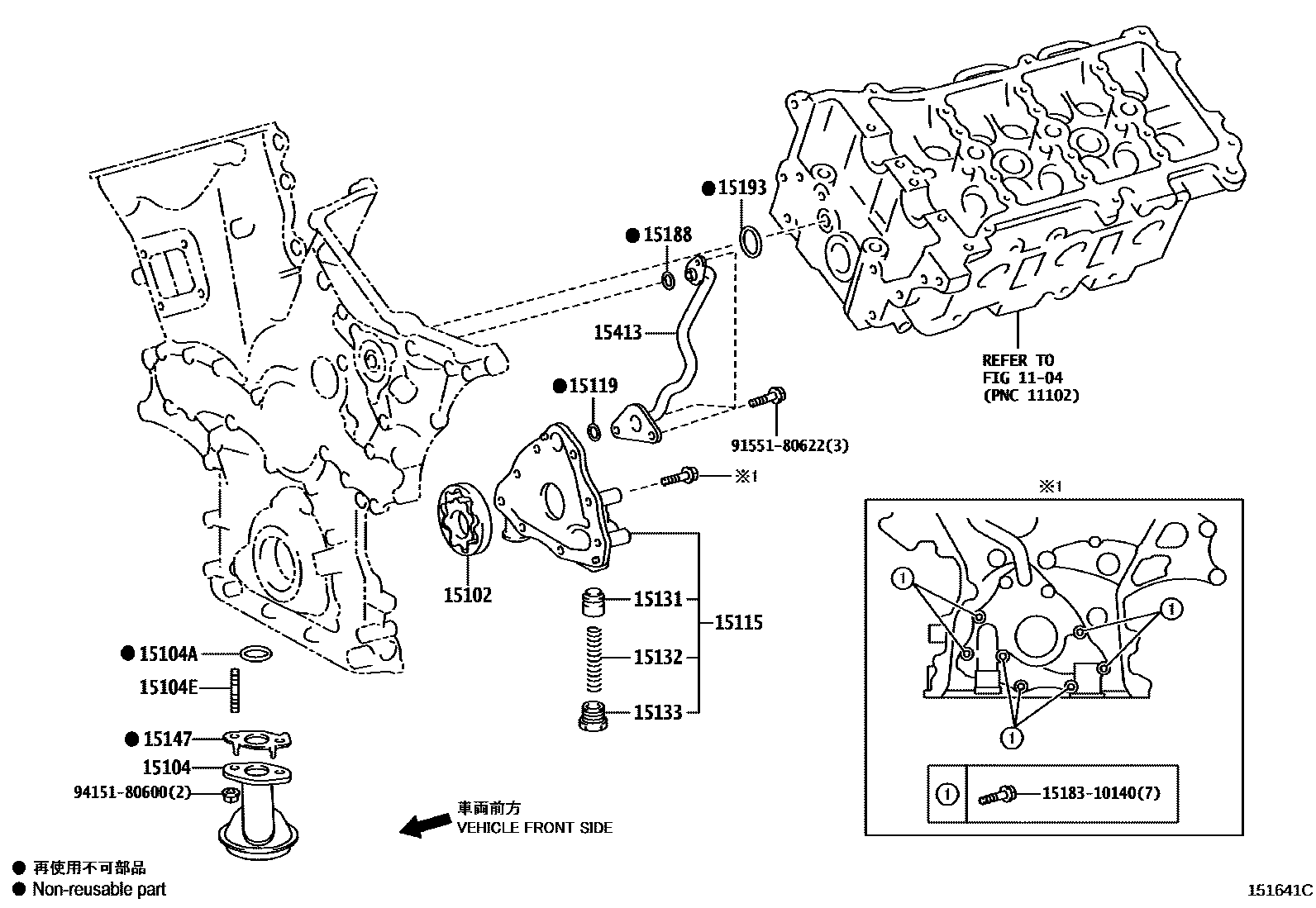

ENGINE OIL PUMP

0001 1 0002 1 0003 1 0004 1 0005 1

1104CYLINDER HEAD

→ Go to FIG 11-04

15102ROTOR SET, OIL PUMP

main15103-31050i1GRFE..GRJ200..LHD..05S..G;1GRFE..GRJ200..(08S,09S)..G200709-201201

main15103-31080i1GRFE..GRJ200..GEN..LUB;1GRFE..GRJ200..(05S,08S)..5F..GCC201508-202103

main15103-38060i1URFE,3URFE..URJ20#201201-201508

15104STRAINER SUB-ASSY, OIL

main15104-0S010i1URFE..URJ202..VX..GCC;1URFE..URJ202..VXR..GEN;1URFE..URJ202..(GXR,VX)..ARL201508-202103

main15104-31050i1GRFE..GRJ200..RHD..05S200709-200907

main15104-31140i1GRFE..GRJ200..K201109-201201

main15104-50230i2UZFE..UZJ200200709-201201

main15104-51030i1VDFTV..VDJ200..08S..GX;1VDFTV..VDJ200..GX..SOB..G;1VDFTV..VDJ200..(STD,VX)..G;1VDFTV..VDJ200..LHD..05S..LUB201109-201508

15104ARING, O(FOR OIL STRAINER)

main90301-27013i1VDFTV..VDJ200..09S..SOB;1VDFTV..VDJ200..(VX,VXR)..GCC;1VDFTV..VDJ200..05S..(ARL,GCC);1VDFTV..VDJ200..LHD..5F..GEN..LUB201508-202103

main96721-24031i3URFE..URJ200;1URFE..URJ202..VX..GEN;1URFE..URJ202..GXR..GCC;1URFE..URJ202..VXR..(ARL,GCC)201508-202104

main96722-24030i1GRFE..GRJ200..RHD..05S200709-200907

15104EBOLT, STUD(FOR OIL STRAINER)

main90126-06029×2i1GRFE..GRJ200..LHD..05S..G;1GRFE..GRJ200..(08S,09S)..G200709-201201

15115COVER, OIL PUMP

main15115-31050i1GRFE..GRJ200..LHD..05S..G;1GRFE..GRJ200..(08S,09S)..G200709-201201

main15115-31080i1GRFE..GRJ200..ATM;1GRFE..GRJ200..09S..SOB;1GRFE..GRJ200..05S..GEN201508-202104

main15115-50040i2UZFE..UZJ200200908-201201

15119GASKET, OIL PUMP COVER

main15119-31050i1GRFE..GRJ200..RHD..05S200709-200907

15131VALVE, OIL PUMP RELIEF

main15131-17010i1GRFE..GRJ200..GEN..LUB;1GRFE..GRJ200..(05S,08S)..5F..GCC201508-202103

main15131-38070i1URFE..URJ202..VX..GCC;1URFE..URJ202..VXR..GEN;1URFE..URJ202..(GXR,VX)..ARL201508-202103

main15131-46040i1GRFE..GRJ200..K201109-201201

main15131-51010i1VDFTV..VDJ200..ARL..LUB;1VDFTV..VDJ200..LHD..6FC..GEN;1VDFTV..VDJ200..RHD..(05S,08S)..GEN;1VDFTV..VDJ200..(08S,09S)..(GX,GXR)..GCC..LUB201508-202104

15132SPRING, OIL PUMP RELIEF VALVE

main15132-38070i1URFE..URJ202..VX..GCC;1URFE..URJ202..VXR..GEN;1URFE..URJ202..(GXR,VX)..ARL201508-202103

main15132-46020i1GRFE..GRJ200..LHD..05S..G;1GRFE..GRJ200..(08S,09S)..G; 2UZFE..UZJ200200709-201201

main15132-51010i1VDFTV..VDJ200..G200709-201201

15133PLUG, OIL PUMP RELIEF VALVE

main15133-17010i2UZFE..UZJ200200709-201201

main15133-28020i1GRFE..GRJ200..K201109-201201

main15133-38070i1URFE,3URFE..URJ20#201201-201508

main15133-51010i1VDFTV..VDJ200..ARL..LUB;1VDFTV..VDJ200..LHD..6FC..GEN;1VDFTV..VDJ200..RHD..(05S,08S)..GEN;1VDFTV..VDJ200..(08S,09S)..(GX,GXR)..GCC..LUB201508-202104

15147GASKET, OIL STRAINER

main15147-31070i1GRFE..GRJ200..G201006-201201

main15147-46010i1GRFE..GRJ200..08S,09S;1GRFE..GRJ200..LHD..05S200709-201006

main15147-50011i2UZFE..UZJ200200709-201201

15188GASKET, OIL PUMP

main15188-31050i1GRFE..GRJ200..RHD..05S200709-200907

15193GASKET, OIL PUMP

main15193-31010i1GRFE..GRJ200..LHD..05S..G;1GRFE..GRJ200..(08S,09S)..G200709-201201

main15193-38010i1GRFE..GRJ200; 1URFE,3URFE..URJ20#201201-201508

15413PIPE, OIL PUMP OUTLET

main15413-31020i1GRFE..GRJ200..RHD..05S200709-200907

1518310140BOLT, UNION(FOR OIL PUMP)

main15183-10140

9155180622

main91551-80622

9415180600

main94151-80600

17 parts on this diagram · 5 diagrams in section
