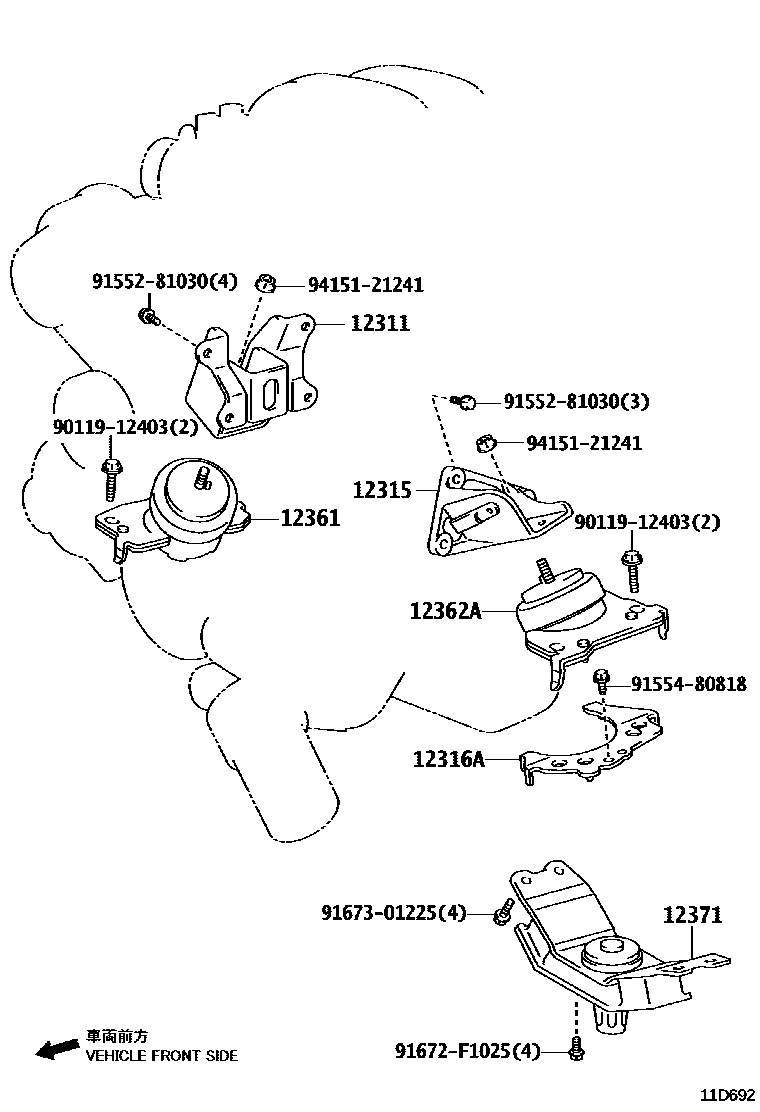

MOUNTING
12311BRACKET, ENGINE MOUNTING, FRONT NO.1 RH
12315BRACKET, ENGINE MOUNTING, FRONT NO.1 LH
main12315-38020i3URFE..URJ200;1URFE..URJ202..VX..GEN;1URFE..URJ202..GXR..GCC;1URFE..URJ202..VXR..(ARL,GCC)201508-202104
12316ABRACKET, ENGINE MOUNTING, FR NO.2 LH
main12316-38020i1URFE..URJ202..VX..GCC;1URFE..URJ202..VXR..GEN;1URFE..URJ202..(GXR,VX)..ARL201508-202103
12361INSULATOR, ENGINE MOUNTING, FRONT
main12361-38190i3URFE..URJ200;1URFE..URJ202..VX..GEN;1URFE..URJ202..GXR..GCC;1URFE..URJ202..VXR..(ARL,GCC)201508-202104
main12361-51030supersedes 12361-51040i1VDFTV..VDJ200..09S..GCC..SOB;1VDFTV..VDJ200..(VX,VXR)..GCC;1VDFTV..VDJ200..05S..(ARL,GCC);1VDFTV..VDJ200..LHD..5F..GEN..LUB; 1VDFTV..VDJ200..GEN..SOB; 1VDFTV..VDJ200..RHD..GEN..SOB201508-202103
EXHAUST EMISSION CONTROL-EUROPE STEP2, WITH(EGR) & WITHOUT(OBD); EXHAUST EMISSION CONTROL-EUROPE STEP3, WITH(EGR) & WITHOUT(OBD)
12362AINSULATOR, ENGINE MOUNTING, FRONT LH
main12362-38010i3URFE..URJ200;1URFE..URJ202..VX..GEN;1URFE..URJ202..GXR..GCC;1URFE..URJ202..VXR..(ARL,GCC)201508-202104
main12362-51010supersedes 12362-51020i1VDFTV..VDJ200..6FC..G;1VDFTV..VDJ200..08S..5F;1VDFTV..VDJ200..GX..SOB..G;1VDFTV..VDJ200..LHD..05S..LUB; 1VDFTV..VDJ200..GEN..SOB..G; 1VDFTV..VDJ200..RHD..GEN..SOB..G201109-201508
EXHAUST EMISSION CONTROL-EUROPE STEP2,WITH(EGR) & WITHOUT(OBD); EXHAUST EMISSION CONTROL-EUROPE STEP3,WITH(EGR) & WITHOUT(OBD)
12371INSULATOR, ENGINE MOUNTING, REAR NO.1
main12371-38060i1URFE..URJ202..VX..GCC;1URFE..URJ202..VXR..GEN;1URFE..URJ202..(GXR,VX)..ARL201508-202103
main12371-51070i1VDFTV..VDJ200..6FC..(ARL,GEN)..LUB;1VDFTV..VDJ200..(08S,09S)..6FC..(GX,GXR)..GCC201508-202104
9011912403
main90119-12403
9155281030
main91552-81030
9155480818
main91554-80818
91672F1025
main91672-F1025
9167301225
main91673-01225
9415121241
main94151-21241
12 parts on this diagram · 4 diagrams in section
