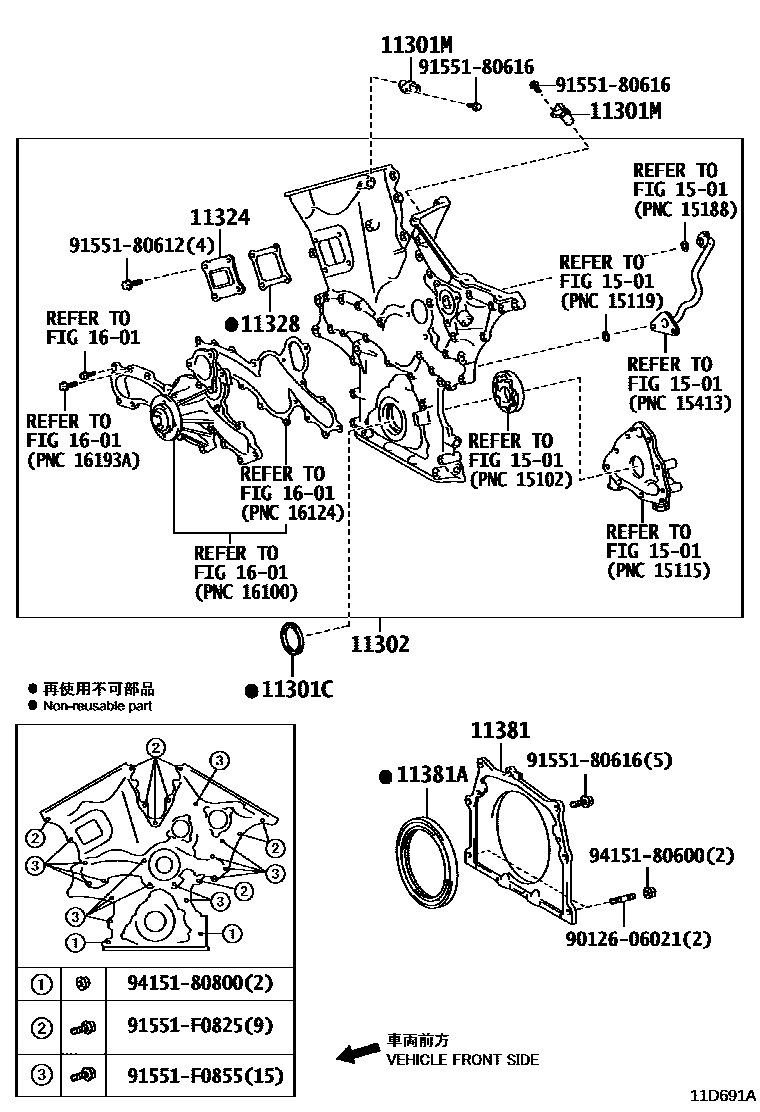

TIMING GEAR COVER & REAR END PLATE

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1TIMING CHAINCOVER FRONT 0007 1TIMING CHAINCOVER REAR

11301CASE SUB-ASSY, TIMING GEAR

main11301-51011i1VDFTV..VDJ200..K201109-201201

11301CSEAL, OIL(FOR TIMING GEAR CASE OR TIMING CHAIN CASE)

main90311-42036i3URFE..URJ200201007-201201

main90311-42037i1GRFE..GRJ200200709-200904

main90311-42045i1GRFE..GRJ200..RHD..05S200904-200907

main90311-42048i1GRFE..GRJ200..ATM;1GRFE..GRJ200..09S..SOB;1GRFE..GRJ200..05S..GEN201508-202104

11301MSENSOR, CAM POSITION

main90919-05029i1VDFTV..VDJ200..08S..GX;1VDFTV..VDJ200..GX..SOB..G;1VDFTV..VDJ200..(STD,VX)..G;1VDFTV..VDJ200..LHD..05S..LUB201109-201508

main90919-05060×2i1GRFE..GRJ200..LHD..05S..G;1GRFE..GRJ200..(08S,09S)..G200709-201201

11302COVER SUB-ASSY, TIMING CHAIN OR BELT

main11310-31013i1GRFE..GRJ200..K201109-201201

main11310-31030i1GRFE..GRJ200201201-201508

main11310-38060i3URFE..URJ200201508-202104

main11310-38110i1URFE..URJ202..VX..GCC;1URFE..URJ202..VXR..GEN;1URFE..URJ202..(GXR,VX)..ARL201508-202103

main11310-51011i1VDFTV..VDJ200..K201109-201112

main11310-51012i1VDFTV..VDJ200..ARL..LUB;1VDFTV..VDJ200..LHD..6FC..GEN;1VDFTV..VDJ200..RHD..(05S,08S)..GEN;1VDFTV..VDJ200..(08S,09S)..(GX,GXR)..GCC..LUB201508-202104

11324PLATE, TIMING CHAIN COVER

main11324-31020i1GRFE..GRJ200..RHD..05S200709-200907

main11324-51010i1VDFTV..VDJ200..K201109-201201

11328GASKET, TIMING GEAR OR CHAIN COVER

main11328-31030i1GRFE..GRJ200..K201109-201201

main11328-38030×2i3URFE..URJ200201007-201201

main11328-51020i1VDFTV..VDJ200..08S..GX;1VDFTV..VDJ200..GX..SOB..G;1VDFTV..VDJ200..(STD,VX)..G;1VDFTV..VDJ200..LHD..05S..LUB201109-201508

11381RETAINER, ENGINE REAR OIL SEAL

main11381-31010i1GRFE..GRJ200..ATM;1GRFE..GRJ200..09S..SOB;1GRFE..GRJ200..05S..GEN201508-202104

main11381-38020i1URFE,3URFE..URJ20#201201-201508

main11381-50021i2UZFE..UZJ200200709-201201

main11381-51020i1VDFTV..VDJ200..G200709-201201

11381ASEAL, ENGINE REAR OIL

main90311-95012i2UZFE..UZJ200200709-201201

main90311-95013i3URFE..URJ200;1URFE..URJ202..VX..GEN;1URFE..URJ202..GXR..GCC;1URFE..URJ202..VXR..(ARL,GCC)201508-202104

main90311-99010i1GRFE..GRJ200..K; 1VDFTV..VDJ200..K201109-201201

main90311-99014i1VDFTV..VDJ200..ARL..LUB;1VDFTV..VDJ200..LHD..6FC..GEN;1VDFTV..VDJ200..RHD..(05S,08S)..GEN;1VDFTV..VDJ200..(08S,09S)..(GX,GXR)..GCC..LUB201701-202104

1501ENGINE OIL PUMP

→ Go to FIG 15-01

1601WATER PUMP

→ Go to FIG 16-01

9012606021

main90126-06021

9155180612

main91551-80612

9155180616

main91551-80616

91551F0825

main91551-F0825

91551F0855

main91551-F0855

9415180600

main94151-80600

9415180800

main94151-80800

17 parts on this diagram · 7 diagrams in section
