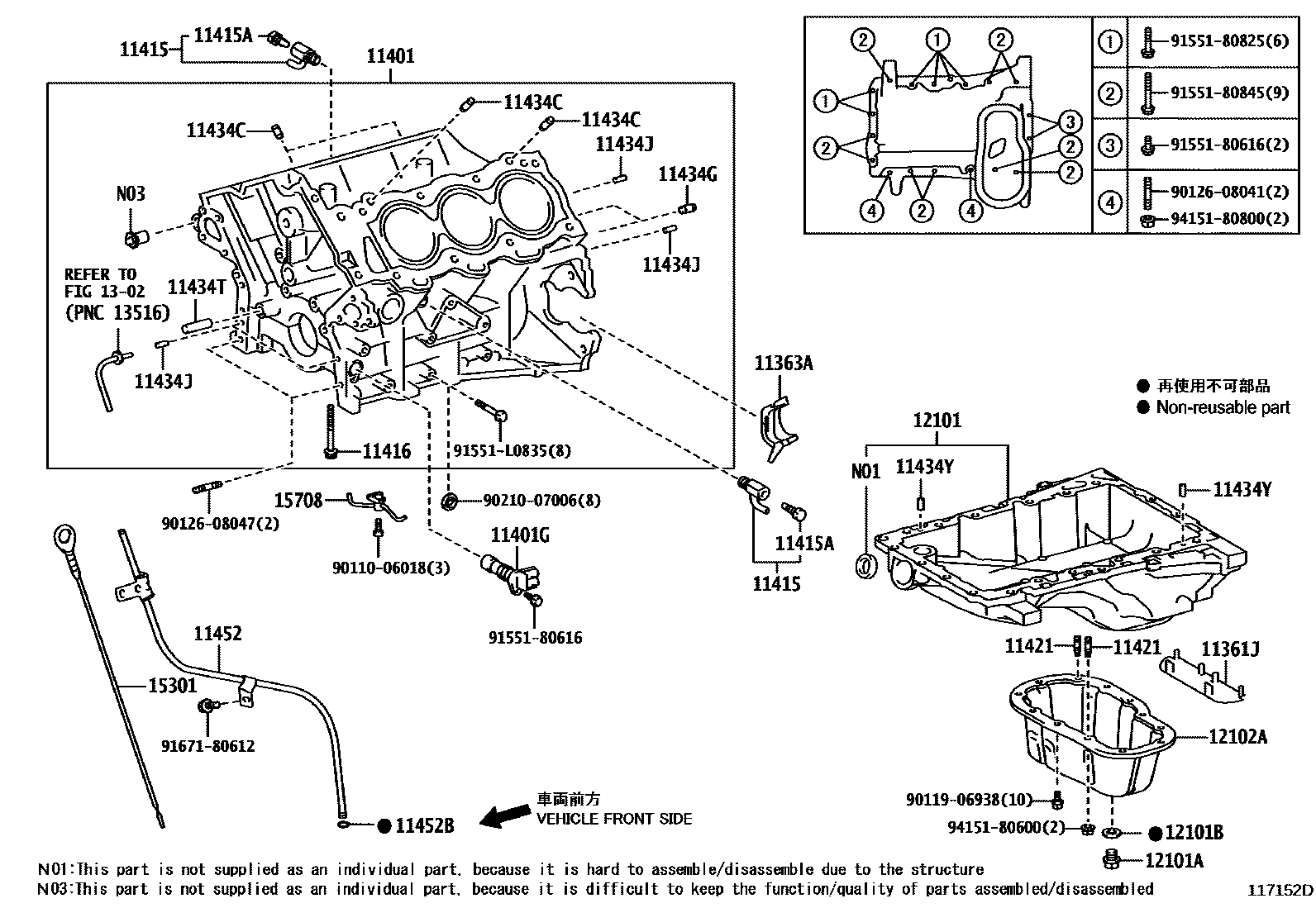

CYLINDER BLOCK

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1CYLINDER BLOCK 0007 1CYLINDER BLOCK 0008 1FITTING PARTS 0009 1 0010 1

11361JCOVER, FLYWHEEL HOUSING UNDER

main11361-31040i1GRFE..GRJ200..RHD..05S200709-200907

11363ACOVER, FLYWHEEL HOUSING SIDE

main11363-31020i1GRFE..GRJ200..LHD..05S..G;1GRFE..GRJ200..(08S,09S)..G200709-201201

main11363-31050i1GRFE..GRJ200..GEN..LUB;1GRFE..GRJ200..(05S,08S)..5F..GCC201508-202103

main11363-38010i3URFE..URJ200201508-202104

main11363-38020i1URFE..URJ202201201-201508

11401BLOCK SUB-ASSY, CYLINDER

main11401-39695i1GRFE..GRJ200200709-200906

main11401-39816i3URFE..URJ200201201-201504

main11401-39817i3URFE..URJ200201504-201508

main11401-39A06i1URFE..URJ202201201-201504

main11401-39A07i1URFE..URJ202201504-201508

main11401-59778i2UZFE..UZJ200200709-200912

main11401-80768i1VDFTV..VDJ200..08S..GX;1VDFTV..VDJ200..GX..SOB..G;1VDFTV..VDJ200..(STD,VX)..G;1VDFTV..VDJ200..LHD..05S..LUB201109-201508

main11401-80790i1GRFE..GRJ200..08S,09S;1GRFE..GRJ200..LHD..05S200906-200912

main11401-80794i1GRFE..GRJ200201508-201702

main11401-80795i1GRFE..GRJ200..K201109-201201

main11401-80796i2UZFE..UZJ200200912-201201

main11401-80846i1GRFE..GRJ200201702-201910

main11401-80859i1GRFE..GRJ200..5F201910-202103

11401GSENSOR, CRANK POSITION

main90919-05057i1GRFE..GRJ200..K201109-201201

main90919-05071i3URFE..URJ200201007-201201

11415COCK SUB-ASSY, WATER DRAIN(FOR CYLINDER BLOCK)

main90910-09095×2i2UZFE..UZJ200200709-201201

main90910-09129×2i1GRFE..GRJ200..ATM;1GRFE..GRJ200..09S..SOB;1GRFE..GRJ200..05S..GEN; 3URFE..URJ200;1URFE..URJ202..VX..GEN;1URFE..URJ202..GXR..GCC;1URFE..URJ202..VXR..(ARL,GCC)201508-202104

11415APLUG, WATER DRAIN COCK(FOR CYLINDER BLOCK)

main90910-09087×2i1GRFE..GRJ200..LHD..05S..G;1GRFE..GRJ200..(08S,09S)..G; 2UZFE..UZJ200200709-201201

11416BOLT(FOR CRANKSHAFT BEARING CAP SET)

main90910-02072×16i1GRFE..GRJ200..RHD..05S200709-200906

main90910-02154×10i1URFE..URJ202..VX..GCC;1URFE..URJ202..VXR..GEN;1URFE..URJ202..(GXR,VX)..ARL201508-202103

NO.1

main90910-02165×10i3URFE..URJ200;1URFE..URJ202..VX..GEN;1URFE..URJ202..GXR..GCC;1URFE..URJ202..VXR..(ARL,GCC)201508-202104

NO.2

main90910-02176×16i1GRFE..GRJ200..ATM;1GRFE..GRJ200..09S..SOB;1GRFE..GRJ200..05S..GEN201508-202104

11421BOLT, STUD(FOR OIL PAN)

main90126-06028×2i1GRFE..GRJ200..LHD..05S..G;1GRFE..GRJ200..(08S,09S)..G200709-201201

main90126-08030×2i2UZFE..UZJ200200709-201201

11434CPIN, STRAIGHT (FOR CYLINDER HEAD SET)

main90250-08048×4i1VDFTV..VDJ200..09S..SOB;1VDFTV..VDJ200..(VX,VXR)..GCC;1VDFTV..VDJ200..05S..(ARL,GCC);1VDFTV..VDJ200..LHD..5F..GEN..LUB201508-202103

L=15,OD=8

main90250-08120×4i1GRFE..GRJ200..ATM;1GRFE..GRJ200..09S..SOB;1GRFE..GRJ200..05S..GEN; 3URFE..URJ200;1URFE..URJ202..VX..GEN;1URFE..URJ202..GXR..GCC;1URFE..URJ202..VXR..(ARL,GCC)201508-202104

L=18,OD=8

main90253-16001×4i2UZFE..UZJ200200709-201201

L=20,OD=16

11434GPIN, STRAIGHT(FOR END PLATE)

main90250-10113×2i1GRFE..GRJ200..RHD..05S200709-200906

11434JPIN, RING (FOR CYLINDER HEAD SET)

main90250-04097×4i1GRFE..GRJ200..GEN..LUB;1GRFE..GRJ200..(05S,08S)..5F..GCC201508-202103

11434TPIN, RING(FOR TIMING BELT IDLER BRACKET SET)

main90250-10030i1GRFE..GRJ200..GEN..LUB;1GRFE..GRJ200..(05S,08S)..5F..GCC201508-202103

11434YPIN, STRAIGHT(FOR OIL PAN)

main90250-04097×2i1GRFE..GRJ200..RHD..05S200709-200907

main90250-06013×2i1VDFTV..VDJ200..09S..SOB;1VDFTV..VDJ200..(VX,VXR)..GCC;1VDFTV..VDJ200..05S..(ARL,GCC);1VDFTV..VDJ200..LHD..5F..GEN..LUB201508-202103

11452GUIDE, OIL LEVEL GAGE

main11452-31030i1GRFE..GRJ200..RHD..05S200709-200907

main11452-31110i1GRFE..GRJ200201201-201508

main11452-38081i3URFE..URJ200201007-201201

main11452-38100i1URFE..URJ202201201-201508

main11452-50220i2UZFE..UZJ200200709-201201

main11452-51020i1VDFTV..VDJ200..08S..GX;1VDFTV..VDJ200..GX..SOB..G;1VDFTV..VDJ200..(STD,VX)..G;1VDFTV..VDJ200..LHD..05S..LUB201109-201508

11452BRING, O(FOR OIL LEVEL GAGE GUIDE)

main90301-12018i1VDFTV..VDJ200..ARL..LUB;1VDFTV..VDJ200..LHD..6FC..GEN;1VDFTV..VDJ200..RHD..(05S,08S)..GEN;1VDFTV..VDJ200..(08S,09S)..(GX,GXR)..GCC..LUB201508-202104

main96721-19010i1URFE,3URFE..URJ20#201201-201508

main96723-19010i1GRFE..GRJ200..GEN..LUB;1GRFE..GRJ200..(05S,08S)..5F..GCC201508-202103

12101PAN SUB-ASSY, OIL

main12101-31081i1GRFE..GRJ200..RHD..05S200709-200907

main12101-31170i1GRFE..GRJ200201201-201508

main12101-51030i1VDFTV..VDJ200..K201109-201201

main12111-0S011i3URFE..URJ200201007-201201

main12111-0S021i1URFE..URJ202..VX..GCC;1URFE..URJ202..VXR..GEN;1URFE..URJ202..(GXR,VX)..ARL201508-202103

main12111-50190i2UZFE..UZJ200200709-201201

12101APLUG(FOR OIL PAN DRAIN)

main90341-12012i1GRFE..GRJ200..K; 1VDFTV..VDJ200..K201109-201201

main90341-12023i2UZFE..UZJ200200709-201201

12101BGASKET(FOR OIL PAN DRAIN PLUG)

main90430-12031i1GRFE..GRJ200..5FC;1GRFE..GRJ200..SOB..G;1GRFE..GRJ200..LHD..08S..5F; 1VDFTV..VDJ200..08S..GX;1VDFTV..VDJ200..GX..SOB..G;1VDFTV..VDJ200..(STD,VX)..G;1VDFTV..VDJ200..LHD..05S..LUB201109-201508

12102APAN SUB-ASSY, OIL, NO.2

main12102-31010i1GRFE..GRJ200..RHD..05S200709-200907

main12102-38010i1URFE,3URFE..URJ20#201201-201508

main12102-50140i2UZFE..UZJ200200709-201201

main12102-51020i1VDFTV..VDJ200..09S..SOB;1VDFTV..VDJ200..(VX,VXR)..GCC;1VDFTV..VDJ200..05S..(ARL,GCC);1VDFTV..VDJ200..LHD..5F..GEN..LUB201508-202103

1302CAMSHAFT & VALVE

→ Go to FIG 13-02

15301GAGE SUB-ASSY, OIL LEVEL

main15301-31060i1GRFE..GRJ200..LHD..05S..G;1GRFE..GRJ200..(08S,09S)..G200709-201201

main15301-38061i3URFE..URJ200201007-201201

main15301-38062i1URFE..URJ202..VX..GCC;1URFE..URJ202..VXR..GEN;1URFE..URJ202..(GXR,VX)..ARL201508-202103

main15301-50140i1GRFE..GRJ200..ATM;1GRFE..GRJ200..09S..SOB;1GRFE..GRJ200..05S..GEN201508-202104

main15301-50150i2UZFE..UZJ200200709-201201

main15301-51030i1VDFTV..VDJ200..G200709-201201

15708NOZZLE SUB-ASSY, OIL, NO.1

main15708-31020×3i1GRFE..GRJ200..RHD..05S200709-200907

main15708-31030×3i1GRFE..GRJ200201201-201508

main15708-38010×4i3URFE..URJ200201508-202104

main15708-38020×4i1URFE..URJ202201201-201405

main15708-38030×4i1URFE..URJ202..VX..GCC;1URFE..URJ202..VXR..GEN;1URFE..URJ202..(GXR,VX)..ARL201508-202103

main15708-51010×4i1VDFTV..VDJ200..K201109-201201

main15790-50010×4i2UZFE..UZJ200200709-201201

9011006018

main90110-06018

9011906938

main90119-06938

9012608041

main90126-08041

9012608047

main90126-08047

9021007006

main90210-07006

9155180616

main91551-80616

9155180825

main91551-80825

9155180845

main91551-80845

91551L0835

main91551-L0835

9167180612

main91671-80612

9415180600

main94151-80600

9415180800

main94151-80800

34 parts on this diagram · 10 diagrams in section
