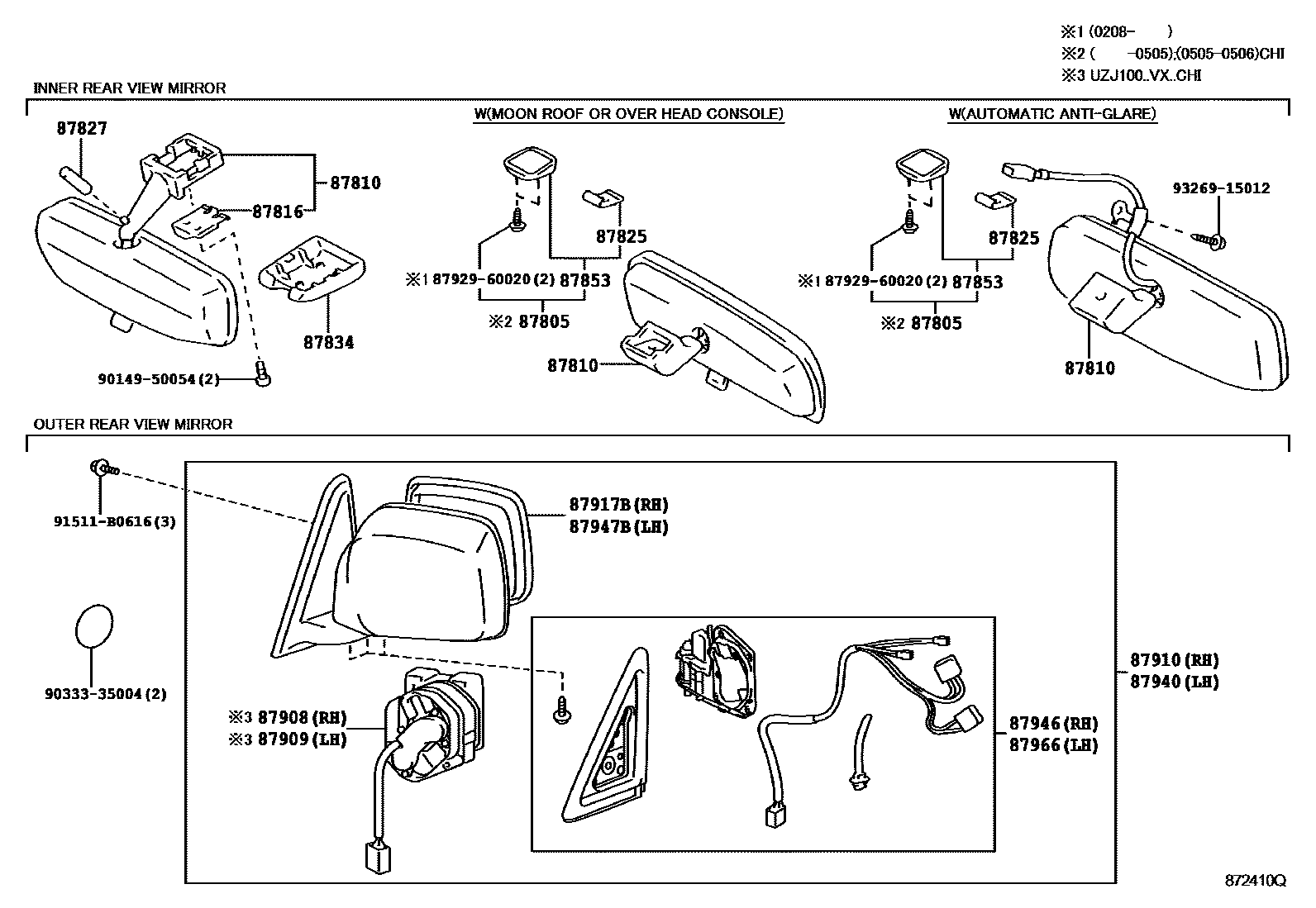

MIRROR
87805BASE SUB-ASSY, INNER REAR VIEW MIRROR
87810MIRROR ASSY, INNER REAR VIEW
IVORY,TRIM4#
IVORY,TRIM0#
MD.GRAY,TRIM1#
STONE,TRIM1#
W(MOON ROOF),IVORY,TRIM4#
main87810-60140-A1iUZJ100..GX..ARL; UZJ100..LUB..5FC..VX..(ARL,GCC,GEN);FZJ10#,HDJ100,HZJ105..(GX,VX)..(ARL,GCC,GEN)200208-200505
W(MOON ROOF OR OVER HEAD CONSOLE),IVORY,TRIM0#; W(MOON ROOF),IVORY,TRIM0#
W(MOON ROOF),MD.GRAY,TRIM1#
main87810-60140-B1iFZJ10#,HZJ105..GX..(GCC,GEN); HZJ105..GX..ARL;HDJ100,UZJ100..ARL,GEN; UZJ100..LUB..5FC..GCC200505
PERU SPEC,STONE,TRIM1#; STONE,TRIM1#; W(MOON ROOF OR OVER HEAD CONSOLE),STONE,TRIM1#
IVORY,TRIM0#
W(AUTO DIMMER & COMPASS),IVORY,TRIM4#
IVORY,TRIM0#
W(AUTO DIMMER & COMPASS),MD.GRAY,TRIM1#
STONE,TRIM1#; W(AUTO DIMMER & COMPASS),STONE,TRIM1#
W(AUTO DIMMER & COMPASS),IVORY,TRIM0#
W(AUTO DIMMER & COMPASS),STONE,TRIM1#
IVORY,TRIM0#
W(AUTO DIMMER),STONE,TRIM1#
W(AUTO DIMMER),IVORY,TRIM0#
W(AUTO DIMMER),STONE,TRIM1#
87816SPRING, INNER REAR VIEW MIRROR
87825SPRING, INNER REAR VIEW MIRROR SETTING
87827ABSORBER, INNER REAR VIEW MIRROR
87834COVER, INNER REAR VIEW MIRROR STAY HOLDER
IVORY,TRIM4#
IVORY,TRIM0#
MD.GRAY,TRIM1#
STONE,TRIM1#
87853BASE, INNER REAR VIEW MIRROR
87908ACTUATOR ASSY, OUTER MIRROR, RH
87909ACTUATOR ASSY, OUTER MIRROR, LH
87910MIRROR ASSY, OUTER REAR VIEW, RH
ELECTRIC REMOTE CONTROL,WHITE,056
ELECTRIC REMOTE CONTROL,WHITE PEARL CS.,062
ELECTRIC REMOTE CONTROL,WARM SILVER ME.,1B1; WARM SILVER ME.,1B1
ELECTRIC REMOTE CONTROL,GRAY M.M.,1C3
ELECTRIC REMOTE CONTROL,GRAY ME.,1D2; GRAY ME.,1D2
DK.GRAY M.M.,1E9; ELECTRIC REMOTE CONTROL,DK.GRAY M.M.,1E9
ELECTRIC REMOTE CONTROL,SILVER ME.,1F7
BLACK,202; ELECTRIC REMOTE CONTROL,BLACK,202
ELECTRIC REMOTE CONTROL,RED MC.,3N2
ELECTRIC REMOTE CONTROL,BROWN ME.,4P3
ELECTRIC REMOTE CONTROL,GOLD M.M.,4R3; GOLD M.M.,4R3
ELECTRIC REMOTE CONTROL,DK. GREEN MC.,6Q7
ELECTRIC REMOTE CONTROL,DK.BLUE MC.,8L4
main87910-60890iFZJ100..LUB..5F..GCC;UZJ100..LUB..5FC..GCC; FZJ105,HDJ100,HZJ105,UZJ100..LHD..(GX,VX)..GEN200505-200608
ELECTRIC REMOTE CONTROL MIRROR(CHROME PLATED) & W(ARABIC CAUTION); ELECTRIC REMOTE CONTROL(CHROME PLATED)
main87910-60891iFZJ100..LUB..5F;UZJ100..LUB..5FC..(GCC,GEN);FZJ105,HDJ100,HZJ105..LHD..(GX,VX)..GEN200609
ELECTRIC REMOTE CONTROL MIRROR(CHROME PLATED) & W(ARABIC CAUTION)
ELECTRIC REMOTE CONTROL(CHROME PLATED)
ELECTRIC REMOTE CONTROL
WHITE,056
ELECTRIC REMOTE CONTROL W/HEATER,WARM SILVER ME.,1B1
ELECTRIC REMOTE CONTROL W/HEATER,GRAY M.M.,1C3
BLACK,202
RED MC.,3N2
BROWN ME.,4P3
ELECTRIC REMOTE CONTROL W/HEATER,DK. GREEN MC.,6Q7
ELECTRIC REMOTE CONTROL W/HEATER,DK.BLUE MC.,8L4
ELECTRIC REMOTE CONTROL
WHITE,056
WARM SILVER ME.,1B1
BLACK,202
DK.GREEN MC.,6Q7
DARK GREEN MC.,6R4
WHITE,056
BLACK,202
DARK GREEN MC.,6R4
87917BMIRROR, OUTER REAR VIEW, RH
ELECTRIC REMOTE CONTROL
main87931-60860iFZJ100..LUB..5F..GCC; FZJ105,HDJ100,HZJ105,UZJ100..LHD..GEN; UZJ100..LUB..5FC..GCC200505
CKD VIETNAM SPEC; PERU SPEC
87940MIRROR ASSY, OUTER REAR VIEW, LH
ELECTRIC REMOTE CONTROL
main87940-60790iFZJ100..LUB..5F..GCC; FZJ105,HZJ105..LHD..GX..GEN; HDJ100..LHD;UZJ100..LUB..5FC..(GCC,GEN)200208-200505
CHINA SPEC & ELECTRIC REMOTE CONTROL(CHROME PLATED); ELECTRIC REMOTE CONTROL
ELECTRIC REMOTE CONTROL(CHROME PLATED)
ELECTRIC REMOTE CONTROL W/HEATER,WHITE,056
ELECTRIC REMOTE CONTROL W/HEATER,WARM SILVER ME.,1B1
ELECTRIC REMOTE CONTROL W/HEATER,GRAY M.M.,1C3
ELECTRIC REMOTE CONTROL W/HEATER,BLACK,202
ELECTRIC REMOTE CONTROL W/HEATER,RED MC.,3N2
BROWN ME.,4P3
ELECTRIC REMOTE CONTROL W/HEATER,DK. GREEN MC.,6Q7
ELECTRIC REMOTE CONTROL W/HEATER,DK.BLUE MC.,8L4
ELECTRIC REMOTE CONTROL,WHITE,056
ELECTRIC REMOTE CONTROL,WHITE PEARL CS.,062
ELECTRIC REMOTE CONTROL,WARM SILVER ME.,1B1; WARM SILVER ME.,1B1
ELECTRIC REMOTE CONTROL,GRAY M.M.,1C3
ELECTRIC REMOTE CONTROL,GRAY ME.,1D2; GRAY ME.,1D2
DK.GRAY M.M.,1E9; ELECTRIC REMOTE CONTROL,DK.GRAY M.M.,1E9
ELECTRIC REMOTE CONTROL,SILVER ME.,1F7
BLACK,202; ELECTRIC REMOTE CONTROL,BLACK,202
ELECTRIC REMOTE CONTROL,RED MC.,3N2
ELECTRIC REMOTE CONTROL,BROWN ME.,4P3
ELECTRIC REMOTE CONTROL,GOLD M.M.,4R3
ELECTRIC REMOTE CONTROL,DK. GREEN MC.,6Q7
ELECTRIC REMOTE CONTROL,DK.BLUE MC.,8L4
WHITE,056
WARM SILVER ME.,1B1
BLACK,202
DK.GREEN MC.,6Q7
DARK GREEN MC.,6R4
WHITE,056
BLACK,202
DARK GREEN MC.,6R4
87946RETRACTOR, OUTER MIRROR, RH
87947BMIRROR, OUTER REAR VIEW, LH
main87961-60760iFZJ100..LUB..5F;UZJ100..LHD..LUB;FZJ105,HDJ100,HZJ105..LHD; FZJ100..STD199808-200001
CHINA SPEC
ELECTRIC REMOTE CONTROL
ELECTRIC REMOTE CONTROL W/HEATER
87966RETRACTOR, OUTER MIRROR, LH
8792960020RETAINER, OUTER REAR VIEW MIRROR, LH
main87929-60020
9014950054
main90149-50054
9033335004
main90333-35004
91511B0616
main91511-B0616
9326915012
main93269-15012
20 parts on this diagram · 1 diagram in section
