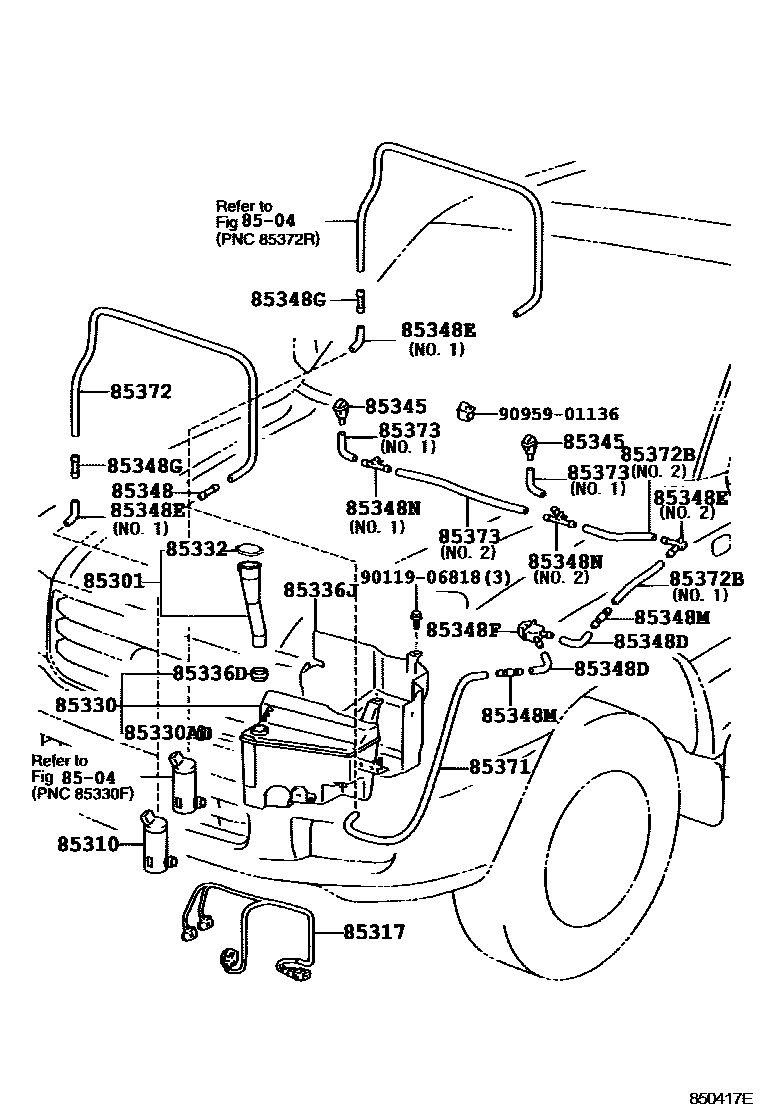

WINDSHIELD WASHER

0001 1W/O(HEADLAMP CLEANER) 0002 1W(HEADLAMP CLEANER) 0003 1W(HEADLAMP CLEANER)

8504REAR WASHER

→ Go to FIG 85-04

85301INLET SUB-ASSY, WASHER

main85301-0G010iFZJ100..CHI;UZJ100..5FC..CHI200309-200506

(L)

main85301-60030iFZJ10#,HDJ100,HZJ105,UZJ100199801-200208

main85301-60070iFZJ100..CHI;UZJ100..5FC..CHI200401-200506

(J)

85310MOTOR AND PUMP ASSY, WINDSHIELD WASHER

main85330-35070iFZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN; HZJ105..LHD..SOB;FZJ100,UZJ100..(GX,VX)..GCC200505

W(HEADLAMP CLEANER)

85317WIRING ASSY, WASHER

main85317-60280iFZJ10#,HZJ105..GCC,GEN199801-200208

main85327-60100iUZJ100..5F..GCC;FZJ10#,HZJ105..ARL,GCC,GEN; UZJ100..5FC..GCC;HDJ100,UZJ100..ARL,GEN200208-200505

W(REAR WINDOW DEFOGGER) OR W(HEADLAMP CLEANER)

85330JAR ASSY, WINDSHIELD WASHER

main85315-60280iFZJ10#,HZJ105..GCC,GEN200505

main85325-60100iHDJ100..ARL200008-200208

main85325-60110iUZJ100..GCC;HZJ105..LHD..SOB..GEN199801-200208

W(REAR WINDOW DEFOGGER & HEADLAMP CLEANER) OR W(HEADLAMP CLEANER)

main85325-60140iFZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN200208-200505

W(REAR WINDOW DEFOGGER)

main85355-60160iHZJ105..LHD..SOB;FZJ100,UZJ100..(GX,VX)..GCC200208-200505

W(HEADLAMP CLEANER)

main85355-60161iHZJ105..LHD..SOB;FZJ100,UZJ100..(GX,VX)..GCC200505

W(HEADLAMP CLEANER)

85330ABUSH, WINDSHIELD WASHER JAR

main90099-32089×2iFZJ10#,HZJ105..GCC,GEN; UZJ100..5F..GCC;FZJ10#,HZJ105..ARL,GCC,GEN; UZJ100..5FC..GCC;HDJ100,UZJ100..ARL,GEN200208-200505

W(REAR WINDOW DEFOGGER) OR W(HEADLAMP CLEANER)

85332CAP, WINDSHIELD WASHER JAR

main85316-42011iFZJ10#,HDJ100,HZJ105,UZJ100199801-200006

main85386-60030iFZJ10#,HDJ100,HZJ105,UZJ100200208-200308

main85386-60070iFZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN200308-200505

85336DPACKING, WINDSHIELD WASHER JAR

main85336-30160iFZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN200208-200505

85336JPROTECTOR, WASHER JAR

main85336-60280iFZJ105,UZJ100..(STD,VX)..ARL199801-200008

85345NOZZLE, WINDSHIELD WASHER

main85381-12060×2iFZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN200505

main85382-0G010×2iFZJ100..CHI;UZJ100..5FC..CHI200309-200506

(L)

85348JOINT, WINDSHIELD WASHER HOSE, NO.1

main85334-22470iFZJ105,UZJ100..(STD,VX)..ARL199801-200008

85348DJOINT, WINDSHIELD WASHER ELBOW, NO.1

main85355-14481×2iFZJ105,UZJ100..(STD,VX)..ARL199801-200008

85348EJOINT, WINDSHIELD WASHER ELBOW, NO.2

main85355-32110×2iFZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN200208-200505

NO.1

main85377-32220iFZJ100,UZJ100..CHI200506

85348FJOINT, WINDSHIELD WASHER ELBOW, NO.3

main85377-34010iFZJ105,UZJ100..(STD,VX)..ARL199801-200008

85348GJOINT, WINDSHIELD WASHER HOSE, NO.2

main85334-22480iFZJ105..GX;FZJ100,HDJ100,HZJ105;FZJ105,UZJ100..LHD..(STD,VX)199801-200208

85348MJOINT, WINDSHIELD WASHER HOSE, NO.3

main85375-10260×2iFZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN200208-200505

85348NJOINT, WINDSHIELD WASHER HOSE, NO.4

main85375-20800iFZJ105..GX;FZJ100,HDJ100,HZJ105;FZJ105,UZJ100..LHD..(STD,VX)199801-200208

NO.1

main85378-60380iFZJ100..CHI;UZJ100..5FC..CHI200309-200506

NO.2

85371HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)

main90099-33080iFZJ100,UZJ100..CHI200506

L=1450(*H,L=1240)

main90099-33712iFZJ10#,HDJ100,HZJ105,UZJ100199801-199907

L=1300

85372HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1

main90099-33075iFZJ100,UZJ100..CHI200506

L=1100(*H,L=690)

85372BHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.2

main90099-33080iFZJ105,UZJ100..(STD,VX)..ARL199801-200008

L=1450(*H,L=260),NO.1,NO.2

85373HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)

main90099-33080iFZJ100,UZJ100..CHI200506

L=1450(*H,L=160),NO.1; L=1450(*H,L=560),NO.2

9011906818

main90119-06818

9095901136

main90959-01136

23 parts on this diagram · 3 diagrams in section
