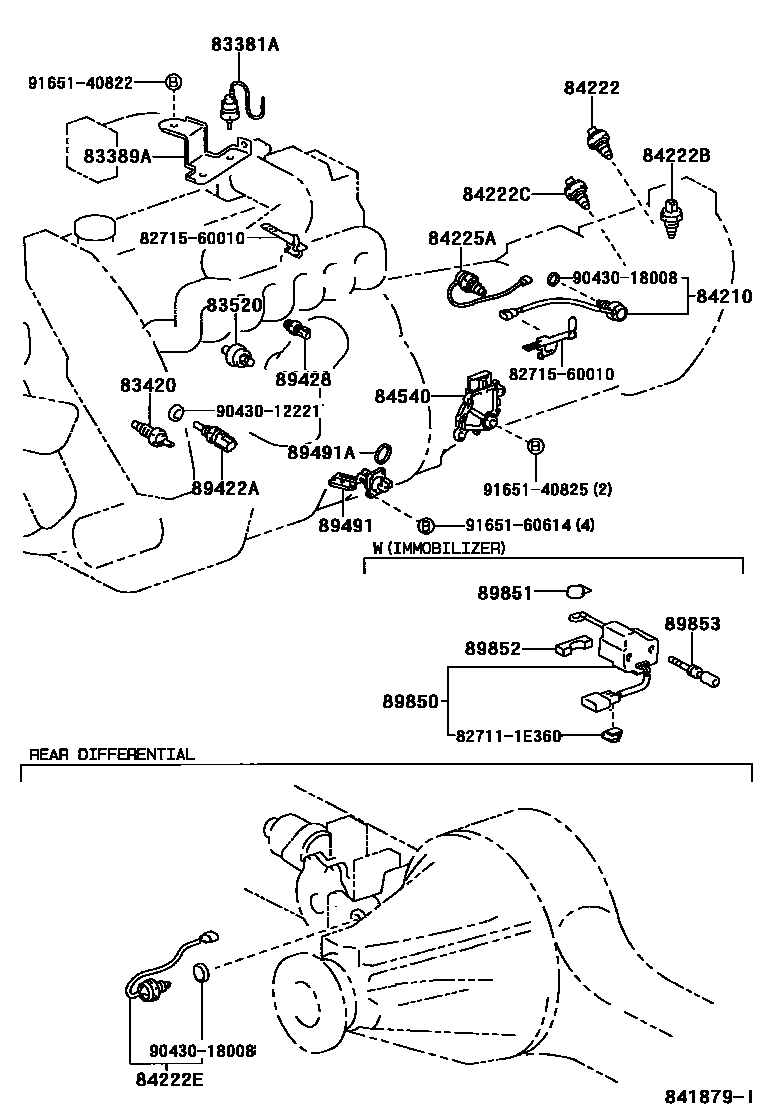

SWITCH & RELAY & COMPUTER

0001 1ENGINE & TRANSMISSION 0002 1ENGINE & TRANSMISSION 0003 1ENGINE & TRANSMISSION 0004 1ENGINE & TRANSMISSION 0005 1ENGINE & TRANSMISSION 0006 1ENGINE & TRANSMISSION 0007 1ENGINE ROOM 0008 1ENGINE ROOM 0009 1COWL 0010 1COWL 0011 1COWL 0012 1COWL 0013 1INSTRUMENT PANEL SWITCH 0014 1INSTRUMENT PANEL SWITCH 0015 1CENTER CLUSTER INTEGRATION 0016 1CENTER CLUSTER INTEGRATION 0017 1CENTER CLUSTER INTEGRATION 0018 1CENTER CLUSTER INTEGRATION 0019 1IGNITION & COMBINATION SWITCH0020 1IGNITION & COMBINATION SWITCH0021 1IGNITION & COMBINATION SWITCH0022 1IGNITION & COMBINATION SWITCH0023 1DOOR & ROOF 0024 1DOOR & ROOF 0025 1FLOOR & BACK DOOR 0026 1FLOOR & BACK DOOR 0027 1FLOOR & BACK DOOR 0029 1FLOOR & BACK DOOR 0032 1SEAT

83381ASWITCH, PRESSURE

main83381-60090iHDJ100..GEN199801-200208

83389ABRACKET, PRESSURE SWITCH

main83389-60070iHDJ100..GEN199801-200208

83420GAGE ASSY, WATER TEMPERATURE SENDER

main83420-16040iFZJ100..CHI199801

main83420-20040iUZJ100..ARL,GCC,GEN200505-200708

83520GAGE ASSY,OIL PRESSURE SENDER

main83520-35020iFZJ105,UZJ100..(STD,VX)..ARL199801-200008

main83520-35030iHDJ100,HZJ105200208-200409

main83520-35031iHDJ100,HZJ105200409-200505

main83520-60050iFZJ100..CHI;UZJ100..5FC..CHI200409-200506

84210SWITCH ASSY, BACK-UP LAMP

main84210-12040iHZJ105200505-200708

main84210-60030iFZJ100,HDJ100,UZJ100..ATM200208-200308

84222SWITCH, TRANSFER INDICATOR, NO.1

main84222-12010iFZJ105,UZJ100..(STD,VX)..ARL199801-200008

84222BSWITCH, TRANSFER INDICATOR, NO.2

main84222-60080iFZJ10#,HDJ100,HZJ105,UZJ100..4FC199801-199909

main84222-60081iUZJ100..ARL199909-200008

84222CSWITCH, TRANSFER INDICATOR, NO.3

main84222-12010iFZJ105..GX;FZJ100,HDJ100,HZJ105;FZJ105,UZJ100..LHD..(STD,VX)199801-200208

84222ESWITCH, DIFFERENTIAL LOCK INDICATOR

main84222-12010iFZJ105,HZJ105200208-200505

main84222-60090iFZJ100,HDJ100,UZJ100..(GX,VX)..(ARL,GCC,GEN)200208-200505

84225ASWITCH, SHIFT POSITION

main84225-35010iHDJ100,UZJ100..5F..(EFI,TDEFI)199801-200208

84540SWITCH ASSY, NEUTRAL START

main84540-51010iUZJ100..5FC..CHI200309-200506

main84540-65010iFZJ100..4FC..CHI200506-200606

89422ASENSOR, WATER TEMPERATURE

main89422-20010iHDJ100,HZJ105..DSL2,TD2199801-200208

89428SWITCH, TEMPERATURE DETECT, NO.2

main89428-36030iHDJ100,HZJ105..4FC..(DSL2,TD2)199801-200208

89491SENSOR, ENGINE OIL LEVEL

main89491-60010iFZJ100..CHI200506-200606

main89491-60060iHDJ100,HZJ105..ARL,GCC200505

main89491-60070iUZJ100..VX..CHI200309

89491AGASKET, ENGINE OIL LEVEL SENSOR

main89493-60010iUZJ100..ARL199801-200008

89850UNIT ASSY, FUEL CUT VALVE CONTROL

main89850-20011iHZJ105..ARL;HDJ100,HZJ105..(GX,VX)..GEN199801-200008

89851CAP, FUEL CUT VALVE CONTROLLER

main89851-20010iHZJ105..ARL,GCC;HDJ100,HZJ105..(GX,VX)..GEN200008-200208

89852CLAMP, FUEL CUT VALVE CONTROLLER

main89852-20010iHZJ105..ARL;HDJ100,HZJ105..(GX,VX)..GEN199801-200008

89853BOLT, FUEL CUT VALVE CONTROLLER

main89853-20010×2iHZJ105..ARL;HDJ100,HZJ105..(GX,VX)..GEN199801-200008

827111E360WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-1E360

8271560010BRACKET,WIRING HARNESS CLAMP

main82715-60010

9043012221

main90430-12221

9043018008

main90430-18008

9165140822

main91651-40822

9165140825

main91651-40825

9165160614

main91651-60614

26 parts on this diagram · 29 diagrams in section
