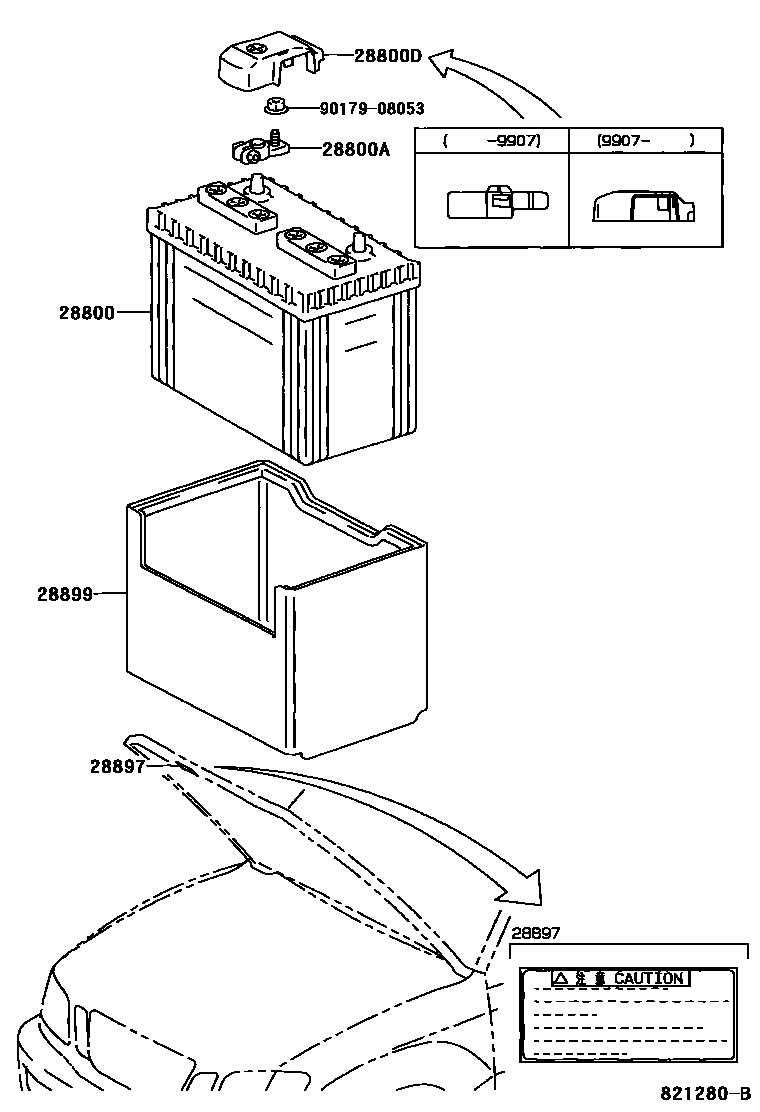

BATTERY & BATTERY CABLE

0001 11 BATTERY 0002 12 BATTERY 0003 11 BATTERY 0004 12 BATTERY

28800BATTERY

main28800-17111i1HDFTE..HDJ100200208-200505

80D26R,FURUKAWA

main28800-17120i1HZ..HZJ105..GCC,GEN;1FZFE,1HDT,2UZFE..FZJ10#,HDJ100,UZJ100199801-199803

80D26L,FURUKAWA

main28800-17121i1FZFE..FZJ100..CHI200309-200506

80D26L,FURUKAWA

main28800-17131×2i1FZFE..FZJ100..SOB..5F..GX200206-200207

105D31R,ARMED SOURCE 24V(QATAR),FURUKAWA

main28800-17150i1HZ..HZJ105..LHD..SOB..GEN200402-200505

95D31R,MATSUSHITA

main28800-50160i1FZFE,2UZFE..FZJ100,UZJ100..GCC200601

80D26L,FURUKAWA

main28800-54020i1HZ..HZJ105..GEN;1FZFE,1HDFTE,2UZFE..FZJ10#,HDJ100,UZJ100..ARL,GCC,GEN200208-200505

80D26L

main28800-54030i1HDT,1HZ..HDJ100,HZJ105199808-200208

95D31L,GS

main28800-54040i1HZ..HZJ105..LHD..GEN199801-199808

95D31R

main28800-54231i1HDFTE..HDJ100200709

80D26R,YUASA

main28800-54232i1HDFTE..HDJ100200208-200505

80D26R,YUASA

main28800-54370i1HZ..HZJ105; 1HZ..HZJ105..LHD..SOB..GEN200505

95D31L; 95D31L,MATSUSHITA

main28800-54472i1HDFTE..HDJ100200103-200206

80D26R,MATSUSHITA

main28800-58020i1HZ..HZJ105..LHD..SOB199808-200103

95D31R,SINKOUBE

main28800-64061i1HZ..HZJ105..LHD..SOB..GEN200208-200505

95D31R,YUASA

main28800-64062i1HZ..HZJ105..LHD..SOB200103-200208

95D31R,YUASA

main28800-64122i1HZ..HZJ105..GEN;1FZFE,1HD#,2UZFE..FZJ10#,HDJ100,UZJ100200103-200208

80D26L,GS

main28800-64131i1HZ..HZJ105..GCC,GEN;1FZFE,1HDT,2UZFE..FZJ10#,HDJ100,UZJ100199801-200008

80D26L

main28800-64132i1HZ..HZJ105..GEN;1FZFE,1HDFTE,2UZFE..FZJ10#,HDJ100,UZJ100..ARL,GCC,GEN200208-200505

80D26L,YUASA

main28800-64151i1HZ..HZJ105..GEN;1FZFE,1HD#,2UZFE..FZJ10#,HDJ100,UZJ100200008-200103

80D26L,MATSUSHITA

main28800-64170i1H#..HDJ100,HZJ105..ARL,GEN199801-199808

95D31L

main28800-64181i1HDT,1HZ..HDJ100,HZJ105199808-200103

95D31L,YUASA

main28800-64182i1HZ..HZJ105..LHD..SOB..GEN200208-200505

95D31L,YUASA

main28800-64201i1HDT,1HZ..HDJ100,HZJ105200008-200103

95D31L,MATSUSHITA

main28800-64251i2UZFE..UZJ100..5FC..CHI200309-200506

105D31L,FURUKAWA

main28800-67122×2i1FZFE..FZJ100..SOB..5F..GX200106-200107

105D31R,ARMED SOURCE 24V(QATAR),GS

main28800-76080i1HZ..HZJ105..GEN;1FZFE,1HD#,2UZFE..FZJ10#,HDJ100,UZJ100200103-200208

80D26L,MATSUSHITA

28800ATERMINAL, BATTERY POSITIVE

main82675-60020i1FZFE,1H#,2UZFE..FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN200208-200505

main90982-05035i1FZFE,1HD#,1HZ,2UZFE..FZJ10#,HDJ100,HZJ105,UZJ100199801-200208

28800DCOVER, CONNECTOR(FOR BATTERY TERMINAL)

main82821-22110i1HZ..HZJ105..LHD..GEN199801-199805

LH BATTERY POSITIVE SIDE

main82821-24010i1HZ..HZJ105..LHD..SOB199808-199907

LH BATTERY POSITIVE SIDE

main82821-60030i1HZ..HZJ105..GCC200208-200308

main82821-60040i1FZFE,1H#,2UZFE..FZJ10#,HDJ100,HZJ105,UZJ100199801-199907

FUSIBLE LINK BLOCK

main82821-60041i1HZ..HZJ105..GCC; 1HZ..HZJ105..LHD..SOB..GEN199907-200208

COLD SPEC,FUSIBLE LINK BLOCK; RUSSIA SPEC,FUSIBLE LINK BLOCK

main82821-60060i1HDFTE..HDJ100;1HZ..HZJ105..LHD..SOB199907-200208

LH BATTERY POSITIVE SIDE

28897PLATE, BATTERY CAUTION

main28897-54030i1HDFTE..HDJ100;1HZ..HZJ105..LHD..SOB..GEN200505

28899INSULATOR, BATTERY

main28899-17040i1FZFE..FZJ100..CHI200309-200506

main28899-54050i1HZ..HZJ105200505

BATTERY SIZE=D31

9017908053

main90179-08053

6 parts on this diagram · 4 diagrams in section
