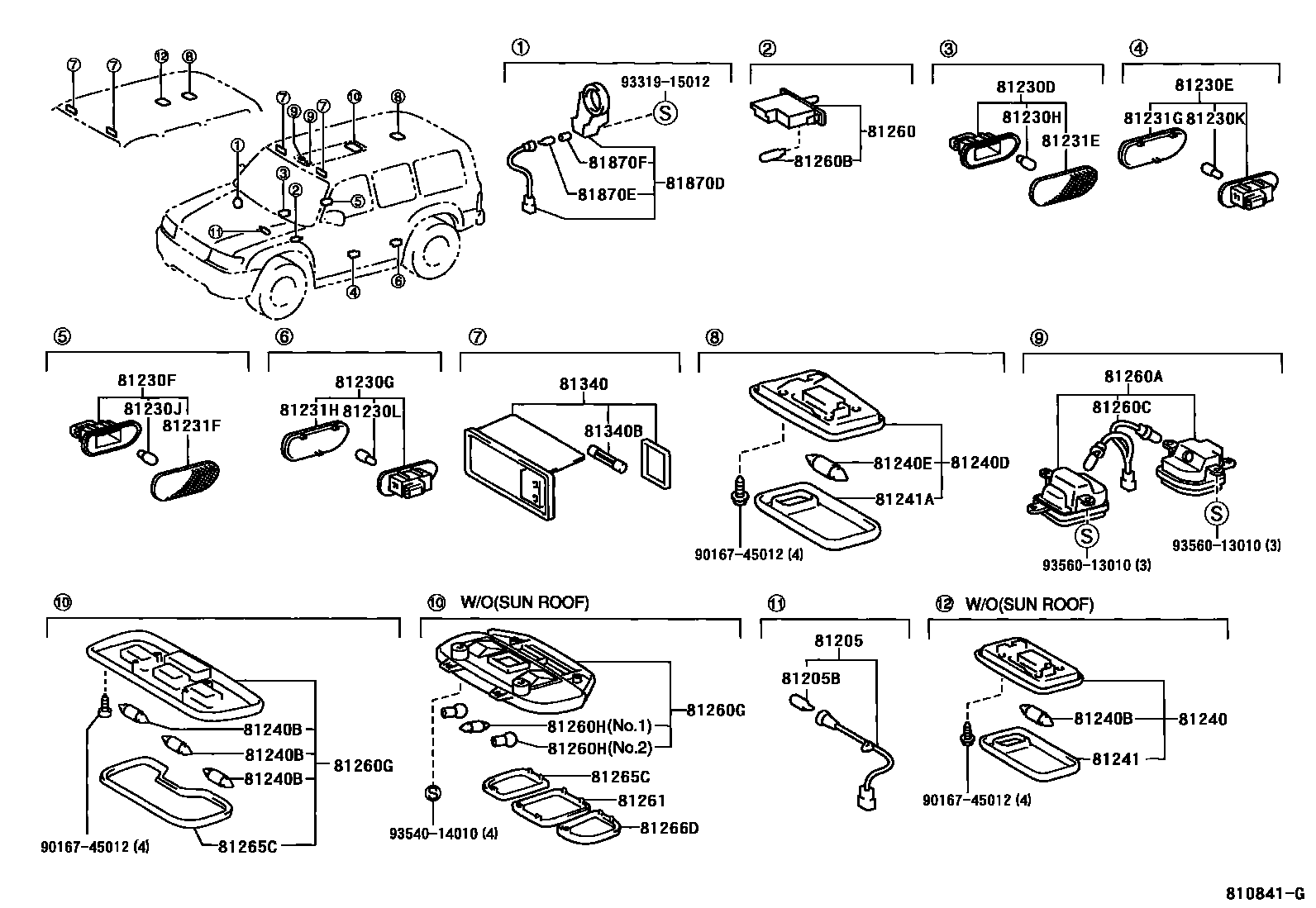

INTERIOR LAMP

0001 1 0002 1

81205LAMP SUB-ASSY, ASH RECEPTACLE

main81850-60530iFZJ10#,HDJ100,HZJ105,UZJ100199801-200103

main81850-60550iHZJ105..LHD..GX;FZJ10#..LHD..5F..(GCC,GEN);HDJ100,HZJ105..SOB..(STD,VX)200505

W(BENCH SEAT)

main81850-60560iFZJ100,UZJ100..CHI200506

81205BBULB, ASH RECEPTACLE LAMP

main90981-11014iFZJ105..GX;FZJ100,HDJ100,HZJ105;FZJ105,UZJ100..LHD..(STD,VX)199801-200208

14V 1.4W

81230DLAMP ASSY, FRONT DOOR COURTESY, RH

main81230-33010iHDJ100,UZJ100..VX..(ARL,GCC,GEN)200208-200505

81230ELAMP ASSY, FRONT DOOR COURTESY, LH

main81310-33010iUZJ100..ARL199801-200008

81230FLAMP ASSY, REAR DOOR COURTESY, RH

main81230-33010iUZJ100..ARL199801-200008

81230GLAMP ASSY, REAR DOOR COURTESY, LH

main81310-33010iUZJ100..ARL199801-200008

81230HBULB(FOR FRONT DOOR COURTESY LAMP RH)

main90080-81002iHDJ100..GX;FZJ105..4FC;HZJ105..5F..GX..ARL200204-200205

12V 3.8W,ADVANTAGE EDITION(AUSTRALIA)

main90981-11020iFZJ105..ARL;HZJ105..5F..GX..ARL200105-200106

12V 3.8W,50TH ANNIVERSARY LIMITED EDITION(AUSTRALIA)

81230JBULB(FOR REAR DOOR COURTESY LAMP RH)

main90080-81002iHDJ100..GX;FZJ105..4FC;HZJ105..5F..GX..ARL200204-200205

12V 3.8W,ADVANTAGE EDITION(AUSTRALIA)

main90981-11020iFZJ105..ARL;HZJ105..5F..GX..ARL200105-200106

12V 3.8W,50TH ANNIVERSARY LIMITED EDITION(AUSTRALIA)

81230KBULB(FOR REAR DOOR COURTESY LAMP LH)

main90080-81002iHDJ100..GX;FZJ105..4FC;HZJ105..5F..GX..ARL200204-200205

12V 3.8W,ADVANTAGE EDITION(AUSTRALIA)

main90981-11020iUZJ100..ARL199801-200008

12V 3.8W

81230LBULB(FOR FRONT DOOR COURTESY LAMP LH)

main90080-81002iHDJ100..GX;FZJ105..4FC;HZJ105..5F..GX..ARL200204-200205

12V 3.8W,ADVANTAGE EDITION(AUSTRALIA)

main90981-11020iFZJ105..ARL;HZJ105..5F..GX..ARL200105-200106

12V 3.8W,50TH ANNIVERSARY LIMITED EDITION(AUSTRALIA)

81231ELENS (FOR FRONT DOOR COURTESY LAMP, RH)

main81231-33010iUZJ100..ARL199801-200008

81231FLENS (FOR REAR DOOR COURTESY LAMP, RH)

main81231-33010iHDJ100..GX;FZJ105..4FC;HZJ105..5F..GX..ARL200204-200205

ADVANTAGE EDITION(AUSTRALIA)

81231GLENS (FOR FRONT DOOR COURTESY LAMP, LH)

main81231-33010iHDJ100..GX;FZJ105..4FC;HZJ105..5F..GX..ARL200204-200205

ADVANTAGE EDITION(AUSTRALIA)

main81311-33010iUZJ100..ARL199801-200008

81231HLENS (FOR REAR DOOR COURTESY LAMP, LH)

main81231-33010iHDJ100..GX;FZJ105..4FC;HZJ105..5F..GX..ARL200204-200205

ADVANTAGE EDITION(AUSTRALIA)

main81311-33010iUZJ100..ARL199801-200008

81240LAMP ASSY, ROOM, NO.1

main81240-60040-A0iFZJ10#,HDJ100,HZJ105..GX199801-200208

IVORY,TRIM4#

main81240-60040-A1iFZJ10#,HDJ100,HZJ105,UZJ100..GX200208-200210

IVORY,TRIM0#

main81240-60040-B0iFZJ10#,HDJ100,HZJ105..GX,STD199801-200208

MD.GRAY,TRIM1#

main81240-60040-B1iFZJ10#,HDJ100,HZJ105,UZJ100..GX,STD200208-200210

STONE,TRIM1#

main81250-60020-A0iFZJ10#,HDJ100,HZJ105,UZJ100..GX..(ARL,GCC,GEN)200210-200505

IVORY,TRIM0#

main81250-60020-B0iHZJ105..SOB;FZJ10#..GCC,GEN;HZJ105..LUB..GEN200505

STONE,TRIM1#

81240BBULB, ROOM LAMP, NO.1

main90981-14004iFZJ10#,HDJ100,HZJ105,UZJ100..(GX,STD)..(ARL,GCC,GEN); FZJ10#,HDJ100,HZJ105,UZJ100..(GX,VX)..(ARL,GCC,GEN)200208-200505

12V 8W; 12V 8W,W/O(SUN ROOF)

81240DLAMP ASSY, ROOM, NO.2

main81240-60040-A0iHDJ100..SOB;FZJ10#,HDJ100,HZJ105..(GX,VX)..(DSL2,EFI,TDEFI); UZJ100;HDJ100..LUB..GEN199801-200208

IVORY,TRIM4#; IVORY,TRIM40,41

main81240-60040-A1iFZJ10#,HDJ100,HZJ105,UZJ100..GX,VX200208-200210

IVORY,TRIM0#

main81240-60040-B0iFZJ10#,HDJ100,HZJ105,UZJ100199801-200208

MD.GRAY,TRIM1#

main81240-60040-B1iFZJ10#,HDJ100,HZJ105,UZJ100200208-200210

STONE,TRIM1#

main81250-60020-A0iFZJ10#,HDJ100,HZJ105,UZJ100..(GX,VX)..(ARL,GCC,GEN)200210-200505

IVORY,TRIM0#

main81250-60020-B0iFZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN200210-200505

STONE,TRIM1#

81240EBULB, ROOM LAMP, NO.2

main90981-14004iFZJ10#,HDJ100,HZJ105,UZJ100..(GX,VX)..(ARL,GCC,GEN); HZJ105..SOB;FZJ10#..GCC,GEN;HZJ105..LUB..GEN200505

12V 8W; 12V 8W,W(MOON ROOF)

81241LENS, ROOM LAMP, NO.1

main81241-32031iHDJ100..GX;FZJ10#,HDJ100,HZJ105,UZJ100..DSL2,EFI,TD2199801-200208

81241ALENS, ROOM LAMP, NO.2

main81241-32031iFZJ105,UZJ100..(STD,VX)..ARL199801-200008

81260LAMP ASSY, GLOVE BOX

main81260-33030iUZJ100..ARL199801-200008

81260ALAMP ASSY, MAP

main81260-60050-A0iHDJ100..SOB;FZJ10#,HDJ100,HZJ105..(GX,VX)..(DSL2,EFI,TDEFI); UZJ100;HDJ100..LUB..GEN199801-200208

IVORY,TRIM4#; IVORY,TRIM40,41

main81260-60050-B0iFZJ10#,HDJ100,HZJ105,UZJ100..GX,VX199801-200208

MD.GRAY,TRIM1#

main81260-60080-A0iFZJ100..CHI;UZJ100..5FC..CHI200309-200506

IVORY,TRIM0#

main81260-60080-B0iFZJ10#,HDJ100,HZJ105,UZJ100..(GX,VX)..(ARL,GCC,GEN)200505

STONE,TRIM1#

81260BBULB(FOR GLOVE BOX)

main90981-11018iFZJ10#,HDJ100,HZJ105,UZJ100..(GX,VX)..(ARL,GCC,GEN)200505

12V 1.2W W/O SOCKET

81260CBULB(FOR MAP LAMP)

main99132-12050×2iUZJ100..LHD;FZJ10#,HDJ100,HZJ105..GX,VX199801-200208

12V 5W

81260GLAMP ASSY, MAP, NO.2

main81260-60060-A0iHDJ100,UZJ100..GCC,GEN; UZJ100..ARL199801-199908

W/O(SUN ROOF),IVORY,TRIM4#; W/O(SUN ROOF),IVORY,TRIM40,41

main81260-60060-B0iHDJ100,UZJ100199801-199908

W/O(SUN ROOF),MD.GRAY,TRIM1#

main81260-60061-A0iHDJ100..SOB;HDJ100..VX..ARL; UZJ100;HDJ100..LUB..GEN199908-200208

W/O(SUN ROOF),IVORY,TRIM4#; W/O(SUN ROOF),IVORY,TRIM40,41

main81260-60061-A1iHZJ105..GX..ARL;HDJ100,UZJ100..5FC..GX..ARL;HDJ100,UZJ100..5FC..(GCC,GEN);HDJ100,UZJ100..5F..(ARL,GCC,GEN)200505

W/O(SUN ROOF),IVORY,TRIM0#

main81260-60061-B0iHDJ100..GX;FZJ105..4FC;HZJ105..5F..GX..ARL200204-200205

ADVANTAGE EDITION(AUSTRALIA),MD.GRAY,TRIM10

main81260-60061-B1iHZJ105..GX..ARL;HDJ100,UZJ100..ARL,GCC,GEN200208-200505

W/O(SUN ROOF),STONE,TRIM1#

main81260-60070-A0iHDJ100..SOB;FZJ10#,HDJ100,HZJ105..(GX,VX)..(DSL2,EFI,TDEFI); UZJ100;HDJ100..LUB..GEN199801-200208

IVORY,TRIM4#; IVORY,TRIM40,41

main81260-60070-B0iFZJ10#,HDJ100,HZJ105,UZJ100..GX,VX199801-200208

MD.GRAY,TRIM1#

main81260-60150-A0iFZJ10#,HDJ100,HZJ105,UZJ100..GX,VX200208-200210

IVORY,TRIM0#

main81260-60150-B0iFZJ10#,HDJ100,HZJ105,UZJ100..GX,VX200208-200210

STONE,TRIM1#

main81260-60151-A0iFZJ100..CHI;UZJ100..5FC..CHI200309-200506

IVORY,TRIM0#

main81260-60151-B0iFZJ10#,HDJ100,HZJ105,UZJ100..(GX,VX)..(ARL,GCC,GEN)200210-200505

STONE,TRIM1#

81260HBULB(FOR MAP LAMP), NO.2

main90981-14011iHDJ100..GX;FZJ105..4FC;HZJ105..5F..GX..ARL200204-200205

12V 8W,ADVANTAGE EDITION(AUSTRALIA),NO.1

main99132-12050×2iHZJ105..GX..ARL;HDJ100,UZJ100..ARL,GCC,GEN200208-200505

12V 5W,NO.2

81261LENS AND COVER, MAP LAMP

main81261-60060iHDJ100..GX;FZJ105..4FC;HZJ105..5F..GX..ARL200204-200205

ADVANTAGE EDITION(AUSTRALIA)

81265CLENS, MAP LAMP, NO.1

main81265-60060iHZJ105..GX..ARL;HDJ100,UZJ100..5FC..GX..ARL;HDJ100,UZJ100..5FC..(GCC,GEN);HDJ100,UZJ100..5F..(ARL,GCC,GEN)200505

W/O(SUN ROOF)

main81265-60070iUZJ100..ARL199801-200008

81266DLENS, MAP LAMP, NO.2

main81266-60060iHDJ100..GX;FZJ105..4FC;HZJ105..5F..GX..ARL200204-200205

ADVANTAGE EDITION(AUSTRALIA)

81340LAMP ASSY, VANITY

main81340-33090-A0iHDJ100..SOB;FZJ10#,HDJ100,HZJ105..(GX,VX)..(DSL2,EFI,TDEFI); UZJ100;HDJ100..LUB..GEN199801-200208

IVORY,TRIM4#,RH; IVORY,TRIM40,41,RH

main81340-33090-A1iFZJ100,UZJ100..CHI200506

IVORY,TRIM0#,RH

main81340-33090-B4iFZJ10#,HDJ100,HZJ105,UZJ100..GX,VX199801-200208

MD.GRAY,TRIM1#,RH

main81340-33090-B8iFZJ10#,HDJ100,HZJ105,UZJ100..(GX,VX)..(ARL,GCC,GEN)200208-200505

STONE,TRIM1#,RH

main81350-33040-A0iHDJ100..SOB;FZJ10#,HDJ100,HZJ105..(GX,VX)..(DSL2,EFI,TDEFI); UZJ100;HDJ100..LUB..GEN199801-200208

IVORY,TRIM4#,LH; IVORY,TRIM40,41,LH

main81350-33040-A1iFZJ100..CHI;UZJ100..5FC..CHI200309-200506

IVORY,TRIM0#,LH

main81350-33040-B4iFZJ10#,HDJ100,HZJ105,UZJ100..GX,VX199801-200208

MD.GRAY,TRIM1#,LH

main81350-33040-B8iFZJ10#,HDJ100,HZJ105,UZJ100..(GX,VX)..(ARL,GCC,GEN)200505

STONE,TRIM1#,LH

81340BBULB (FOR VANITY LAMP)

main90981-14003×2iFZJ100,UZJ100..CHI200506

12V 1.5W

81870DLAMP ASSY, KEY CYLINDER

main81870-33030iHDJ100;UZJ100..GCC199808-200008

main81870-33050iHDJ100,UZJ100..GCC,GEN200008-200208

W(ENGINE IMMOBILIZER SYSTEM)

main81870-60020iFZJ105,HZJ105..GEN200308-200505

81870EBULB, KEY CYLINDER LAMP

main90981-11014iHDJ100,UZJ100..VX199801-200208

14V 1.4W

81870FCAP, KEY CYLINDER LAMP BULB

main84998-10070iHDJ100,UZJ100..VX199801-200208

9016745012

main90167-45012

9331915012

main93319-15012

9354014010

main93540-14010

9356013010

main93560-13010

38 parts on this diagram · 2 diagrams in section
