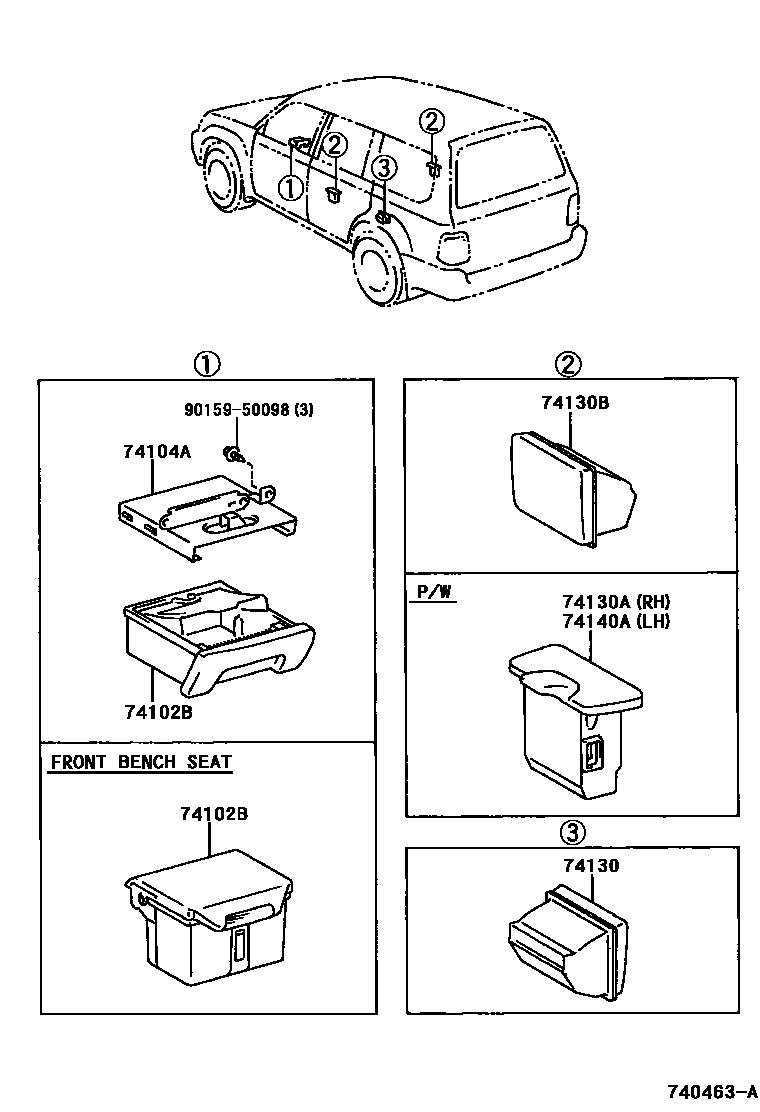

ASH RECEPTACLE

74102BBOX SUB-ASSY, FRONT ASH RECEPTACLE

main74102-60100-A0iHDJ100..SOB;FZJ10#,HZJ105..LHD..5F..GX199801-200208

W(FRONT BENCH SEAT),IVORY,TRIM4#

main74102-60100-A1iFZJ10#,HZJ105..LHD..5F..GX..(GCC,GEN); HDJ100..SOB200208-200505

IVORY,TRIM0#; W(FRONT BENCH SEAT),IVORY,TRIM0#

main74102-60100-B0iFZJ10#,HZJ105..STD199801-200008

W(FRONT BENCH SEAT),SHADOW GRAY,TRIM1#

main74102-60100-B1iHDJ100..SOB;FZJ10#,HZJ105..LHD..5F..GX199801-200008

W(FRONT BENCH SEAT),MD. GRAY,TRIM1#

main74102-60100-B2iHZJ105..LHD..GX;FZJ10#..LHD..5F..(GCC,GEN);HDJ100,HZJ105..SOB..(STD,VX)200505

W(FRONT BENCH SEAT),STONE,TRIM1#

main74102-60110-B0iFZJ105,HDJ100,HZJ105..RHD..5F;FZJ100,HDJ100,UZJ100..LHD..4FC199801-200208

SHADOW GRAY,TRIM1#

main74102-60110-E0iFZJ100..4FC;FZJ105,HDJ100,HZJ105..RHD..5F..GX; HDJ100..RHD..GEN;HDJ100,UZJ100..LHD..4FC199801-200208

OAK,TRIM4#; OAK,TRIM40,41

main74102-60111iFZJ100..4FC..GCC;FZJ105,HDJ100,HZJ105..RHD..5F..(GX,STD); UZJ100..5F..ARL;HDJ100..RHD..GEN;HDJ100,UZJ100..5FC..(GCC,GEN)200208-200505

main74102-60120-B0iHDJ100..LHD..LUB..5F;FZJ10#,HZJ105,UZJ100..LHD..5F;FZJ105,HDJ100,HZJ105,UZJ100..4FC..ARL199801-200208

W(SEPARATE SEAT),SHADOW GRAY,TRIM1#

main74102-60120-E0iFZJ10#,HZJ105..LHD..5F..GX;FZJ105,HDJ100,HZJ105..4FC..ARL; UZJ100..5F;UZJ100..ARL;HDJ100..LHD..LUB..5F199801-200208

OAK,TRIM40,41; W(SEPARATE SEAT),OAK,TRIM4#

main74102-60121iFZJ10#,HZJ105,UZJ100..LHD..5F..(GCC,GEN); HDJ100..LHD..LUB..5F;HDJ100,UZJ100..5FC..ARL200208-200505

74104ARETAINER SUB-ASSY, FRONT ASH RECEPTACLE

main74104-60080iFZJ105,UZJ100..(STD,VX)..ARL199801-200008

74130RECEPTACLE ASSY, REAR ASH

main74130-60040-A0iFZJ10#,HDJ100,HZJ105..(GX,VX)..(DSL2,EFI,TDEFI); UZJ100;HDJ100..LUB..GEN199801-200208

IVORY,TRIM4#; IVORY,TRIM40,41

main74130-60040-A1iHDJ100..LUB;FZJ10#,HZJ105,UZJ100..(GX,VX)..(ARL,GCC,GEN)200505

IVORY,TRIM0#

main74130-60040-B0iHDJ100..LUB;FZJ10#,HZJ105,UZJ100..GX,VX199801-200208

MD.GRAY,TRIM1#

main74130-60040-B1iHDJ100..LUB..VX;HDJ100..5FC..GX;UZJ100..ARL,GEN;UZJ100..5FC..GCC; UZJ100..5F..GCC;FZJ10#,HDJ100,HZJ105..(4FC,5F)..GX..(ARL,GCC,GEN)200208-200505

STONE,TRIM1#

74130ARECEPTACLE ASSY, REAR ASH, RH

main74130-60050-A0iHDJ100..SOB;FZJ10#,HDJ100,HZJ105..(GX,VX)..(DSL2,EFI,TDEFI); UZJ100;HDJ100..LUB..GEN199801-200208

IVORY,TRIM4#; IVORY,TRIM40,41

main74130-60050-A1iHDJ100..VX;HDJ100..5FC..GX;UZJ100..ARL,GEN;UZJ100..5FC..GCC; UZJ100..5F..GCC;FZJ10#,HDJ100,HZJ105..(4FC,5F)..GX..(ARL,GCC,GEN)200208-200505

IVORY,TRIM0#

main74130-60050-B0iFZJ10#,HDJ100,HZJ105,UZJ100..GX,VX199801-200208

MD.GRAY,TRIM1#

main74130-60050-B1iHDJ100..VX;HDJ100..5FC..GX;UZJ100..ARL,GEN;UZJ100..5FC..GCC; UZJ100..5F..GCC;FZJ105,HZJ105..GX;FZJ100,HDJ100..(4FC,5F)..(ARL,GCC)200208-200505

STONE,TRIM1#

main74130-60062iUZJ100..VX..CHI200309-200506

WOOD GRAIN

74130BRECEPTACLE ASSY, REAR ASH

main74130-60040-A0×2iFZJ10#,HDJ100,HZJ105..GX199801-200208

IVORY,TRIM4#

main74130-60040-A1×2iFZJ10#,HDJ100,HZJ105..(4FC,5F)..GX..(ARL,GCC,GEN); HDJ100..5FC..GX;UZJ100..GX..ARL200208-200505

IVORY,TRIM0#

main74130-60040-B0×2iFZJ10#,HDJ100,HZJ105..GX,STD199801-200208

MD.GRAY,TRIM1#

main74130-60040-B1×2iFZJ10#,HDJ100,HZJ105..(4FC,5F)..(GX,STD)..(ARL,GCC,GEN); HDJ100..5FC..GX;UZJ100..GX..ARL200208-200505

STONE,TRIM1#

74140ARECEPTACLE ASSY, REAR ASH, LH

main74140-60010-A0iHDJ100..SOB;FZJ10#,HDJ100,HZJ105..(GX,VX)..(DSL2,EFI,TDEFI); UZJ100;HDJ100..LUB..GEN199801-200208

IVORY,TRIM4#; IVORY,TRIM40,41

main74140-60010-A1iHDJ100..VX;HDJ100..5FC..GX;UZJ100..ARL,GEN;UZJ100..5FC..GCC; UZJ100..5F..GCC;FZJ10#,HDJ100,HZJ105..(4FC,5F)..GX..(ARL,GCC,GEN)200208-200505

IVORY,TRIM0#

main74140-60010-B0iFZJ10#,HDJ100,HZJ105,UZJ100..GX,VX199801-200208

MD.GRAY,TRIM1#

main74140-60010-B1iHDJ100..VX;HDJ100..5FC..GX;UZJ100..ARL,GEN;UZJ100..5FC..GCC; UZJ100..5F..GCC;FZJ105,HZJ105..GX;FZJ100,HDJ100..(4FC,5F)..(ARL,GCC)200208-200505

STONE,TRIM1#

main74140-60022iHDJ100..5FC..VX;UZJ100..VX..ARL;HDJ100..LHD..LUB..5F200208-200505

WOOD GRAIN

9015950098

main90159-50098

7 parts on this diagram · 1 diagram in section
