EPC Data

SEAT & SEAT TRACK

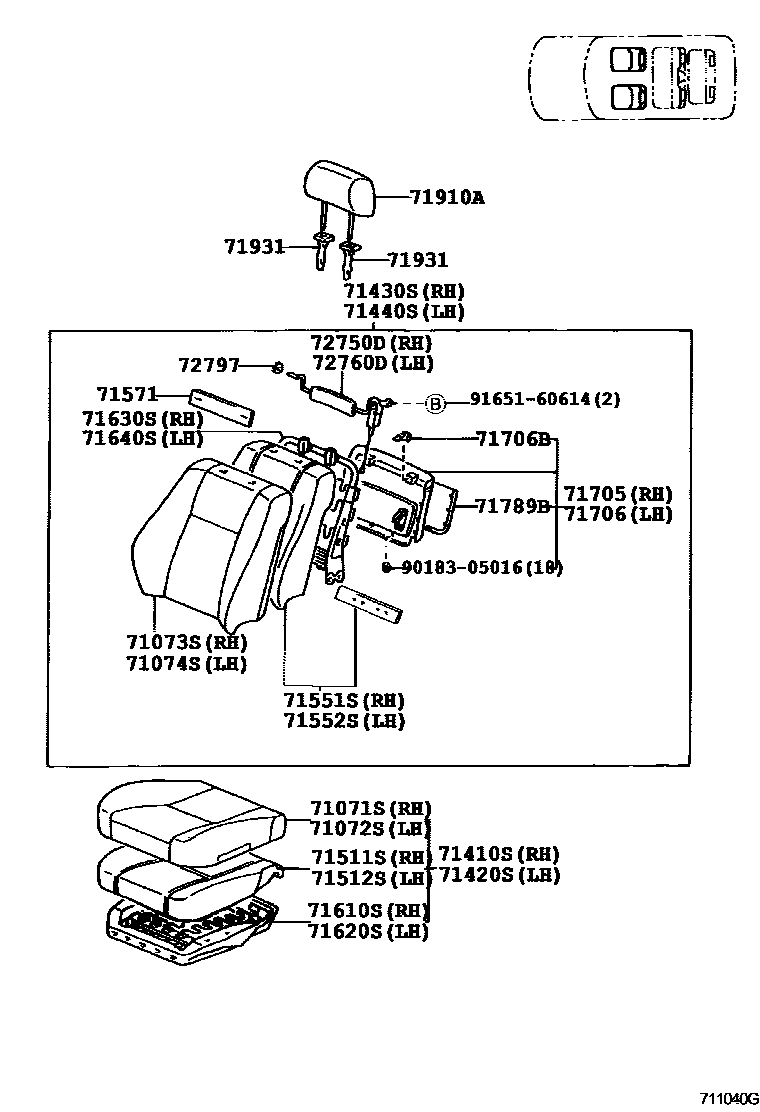

Parts diagram
71071SCOVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)
main71071-60820-B0i199801-200208
W(FRONT BENCH SEAT),GRAY,TRIM1#
main71071-60820-B2i200505
W(FRONT BENCH SEAT),STONE,TRIM1#
main71071-60890-B0i200108-200208
W(FABRIC SEAT & FRONT BENCH SEAT),GRAY,TRIM1#
main71071-60890-E0i199801-200208
W(FABRIC SEAT & FRONT BENCH SEAT),LT. OAK,TRIM4#
main71071-60A00-A1i200505
IVORY,TRIM0#
main71071-60A00-B1i200505
STONE,TRIM1#
main71071-6A010-B0i199801-200208
W(VINYL LEATHER SEAT),GRAY,TRIM1#
main71071-6A010-B2i200505
STONE,TRIM1#
main71071-6A020-B0i200008-200208
GRAY,TRIM1#
main71071-6A020-E0i199801-200208
W(FABRIC SEAT),LT. OAK,TRIM4#
main71071-6A030-A0i200208-200505
IVORY,TRIM0#
main71071-6A030-B0i199801-200208
GRAY,TRIM1#
main71071-6A030-B1i200505
STONE,TRIM1#
main71071-6A030-E0i199801-200208
LT. OAK,TRIM4#
main71071-6A040-A1i200208-200505
IVORY,TRIM0#
main71071-6A040-B0i199801-200208
GRAY,TRIM1#
main71071-6A040-B1i200208-200505
STONE,TRIM1#
main71071-6A040-E0i199801-200208
LT. OAK,TRIM4#
main71071-6A050-A1i200208-200505
IVORY,TRIM0#
main71071-6A050-B0i199801-200208
GRAY,TRIM1#
main71071-6A050-B1i200208-200505
STONE,TRIM1#
main71071-6A050-E0i199801-200208
LT. OAK,TRIM4#
main71071-6A070-A0i199801-200208
W(LEATHER SEAT),IVORY,TRIM4#
main71071-6A070-A1i200309-200506
IVORY,TRIM0#
main71071-6A070-B0i199801-200208
W(LEATHER SEAT),GRAY,TRIM1#
main71071-6A070-B1i200208-200505
W(LEATHER SEAT),STONE,TRIM1#
main71071-6A300-A0i200506
IVORY,TRIM0#
main71071-6A300-B0i200505
W(FABRIC SEAT),STONE,TRIM1#
main71071-6A440-A0i200505
W(FABRIC SEAT & FRONT BENCH SEAT),IVORY,TRIM0#
main71071-6A440-B0i200208-200505
W(FABRIC SEAT & FRONT BENCH SEAT),STONE,TRIM1#
71072SCOVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)
main71072-60620-B0i199801-200208
W(LEATHER SEAT & FRONT BENCH SEAT),GRAY,TRIM1#
main71072-60620-B1i200505
W(LEATHER SEAT & FRONT BENCH SEAT),STONE,TRIM1#
main71072-60630-B0i199801-200208
W(FABRIC SEAT & FRONT BENCH SEAT),GRAY,TRIM1#
main71072-60660-B0i200208-200505
AMBULANCE SPEC(IRAN),GRAY,TRIM1#
main71072-60660-B2i200505
W(FRONT BENCH SEAT),STONE,TRIM1#
main71072-60670-B0i200008-200208
GRAY,TRIM1#
main71072-60670-E0i199801-200208
W(FABRIC SEAT),LT. OAK,TRIM4#
main71072-60680-A1i200208-200505
IVORY,TRIM0#
main71072-60680-B0i200105-200106
50TH ANNIVERSARY LIMITED EDITION(AUSTRALIA),GRAY,TRIM1#
main71072-60680-B1i200505
STONE,TRIM1#
main71072-60680-E0i199801-200208
LT. OAK,TRIM4#
main71072-60690-A1i200505
IVORY,TRIM0#
main71072-60690-B0i199801-200208
GRAY,TRIM1#
main71072-60690-B1i200208-200505
STONE,TRIM1#
main71072-60690-E0i199801-200208
LT. OAK,TRIM4#
main71072-60710-A0i199801-200208
W(LEATHER SEAT),IVORY,TRIM4#
main71072-60710-A1i200608
W(LEATHER SEAT),IVORY,TRIM0#
main71072-60710-B0i199801-200208
W(LEATHER SEAT),GRAY,TRIM1#
main71072-60710-B1i200404-200505
KAKADO(AUSTRALIA),STONE,TRIM1#
main71072-60840-A0i200506
W(FABRIC SEAT),IVORY,TRIM0#
main71072-60840-B0i200208-200505
W(FABRIC SEAT),STONE,TRIM1#
main71072-60A00-A0i200607
LIMITED(G.C.C.),IVORY,TRIM0#
main71072-6A020-A1i200505
W(LUMBAR SUPPORT),IVORY,TRIM0#
main71072-6A020-B1i200505
W(LUMBAR SUPPORT),STONE,TRIM1#
main71072-6A070-B0i200505
W(FABRIC SEAT & FRONT BENCH SEAT),STONE,TRIM1#
71073SCOVER, FRONT SEATBACK, RH(FOR SEPARATE TYPE)
main71073-6A010-B0i200208-200505
AMBULANCE SPEC(IRAN),GRAY,TRIM1#
main71073-6A010-B2i200505
W(FRONT BENCH SEAT),STONE,TRIM1#
main71073-6A020-B0i200108-200208
W(FABRIC SEAT & FRONT BENCH SEAT),GRAY,TRIM1#
main71073-6A020-E0i199801-200208
W(FABRIC SEAT & FRONT BENCH SEAT),LT. OAK,TRIM4#
main71073-6A030-B0i199801-200208
W(FRONT BENCH SEAT),GRAY,TRIM1#
main71073-6A030-B2i200505
W(FRONT BENCH SEAT),STONE,TRIM1#
main71073-6A040-B0i200008-200208
GRAY,TRIM1#
main71073-6A040-E0i199801-200208
W(FABRIC SEAT),LT. OAK,TRIM4#
main71073-6A050-A0i200208-200505
IVORY,TRIM0#
main71073-6A050-B0i199801-200208
GRAY,TRIM1#
main71073-6A050-B1i200505
STONE,TRIM1#
main71073-6A050-E0i199801-200208
LT. OAK,TRIM4#
main71073-6A060-A1i200602-200606
LIMITED(G.C.C.),IVORY,TRIM0#
main71073-6A060-B0i199801-200208
GRAY,TRIM1#
main71073-6A060-B1i200505
STONE,TRIM1#
main71073-6A060-E0i200105-200106
50TH ANNIVERSARY LIMITED EDITION(AUSTRALIA),LT.OAK,TRIM4#
main71073-6A080-A0i199801-200208
W(LEATHER SEAT),IVORY,TRIM4#
main71073-6A080-A1i200608
W(LEATHER SEAT),IVORY,TRIM0#
main71073-6A080-B0i199801-200208
W(LEATHER SEAT),GRAY,TRIM1#
main71073-6A080-B1i200404-200505
KAKADO(AUSTRALIA),STONE,TRIM1#
main71073-6A130-A1i200208-200505
IVORY,TRIM0#
main71073-6A130-B0i199904-199905
SNOWY EDITION(AUSTRALIA),SHADOW GRAY,TRIM10
main71073-6A130-B1i200208-200505
STONE,TRIM1#
main71073-6A130-E0i199801-200208
OAK,TRIM4#
main71073-6A420-A0i200208-200505
IVORY,TRIM0#
main71073-6A420-B0i200208-200505
STONE,TRIM1#
main71073-6A440-A0i200208-200505
W(FABRIC SEAT & FRONT BENCH SEAT),IVORY,TRIM0#
main71073-6A440-B0i200208-200505
W(FABRIC SEAT & FRONT BENCH SEAT),STONE,TRIM1#
71074SCOVER, FRONT SEATBACK, LH(FOR SEPARATE TYPE)
main71073-6A030-B0i200110-200208
AMBULANCE SPEC(IRAN),GRAY,TRIM1#
main71073-6A030-B2i200208-200505
W(FRONT BENCH SEAT),STONE,TRIM1#
main71073-6A040-B0i199801-200208
W(FABRIC SEAT),GRAY,TRIM1#
main71073-6A040-E0i199801-200208
W(FABRIC SEAT),LT. OAK,TRIM4#
main71073-6A060-A1i200208-200505
IVORY,TRIM0#
main71073-6A060-B0i200105-200106
50TH ANNIVERSARY LIMITED EDITION(AUSTRALIA),GRAY,TRIM1#
main71073-6A060-B1i200505
STONE,TRIM1#
main71073-6A060-E0i200105-200106
50TH ANNIVERSARY LIMITED EDITION(AUSTRALIA),LT.OAK,TRIM4#
main71073-6A130-A1i200505
IVORY,TRIM0#
main71073-6A130-B0i199801-200208
SHADOW GRAY,TRIM1#
main71073-6A130-B1i200208-200505
STONE,TRIM1#
main71073-6A130-E0i199801-200208
OAK,TRIM4#
main71073-6A420-A0i200208-200505
IVORY,TRIM0#
main71073-6A420-B0i200505
STONE,TRIM1#
main71074-60660-B0i199801-200208
W(FRONT BENCH SEAT),GRAY,TRIM1#
main71074-60660-B1i200208-200505
W(FRONT BENCH SEAT),STONE,TRIM1#
main71074-60700-B0i199801-200208
W(FABRIC SEAT & FRONT BENCH SEAT),GRAY,TRIM1#
main71074-60750-A0i199801-200208
W(LEATHER SEAT),IVORY,TRIM4#
main71074-60750-A1i200208-200505
W(LEATHER SEAT),IVORY,TRIM0#
main71074-60750-B0i199801-200208
W(LEATHER SEAT),GRAY,TRIM1#
main71074-60750-B1i200505
W(LEATHER SEAT),STONE,TRIM1#
main71074-6A050-B0i200505
W(FABRIC SEAT & FRONT BENCH SEAT),STONE,TRIM1#
71410SCUSHION ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE)
main71410-6A370-B0i200105-200106
50TH ANNIVERSARY LIMITED EDITION(AUSTRALIA),SHADOW GRAY,TRIM1#
main71410-6A370-E1i200105-200106
50TH ANNIVERSARY LIMITED EDITION(AUSTRALIA),OAK,TRIM4#
main71410-6A430-B0i199801-200208
W(LEATHER SEAT),SHADOW GRAY,TRIM1#
main71410-6A430-E0i199801-200208
W(LEATHER SEAT),OAK,TRIM4#
main71410-6A450-B0i199801-200208
W(LEATHER SEAT),SHADOW GRAY,TRIM1#
main71410-6A450-E0i199801-200208
W(LEATHER SEAT),OAK,TRIM4#
main71410-6A530-B1i199801-200008
W(VERTICAL SEAT AJDUSTER & FRONT BENCH SEAT),SHADOW GRAY,TRIM1#
main71410-6A530-B2i200008-200208
W(VERTICAL SEAT AJDUSTER & FRONT BENCH SEAT),SHADOW GRAY,TRIM1#
main71410-6A600-B1i199801-200008
W(VERTICAL SEAT AJDUSTER),SHADOW GRAY,TRIM1#
main71410-6A610-B1i199801-200008
W(FRONT BENCH SEAT),SHADOW GRAY,TRIM1#
main71410-6A610-B2i200110-200208
AMBULANCE SPEC(IRAN),SHADOW GRAY,TRIM1#
main71410-6A620-B0i200108-200208
W(FABRIC SEAT & FRONT BENCH SEAT),SHADOW GRAY,TRIM1#
main71410-6A620-E1i199801-200208
W(FABRIC SEAT & FRONT BENCH SEAT),OAK,TRIM4#
main71410-6A680-B1i199801-200008
SHADOW GRAY,TRIM1#; W(FRONT BENCH SEAT),SHADOW GRAY,TRIM1#
main71410-6A680-B2i200008-200208
W(FRONT BENCH SEAT),SHADOW GRAY,TRIM1#
main71410-6A690-B0i199801-200008
W(FABRIC SEAT),SHADOW GRAY,TRIM1#
main71410-6A690-E1i199801-200208
W(FABRIC SEAT),OAK,TRIM4#
main71410-6A700-B0i199801-200108
W(VERTICAL SEAT AJDUSTER & FABRIC SEAT & FRONT BENCH SEAT),SHADOW GRAY,TRIM1#
main71410-6A700-E1i199801-200208
W(VERTICAL SEAT AJDUSTER & FABRIC SEAT & FRONT BENCH SEAT),OAK,TRIM4#
main71410-6A710-B0i199801-200008
W(VERTICAL SEAT AJDUSTER & FABRIC SEAT),SHADOW GRAY,TRIM1#
main71410-6A710-E1i199801-200208
W(VERTICAL SEAT AJDUSTER & FABRIC SEAT),OAK,TRIM4#
main71410-6A720-B0i199801-200208
SHADOW GRAY,TRIM1#
main71410-6A720-E1i199801-200208
OAK,TRIM4#
main71410-6A730-B0i199801-200208
SHADOW GRAY,TRIM1#
main71410-6A730-E1i199801-200208
OAK,TRIM4#
71420SCUSHION ASSY, FRONT SEAT, LH (FOR SEPARATE TYPE)
main71420-6A310-B0i199801-200208
W(LEATHER SEAT),SHADOW GRAY,TRIM1#
main71420-6A310-E0i199801-200208
W(LEATHER SEAT),OAK,TRIM4#
main71420-6A380-B1i199801-200008
W(VERTICAL SEAT AJDUSTER & FRONT BENCH SEAT),SHADOW GRAY,TRIM1#
main71420-6A380-B2i200008-200208
W(VERTICAL SEAT AJDUSTER & FRONT BENCH SEAT),SHADOW GRAY,TRIM1#
main71420-6A390-B1i199801-200008
W(VERTICAL SEAT AJDUSTER & FABRIC SEAT & FRONT BENCH SEAT),SHADOW GRAY,TRIM1#
main71420-6A390-B2i200008-200208
W(VERTICAL SEAT AJDUSTER & FABRIC SEAT & FRONT BENCH SEAT),SHADOW GRAY,TRIM1#
main71420-6A400-B1i199801-200008
W(VERTICAL SEAT AJDUSTER),SHADOW GRAY,TRIM1#
main71420-6A410-B0i199801-200208
W(LEATHER SEAT),SHADOW GRAY,TRIM1#
main71420-6A410-E0i199801-200208
W(LEATHER SEAT),OAK,TRIM4#
main71420-6A430-B1i199801-200008
W(FRONT BENCH SEAT),SHADOW GRAY,TRIM1#
main71420-6A430-B2i200008-200208
W(FRONT BENCH SEAT),SHADOW GRAY,TRIM1#
main71420-6A440-B1i199801-200008
W(FABRIC SEAT & FRONT BENCH SEAT),SHADOW GRAY,TRIM1#
main71420-6A440-B2i200008-200208
W(FABRIC SEAT & FRONT BENCH SEAT),SHADOW GRAY,TRIM1#
main71420-6A450-B1i199801-200008
SHADOW GRAY,TRIM1#
main71420-6A450-B2i200110-200208
AMBULANCE SPEC(IRAN),SHADOW GRAY,TRIM1#
main71420-6A450-B3i200008-200108
W(FABRIC SEAT & FRONT BENCH SEAT),SHADOW GRAY,TRIM1#
main71420-6A460-B0i199801-200008
W(FABRIC SEAT),SHADOW GRAY,TRIM1#
main71420-6A460-E1i199801-200208
W(FABRIC SEAT),OAK,TRIM4#
main71420-6A470-B0i199801-200208
W(VERTICAL SEAT AJDUSTER & FABRIC SEAT),SHADOW GRAY,TRIM1#
main71420-6A470-E1i200008-200208
OAK,TRIM4#
main71420-6A480-B0i199904-199905
SNOWY EDITION(AUSTRALIA),SHADOW GRAY,TRIM10
main71420-6A480-E1i199801-200208
OAK,TRIM4#
main71420-6A500-B0i199801-200208
SHADOW GRAY,TRIM1#
main71420-6A500-E1i199801-200208
OAK,TRIM4#
71430SBACK ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE)
main71040-60030-B0i199801-199812
W(LEATHER SEAT),SHADOW GRAY,TRIM1#
main71040-60030-E0i199801-199812
W(LEATHER SEAT),OAK,TRIM4#
main71040-60050-B0i199801-200208
W(LEATHER SEAT),SHADOW GRAY,TRIM1#
main71040-60050-E0i199801-200208
W(LEATHER SEAT),OAK,TRIM4#
main71040-60140-B1i199801-199808
W(FRONT BENCH SEAT),SHADOW GRAY,TRIM1#
main71040-60150i199801-199808
W(FRONT BENCH SEAT)
main71040-60150-B0i199801-199808
W(FRONT BENCH SEAT),SHADOW GRAY,TRIM1#
main71040-60150-E1i199801-199808
W(FRONT BENCH SEAT),OAK,TRIM4#
main71040-60160-B1i199801-200008
SHADOW GRAY,TRIM1#
main71040-60160-B2i200008-200208
SHADOW GRAY,TRIM1#
main71040-60160-B3i200008-200108
W(FABRIC SEAT & FRONT BENCH SEAT),SHADOW GRAY,TRIM1#
main71040-60170-B0i200008-200208
SHADOW GRAY,TRIM1#; W(FABRIC SEAT),SHADOW GRAY,TRIM1#
main71040-60170-E1i199801-200208
W(FABRIC SEAT),OAK,TRIM4#
main71040-60180-B0i199801-199808
SHADOW GRAY,TRIM1#
main71040-60180-E1i199801-199808
OAK,TRIM4#
main71040-60190-B0i199801-200208
SHADOW GRAY,TRIM1#
main71040-60190-E1i199801-200208
OAK,TRIM4#
main71040-60210-B0i199801-200208
SHADOW GRAY,TRIM1#
main71040-60210-E1i200105-200106
50TH ANNIVERSARY LIMITED EDITION(AUSTRALIA),OAK,TRIM4#
main71040-60280-B0i199804-200008
BENCH SEAT TYPE,SHADOW GRAY,TRIM1#
main71040-60280-B1i200110-200208
AMBULANCE SPEC(IRAN),SHADOW GRAY,TRIM1#
main71040-60280-B2i200008-200108
BENCH SEAT TYPE,SHADOW GRAY,TRIM1#
main71040-60290-B0i200108-200208
W(FABRIC SEAT & FRONT BENCH SEAT),SHADOW GRAY,TRIM1#
main71040-60290-E0i199804-199808
W(FABRIC SEAT & FRONT BENCH SEAT),OAK,TRIM4#
main71040-60300-B0i199808-200208
SHADOW GRAY,TRIM1#
main71040-60300-E0i199808-200208
OAK,TRIM4#
main71040-60500-B0i199812-200208
W(LEATHER SEAT),SHADOW GRAY,TRIM1#
main71040-60500-E0i199812-200208
W(LEATHER SEAT),OAK,TRIM4#
71440SBACK ASSY, FRONT SEAT, LH(FOR SEPARATE TYPE)
main71040-60160-B1i199801-200008
SHADOW GRAY,TRIM1#
main71040-60160-B2i200208-200505
AMBULANCE SPEC(IRAN),SHADOW GRAY,TRIM1#
main71040-60160-B3i200008-200108
W(FABRIC SEAT & FRONT BENCH SEAT),SHADOW GRAY,TRIM1#
main71040-60170-B0i200008-200208
SHADOW GRAY,TRIM1#; W(FABRIC SEAT),SHADOW GRAY,TRIM1#
main71040-60170-E1i200008-200208
OAK,TRIM4#
main71040-60190-B0i199904-199905
SNOWY EDITION(AUSTRALIA),SHADOW GRAY,TRIM10
main71040-60190-E1i200105-200106
50TH ANNIVERSARY LIMITED EDITION(AUSTRALIA),OAK,TRIM4#
main71070-60010-B0i199801-200208
W(LEATHER SEAT),SHADOW GRAY,TRIM1#
main71070-60010-E0i199801-200208
W(LEATHER SEAT),OAK,TRIM4#
main71070-60020-B0i199804-199808
W(FRONT BENCH SEAT),GRAY,TRIM1#
main71070-60030-B1i199801-199804
W(FABRIC SEAT & FRONT BENCH SEAT),SHADOW GRAY,TRIM1#
main71070-60031-B1i199804-200008
W(FABRIC SEAT) & BENCH SEAT TYPE,SHADOW GRAY,TRIM1#
main71070-60031-B2i200008-200208
W(FABRIC SEAT) & BENCH SEAT TYPE,SHADOW GRAY,TRIM1#
main71070-60040-B0i199801-200208
SHADOW GRAY,TRIM1#
main71070-60040-E1i199801-200208
OAK,TRIM4#
main71070-60070-B0i199801-199812
W(LEATHER SEAT),SHADOW GRAY,TRIM1#
main71070-60070-E0i199801-199812
W(LEATHER SEAT),OAK,TRIM4#
main71070-60130-B0i199804-199808
BENCH SEAT TYPE,SHADOW GRAY,TRIM1#
main71070-60130-B2i199801-199804
BENCH SEAT TYPE,SHADOW GRAY,TRIM1#
main71070-60200-B0i199812-200208
W(LEATHER SEAT),SHADOW GRAY,TRIM1#
main71070-60200-E0i199812-200208
W(LEATHER SEAT),OAK,TRIM4#
71511SPAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)
main71501-60040i200208-200505
W(FRONT BENCH SEAT & WARNING SENSOR)
main71501-60050i200208-200505
W(WARNING SENSOR)
main71501-60070i200309-200506
main71501-60080i200404-200505
KAKADO(AUSTRALIA)
main71501-60100i200208-200505
W(FRONT BENCH SEAT & WARNING SENSOR)
main71501-60110i199801-200208
W(WARNING SENSOR)
main71511-60140i199801-200208
W(FRONT BENCH SEAT)
main71511-60160i200208-200505
71512SPAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE)
main71502-60050i200008-200208
W(WARNING SENSOR)
main71502-60060i200404-200505
KAKADO(AUSTRALIA)
main71502-60070i199801-200208
W(FRONT BENCH SEAT & WARNING SENSOR)
main71502-60090i200309-200506
main71502-60110i200008-200208
W(WARNING SENSOR)
main71512-60100i199801-200208
W(FRONT BENCH SEAT)
main71512-60120i199801-200008
71551SPAD, FRONT SEATBACK, RH(FOR SEPARATE TYPE)
main71551-60240i200608
W(LEATHER SEAT)
main71551-60250i199801-200208
W(FRONT BENCH SEAT)
main71551-60260i199801-200008
main71551-60270i200105-200106
50TH ANNIVERSARY LIMITED EDITION(AUSTRALIA)
71552SPAD, FRONT SEATBACK, LH(FOR SEPARATE TYPE)
main71551-60240i200208-200505
W(LEATHER SEAT)
main71551-60260i200208-200505
main71551-60270i199904-199905
SNOWY EDITION(AUSTRALIA)
main71552-60140i200505
W(FRONT BENCH SEAT)
71571PAD, FRONT SEATBACK SILENCER, A
main71571-60020×2i200309-200506
71610SSPRING ASSY, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)
main71610-60130i200506
main71610-60230i200404-200505
KAKADO(AUSTRALIA)
main71610-60240i200208-200505
W(FRONT BENCH SEAT)
71620SSPRING ASSY, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)
main71620-60170i199801-200208
main71620-60230i200607
LIMITED(G.C.C.)
main71620-60240i199801-200208
W(FRONT BENCH SEAT)
71630SSPRING ASSY, FRONT SEATBACK, RH(FOR SEPARATE TYPE)
main71630-60130i199801-200208
W(FRONT BENCH SEAT)
main71630-60140i200208-200505
main71630-60150i200208-200505
main71630-60180i200208-200505
W(POWER SEAT)
main71630-60190i199908-200208
W(POWER SEAT)
71640SSPRING ASSY, FRONT SEATBACK, LH(FOR SEPARATE TYPE)
main71630-60140i200505
main71630-60150i200505
W(LUMBAR SUPPORT)
main71630-60180i200602-200607
SPECIAL EDITION(AUSTRALIA)
main71630-60190i200208-200505
W(POWER SEAT)
main71640-60090i199801-200208
W(FRONT BENCH SEAT)
71705BOARD SUB-ASSY, FRONT SEATBACK, RH
main71705-60180-B0i199904-199905
SNOWY EDITION(AUSTRALIA),GRAY,TRIM10
main71705-60180-E0i199801-200208
LT. OAK,TRIM4#
main71705-60190-A1i199801-200208
W(POWER SEAT),IVORY,TRIM4#
main71705-60190-B1i199801-200208
W(POWER SEAT),MD.GRAY,TRIM1#
main71705-60220-A0i200505
IVORY,TRIM0#
main71705-60220-B0i200208-200505
STONE,TRIM1#
main71705-60230-A0i200506
IVORY,TRIM0#
main71705-60230-B0i200505
W(LEATHER SEAT),STONE,TRIM1#
71706BOARD SUB-ASSY, FRONT SEATBACK, LH
main71705-60180-B0i199904-199905
SNOWY EDITION(AUSTRALIA),GRAY,TRIM10
main71705-60180-E0i199801-200208
LT. OAK,TRIM4#
main71705-60190-A1i199801-200208
W(POWER SEAT),IVORY,TRIM4#
main71705-60190-B1i199801-200208
W(POWER SEAT),MD.GRAY,TRIM1#
main71705-60220-A0i200607
LIMITED(G.C.C.),IVORY,TRIM0#
main71705-60220-B0i200505
STONE,TRIM1#
main71705-60230-A0i200602-200607
SPECIAL EDITION(AUSTRALIA),IVORY,TRIM0#
main71705-60230-B0i200505
W(LEATHER SEAT),STONE,TRIM1#
71706BCLIP, FRONT SEATBACK BOARD
main71769-60020×2i200505
71789BPOCKET, FRONT SEATBACK BOARD
main71780-60020-A1×2i200309-200506
IVORY,TRIM0#
main71780-60020-B0i199801-200208
GRAY,TRIM1#
main71780-60020-B2×2i200602-200607
SPECIAL EDITION(AUSTRALIA),STONE,TRIM1#
main71780-60020-E0i199801-200208
LT. OAK,TRIM4#; LT. OAK,TRIM40,41
71910AHEADREST ASSY, FRONT SEAT
main71910-60400-B0×2i200110-200208
AMBULANCE SPEC(IRAN),MD.GRAY,TRIM1#
main71910-60400-B2×2i200505
STONE,TRIM1#
main71910-60410-A0×2i200208-200505
W(FABRIC SEAT),IVORY,TRIM0#
main71910-60410-B0×2i199801-200008
W(FABRIC SEAT),GRAY,TRIM1#
main71910-60410-B1×2i200208-200505
W(FABRIC SEAT),STONE,TRIM1#
main71910-60410-E0×2i199801-200208
OAK,TRIM4#
main71910-60420-A1×2i200505
IVORY,TRIM0#
main71910-60420-B0×2i200105-200106
50TH ANNIVERSARY LIMITED EDITION(AUSTRALIA),GRAY,TRIM1#
main71910-60420-B1×2i200208-200505
STONE,TRIM1#
main71910-60420-E0×2i199801-200208
OAK,TRIM4#
main71910-60440-A0×2i199801-200208
W(LEATHER SEAT),LT.OAK,TRIM4#
main71910-60440-A1×2i200506
IVORY,TRIM0#
main71910-60440-B0×2i199801-200208
W(LEATHER SEAT),GRAY,TRIM1#
main71910-60440-B1×2i200208-200505
W(LEATHER SEAT),STONE,TRIM1#
71931SUPPORT, FRONT SEAT HEADREST
main71930-28040-A0×2i199801-200103
W(LOCK),IVORY,TRIM4#; W(LOCK),IVORY,TRIM40,41
main71930-28040-B5×2i199801-200103
W(LOCK),MD.GRAY,TRIM1#
main71930-60030×2i200103-200208
W(LOCK)
main71930-60030-A0×2i200103-200208
W(LOCK),IVORY,TRIM4#; W(LOCK),IVORY,TRIM41
main71930-60030-A1×2i200506
W(LOCK),IVORY,TRIM0#
main71930-60030-B0×2i200103-200208
W(LOCK),MD.GRAY,TRIM1#; W(LOCK),MD.GRAY,TRIM1#,40
main71930-60030-B1×2i200505
W(LOCK),STONE,TRIM1#
main71931-28050-A0×2i199801-200103
W/O(LOCK),IVORY,TRIM4#; W/O(LOCK),IVORY,TRIM40,41
main71931-28050-B5×2i199801-200103
W/O(LOCK),MD.GRAY,TRIM1#
main71931-60020×2i200103-200208
W/O(LOCK)
main71931-60020-A0×2i200103-200208
W/O(LOCK),IVORY,TRIM4#; W/O(LOCK),IVORY,TRIM41
main71931-60020-A1×2i200309-200506
W/O(LOCK),IVORY,TRIM0#
main71931-60020-B0×2i200103-200208
W/O(LOCK),MD.GRAY,TRIM1#; W/O(LOCK),MD.GRAY,TRIM1#,40
main71931-60020-B1×2i200208-200505
W/O(LOCK),STONE,TRIM1#
72750DADJUSTER ASSY, LUMBAR SUPPORT, RH
main72760-60040i199801-200208
72760DADJUSTER ASSY, LUMBAR SUPPORT, LH
main72750-60070i199801-200208
72797SPACER, LUMBAR SUPPORT
main72797-50010i199904-199905
SNOWY EDITION(AUSTRALIA)
9018305016
main90183-05016
9165160614
main91651-60614

28 parts on this diagram · 30 diagrams in section

SEAT & SEAT TRACK — Toyota Parts Diagram with OEM Numbers & Prices | EPC Data
