PACKAGE TRAY PANEL
64910JCOVER ASSY, TONNEAU
main64910-60060-A0iFZJ10#,HDJ100,HZJ105..(GX,VX)..(DSL2,EFI,TDEFI); UZJ100;HDJ100..LUB..GEN199801-200208
IVORY,TRIM4#; IVORY,TRIM40,41
IVORY,TRIM0#
MD.GRAY,TRIM1#
STONE,TRIM1#
W(DUAL AIR CONDITIONER),IVORY,TRIM4#; W(DUAL AIR CONDITIONER),IVORY,TRIM40,41
W(DUAL AIR CONDITIONER),IVORY,TRIM0#
W(DUAL AIR CONDITIONER),MD.GRAY,TRIM1#
W(DUAL AIR CONDITIONER),STONE,TRIM1#
64931BHANGER, TONNEAU COVER, RH
main64931-60040-A0iFZJ10#,HDJ100,HZJ105..(GX,VX)..(DSL2,EFI,TDEFI); UZJ100;HDJ100..LUB..GEN199801-200208
IVORY,TRIM4#; IVORY,TRIM40,41
IVORY,TRIM0#
MD.GRAY,TRIM1#
STONE,TRIM1#
W(DUAL AIR CONDITIONER),IVORY,TRIM4#; W(DUAL AIR CONDITIONER),IVORY,TRIM40,41
W(DUAL AIR CONDITIONER),IVORY,TRIM0#
W(DUAL AIR CONDITIONER),MD.GRAY,TRIM1#
W(DUAL AIR CONDITIONER),STONE,TRIM1#
64932BHANGER, TONNEAU COVER, LH
main64932-60030-A0iFZJ10#,HDJ100,HZJ105..(GX,VX)..(DSL2,EFI,TDEFI); UZJ100;HDJ100..LUB..GEN199801-200208
IVORY,TRIM4#; IVORY,TRIM40,41
IVORY,TRIM0#
MD.GRAY,TRIM1#
STONE,TRIM1#
64935HOLDER, TONNEAU COVER, RH
main64935-60030-A0iFZJ10#,HDJ100,HZJ105..(GX,VX)..(DSL2,EFI,TDEFI); UZJ100;HDJ100..LUB..GEN199801-200208
IVORY,TRIM4#; IVORY,TRIM40,41
IVORY,TRIM0#
MD.GRAY,TRIM1#
STONE,TRIM1#
64936HOLDER, TONNEAU COVER, LH
main64936-60040-A0iFZJ10#,HDJ100,HZJ105..(GX,VX)..(DSL2,EFI,TDEFI); UZJ100;HDJ100..LUB..GEN199801-200208
IVORY,TRIM4#; IVORY,TRIM40,41
IVORY,TRIM0#
MD.GRAY,TRIM1#
STONE,TRIM1#
9018306044
main90183-06044
9324056014
main93240-56014

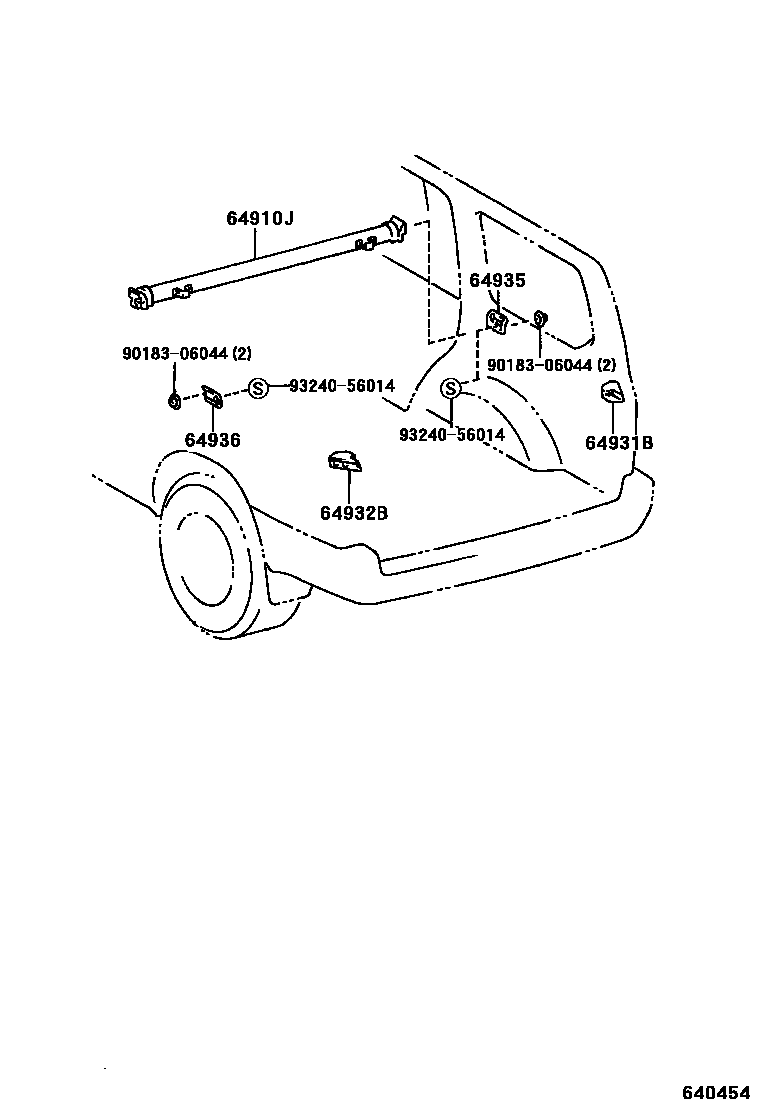

7 parts on this diagram · 1 diagram in section
