EPC Data

INSIDE TRIM BOARD

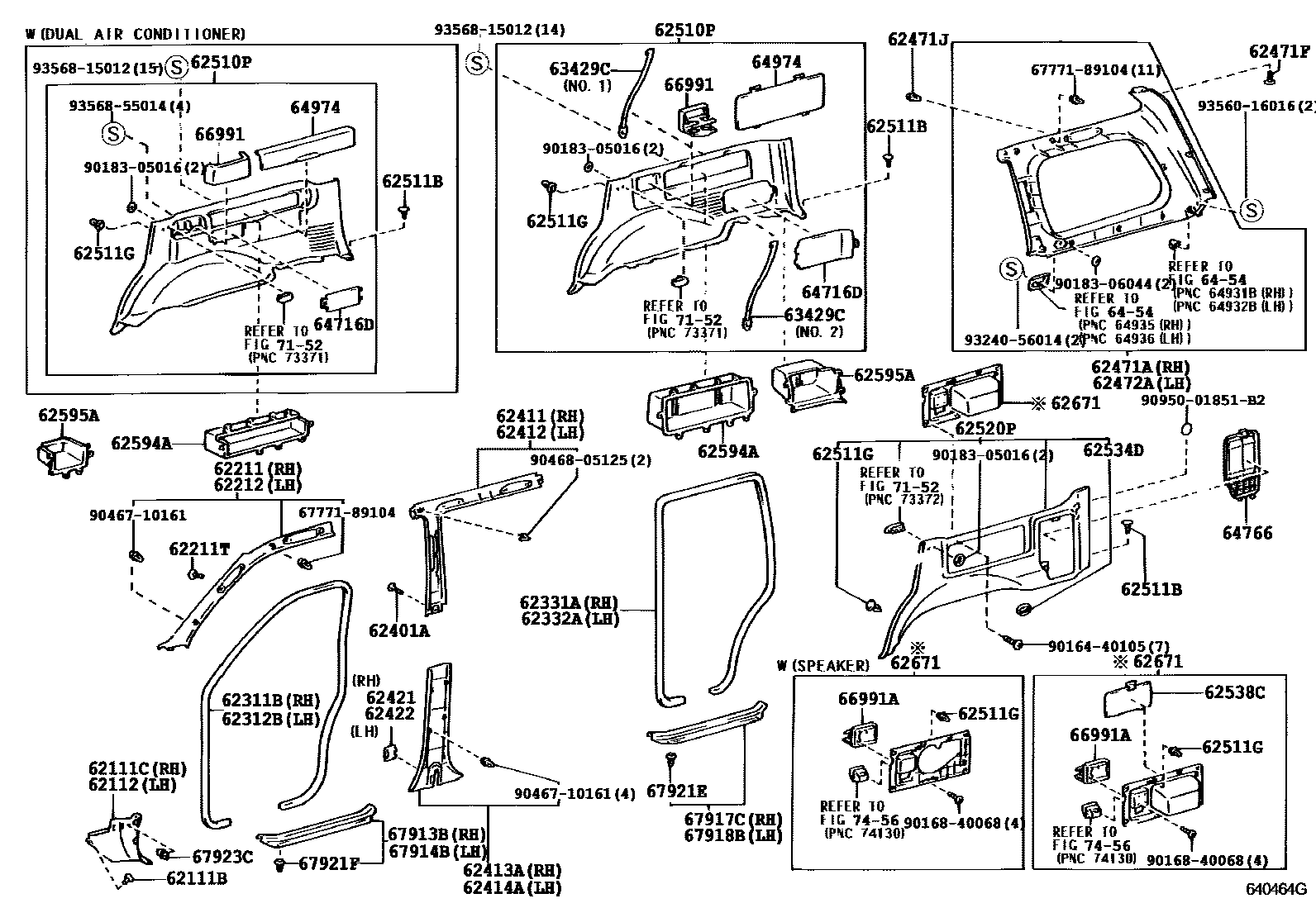

Parts diagram
62111BCLIP(FOR COWL SIDE TRIM)
main90467-06183×2i199801-200208
62111CBOARD, COWL SIDE TRIM, RH
main62111-60070-A0i199801-200208
IVORY,TRIM4#; IVORY,TRIM40,41
main62111-60070-B0i199801-200208
MD.GRAY,TRIM1#
main62111-60071-A1i200309-200506
IVORY,TRIM0#
main62111-60071-B1i200505-200612
STONE,TRIM1#
main62111-60072-A1i200701
IVORY,TRIM0#
main62111-60072-B1i200701
STONE,TRIM1#
main62111-60080-A0i199801-200208
W(EXTINGUISHER),IVORY,TRIM4#
main62111-60080-B0i199801-200208
W(EXTINGUISHER),MD.GRAY,TRIM1#
main62111-60081-A1i200505
W(EXTINGUISHER),IVORY,TRIM0#
main62111-60081-B1i200208-200505
W(EXTINGUISHER),STONE,TRIM1#
62112BOARD, COWL SIDE TRIM, LH
main62112-60110-A0i199801-200208
IVORY,TRIM4#; IVORY,TRIM40,41
main62112-60110-A1i200309-200506
IVORY,TRIM0#
main62112-60110-B0i199801-200208
MD.GRAY,TRIM1#
main62112-60110-B1i200208-200505
STONE,TRIM1#
main62112-60111-A1i200701
IVORY,TRIM0#
main62112-60111-B1i200701
STONE,TRIM1#
main62112-60120-A0i199801-200208
W(EXTINGUISHER),IVORY,TRIM4#
main62112-60120-A1i200505
W(EXTINGUISHER),IVORY,TRIM0#
main62112-60120-B0i199801-200208
W(EXTINGUISHER),MD.GRAY,TRIM1#
main62112-60120-B1i200208-200505
W(EXTINGUISHER),STONE,TRIM1#
62211GARNISH, FRONT PILLAR, RH
main62210-60060-A0i199801-200208
IVORY,TRIM40,41
main62210-60060-B0i199801-200208
MD.GRAY,TRIM1#
main62210-60070-A0i199801-200208
IVORY,TRIM4#; IVORY,TRIM40,41
main62210-60070-B0i199801-200208
MD.GRAY,TRIM1#
main62210-60080-A0i199801-200208
IVORY,TRIM4#
main62210-60080-B0i199801-200208
MD.GRAY,TRIM1#
main62210-60081-A2i200505
IVORY,TRIM0#
main62210-60081-B2i200208-200505
STONE,TRIM1#
main62210-60090-A1i200309-200506
IVORY,TRIM0#
main62210-60090-B1i200505
STONE,TRIM1#
main62210-60120-A0i200701
IVORY,TRIM0#
main62210-60130-A0i200701
IVORY,TRIM0#
62211TCLIP(FOR FRONT PILLAR GARNISH)
main90467-05146-A0×2i199801-200208
IVORY,TRIM4#
main90467-05146-B0×2i199801-200208
MD.GRAY,TRIM1#
62212GARNISH, FRONT PILLAR, LH
main62220-60060-A0i199801-200208
IVORY,TRIM40,41
main62220-60060-B0i199801-200208
MD.GRAY,TRIM1#
main62220-60070-A0i199801-200208
IVORY,TRIM4#; IVORY,TRIM40,41
main62220-60070-B0i199801-200208
MD.GRAY,TRIM1#
main62220-60080-A0i199801-200208
IVORY,TRIM4#
main62220-60080-B0i199801-200208
MD.GRAY,TRIM1#
main62220-60081-A2i200505
IVORY,TRIM0#
main62220-60081-B2i200208-200505
STONE,TRIM1#
main62220-60090-A1i200309-200506
IVORY,TRIM0#
main62220-60090-B1i200208-200505
STONE,TRIM1#
main62220-60120-A0i200701
IVORY,TRIM0#
main62220-60130-A0i200701
IVORY,TRIM0#
62311BWEATHERSTRIP, FRONT DOOR OPENING TRIM, RH
main62311-60080-A0i199801-200203
IVORY,TRIM4#; IVORY,TRIM40,41
main62311-60080-B2i199801-200203
BLUISH GRAY,TRIM1#
main62311-60081-A0i200203-200208
IVORY,TRIM4#; IVORY,TRIM40,41
main62311-60081-B2i200203-200208
BLUISH GRAY,TRIM1#
main62311-60090-A0i199801-200208
IVORY,TRIM4#
main62311-60090-B0i199801-200208
MD.GRAY,TRIM1#
main62311-60120-A0i200506-200510
IVORY,TRIM0#
main62311-60120-B0i200505-200509
STONE,TRIM1#
main62311-60121-A0i200510
IVORY,TRIM0#
main62311-60121-B0i200510
STONE,TRIM1#
main62311-60130-A1i200505-200509
IVORY,TRIM0#
main62311-60130-B1i200208-200505
STONE,TRIM1#
main62311-60131-A1i200510
IVORY,TRIM0#
main62311-60131-B1i200510
STONE,TRIM1#
62312BWEATHERSTRIP, FRONT DOOR OPENING TRIM, LH
main62312-60080-A0i199801-200203
IVORY,TRIM4#; IVORY,TRIM40,41
main62312-60080-B2i199801-200203
BLUISH GRAY,TRIM1#
main62312-60081-A0i200203-200208
IVORY,TRIM4#; IVORY,TRIM40,41
main62312-60081-B2i200203-200208
BLUISH GRAY,TRIM1#
main62312-60090-A0i199801-200208
IVORY,TRIM4#
main62312-60090-B0i199801-200208
MD.GRAY,TRIM1#
main62312-60120-A0i200309-200506
IVORY,TRIM0#
main62312-60120-B0i200505-200509
STONE,TRIM1#
main62312-60121-A0i200510
IVORY,TRIM0#
main62312-60121-B0i200510
STONE,TRIM1#
main62312-60130-A1i200505-200509
IVORY,TRIM0#
main62312-60130-B1i200505-200509
STONE,TRIM1#
main62312-60131-A1i200511
IVORY,TRIM0#
main62312-60131-B1i200510
STONE,TRIM1#
62331AWEATHERSTRIP, REAR DOOR OPENING TRIM, RH
main62331-60020-A0i199801-200203
IVORY,TRIM4#; IVORY,TRIM40,41
main62331-60020-B2i199801-200203
BLUISH GRAY,TRIM1#
main62331-60021-A0i200203-200208
IVORY,TRIM4#; IVORY,TRIM40,41
main62331-60021-B2i200203-200208
BLUISH GRAY,TRIM1#
main62331-60030-A0i199801-200203
IVORY,TRIM4#
main62331-60030-B0i199801-200203
MD.GRAY,TRIM1#
main62331-60031-A0i200203-200208
IVORY,TRIM4#
main62331-60031-B0i200203-200208
MD.GRAY,TRIM1#
main62331-60060-A0i200506-200510
IVORY,TRIM0#
main62331-60060-B0i200505-200509
STONE,TRIM1#
main62331-60061-A0i200510
IVORY,TRIM0#
main62331-60061-B0i200510
STONE,TRIM1#
main62331-60070-A1i200505-200509
IVORY,TRIM0#
main62331-60070-B1i200208-200505
STONE,TRIM1#
main62331-60071-A1i200510
IVORY,TRIM0#
main62331-60071-B1i200510
STONE,TRIM1#
62332AWEATHERSTRIP, REAR DOOR OPENING TRIM, LH
main62332-60020-A0i199801-200203
IVORY,TRIM4#; IVORY,TRIM40,41
main62332-60020-B2i199801-200203
BLUISH GRAY,TRIM1#
main62332-60021-A0i200203-200208
IVORY,TRIM4#; IVORY,TRIM40,41
main62332-60021-B2i200203-200208
BLUISH GRAY,TRIM1#
main62332-60030-A0i199801-200203
IVORY,TRIM4#
main62332-60030-B0i199801-200203
MD.GRAY,TRIM1#
main62332-60031-A0i200203-200208
IVORY,TRIM4#
main62332-60031-B0i200203-200208
MD.GRAY,TRIM1#
main62332-60060-A0i200506-200510
IVORY,TRIM0#
main62332-60060-B0i200208-200505
STONE,TRIM1#
main62332-60061-A0i200510
IVORY,TRIM0#
main62332-60061-B0i200510
STONE,TRIM1#
main62332-60070-A1i200309-200506
IVORY,TRIM0#
main62332-60070-B1i200208-200505
STONE,TRIM1#
main62332-60071-A1i200510
IVORY,TRIM0#
main62332-60071-B1i200510
STONE,TRIM1#
62401ACLIP (FOR CENTER PILLAR GARNISH PANEL, UPPER)
main90467-05021-C0×2i200505
BLACK,TRIM0#,1#; BLACK,TRIM1#
62411GARNISH, CENTER PILLAR, RH
main62410-60010-A0i199801-200208
IVORY,TRIM4#; IVORY,TRIM40,41
main62410-60010-B0i199801-200208
MD.GRAY,TRIM1#
main62410-60020-A0i199801-200208
IVORY,TRIM4#
main62410-60020-B0i199801-200208
MD.GRAY,TRIM1#
main62410-60021-A2i200506-200701
IVORY,TRIM0#
main62410-60021-B2i200208-200505
STONE,TRIM1#
main62410-60060-A1i200309-200506
IVORY,TRIM0#
main62410-60060-B1i200208-200505
STONE,TRIM1#
main62410-60080-A0i200701
IVORY,TRIM0#
main62410-60090-A0i200701
IVORY,TRIM0#
62412GARNISH, CENTER PILLAR, LH
main62420-60010-A0i199801-200208
IVORY,TRIM4#; IVORY,TRIM40,41
main62420-60010-B0i199801-200208
MD.GRAY,TRIM1#
main62420-60020-A0i199801-200208
IVORY,TRIM4#
main62420-60020-B0i199801-200208
MD.GRAY,TRIM1#
main62420-60021-A2i200506-200701
IVORY,TRIM0#
main62420-60021-B2i200505
STONE,TRIM1#
main62420-60060-A1i200505
IVORY,TRIM0#
main62420-60060-B1i200208-200505
STONE,TRIM1#
main62420-60080-A0i200701
IVORY,TRIM0#
main62420-60090-A0i200701
IVORY,TRIM0#
62413AGARNISH, CENTER PILLAR, LOWER RH
main62413-60050-A0i199801-200208
IVORY,TRIM4#; IVORY,TRIM40,41
main62413-60050-A1i200309-200506
IVORY,TRIM0#
main62413-60050-B0i199801-200208
MD.GRAY,TRIM1#
main62413-60050-B1i200505-200612
STONE,TRIM1#
main62413-60051-A1i200701
IVORY,TRIM0#
main62413-60051-B1i200701
STONE,TRIM1#
62414AGARNISH, CENTER PILLAR, LOWER LH
main62414-60060-A0i199801-200208
IVORY,TRIM4#; IVORY,TRIM40,41
main62414-60060-A1i200309-200506
IVORY,TRIM0#
main62414-60060-B0i199801-200208
MD.GRAY,TRIM1#
main62414-60060-B1i200505-200612
STONE,TRIM1#
main62414-60061-A1i200701
IVORY,TRIM0#
main62414-60061-B1i200701
STONE,TRIM1#
62421COVER, CENTER PILLAR GARNISH, RH
main62421-60010-A0i199801-200208
IVORY,TRIM4#; IVORY,TRIM40,41
main62421-60010-A1i200506-200612
IVORY,TRIM0#
main62421-60010-B0i199801-200208
MD.GRAY,TRIM1#
main62421-60010-B1i200505-200612
STONE,TRIM1#
main62421-60011-A1i200701
IVORY,TRIM0#
main62421-60011-B1i200701
STONE,TRIM1#
62422COVER, CENTER PILLAR GARNISH, LH
main62421-60010-A0i199801-200208
IVORY,TRIM4#; IVORY,TRIM40,41
main62421-60010-A1i200505-200612
IVORY,TRIM0#
main62421-60010-B0i199801-200208
MD.GRAY,TRIM1#
main62421-60010-B1i200208-200505
STONE,TRIM1#
main62421-60011-A1i200701
IVORY,TRIM0#
main62421-60011-B1i200701
STONE,TRIM1#
62471AGARNISH, ROOF SIDE, INNER RH
main62470-60020-A0i199801-200208
W(TONNEAU COVER),IVORY,TRIM4#
main62470-60020-B0i199801-200208
W(TONNEAU COVER),MD.GRAY,TRIM1#
main62470-60021-A2i200505
W(TONNEAU COVER),IVORY,TRIM0#
main62470-60021-B2i200208-200505
W(TONNEAU COVER),STONE,TRIM1#
main62470-60040-A0i199801-200208
W(TRANSVERSE THIRD SEAT & TONNEAU COVER),IVORY,TRIM4#
main62470-60040-B0i199801-200208
W(TRANSVERSE THIRD SEAT & TONNEAU COVER),MD.GRAY,TRIM1#
main62470-60041-A2i200505
W(TRANSVERSE THIRD SEAT & TONNEAU COVER),IVORY,TRIM0#
main62470-60041-B2i200505
W(TRANSVERSE THIRD SEAT & TONNEAU COVER),STONE,TRIM1#
main62470-60050-A0i200008-200208
W(TONNEAU COVER),IVORY,TRIM4#
main62470-60050-B0i199801-200208
W(TONNEAU COVER),MD.GRAY,TRIM1#
main62470-60060-A0i199801-200208
W(TRANSVERSE THIRD SEAT & DUAL AIR CONDITIONER & TONNEAU COVER),IVORY,TRIM4#; W(TRANSVERSE THIRD SEAT & DUAL AIR CONDITIONER & TONNEAU COVER),IVORY,TRIM40,41
main62470-60060-B0i199801-200208
W(TRANSVERSE THIRD SEAT & DUAL AIR CONDITIONER & TONNEAU COVER),MD.GRAY,TRIM1#
main62470-60061-A2i200505
W(TRANSVERSE THIRD SEAT & DUAL AIR CONDITIONER & TONNEAU COVER),IVORY,TRIM0#
main62470-60061-B2i200505
W(TRANSVERSE THIRD SEAT & DUAL AIR CONDITIONER & TONNEAU COVER),STONE,TRIM1#
main62470-60070-A0i199801-200008
W(DUAL AIR CONDITIONER & TONNEAU COVER),IVORY,TRIM40,41
main62470-60070-B0i199801-200008
W(DUAL AIR CONDITIONER & TONNEAU COVER),MD.GRAY,TRIM1#
main62470-60100-A0i199801-200008
IVORY,TRIM40,41
main62470-60100-B0i199801-200208
MD.GRAY,TRIM1#
main62470-60110-A0i199801-200008
W(DUAL AIR CONDITIONER),IVORY,TRIM40,41
main62470-60110-B0i199801-200008
W(DUAL AIR CONDITIONER),MD.GRAY,TRIM1#
main62470-60120-A0i199801-200208
IVORY,TRIM4#; IVORY,TRIM40,41
main62470-60120-B0i199801-200208
MD.GRAY,TRIM1#
main62470-60121-A2i200505
IVORY,TRIM0#
main62470-60121-B2i200208-200505
STONE,TRIM1#
main62470-60130-A0i199801-200208
W(TRANSVERSE THIRD SEAT),IVORY,TRIM4#
main62470-60130-B0i199801-200208
W(TRANSVERSE THIRD SEAT),MD.GRAY,TRIM1#
main62470-60131-A2i200505
W(TRANSVERSE THIRD SEAT),IVORY,TRIM0#
main62470-60131-B2i200505
W(TRANSVERSE THIRD SEAT),STONE,TRIM1#
main62470-60140-A0i199801-200208
W(TRANSVERSE THIRD SEAT & DUAL AIR CONDITIONER),IVORY,TRIM4#; W(TRANSVERSE THIRD SEAT & DUAL AIR CONDITIONER),IVORY,TRIM40,41
main62470-60140-B0i199801-200208
W(TRANSVERSE THIRD SEAT & DUAL AIR CONDITIONER),MD.GRAY,TRIM1#
main62470-60141-A2i200505
W(TRANSVERSE THIRD SEAT & DUAL AIR CONDITIONER),IVORY,TRIM0#
main62470-60141-B2i200208-200505
W(TRANSVERSE THIRD SEAT & DUAL AIR CONDITIONER),STONE,TRIM1#
main62470-60150-A0i199801-199907
W(OPPOSING TYPE THIRD SEAT),IVORY,TRIM4#; W(OPPOSING TYPE THIRD SEAT),IVORY,TRIM40,41
main62470-60150-B0i199801-199907
W(OPPOSING TYPE THIRD SEAT),MD.GRAY,TRIM1#
main62470-60151-A2i200505
W(OPPOSING TYPE THIRD SEAT),IVORY,TRIM0#
main62470-60151-B2i200208-200505
W(OPPOSING TYPE THIRD SEAT),STONE,TRIM1#
main62470-60160-A0i199801-200208
W(OPPOSING TYPE THIRD SEAT & DUAL AIR CONDITIONER),IVORY,TRIM4#
main62470-60160-B0i199801-200208
W(OPPOSING TYPE THIRD SEAT & DUAL AIR CONDITIONER),MD.GRAY,TRIM1#
main62470-60161-A2i200208-200505
W(OPPOSING TYPE THIRD SEAT & DUAL AIR CONDITIONER),IVORY,TRIM0#
main62470-60161-B2i200505
W(OPPOSING TYPE THIRD SEAT & DUAL AIR CONDITIONER),STONE,TRIM1#
main62470-60360-A1i200208-200505
W(TRANSVERSE THIRD SEAT & TONNEAU COVER),IVORY,TRIM0#
main62470-60360-B1i200208-200505
W(TRANSVERSE THIRD SEAT & TONNEAU COVER),STONE,TRIM1#
main62470-60370-A1i200208-200505
W(TRANSVERSE THIRD SEAT & DUAL AIR CONDITIONER & TONNEAU COVER),IVORY,TRIM0#
main62470-60370-B1i200208-200505
W(TRANSVERSE THIRD SEAT & DUAL AIR CONDITIONER & TONNEAU COVER),STONE,TRIM1#
main62470-60380-A1i200208-200505
W(TRANSVERSE THIRD SEAT),IVORY,TRIM0#
main62470-60380-B1i200208-200505
W(TRANSVERSE THIRD SEAT),STONE,TRIM1#
main62470-60390-A1i200505
W(TRANSVERSE THIRD SEAT & DUAL AIR CONDITIONER),IVORY,TRIM0#
main62470-60390-B1i200505
W(TRANSVERSE THIRD SEAT & DUAL AIR CONDITIONER),STONE,TRIM1#
main62470-60460-A0i200701
IVORY,TRIM0#
main62470-60470-A0i200701
IVORY,TRIM0#
62471FCLIP (FOR ROOF SIDE, INNER UPPER GARNISH)
main90467-05021-C0×2i199801-200208
BLACK,TRIM1#; BLACK,TRIM1#,4#; BLACK,TRIM1#,40,41
62471JCLIP (FOR ROOF SIDE GARNISH)
main90467-05146-A0×4i199801-200208
IVORY,TRIM4#
main90467-05146-A1×4i200208-200505
IVORY,TRIM0#
main90467-05146-B0×4i199801-200208
MD.GRAY,TRIM1#
main90467-05146-B1×4i200208-200505
STONE,TRIM1#
62472AGARNISH, ROOF SIDE, INNER LH
main62480-60010-A0i199801-200208
W(TRANSVERSE THIRD SEAT & TONNEAU COVER),IVORY,TRIM4#; W(TRANSVERSE THIRD SEAT & TONNEAU COVER),IVORY,TRIM40,41
main62480-60010-B0i199801-200208
W(TRANSVERSE THIRD SEAT & TONNEAU COVER),MD.GRAY,TRIM1#
main62480-60011-A2i200208-200505
W(TRANSVERSE THIRD SEAT & TONNEAU COVER),IVORY,TRIM0#
main62480-60011-B2i200505
W(TRANSVERSE THIRD SEAT & TONNEAU COVER),STONE,TRIM1#
main62480-60020-A0i200008-200208
W(TONNEAU COVER),IVORY,TRIM4#
main62480-60020-B0i199801-200208
W(TONNEAU COVER),MD.GRAY,TRIM1#
main62480-60050-A0i199801-200008
IVORY,TRIM40,41
main62480-60050-B0i199801-200208
MD.GRAY,TRIM1#
main62480-60060-A0i199801-200208
IVORY,TRIM4#; IVORY,TRIM40,41
main62480-60060-B0i199801-200208
MD.GRAY,TRIM1#
main62480-60061-A2i200208-200505
IVORY,TRIM0#
main62480-60061-B2i200208-200505
STONE,TRIM1#
main62480-60070-A0i199801-200208
W(TRANSVERSE THIRD SEAT),IVORY,TRIM4#; W(TRANSVERSE THIRD SEAT),IVORY,TRIM40,41
main62480-60070-B0i199801-200208
W(TRANSVERSE THIRD SEAT),MD.GRAY,TRIM1#
main62480-60071-A2i200505
W(TRANSVERSE THIRD SEAT),IVORY,TRIM0#
main62480-60071-B2i200505
W(TRANSVERSE THIRD SEAT),STONE,TRIM1#
main62480-60080-A0i199801-200208
W(OPPOSING TYPE THIRD SEAT),IVORY,TRIM4#; W(OPPOSING TYPE THIRD SEAT),IVORY,TRIM40,41
main62480-60080-B0i199801-200208
W(OPPOSING TYPE THIRD SEAT),MD.GRAY,TRIM1#
main62480-60081-A2i200208-200505
W(OPPOSING TYPE THIRD SEAT),IVORY,TRIM0#
main62480-60081-B2i200208-200505
W(OPPOSING TYPE THIRD SEAT),STONE,TRIM1#
main62480-60100-A0i199801-200208
W(TONNEAU COVER),IVORY,TRIM4#
main62480-60100-B0i199801-200208
W(TONNEAU COVER),MD.GRAY,TRIM1#
main62480-60101-A2i200208-200505
W(TONNEAU COVER),IVORY,TRIM0#
main62480-60101-B2i200208-200505
W(TONNEAU COVER),STONE,TRIM1#
main62480-60260-A1i200208-200505
W(TRANSVERSE THIRD SEAT & TONNEAU COVER),IVORY,TRIM0#
main62480-60260-B1i200208-200505
W(TRANSVERSE THIRD SEAT & TONNEAU COVER),STONE,TRIM1#
main62480-60270-A1i200506-200701
IVORY,TRIM0#
main62480-60270-B1i200505
W(TRANSVERSE THIRD SEAT),STONE,TRIM1#
main62480-60340-A0i200701
IVORY,TRIM0#
main62480-60350-A0i200701
IVORY,TRIM0#
62510PPANEL ASSY, QUARTER TRIM, FRONT RH
main62503-60010-A0i199801-200208
IVORY,TRIM4#; IVORY,TRIM40,41
main62503-60010-A1i200208-200505
IVORY,TRIM0#
main62503-60010-B0i199801-200208
MD.GRAY,TRIM1#
main62503-60010-B1i200505
STONE,TRIM1#
main62503-60020-A0i199801-199907
W(OPPOSING TYPE THIRD SEAT),IVORY,TRIM4#
main62503-60020-A1i200208-200505
W(OPPOSING TYPE THIRD SEAT),IVORY,TRIM0#
main62503-60020-B0i199907-200208
W(OPPOSING TYPE THIRD SEAT),MD.GRAY,TRIM1#
main62503-60020-B1i200208-200505
W(OPPOSING TYPE THIRD SEAT),STONE,TRIM1#
main62503-60030-A0i199801-200208
W(TRANSVERSE THIRD SEAT),IVORY,TRIM4#; W(TRANSVERSE THIRD SEAT),IVORY,TRIM40,41
main62503-60030-A1i200505
W(TRANSVERSE THIRD SEAT),IVORY,TRIM0#
main62503-60030-B0i199801-200208
W(TRANSVERSE THIRD SEAT),MD.GRAY,TRIM1#
main62503-60030-B1i200505
W(TRANSVERSE THIRD SEAT),STONE,TRIM1#
main62503-60050-A0i199801-200208
W(OPPOSING TYPE THIRD SEAT & DUAL AIR CONDITIONER),IVORY,TRIM4#
main62503-60050-A1i200208-200505
W(OPPOSING TYPE THIRD SEAT & DUAL AIR CONDITIONER),IVORY,TRIM0#
main62503-60050-B0i199801-200208
W(OPPOSING TYPE THIRD SEAT & DUAL AIR CONDITIONER),MD.GRAY,TRIM1#
main62503-60050-B1i200505
W(OPPOSING TYPE THIRD SEAT & DUAL AIR CONDITIONER),STONE,TRIM1#
main62503-60060-A0i199801-200208
W(TRANSVERSE THIRD SEAT & DUAL AIR CONDITIONER),IVORY,TRIM4#; W(TRANSVERSE THIRD SEAT & DUAL AIR CONDITIONER),IVORY,TRIM40,41
main62503-60060-A1i200508-200610
W(DUAL AUTO AIR CONDITIONER),IVORY,TRIM0#
main62503-60060-B0i199801-200208
W(TRANSVERSE THIRD SEAT & DUAL AIR CONDITIONER),MD.GRAY,TRIM1#
main62503-60060-B1i200505-200610
W(TRANSVERSE THIRD SEAT & DUAL AIR CONDITIONER),STONE,TRIM1#
main62503-60090-A0i200612
IVORY,TRIM0#
main62503-60090-B0i200611
W(DUAL AUTO AIR CONDITIONER),STONE,TRIM1#
62511BCLIP (FOR QUARTER INSIDE TRIM BOARD)
main90467-05021-C0×3i199801-200208
BLACK,TRIM1#; BLACK,TRIM1#,4#; BLACK,TRIM1#,40,41
62511GCLIP (FOR QUARTER INSIDE TRIM BOARD)
main67771-35010×18i200508
W(DUAL AIR CONDITIONER),WHITE
main67771-89104×2i200506
PINK
main90467-09091×20i199801-199903
W(DUAL AIR CONDITIONER)
62520PPANEL ASSY, QUARTER TRIM, FRONT LH
main62504-60010-A0i199801-200208
IVORY,TRIM4#; IVORY,TRIM40,41
main62504-60010-A1i200208-200505
IVORY,TRIM0#
main62504-60010-B0i199801-200208
MD.GRAY,TRIM1#
main62504-60010-B1i200208-200505
STONE,TRIM1#
main62504-60020-A0i199801-200208
W(OPPOSING TYPE THIRD SEAT),IVORY,TRIM4#
main62504-60020-A1i200208-200505
W(OPPOSING TYPE THIRD SEAT),IVORY,TRIM0#
main62504-60020-B0i199801-200208
W(OPPOSING TYPE THIRD SEAT),MD.GRAY,TRIM1#
main62504-60020-B1i200208-200505
W(OPPOSING TYPE THIRD SEAT),STONE,TRIM1#
main62504-60030-A0i199801-200208
W(TRANSVERSE THIRD SEAT),IVORY,TRIM4#; W(TRANSVERSE THIRD SEAT),IVORY,TRIM40,41
main62504-60030-A1i200309-200506
IVORY,TRIM0#
main62504-60030-B0i199801-200208
W(TRANSVERSE THIRD SEAT),MD.GRAY,TRIM1#
main62504-60030-B1i200208-200505
W(TRANSVERSE THIRD SEAT),STONE,TRIM1#
main62504-60060-A0i200612
IVORY,TRIM0#
main62504-60060-B0i200611
W(TRANSVERSE THIRD SEAT),STONE,TRIM1#
62534DBRACKET, QUARTER TRIM, NO.1, LH
main62534-60010-A0i199801-200208
IVORY,TRIM4#; IVORY,TRIM40,41
main62534-60010-A1i200208-200505
IVORY,TRIM0#
main62534-60010-B0i199801-200208
SHADOW GRAY,TRIM1#
main62534-60010-B1i200208-200505
STONE,TRIM1#
62538CCOVER, QUARTER TRIM, HOLE
main62538-60050-A0i199801-200208
IVORY,TRIM4#; IVORY,TRIM40,41
main62538-60050-A1i200208-200505
IVORY,TRIM0#
main62538-60050-B0i199801-200208
MD.GRAY,TRIM1#
main62538-60050-B1i200208-200505
STONE,TRIM1#
62594APOCKET, QUARTER TRIM, NO.1
main62594-60040-A0i199801-200208
IVORY,TRIM4#; IVORY,TRIM40,41
main62594-60040-A1i200208-200505
IVORY,TRIM0#
main62594-60040-B0i199801-200208
SHADOW GRAY,TRIM1#
main62594-60040-B1i200505
STONE,TRIM1#
main62594-60050-A0i199801-200208
W(DUAL AIR CONDITIONER),IVORY,TRIM4#; W(DUAL AIR CONDITIONER),IVORY,TRIM40,41
main62594-60050-A1i200208-200505
W(DUAL AIR CONDITIONER),IVORY,TRIM0#
main62594-60050-B0i199801-200208
W(DUAL AIR CONDITIONER),SHADOW GRAY,TRIM1#
main62594-60050-B1i200208-200505
W(DUAL AIR CONDITIONER),STONE,TRIM1#
main62594-60070-A0i200411-200506
IVORY,TRIM0#
62595APOCKET, QUARTER TRIM, NO.2
main62595-60030-A0i199801-199907
IVORY,TRIM4#
main62595-60030-A1i200208-200505
IVORY,TRIM0#
main62595-60030-B0i199907-200208
SHADOW GRAY,TRIM1#
main62595-60030-B1i200208-200505
STONE,TRIM1#
main62595-60040-A0i199801-200208
W(DUAL AIR CONDITIONER),IVORY,TRIM4#; W(DUAL AIR CONDITIONER),IVORY,TRIM40,41
main62595-60040-A1i200508-200610
W(DUAL AIR CONDITIONER),IVORY,TRIM0#
main62595-60040-B0i199801-200208
W(DUAL AIR CONDITIONER),SHADOW GRAY,TRIM1#
main62595-60040-B1i200208-200505
W(DUAL AIR CONDITIONER),STONE,TRIM1#
62671BOARD SUB-ASSY, QUARTER TRIM, LOWER
main62603-60010-A0i199801-200208
IVORY,TRIM4#; IVORY,TRIM40,41
main62603-60010-A1i200505
IVORY,TRIM0#
main62603-60010-B0i199801-200208
MD.GRAY,TRIM1#
main62603-60010-B1i200208-200505
STONE,TRIM1#
main62603-60020-A0i199808-200208
W(SPEAKER),IVORY,TRIM40,41
main62603-60020-A1i200208-200505
W(SPEAKER),IVORY,TRIM0#
main62603-60020-B0i199808-200208
W(SPEAKER),MD.GRAY,TRIM1#
main62603-60020-B1i200208-200505
W(SPEAKER),STONE,TRIM1#
main62603-60030-A0i199801-200208
W(TRANSVERSE THIRD SEAT),IVORY,TRIM4#; W(TRANSVERSE THIRD SEAT),IVORY,TRIM40,41
main62603-60030-A1i200309-200506
IVORY,TRIM0#
main62603-60030-B0i199801-200208
W(TRANSVERSE THIRD SEAT),MD.GRAY,TRIM1#
main62603-60030-B1i200208-200505
W(TRANSVERSE THIRD SEAT),STONE,TRIM1#
main62603-60040-A0i199801-199808
W(TRANSVERSE THIRD SEAT & SPEAKER),IVORY,TRIM40,41
main62603-60040-A1i200208-200505
W(TRANSVERSE THIRD SEAT & SPEAKER),IVORY,TRIM0#
main62603-60040-B0i199808-200208
W(TRANSVERSE THIRD SEAT & SPEAKER),MD.GRAY,TRIM1#
main62603-60040-B1i200208-200505
W(TRANSVERSE THIRD SEAT & SPEAKER),STONE,TRIM1#
main62603-60050-A0i200612
IVORY,TRIM0#
main62603-60060-A0i200612
IVORY,TRIM0#
main62603-60060-B0i200611
W(TRANSVERSE THIRD SEAT & SPEAKER),STONE,TRIM1#
63429CBAND, ROOM RACK
main62585-60010×2i199808-200208
NO.1
main63429-60030i200208-200505
NO.2
6454PACKAGE TRAY PANEL
→ Go to FIG 64-54
64716DCOVER, DECK TRIM, REAR
main64716-60030-A0i199801-199907
IVORY,TRIM4#
main64716-60030-A1i200505
IVORY,TRIM0#
main64716-60030-B0i199907-200208
MD.GRAY,TRIM1#
main64716-60030-B1i200208-200505
STONE,TRIM1#
main64716-60040-A0i199801-200208
W(DUAL AIR CONDITIONER),IVORY,TRIM4#; W(DUAL AIR CONDITIONER),IVORY,TRIM40,41
main64716-60040-A1i200506
IVORY,TRIM0#
main64716-60040-B0i199801-200208
W(DUAL AIR CONDITIONER),MD.GRAY,TRIM1#
main64716-60040-B1i200505
W(DUAL AIR CONDITIONER),STONE,TRIM1#
64766COVER SUB-ASSY, QUARTER TRIM JACK
main64766-60050-A0i199801-200208
IVORY,TRIM4#; IVORY,TRIM40,41
main64766-60050-A1i200309-200506
IVORY,TRIM0#
main64766-60050-B0i199801-200208
MD.GRAY,TRIM1#
main64766-60050-B1i200505-200612
STONE,TRIM1#
main64766-60051-A1i200701
IVORY,TRIM0#
main64766-60051-B1i200701
STONE,TRIM1#
64974COVER, DECK TRIM POCKET
main64974-60010-A0i199801-200208
IVORY,TRIM4#; IVORY,TRIM40,41
main64974-60010-A1i200505
IVORY,TRIM0#
main64974-60010-B0i199801-200208
MD.GRAY,TRIM1#
main64974-60010-B1i200505
STONE,TRIM1#
main64974-60020-A0i199801-200208
W(DUAL AIR CONDITIONER),IVORY,TRIM4#; W(DUAL AIR CONDITIONER),IVORY,TRIM40,41
main64974-60020-A1i200506
IVORY,TRIM0#
main64974-60020-B0i199801-200208
W(DUAL AIR CONDITIONER),MD.GRAY,TRIM1#
main64974-60020-B1i200505
W(DUAL AIR CONDITIONER),STONE,TRIM1#
66991HOLDER, QUARTER TRIM CUP, RH
main66907-60010-A0i199801-200208
IVORY,TRIM4#; IVORY,TRIM40,41
main66907-60010-A1i200505
IVORY,TRIM0#
main66907-60010-B0i199801-200208
MD.GRAY,TRIM1#
main66907-60010-B1i200505
STONE,TRIM1#
main66991-60010-A0i199801-200208
W(DUAL AIR CONDITIONER),IVORY,TRIM4#; W(DUAL AIR CONDITIONER),IVORY,TRIM40,41
main66991-60010-A1i200208-200505
W(DUAL AIR CONDITIONER),IVORY,TRIM0#
main66991-60010-B0i199801-200208
W(DUAL AIR CONDITIONER),MD.GRAY,TRIM1#
main66991-60010-B1i200508
W(DUAL AIR CONDITIONER),STONE,TRIM1#
66991AHOLDER, QUARTER TRIM CUP, LH
main66990-60010-A0i199801-200208
IVORY,TRIM4#; IVORY,TRIM40,41
main66990-60010-A1i200505
IVORY,TRIM0#
main66990-60010-B0i199801-200208
MD.GRAY,TRIM1#
main66990-60010-B1i200505
STONE,TRIM1#
67913BPLATE, FRONT DOOR SCUFF, RH
main67913-60040-A0i199801-200208
IVORY,TRIM4#; IVORY,TRIM40,41
main67913-60040-A1i200506-200612
IVORY,TRIM0#
main67913-60040-B0i199801-200208
MD.GRAY,TRIM1#
main67913-60040-B1i200505-200612
STONE,TRIM1#
main67913-60041-A1i200701
IVORY,TRIM0#
main67913-60041-B1i200701
STONE,TRIM1#
main67913-60070-A0i200101-200107
50TH ANNIVERSARY LIMITED EDITION(G.C.C.),IVORY,TRIM4#
main67913-60070-B0i200101-200107
50TH ANNIVERSARY LIMITED EDITION(G.C.C.),MD.GRAY,TRIM1#
67914BPLATE, FRONT DOOR SCUFF, LH
main67914-60030-A0i199801-200208
IVORY,TRIM4#; IVORY,TRIM40,41
main67914-60030-A1i200505-200612
IVORY,TRIM0#
main67914-60030-B0i199801-200208
MD.GRAY,TRIM1#
main67914-60030-B1i200208-200505
STONE,TRIM1#
main67914-60031-A1i200701
IVORY,TRIM0#
main67914-60031-B1i200701
STONE,TRIM1#
main67914-60060-A0i200101-200107
50TH ANNIVERSARY LIMITED EDITION(G.C.C.),IVORY,TRIM4#
main67914-60060-B0i200101-200107
50TH ANNIVERSARY LIMITED EDITION(G.C.C.),MD.GRAY,TRIM1#
67917CPLATE, REAR DOOR SCUFF, RH
main67917-60040-A0i199801-200208
IVORY,TRIM4#; IVORY,TRIM40,41
main67917-60040-A1i200505
IVORY,TRIM0#
main67917-60040-B0i199801-200208
MD.GRAY,TRIM1#
main67917-60040-B1i200208-200505
STONE,TRIM1#
main67917-60070-A0i200101-200107
50TH ANNIVERSARY LIMITED EDITION(G.C.C.),IVORY,TRIM4#
main67917-60070-B0i200101-200107
50TH ANNIVERSARY LIMITED EDITION(G.C.C.),MD.GRAY,TRIM1#
main67917-60150-A0i200612
IVORY,TRIM0#
67918BPLATE, REAR DOOR SCUFF, LH
main67918-60030-A0i199801-200208
IVORY,TRIM4#; IVORY,TRIM40,41
main67918-60030-A1i200506-200612
IVORY,TRIM0#
main67918-60030-B0i199801-200208
MD.GRAY,TRIM1#
main67918-60030-B1i200505
STONE,TRIM1#
main67918-60060-A0i200101-200107
50TH ANNIVERSARY LIMITED EDITION(G.C.C.),IVORY,TRIM4#
main67918-60060-B1i200101-200107
50TH ANNIVERSARY LIMITED EDITION(G.C.C.),MD.GRAY,TRIM1#
main67918-60140-A0i200612
IVORY,TRIM0#
67921ERETAINER, REAR DOOR SCUFF PLATE
main67921-22020×2i200505
RED
main67921-95501×2i200506
YELLOW
67921FRETAINER, FRONT DOOR SCUFF PLATE
main67921-22020×4i200505
RED
main67921-95501×2i200701
YELLOW
67923CCLAMP, DOOR SCUFF PLATE, NO.1
main67923-30030×4i199801-200008
7152SEAT BELT
→ Go to FIG 71-52
7456ASH RECEPTACLE
→ Go to FIG 74-56
6777189104WEATHERSTRIP, BACK DOOR TRIM, RH
main67771-89104
9016440105
main90164-40105
9016840068
main90168-40068
9018305016
main90183-05016
9018306044
main90183-06044
9046710161
main90467-10161
9046805125
main90468-05125
9095001851B2
main90950-01851B2
9324056014
main93240-56014
9356016016
main93560-16016
9356815012
main93568-15012
9356855014
main93568-55014

58 parts on this diagram · 2 diagrams in section

INSIDE TRIM BOARD — Toyota Parts Diagram with OEM Numbers & Prices | EPC Data
