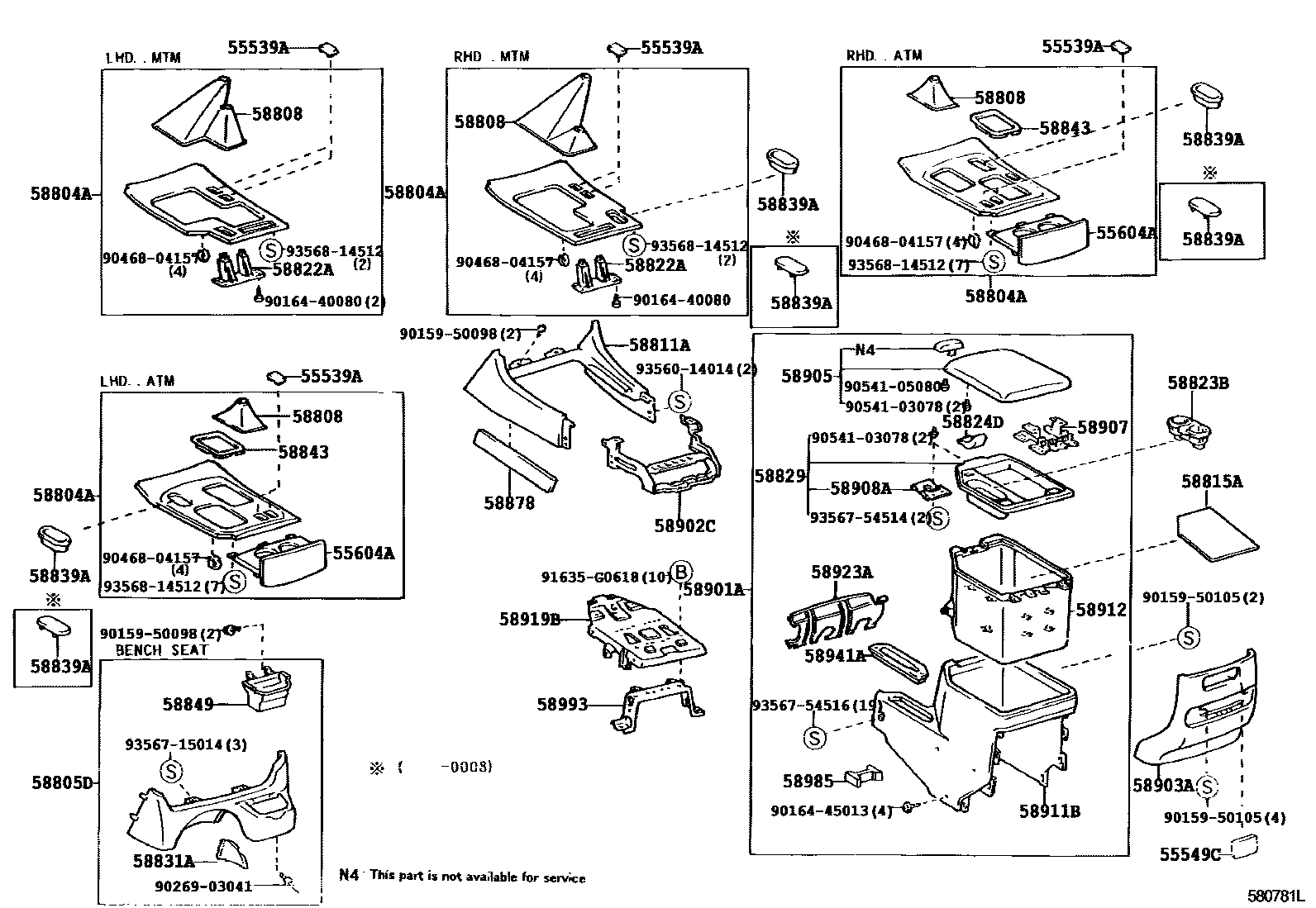

CONSOLE BOX & BRACKET

0001 1 0002 1

55539ACOVER, SPARE SWITCH HOLE

main55539-60020-C0iHDJ100..SOB;FZJ10#,HDJ100,HZJ105..(GX,VX)..(DSL2,EFI,TDEFI)199801-200505

BLACK,TRIM1#

sub55539-60020

main55539-60020-C0iFZJ10#,HZJ105..STD199801-200208

BLACK,TRIM1#,40,41

sub55539-60020

main55539-60020-C0iHDJ100..SOB;FZJ10#,HDJ100,HZJ105..(GX,VX)..(DSL2,EFI,TDEFI)199801-200208

BLACK,TRIM1#,4#

sub55539-60020

main55539-60020-C0iUZJ100..5FC..GCC;HDJ100,UZJ100..LUB..(ARL,GEN);FZJ10#,HZJ105..GX..(ARL,GCC,GEN)200208-200505

BLACK,TRIM0#,1#

sub55539-60020

main55539-60020-C0iFZJ100..CHI;UZJ100..5FC..GX..CHI200309-200506

BLACK,TRIM0#

sub55539-60020

55549CCOVER, REAR COOLER SWITCH HOLE

main55549-60030-A0iFZJ10#,HDJ100,HZJ105..(GX,VX)..(DSL2,EFI,TDEFI)199801-200208

IVORY,TRIM40,41

sub55549-60030

main55549-60030-A0iUZJ100;HDJ100..LUB..GEN199801-200208

IVORY,TRIM4#

sub55549-60030

main55549-60030-A1iUZJ100..VX..CHI200208-200506

IVORY,TRIM0#

sub55549-60030

main55549-60030-B0iFZJ10#,HZJ105..STD199801-200008

SHADOW GRAY,TRIM1#

sub55549-60030

main55549-60030-B1iHDJ100..LUB;FZJ10#,HZJ105,UZJ100199801-200208

MD.GRAY,TRIM1#

sub55549-60030

main55549-60030-B2iHDJ100..LUB;FZJ10#,HZJ105,UZJ100..ARL,GCC,GEN200208-200505

STONE,TRIM1#

sub55549-60030

55604AHOLDER SUB-ASSY, INSTRUMENT PANEL CUP

main55604-60030iFZJ105,HDJ100,HZJ105,UZJ100..4FC..ARL199907-200208

sub55604-60032

main55604-60031iHDJ100,UZJ100..5FC..ARL200208-200510

sub55604-60032

main55604-60032iHDJ100,UZJ100..5FC..GX..ARL200511

main55604-60040iFZJ105,HZJ105,UZJ100..4FC..ARL199801-199907

sub55604-60030

main55604-60060iFZJ100,HDJ100,UZJ100..LHD..4FC199907-200208

sub55604-60062

main55604-60061iFZJ100,HDJ100,UZJ100..ATM..(GCC,GEN)200208-200510

sub55604-60062

main55604-60062iFZJ100,UZJ100..ATM..GX..CHI200509

main55604-60071iHDJ100,UZJ100..VX..ARL200208-200510

WOOD GRAIN

sub55604-60072

main55604-60072iHDJ100,UZJ100..VX..ARL200511

WOOD GRAIN

main55604-60080iFZJ100,HDJ100,UZJ100..LHD..4FC199801-199907

sub55604-60060

main55604-60121iUZJ100..VX..CHI200309-200508

sub55604-60122

main55604-60121iHDJ100..5FC..GEN200208-200510

WOOD GRAIN

sub55604-60122

main55604-60122iHDJ100..5FC..GEN200511

WOOD GRAIN

main55604-60122iUZJ100..VX..CHI200509

58804APANEL SUB-ASSY, CONSOLE, UPPER

main58804-60090iFZJ105,HZJ105,UZJ100..4FC..ARL199801-199907

sub58804-60091

main58804-60091iFZJ105,HDJ100,HZJ105,UZJ100..4FC..ARL199907-200208

main58804-60092iHDJ100,UZJ100..VX..ARL200208-200505

main58804-60102iHDJ100,UZJ100..VX..ARL200208-200505

WOOD GRAIN

main58804-60110iHDJ100..LHD..LUB..5F;FZJ10#,HZJ105..LHD..5F199801-200208

main58804-60111iHDJ100..LHD..LUB..5F;FZJ10#,HZJ105..LHD..5F..(GCC,GEN)200208-200606

main58804-60121iHDJ100..LHD..LUB..5F200208-200505

WOOD GRAIN

main58804-60130iFZJ100,HDJ100,UZJ100..LHD..4FC199801-199907

sub58804-60131

main58804-60131iFZJ100,HDJ100,UZJ100..LHD..4FC199907-200208

main58804-60132iHDJ100,UZJ100..5FC..(GCC,GEN)200208-200505

main58804-60142iHDJ100..5FC..GEN200208-200505

WOOD GRAIN

main58804-60142iUZJ100..VX..CHI200309-200506

main58804-60160iUZJ100..5F199801-200208

main58804-60161iUZJ100..5F..CHI200208-200505

main58804-60170iFZJ105,HDJ100,HZJ105..RHD..5F199801-200208

main58804-60171iFZJ105,HDJ100,HZJ105..RHD..5F200208-200505

main58804-60330iUZJ100..5F..ARL200208-200605

main58804-60340iHDJ100,UZJ100..5FC..GX..ARL200208-200505

main58804-60350iFZJ100,UZJ100..ATM..GX..CHI200208-200506

58805DCOVER SUB-ASSY, TRANSFER LEVER HOLE

main58805-60040-A0iHDJ100..SOB;FZJ10#,HZJ105..LHD..5F..GX199801-200208

IVORY,TRIM4#

sub58805-60040

main58805-60040-B0iFZJ10#,HZJ105..STD199801-200008

SHADOW GRAY,TRIM1#

sub58805-60040

main58805-60040-B1iHDJ100..SOB;FZJ10#,HZJ105..LHD..5F..GX199801-200208

MD.GRAY,TRIM1#

sub58805-60040

main58805-60070-A0iHDJ100..SOB;FZJ10#,HZJ105..LHD..5F..GX..(GCC,GEN)200208-200505

IVORY,TRIM0#

main58805-60070-B0iHZJ105..LHD..GX;FZJ10#..LHD..5F..(GCC,GEN);HDJ100,HZJ105..SOB..(STD,VX)200208-200505

STONE,TRIM1#

58808COVER SUB-ASSY, SHIFTING HOLE

main58808-60120iFZJ105,HDJ100,HZJ105..RHD..5F199801-200505

main58808-60130iFZJ100,HDJ100,UZJ100..ATM..(ARL,GCC,GEN)199801-200506

main58808-60140iFZJ100..5F..CHI199801-200606

main58808-60150iUZJ100..5F..CHI199801-200505

main58808-60250iUZJ100..5F..ARL200208-200605

58811ABOX, CONSOLE, FRONT

main58811-60180-A0iFZJ10#,HDJ100,HZJ105..(GX,VX)..(DSL2,EFI,TDEFI)199801-200208

IVORY,TRIM40,41

sub58811-60180

main58811-60180-A0iUZJ100;HDJ100..LUB..GEN199801-200208

IVORY,TRIM4#

sub58811-60180

main58811-60180-B0iFZJ10#,HZJ105..STD199801-200008

SHADOW GRAY,TRIM1#

sub58811-60180

main58811-60180-B1iHDJ100..LUB;FZJ10#,HZJ105,UZJ100..GX,VX199801-200208

MD.GRAY,TRIM1#

sub58811-60180

main58811-60210-A0iHDJ100..LUB;FZJ10#,HZJ105,UZJ100..(GX,VX)..(ARL,GCC,GEN)200208-200506

IVORY,TRIM0#

main58811-60210-B0iHDJ100..LUB;FZJ10#,HZJ105,UZJ100..ARL,GCC,GEN200208-200505

STONE,TRIM1#

58815ACARPET, CONSOLE BOX

main58815-60020iFZJ105,HDJ100,HZJ105,UZJ100..RHD199801-200505

main58815-60030iHDJ100..LHD..LUB;FZJ10#,HZJ105,UZJ100..LHD..(GCC,GEN)199801-200505

main58815-60040iUZJ100..ARL199801-200505

W(CD AUTO CHANGER)

main58815-60050iHDJ100,UZJ100..LHD199801-200505

W(CD AUTO CHANGER)

58822APANEL, CONSOLE, UPPER REAR

main58822-60010iFZJ105..STD..ARL199801-200506

58823BBOX, CONSOLE COMPARTMENT

main58803-60020iFZJ105..5F..GX;HDJ100..LUB..5F;FZJ105..STD..GEN;FZJ100,HZJ105,UZJ100..5F199801-200506

58824DBOX, CONSOLE COIN

main58824-60010iHDJ100..LUB;FZJ10#,HZJ105,UZJ100199801-200505

58829POCKET, CONSOLE BOX

main58806-60030iFZJ105,HDJ100,HZJ105,UZJ100..RHD199801-200505

main58806-60040iHDJ100..LHD..LUB;FZJ10#,HZJ105,UZJ100..LHD..(GCC,GEN)199801-200505

58831AGARNISH, CONSOLE UPPER PANEL, FRONT

main58831-60010-A0iHDJ100..SOB;FZJ10#,HZJ105..LHD..5F..GX199801-200208

IVORY,TRIM4#

sub58831-60010

main58831-60010-A1iHDJ100..SOB;FZJ10#,HZJ105..LHD..5F..GX..(GCC,GEN)200208-200505

IVORY,TRIM0#

sub58831-60010

main58831-60010-B0iFZJ10#..LHD..5F;HZJ105..LHD..GX;HDJ100,HZJ105..SOB..(STD,VX)199801-200208

MD.GRAY,TRIM1#

sub58831-60010

main58831-60010-B1iFZJ10#,HZJ105..STD199801-200008

SHADOW GRAY,TRIM1#

sub58831-60010

main58831-60010-B2iHZJ105..LHD..GX;FZJ10#..LHD..5F..(GCC,GEN);HDJ100,HZJ105..SOB..(STD,VX)200208-200505

STONE,TRIM1#

sub58831-60010

58839ACOVER, CONSOLE BOX HOLE

main58839-60020iFZJ10#,HDJ100,HZJ105,UZJ100199801-200008

main58839-60030iFZJ10#,HDJ100,HZJ105,UZJ100200008-200209

sub58839-60040

main58839-60040iHDJ100..LUB..5F;HDJ100,UZJ100..5FC..GX..ARL;HDJ100,UZJ100..5FC..(GCC,GEN);FZJ10#,HZJ105,UZJ100..(4FC,5F)..(ARL,GCC,GEN)200209-200506

58843BEZEL, SHIFTING HOLE

main58843-60010iUZJ100..LHD..4FC;FZJ10#,HDJ100,HZJ105..4FC199801-200506

main58843-60050iHDJ100,UZJ100..5FC..VX..(ARL,GCC,GEN)200208-200506

58849COVER, CONSOLE BOX HOLE, NO.2

main58849-60030iFZJ100..5F;HZJ105..STD;HZJ105..LHD..GX;FZJ105..LHD..LUB;FZJ105,HDJ100..SOB199801-200505

58878PAD, CONSOLE BOX SILENCER, NO.4

main58878-60040iFZJ105..GX;HDJ100..LUB;FZJ100,HZJ105;FZJ105,UZJ100..LHD..(STD,VX)199801-200506

58901ABOX SUB-ASSY, CONSOLE, REAR

main58081-60010-A0iFZJ105,HDJ100,HZJ105,UZJ100..RHD..(GX,VX)200208-200212

IVORY,TRIM0#

main58081-60010-B0iFZJ105,HDJ100,HZJ105,UZJ100..RHD200208-200212

STONE,TRIM1#

main58081-60011-A0iFZJ105,HDJ100,HZJ105,UZJ100..RHD..(GX,VX)200212-200505

IVORY,TRIM0#

main58081-60011-B0iFZJ105,HDJ100,HZJ105,UZJ100..RHD200212-200505

STONE,TRIM1#

main58081-60020-A0iHDJ100..RHD..GEN200208-200212

W(CD AUTO CHANGER),IVORY,TRIM0#

main58081-60020-B0iHDJ100..RHD..GEN200208-200212

W(CD AUTO CHANGER),STONE,TRIM1#

main58081-60021-A0iHDJ100..RHD..GEN200212-200505

W(CD AUTO CHANGER),IVORY,TRIM0#

main58081-60021-B0iHDJ100..RHD..GEN200212-200505

W(CD AUTO CHANGER),STONE,TRIM1#

main58081-60030-A0iHDJ100..LHD..LUB;FZJ10#,HZJ105,UZJ100..LHD..(GX,VX)200208-200212

IVORY,TRIM0#

main58081-60030-B0iHDJ100..LHD..LUB;FZJ10#,HZJ105,UZJ100..LHD200208-200212

STONE,TRIM1#

main58081-60031-A0iHDJ100..LHD..LUB;FZJ10#,HZJ105,UZJ100..LHD..(GX,VX)..(GCC,GEN)200212-200505

IVORY,TRIM0#

main58081-60031-B0iHDJ100..LHD..LUB;FZJ10#,HZJ105,UZJ100..LHD..(GCC,GEN)200212-200505

STONE,TRIM1#

main58081-60050-A0iUZJ100..LHD;HDJ100..LHD..LUB;FZJ100,HZJ105..GX..GCC200208-200212

W(CD AUTO CHANGER),IVORY,TRIM0#

main58081-60050-B0iUZJ100..LHD;HDJ100..LHD..LUB;FZJ100,HZJ105..GX..GCC200208-200212

W(CD AUTO CHANGER),STONE,TRIM1#

main58081-60051-A0iUZJ100..GCC,GEN;HDJ100..LHD..LUB;FZJ100,HZJ105..GX..GCC200212-200505

W(CD AUTO CHANGER),IVORY,TRIM0#

main58081-60051-B0iUZJ100..GCC,GEN;HDJ100..LHD..LUB;FZJ100,HZJ105..GX..GCC200212-200505

W(CD AUTO CHANGER),STONE,TRIM1#

main58901-60240-A0iUZJ100..LHD199801-200208

W(CD AUTO CHANGER),IVORY,TRIM4#

sub58081-60051

sub58905-60071

sub93568-54516

main58901-60240-B0iHDJ100,UZJ100..LHD199801-200208

W(CD AUTO CHANGER),MD.GRAY,TRIM1#

sub58081-60051

sub58905-60071

sub93568-54516

main58901-60250-A0iUZJ100..GEN199801-199907

LEATHER PACKAGE & W(CD AUTO CHANGER),IVORY,TRIM4#

sub58081-60051

sub58905-60081

sub93568-54516

main58901-60250-A0iUZJ100..GEN199801-200208

LEATHER PACKAGE & W(CD AUTO CHANGER),IVORY,TRIM40,41

sub58081-60051

sub58905-60081

sub93568-54516

main58901-60250-B0iUZJ100..LHD199801-200208

LEATHER PACKAGE & W(CD AUTO CHANGER),MD.GRAY,TRIM1#

sub58081-60051

sub58905-60081

sub93568-54516

main58901-60280-A0iFZJ105,HDJ100,HZJ105,UZJ100..RHD..(GX,VX)199801-200208

IVORY,TRIM4#

sub58081-60011

sub58905-60071

sub93568-54516

main58901-60280-B0iFZJ105,HZJ105..RHD..STD199801-200008

SHADOW GRAY,TRIM1#

sub58081-60011

sub58905-60071

sub93568-54516

main58901-60280-B1iFZJ105,HDJ100,HZJ105,UZJ100..RHD..(GX,VX)199801-200208

MD.GRAY,TRIM1#

sub58081-60011

sub58905-60071

sub93568-54516

main58901-60290-A0iHDJ100,UZJ100..RHD..(EFI,TD2)199801-200208

LEATHER PACKAGE,IVORY,TRIM4#

main58901-60290-B0iHDJ100,UZJ100..RHD..(EFI,TD2)199801-200208

LEATHER PACKAGE,MD.GRAY,TRIM1#

main58901-60300-A0iUZJ100..ARL199801-200208

W(CD AUTO CHANGER),IVORY,TRIM4#

main58901-60300-B0iHDJ100,UZJ100..RHD..VX199801-200208

W(CD AUTO CHANGER),MD.GRAY,TRIM1#

main58901-60310-A0iUZJ100..ARL199801-200208

LEATHER PACKAGE & W(CD AUTO CHANGER),IVORY,TRIM4#

main58901-60310-B0iHDJ100,UZJ100..RHD..(EFI,TD2)199801-200208

LEATHER PACKAGE & W(CD AUTO CHANGER),MD.GRAY,TRIM1#

main58901-60330-A0iHDJ100..LHD..LUB;FZJ10#,HZJ105,UZJ100..LHD..(GX,VX)199801-200208

IVORY,TRIM4#

sub58081-60031

sub58905-60071

sub93568-54516

main58901-60330-B0iFZJ10#,HZJ105..LHD..STD199801-200008

SHADOW GRAY,TRIM1#

sub58081-60031

sub58905-60071

sub93568-54516

main58901-60330-B1iHDJ100..LHD..LUB;FZJ10#,HZJ105,UZJ100..LHD..(GX,VX)199801-200208

MD.GRAY,TRIM1#

sub58081-60031

sub58905-60071

sub93568-54516

main58901-60340-A0iUZJ100..LHD;HDJ100..LHD..LUB199801-200208

LEATHER PACKAGE,IVORY,TRIM4#

main58901-60340-B0iUZJ100..LHD;HDJ100..LHD..LUB199801-200208

LEATHER PACKAGE,MD.GRAY,TRIM1#

58902CBRACKET SUB-ASSY, CONSOLE BOX MOUNTING

main58902-60030iFZJ105,HDJ100,HZJ105,UZJ100..RHD199801-200505

main58902-60050iHDJ100..LHD..LUB;FZJ10#,HZJ105,UZJ100..LHD..(GCC,GEN)199801-200506

58903APANEL SUB-ASSY, CONSOLE REAR END

main58903-60010-A0iFZJ10#,HZJ105..GX199801-200208

IVORY,TRIM4#

sub58903-60010

main58903-60010-A0iUZJ100;HDJ100..LUB..GEN199801-200208

IVORY,TRIM40,41

sub58903-60010

main58903-60010-A1iHDJ100..LUB;FZJ10#,HZJ105,UZJ100..(GX,VX)..(ARL,GCC,GEN)200208-200505

IVORY,TRIM0#

sub58903-60010

main58903-60010-B0iFZJ10#,HZJ105..STD199801-200008

SHADOW GRAY,TRIM1#

sub58903-60010

main58903-60010-B1iFZJ10#,HDJ100,HZJ105,UZJ100199801-200208

MD.GRAY,TRIM1#

sub58903-60010

main58903-60010-B2iHDJ100..LUB;FZJ10#,HZJ105,UZJ100..ARL,GCC,GEN200208-200505

STONE,TRIM1#

sub58903-60010

58905DOOR SUB-ASSY, CONSOLE COMPARTMENT

main58905-60070-A0iUZJ100;HDJ100..LUB..GEN199801-200208

IVORY,TRIM4#

sub58905-60071

main58905-60070-A0iUZJ100;HDJ100..LUB199801-200208

IVORY,TRIM40,41

sub58905-60071

main58905-60070-A1iHDJ100..LUB;FZJ10#,HZJ105,UZJ100..GX,VX200208-200212

IVORY,TRIM0#

sub58905-60071

main58905-60070-B0iFZJ10#,HZJ105..STD199801-200008

SHADOW GRAY,TRIM1#

sub58905-60071

main58905-60070-B1iFZJ10#,HDJ100,HZJ105,UZJ100..GX,VX199801-200208

MD.GRAY,TRIM1#

sub58905-60071

main58905-60070-B2iHDJ100..LUB;FZJ10#,HZJ105,UZJ100200208-200212

STONE,TRIM1#

sub58905-60071

main58905-60071-A1iHDJ100..LUB..5F;HDJ100,UZJ100..5FC..GX..ARL;HDJ100,UZJ100..5FC..(GCC,GEN);FZJ10#,HZJ105,UZJ100..(4FC,5F)..(GX,VX)..(ARL,GCC,GEN)200212-200505

IVORY,TRIM0#

main58905-60071-B2iHDJ100..LUB;FZJ10#,HZJ105,UZJ100..ARL,GCC,GEN200212-200505

STONE,TRIM1#

main58905-60080-A0iUZJ100;HDJ100..LUB..GEN199801-200208

LEATHER PACKAGE,IVORY,TRIM40,41

sub58905-60081

main58905-60080-A1iUZJ100..VX;FZJ100..LUB..5F;HDJ100..LUB..VX200208-200212

LEATHER PACKAGE,IVORY,TRIM0#

sub58905-60081

main58905-60080-B0iUZJ100;HDJ100..LUB..GEN199801-200208

LEATHER PACKAGE,MD.GRAY,TRIM1#

sub58905-60081

main58905-60080-B1iUZJ100..VX;FZJ100..LUB..5F;HDJ100..LUB..VX200208-200212

LEATHER PACKAGE,STONE,TRIM1#

sub58905-60081

main58905-60081-A1iHDJ100..LUB..VX;UZJ100..VX..(ARL,GCC,GEN)200505

LEATHER,IVORY,TRIM0#

sub58905-60081

main58905-60081-A1iHDJ100..LUB..VX;FZJ100..LUB..5F..GCC;UZJ100..VX..(ARL,GCC,GEN)200212-200505

LEATHER PACKAGE,IVORY,TRIM0#

sub58905-60081

main58905-60081-A1iHDJ100,UZJ100..5FC..GX..ARL200602-200607

SPECIAL EDITION(AUSTRALIA),IVORY,TRIM0#

sub58905-60081

main58905-60081-B1iHDJ100,UZJ100..5FC..GX..ARL200212-200505

LEATHER PACKAGE,STONE,TRIM1#

sub58905-60081

main58905-60081-B1iHDJ100,UZJ100..5FC..GX..ARL200602-200607

SPECIAL EDITION(AUSTRALIA),STONE,TRIM1#

sub58905-60081

main58905-60081-B1iHDJ100..LUB..VX;FZJ100..LUB..5F..GCC;UZJ100..VX..(ARL,GCC,GEN)200505

LEATHER,STONE,TRIM1#

sub58905-60081

58907HINGE SUB-ASSY, CONSOLE COMPARTMENT DOOR

main58907-60040iHDJ100..LUB;FZJ10#,HZJ105,UZJ100199801-200212

main58907-60041iHDJ100..LUB;FZJ10#,HZJ105,UZJ100..ARL,GCC,GEN200212-200505

58908ALOCK SUB-ASSY, CONSOLE COMPARTMENT DOOR

main58908-32050iHDJ100..LUB;FZJ10#,HZJ105,UZJ100199801-200505

58911BPANEL, BOX, NO.1

main58911-60080-A0iHDJ100,UZJ100..RHD..(EFI,TD2)199801-200208

IVORY,TRIM40,41

sub58911-60080

main58911-60080-A0iHDJ100,UZJ100..RHD..(EFI,TD2)199801-200208

IVORY,TRIM4#

sub58911-60080

main58911-60080-A1iFZJ105,HDJ100,HZJ105,UZJ100..RHD..(GX,VX)200208-200505

IVORY,TRIM0#

sub58911-60080

main58911-60080-B0iFZJ105,HZJ105..RHD..STD199801-200008

SHADOW GRAY,TRIM1#

sub58911-60080

main58911-60080-B1iFZJ105,HDJ100,HZJ105..RHD199801-200208

MD.GRAY,TRIM1#

sub58911-60080

main58911-60080-B2iFZJ105,HDJ100,HZJ105,UZJ100..RHD200208-200505

STONE,TRIM1#

sub58911-60080

main58911-60090-A0iHDJ100..SOB;FZJ10#,HZJ105..LHD..GX199801-200208

IVORY,TRIM4#

main58911-60090-A0iUZJ100..LHD;HDJ100..LHD..LUB199801-200208

IVORY,TRIM40,41

main58911-60090-A1iHDJ100..LHD..LUB;FZJ10#,HZJ105,UZJ100..LHD..(GX,VX)..(GCC,GEN)200208-200505

IVORY,TRIM0#

main58911-60090-B0iFZJ10#,HZJ105..LHD..STD199801-200008

SHADOW GRAY,TRIM1#

main58911-60090-B1iHDJ100..LHD..LUB;FZJ10#,HZJ105,UZJ100..LHD..(GX,VX)199801-200208

MD.GRAY,TRIM1#

main58911-60090-B2iHDJ100..LHD..LUB;FZJ10#,HZJ105,UZJ100..LHD..(GCC,GEN)200208-200505

STONE,TRIM1#

58912BOX, REAR CONSOLE, NO.2

main58912-60020iFZJ105,HDJ100,HZJ105,UZJ100..RHD199801-200505

main58912-60030iUZJ100..ARL199801-200208

W(CD AUTO CHANGER)

sub58912-60031

main58912-60031iHDJ100..RHD..GEN200208-200505

W(CD AUTO CHANGER)

main58912-60040iHDJ100..LHD..LUB;FZJ10#,HZJ105,UZJ100..LHD..(GCC,GEN)199801-200505

main58912-60060iUZJ100..GCC,GEN;HDJ100..LHD..LUB;FZJ100,HZJ105..GX..GCC199801-200505

W(CD AUTO CHANGER)

58919BPLATE, CONSOLE BOX

main58919-60020iHDJ100..LUB;FZJ10#,HZJ105,UZJ100..ARL,GCC,GEN199801-200505

main58919-60030iUZJ100..GCC,GEN;HDJ100..LUB..GEN;FZJ100,HZJ105..GX..GCC199801-200505

W(CD AUTO CHANGER)

main58919-60040iUZJ100..ARL199801-199905

W(CD AUTO CHANGER)

sub58919-60030

58923APANEL, CONSOLE REAR END

main58903-60010-A0iHDJ100..LUB..GEN;FZJ10#,HZJ105,UZJ100..GX,VX199801-200208

IVORY,TRIM4#

sub58903-60010

main58903-60010-B0iFZJ10#,HZJ105..STD199801-200208

SHADOW GRAY,TRIM1#

sub58903-60010

main58903-60010-B1iHDJ100..LUB..GEN;FZJ10#,HZJ105,UZJ100..GX,VX199801-200208

MD.GRAY,TRIM1#

sub58903-60010

main58923-60020iHDJ100,UZJ100..RHD199801-200505

W(CAPTAIN SEAT)

main58923-60020iHDJ100..ARL200008-200208

main58923-60030iHDJ100..LHD..LUB;FZJ10#,HZJ105,UZJ100..LHD199801-200505

58941ACOVER, PARKING BRAKE HOLE

main58941-60030iFZJ105,HDJ100,HZJ105,UZJ100..RHD199801-200505

main58941-60040iHDJ100..LHD..LUB;FZJ10#,HZJ105,UZJ100..LHD..(GCC,GEN)199801-200505

58985RETAINER, CONSOLE BOX

main58985-60060iHDJ100..LUB;FZJ10#,HZJ105,UZJ100..ARL,GCC,GEN199902-200505

58993BRACKET, CONSOLE BOX MOUNTING, REAR

main58993-60030iFZJ10#,HDJ100,HZJ105,UZJ100199801-200505

main58993-60040iUZJ100199801-199803

W(CD AUTO CHANGER)

sub58993-60030

9015950098

main90159-50098

9015950105

main90159-50105

9016440080

main90164-40080

9016445013

main90164-45013

9026903041

main90269-03041

9046804157

main90468-04157

9054103078

main90541-03078

9054105080

main90541-05080

91635G0618

main91635-G0618

9356014014

main93560-14014

9356715014

main93567-15014

9356754514

main93567-54514

9356754516

main93567-54516

9356814512

main93568-14512

44 parts on this diagram · 2 diagrams in section
